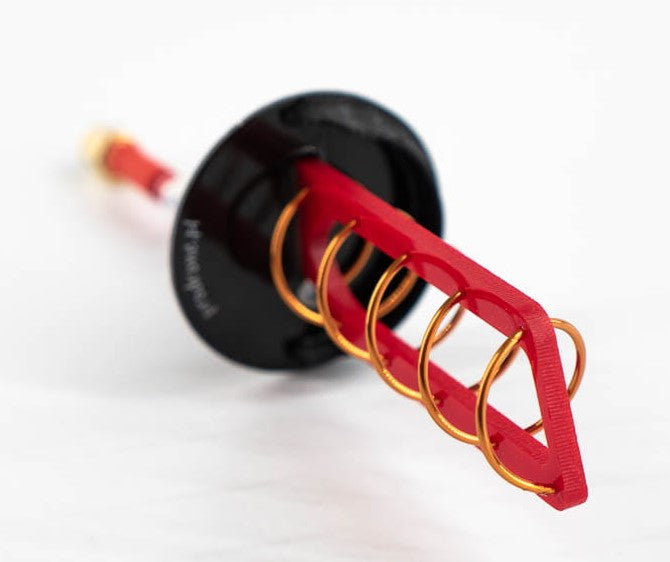

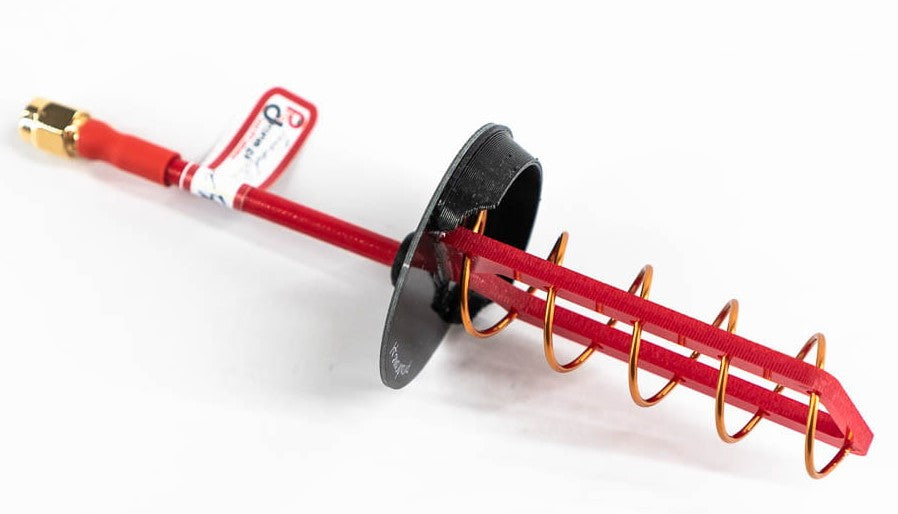

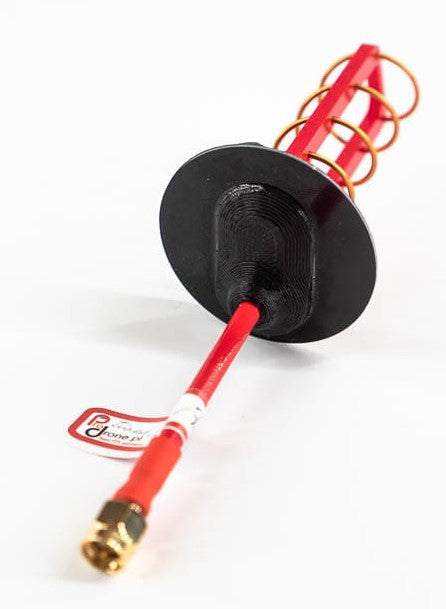

Antenna Prodrone PRO Helical 5 Turn 5.8 GHz SMA RHCP The Prodrone PRO Helical 5 Turn 5.8GHz SMA RHCP Antenna is a high performance directional FPV antenna designed for excellent signal reception and longer range. With a gain of 10 dBi, it provides excellent signal strength while maintaining a wide beam width of 50 degrees with a peak gain that extends up to 120 degrees at shorter distances, making it highly versatile for FPV applications. This antenna is made of high quality semi-rigid RG402 cable that retains its shape after bending and allows for easy placement on FPV goggles or ground stations. Unlike cheaper alternatives, it delivers premium signal quality and durability, making it an excellent choice for pilots looking for a stable connection with long range. Specifications: Bandwidth: 5630-5980 MHz Beam width: 50 degrees - highest gain, 120 degrees - with lower gain Gain: 10 dBi Reflector diameter: ~45 mm Cable length: ~5 cm Antenna wire: 1.2mm enamelled pure copper Number of threads: 5 Polarization: POLARIZATION: RHCP vSWR: less than 1.2 Maximum power: 50W Connector: SMA Antenna weight: ~15 g The package contains: 1 x Prodrone PRO Helical 5 Turn 5.8GHz SMA RHCP Antenna
