Code: SKU:11194

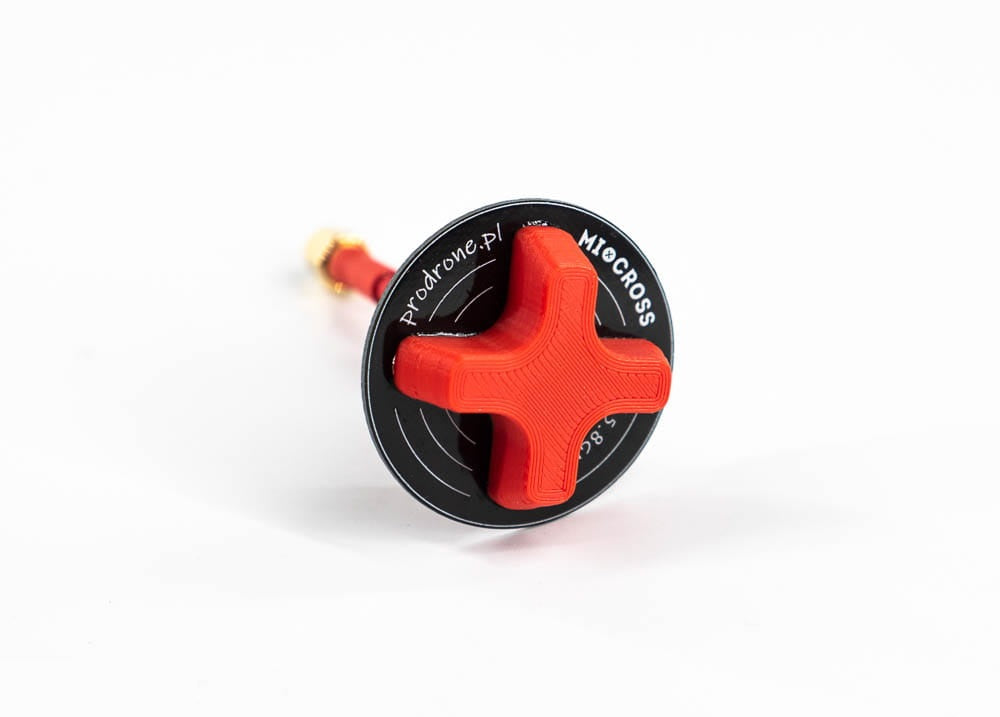

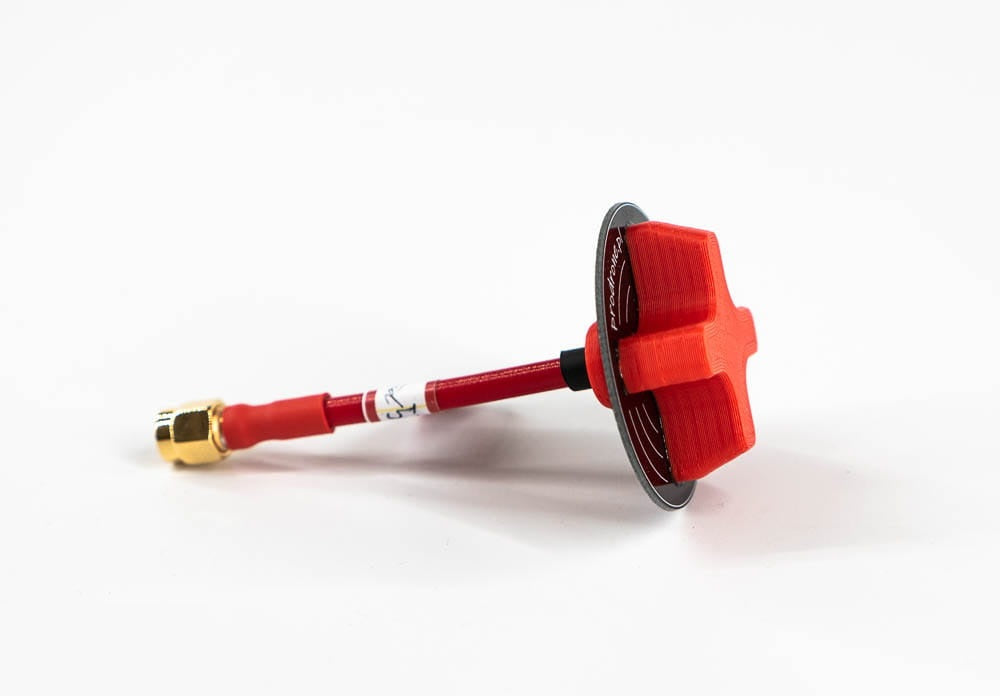

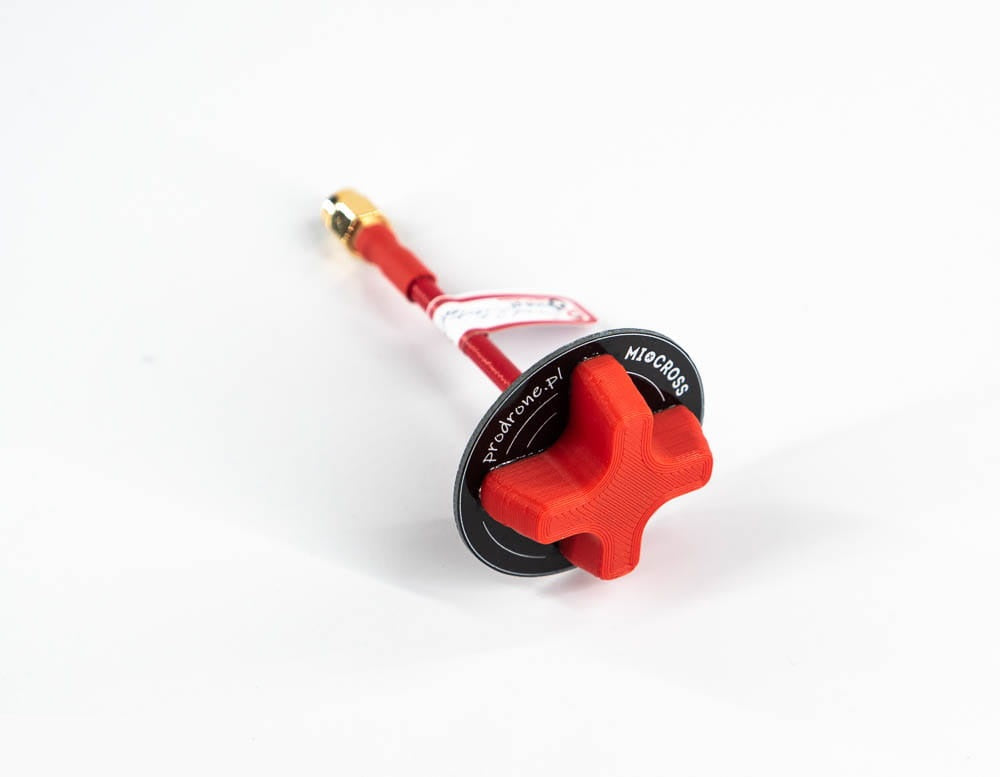

Antenna Prodrone Mi-Cross V2 5.8Ghz 9dbi
Antenna Prodrone Mi-Cross V2 5.8Ghz 9dbi
Brand: Prodrone
Regular price
€18,39
Regular price
€18,39
Sale price
€18,39
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

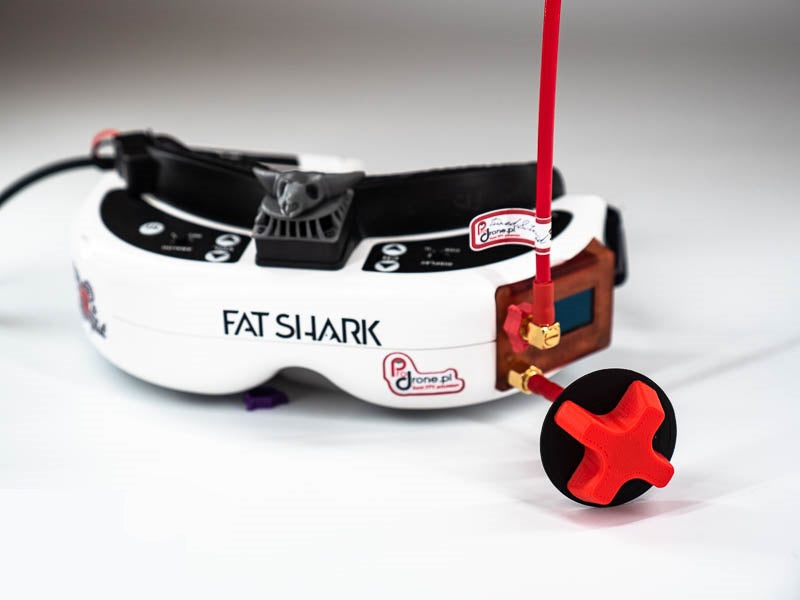

Mi-Cross antenna V2 5.8Ghz 9dbi The Mi-cross antenna was developed specifically for drone racing. VSWR is below 1:1.2 almost throughout the race band. The antenna is equipped with a shortened cable for seamless integration with glasses, capable of processing frequencies up to 18 GHz. Its semi-rigid design allows for flexible positioning without additional adapters. With a wide beam width of up to 130 degrees and a high axial ratio, the Xtreem Cross-air ensures reliable signal reception even behind obstacles such as bushes and trees, making it ideal for medium to long distance flying. Function: - Small form factor - Easy and quick assembly and disassembly (including thumb keys) - Low weight - only 11 g - Extremely wide beam - Compatible with all receivers (Rapidfire, True-D, True-D X, Pro58, RX5808, etc.) Specifications: Name: Mi-Cross Band: 5.8 GHz Antenna type: Directional VSWR: <1.2 Gain: 9dbi Beam width: 80 degrees (up to 140 degrees at shorter distances) Polarization: RHCP Connector type: SMA Cable length: 40 mm Total antenna length: 65 mm Antenna weight: 11.5g The package includes: 1x Mi-Cross antenna V2 5.8Ghz 9dbi
