    Code: 3950

    Antenna Partizan Triple Feed Patch Array 5.8G SMA

    Antenna Partizan Triple Feed Patch Array 5.8G SMA

    Brand: Partizan

    €19,00
    €19,00 €19,00
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

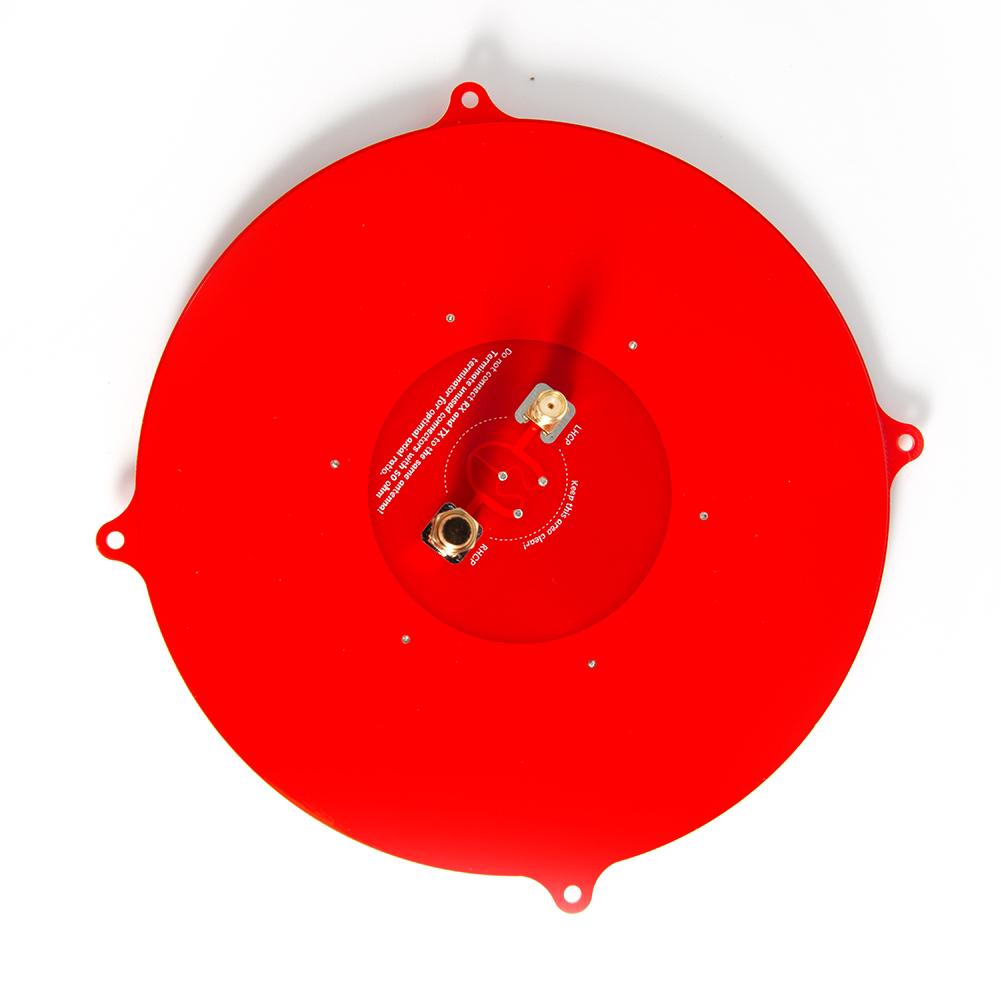

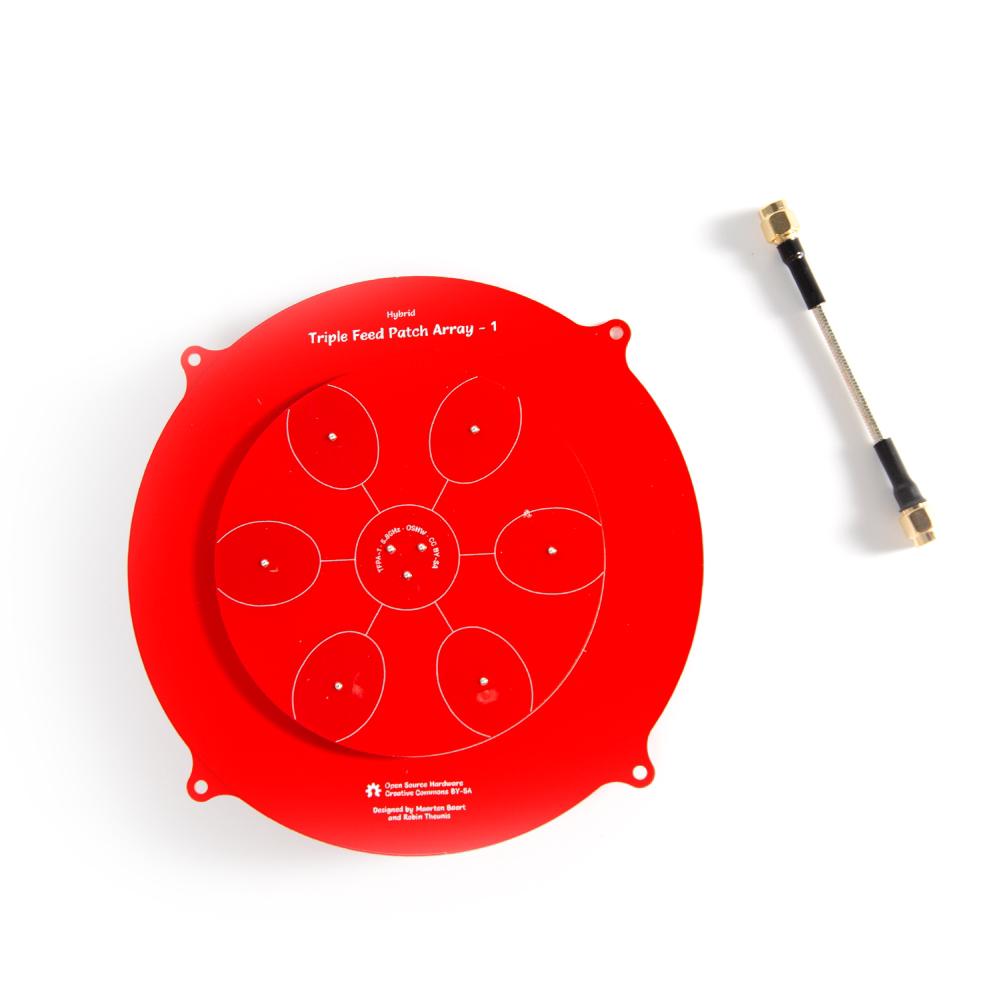

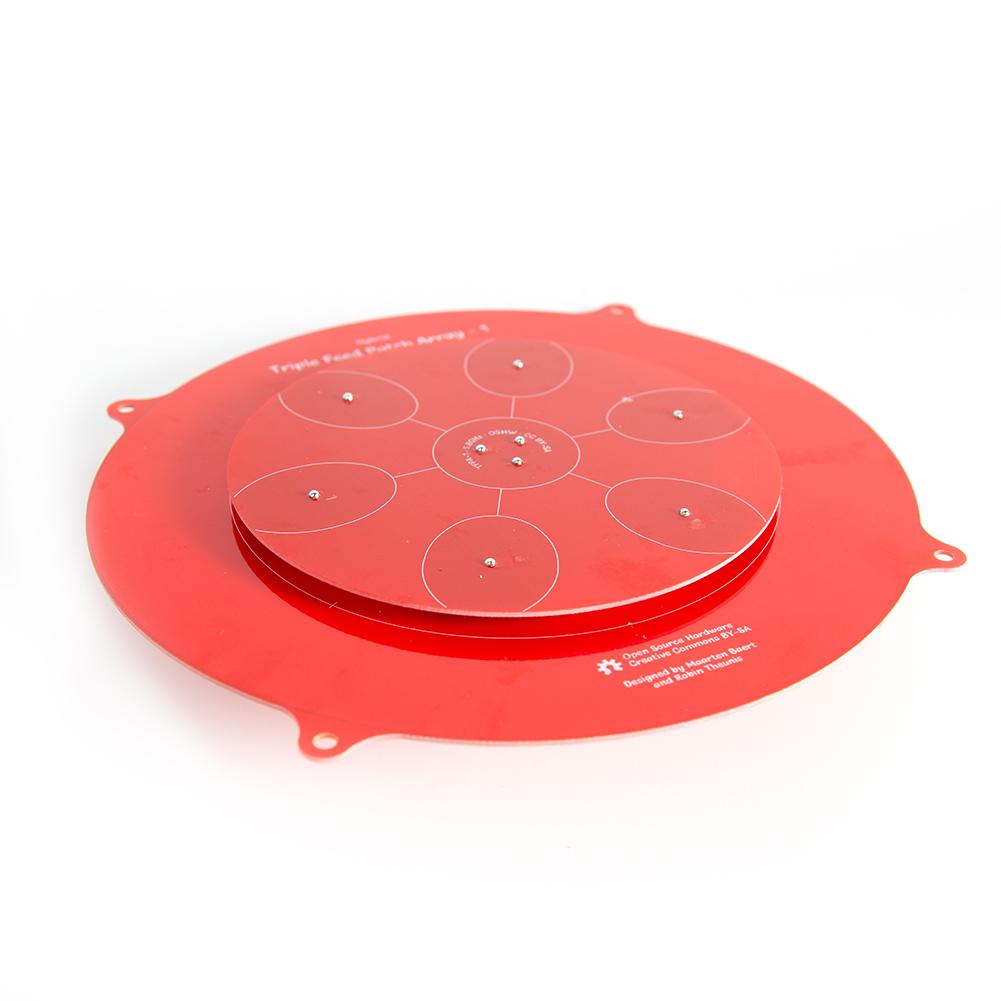

    Triple Feed Patch Array 5.8G SMA

Triple Feed Patch Array 5.8G SMA is a high performance antenna. It features a triple feed for better signal reception and transmission. Thanks to the SMA connector, it offers easy compatibility with various FPV systems.

Specifications:

Center frequency: 5.8 GHz
Bandwidth: 5.1-6 GHz

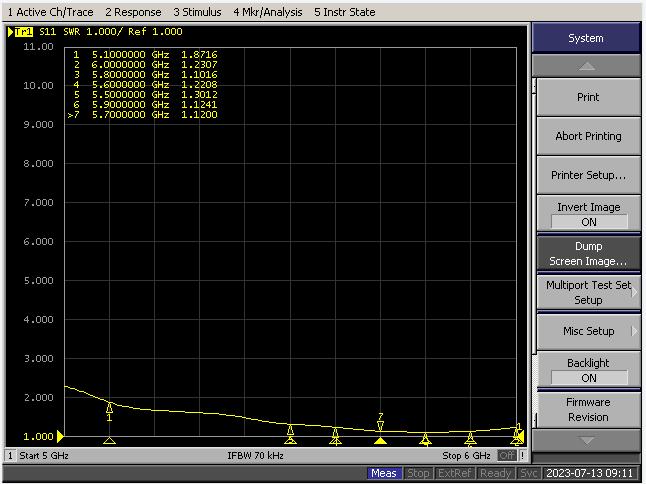

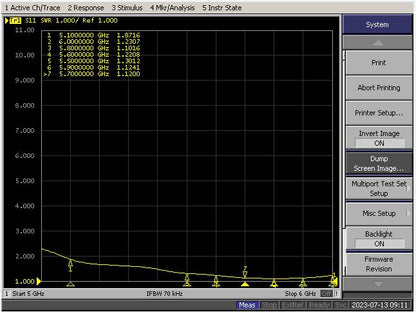

VSWR: S11 <1.22 (center frequency)
Axle ratio: 1.05
Antenna gain: 15dBi

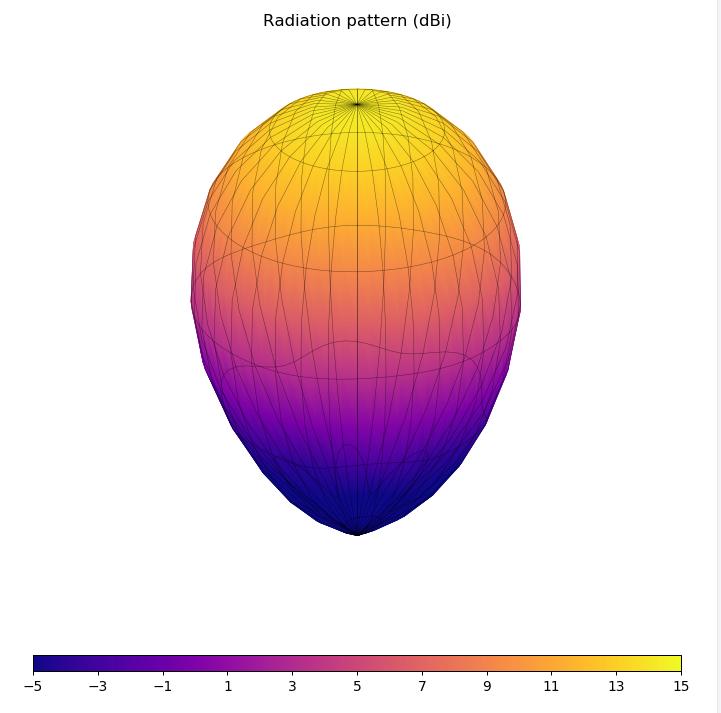

Half Power Beamwidth: 30 (horizontal and vertical)
Radiation efficiency: 75%
Size: 150 x 150 x 5 mm
Antenna connector: SMA Female

The package includes:

1x Patch antenna

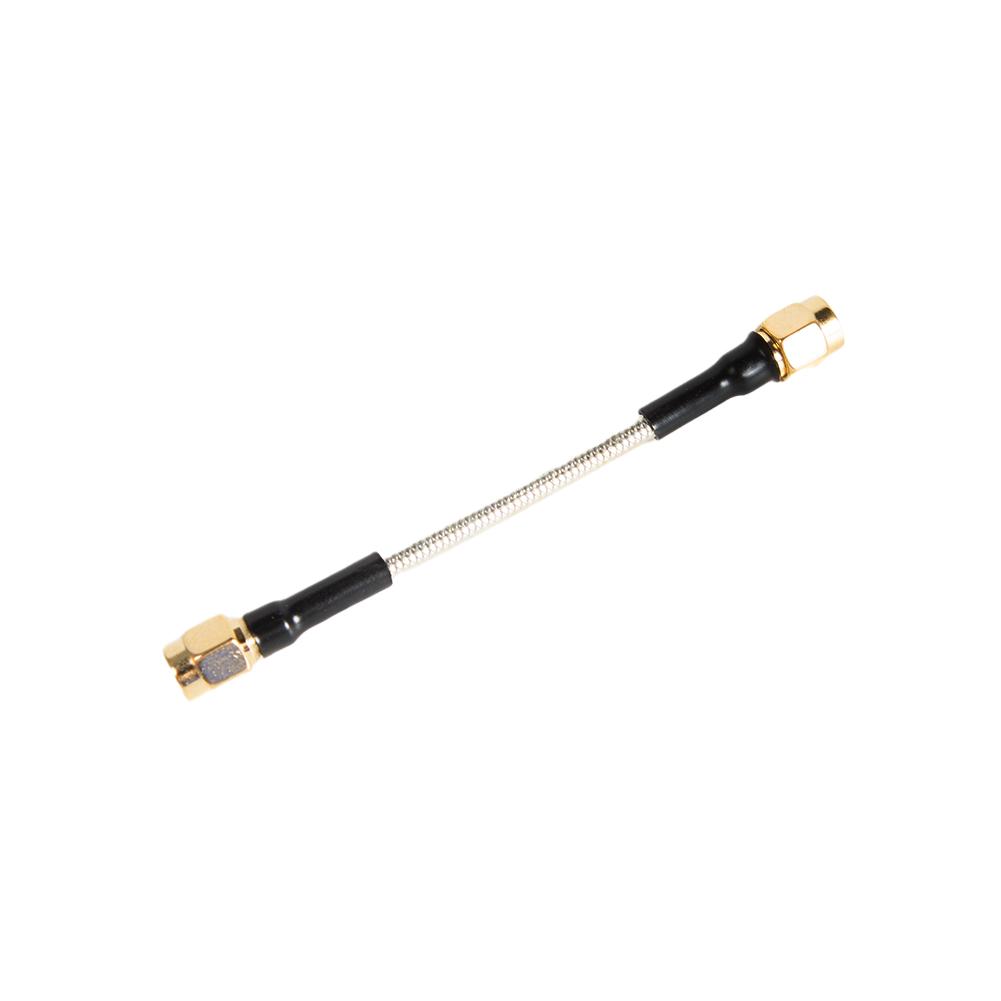

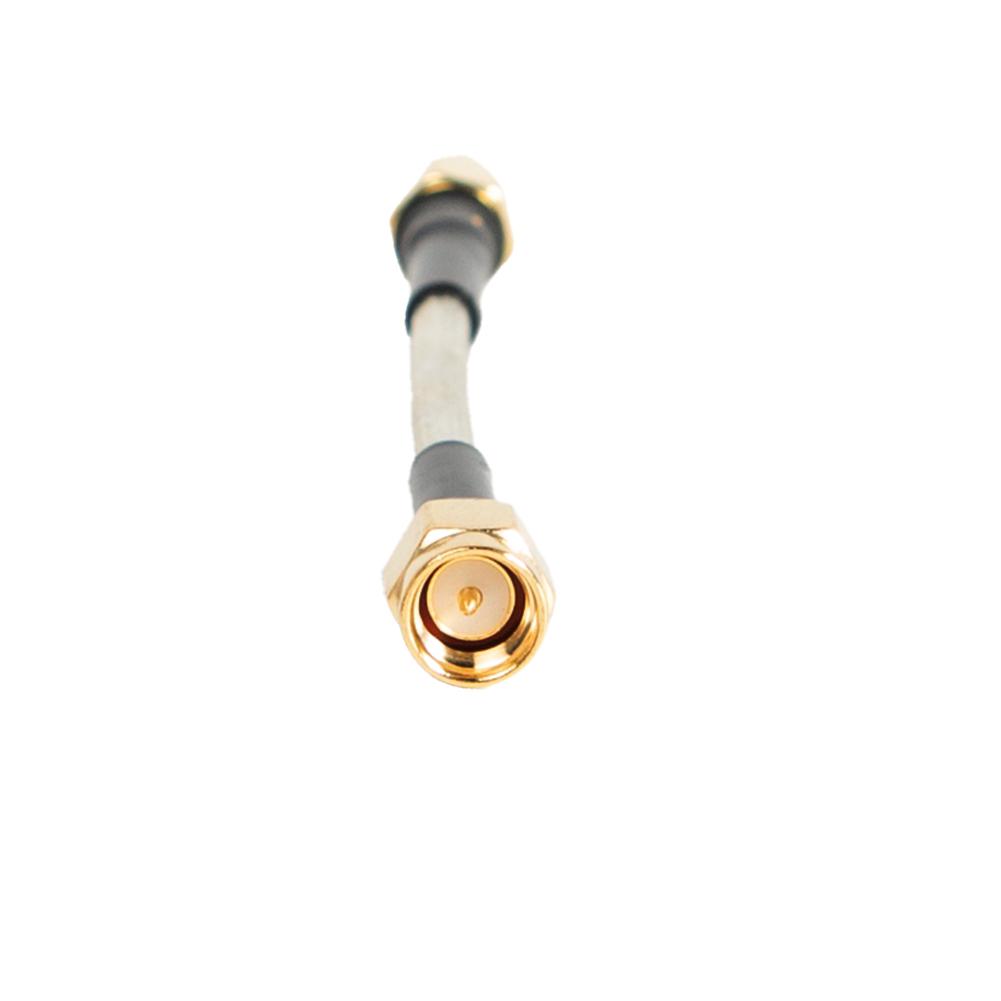

1x Cable
