    Code: 5200

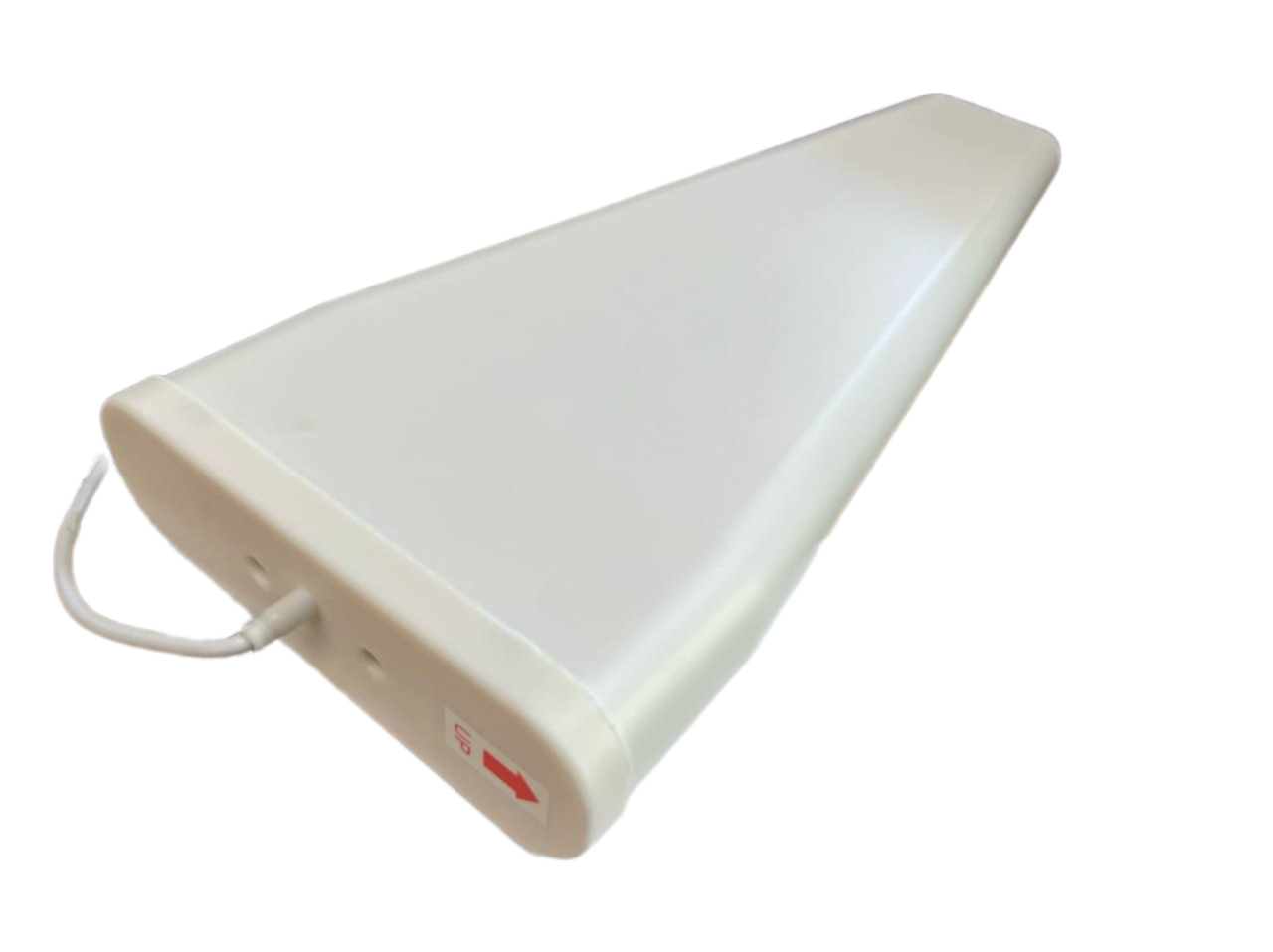

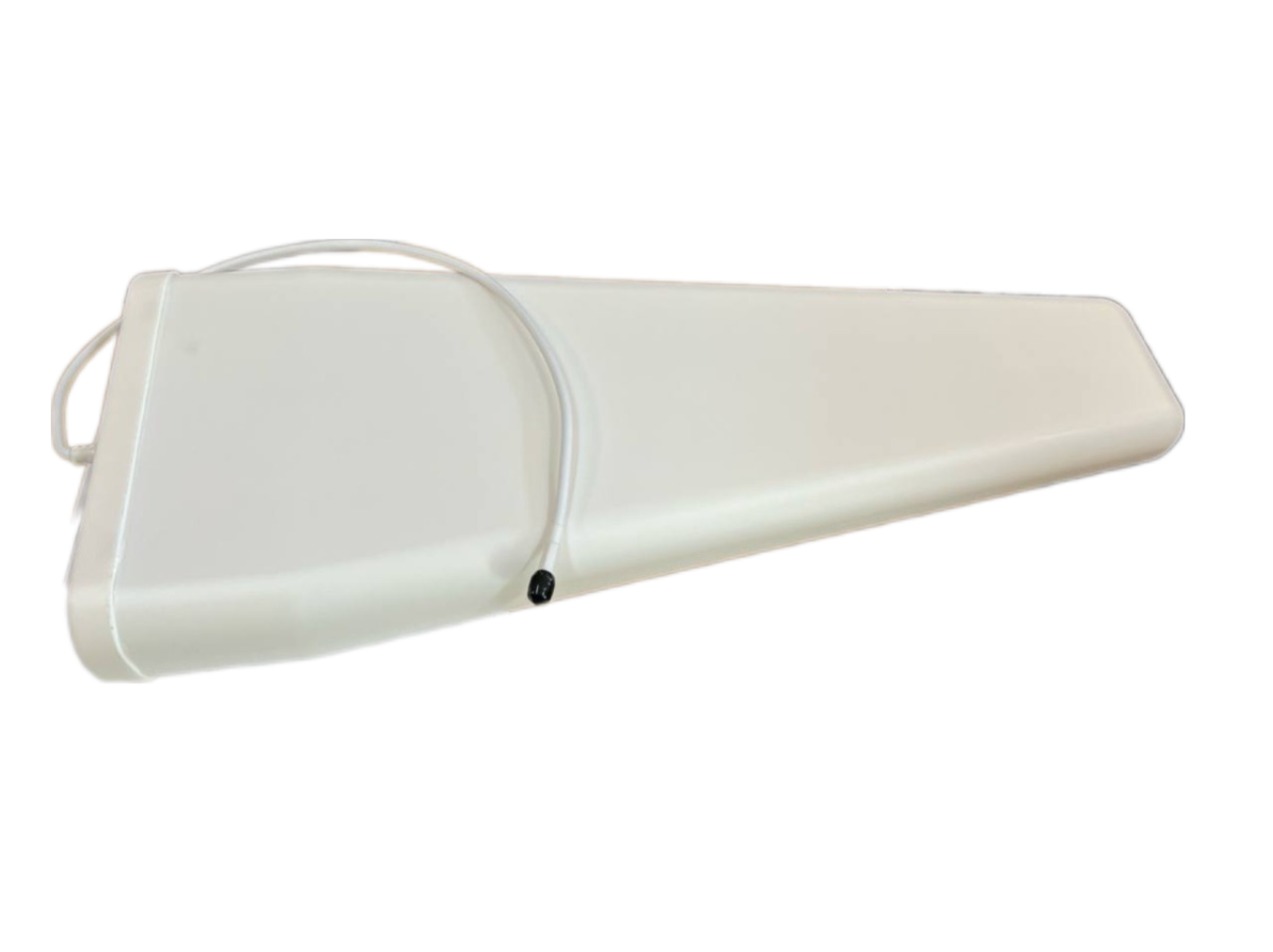

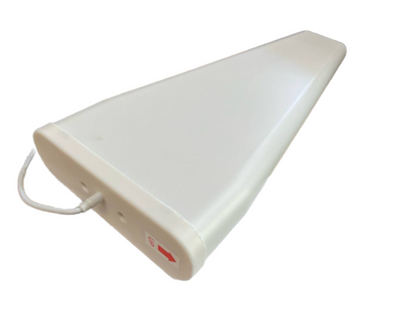

    Antenna Maple Wireless Log-Periodic SMA-MALE (700-1020MHz)

    Antenna Maple Wireless Log-Periodic SMA-MALE (700-1020MHz)

    Brand: Maple Wireless

    €79,86
    €79,86 €79,86
    -0% View Product
    Taxes included.
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

    Electric power

    • Frequency range: 700-1020 MHz
    • Impedance: 50 Ω
    • VSWR: <1.5
    • Gain: 9 dBi
    • Half beam width:
      • H-plane: 90°
      • E-plane: 60°
    • Front-to-back ratio: >20 dB
    • Maximum power: 10 W
    • Polarization: Vertical
    • Input connector: SMA
    • Protection against electrostatic discharge: Direct grounding
    • Operating temperature: -40°C to +60°C

    Mechanical properties

    • Antenna size: 510×210×60 mm
    • Net weight: 870 g
