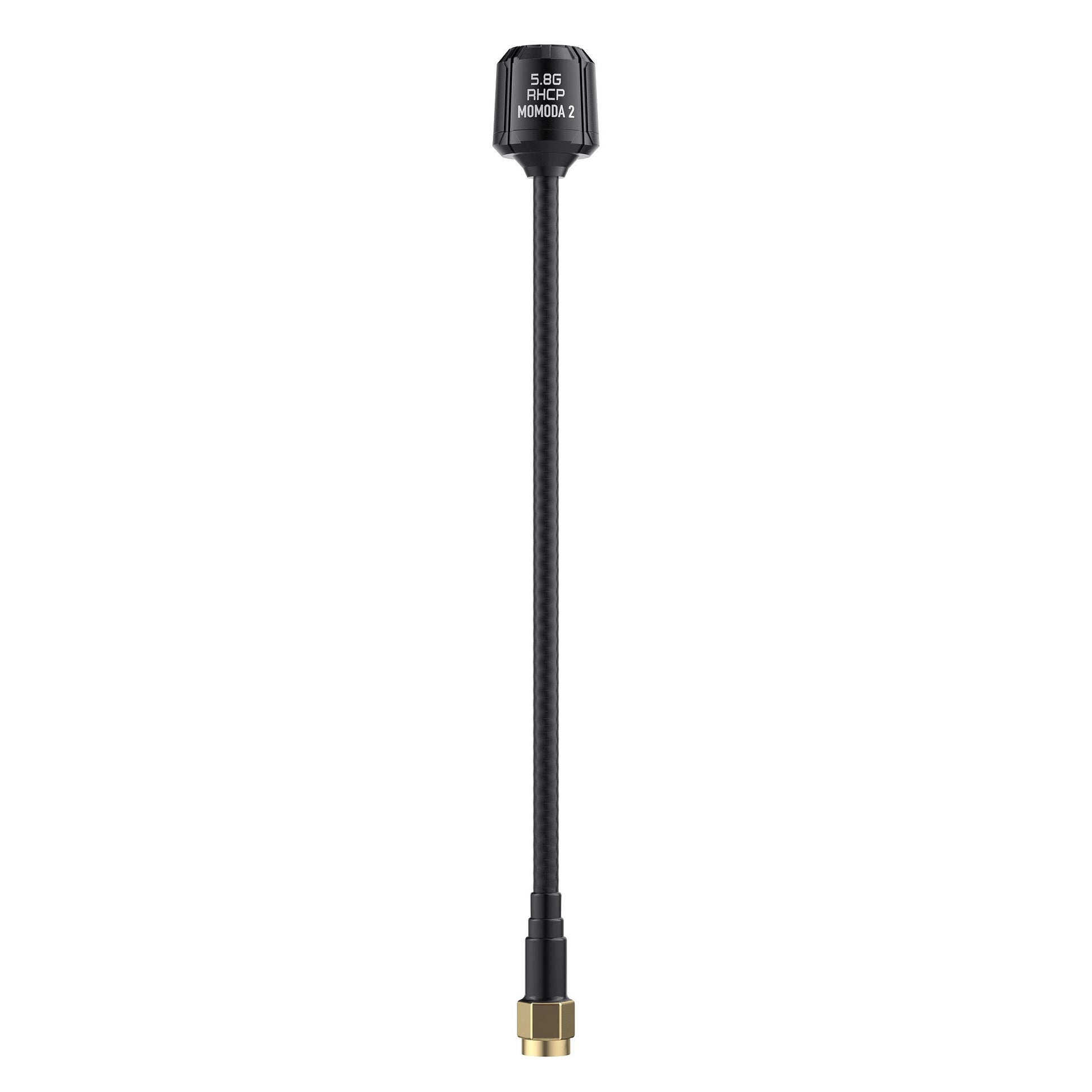

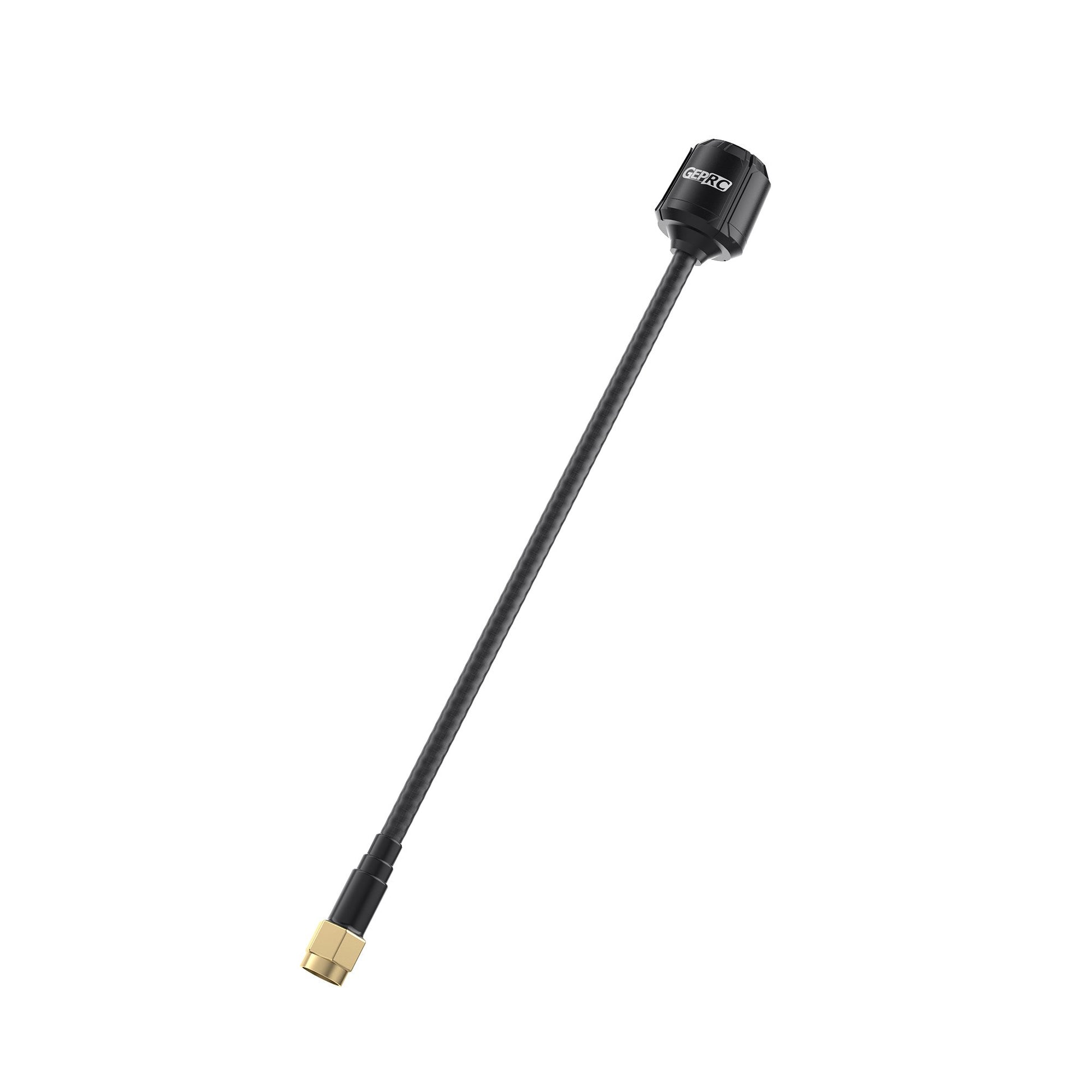

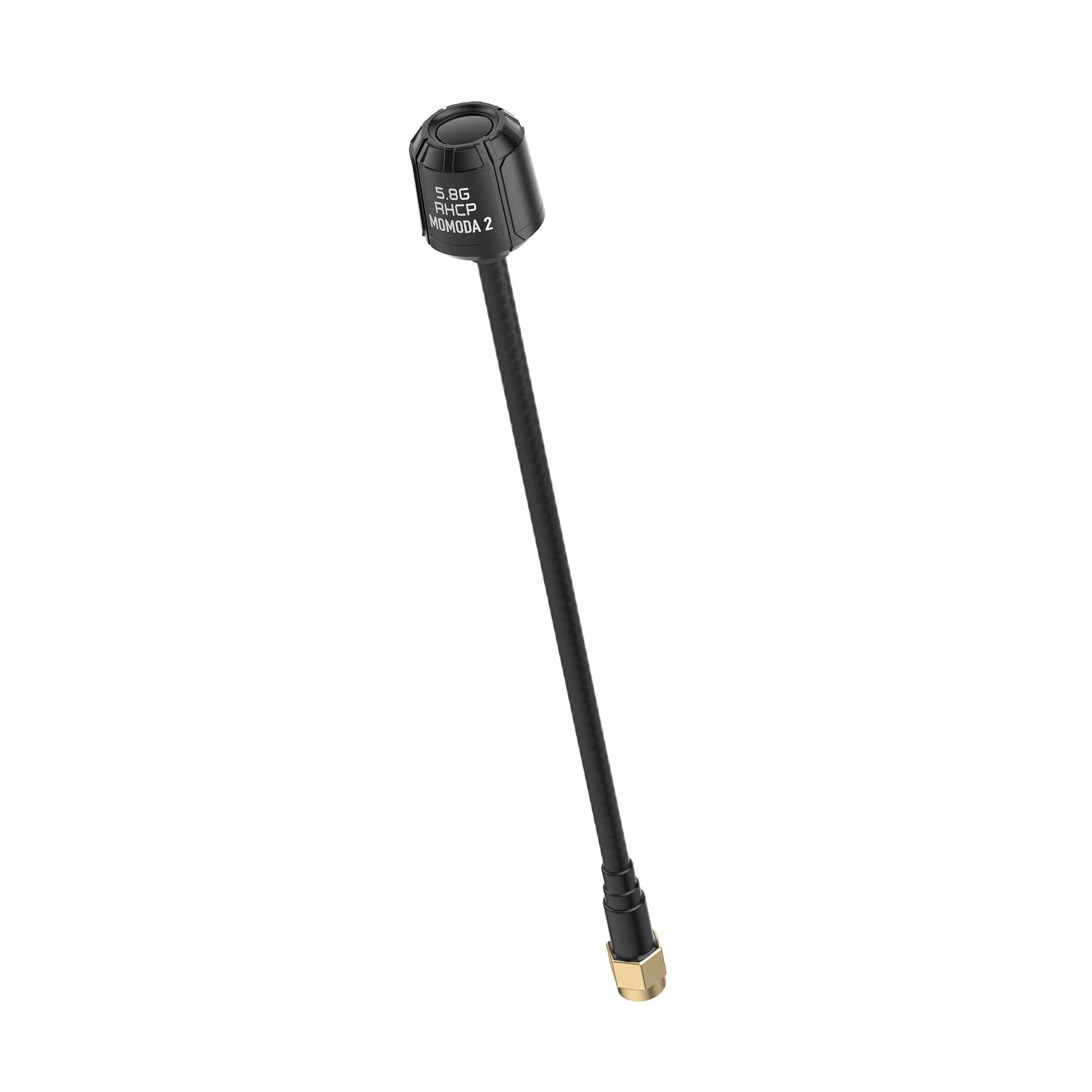

The GEPRC Momoda2 5.8G antenna uses the latest radio solution in the FPV industry, combining PCB with FPC structure to increase signal frequency consistency and minimize signal transmission power loss. It offers two polarization options, RHCP, within the 5.8 GHz frequency band.
Properties:
- Design: Sleek metal look that is attractive and modern.
- Performance: Advanced radio frequency structure effectively reduces signal transmission loss.
- Adaptability: Connectors are available in different lengths and styles for different applications.
- Quality Control: Each antenna is tested on a spectrum analyzer to meet SWR standards.
Specifications:
- Model: GEPRC Momoda2 5.8G Antenna
- Center frequency: 5.65 GHz
- Bandwidth: 5.3 GHz - 6 GHz
- Polarization: RHCP
- Gain: 2.45 dBi
- Axial Ratio: ≤3
- SWR: ≤1.43
- Radiation efficiency: 85%
- Cross polarization suppression: -25 dB
- Length: 120 mm – 170 mm
- Antenna design: FPC + PCB
- Antenna weight: 11.6 g
- Cover material: ABS
- Types of connectors: SMA
The package contains:
1x Momoda 5.8G antenna
