    Code: PA1468-LHCP

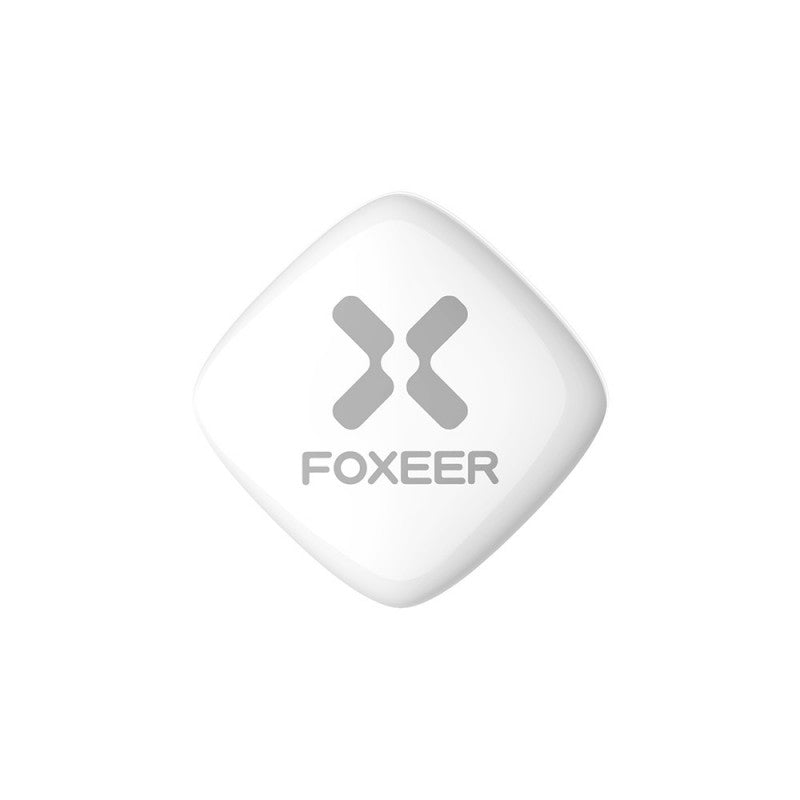

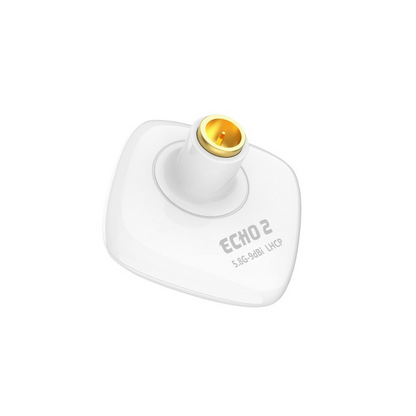

    Antenna Foxeer Echo 2 5.8G 9dBi Patch Antenna (LHCP, SMA)

    Antenna Foxeer Echo 2 5.8G 9dBi Patch Antenna (LHCP, SMA)

    Brand: Foxeer

    €18,30
    €18,30 €18,30
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    Patch antenna Echo 2 5.8G 9dBi (LHCP, SMA)

Foxeer's new Echo Patch 2 5.8G antenna with dual layer plate and 9dBi gain. It has the same size as its predecessor, but better performance.

Specifications:

Center frequency: 5.8 GHz
Gain: 9dBi
Axial ratio: Close to 1
Bandwidth: 5.5G-6GHz

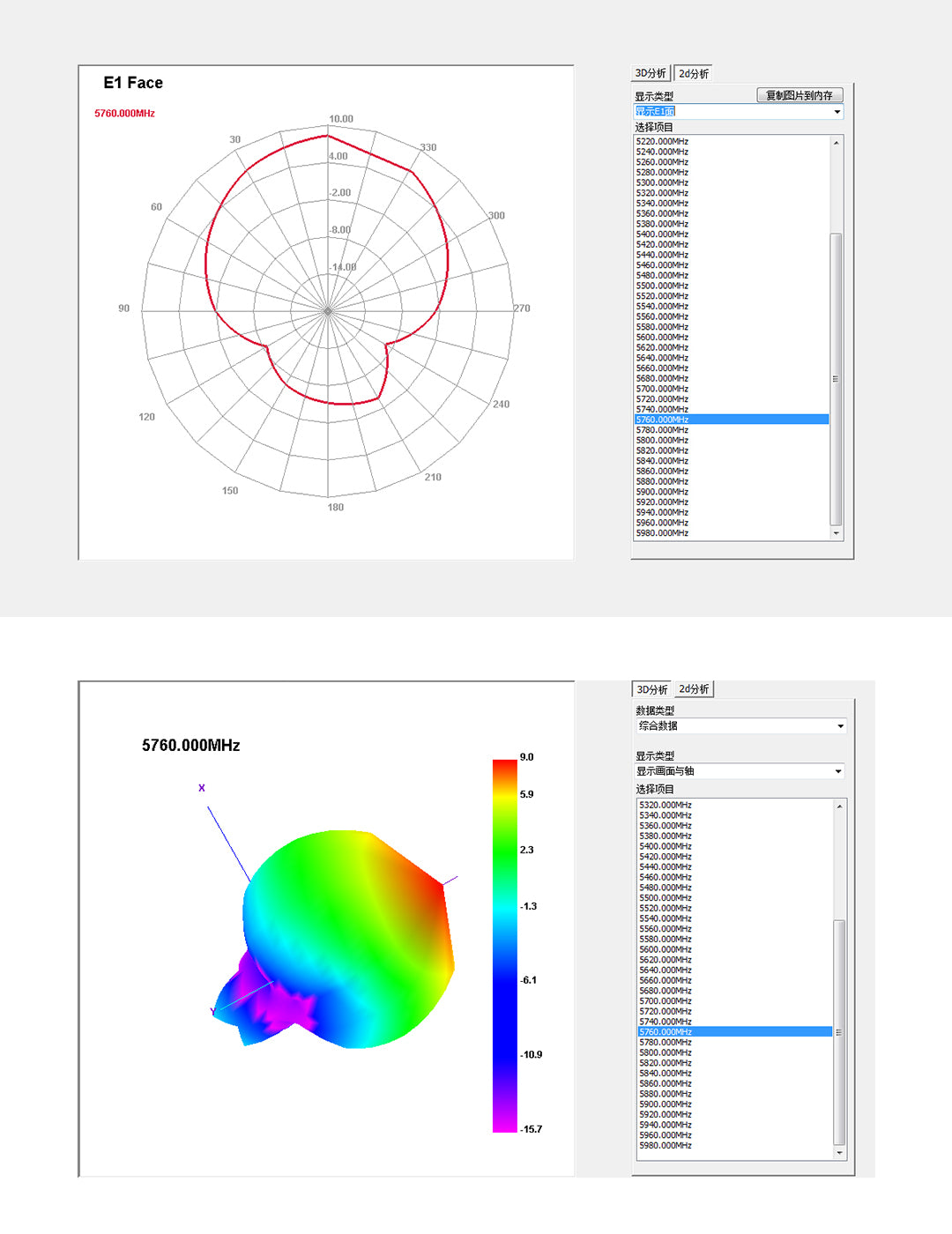

Beam angle: 84.7°
Radiation efficiency: 98%
Impedance: 50Ω

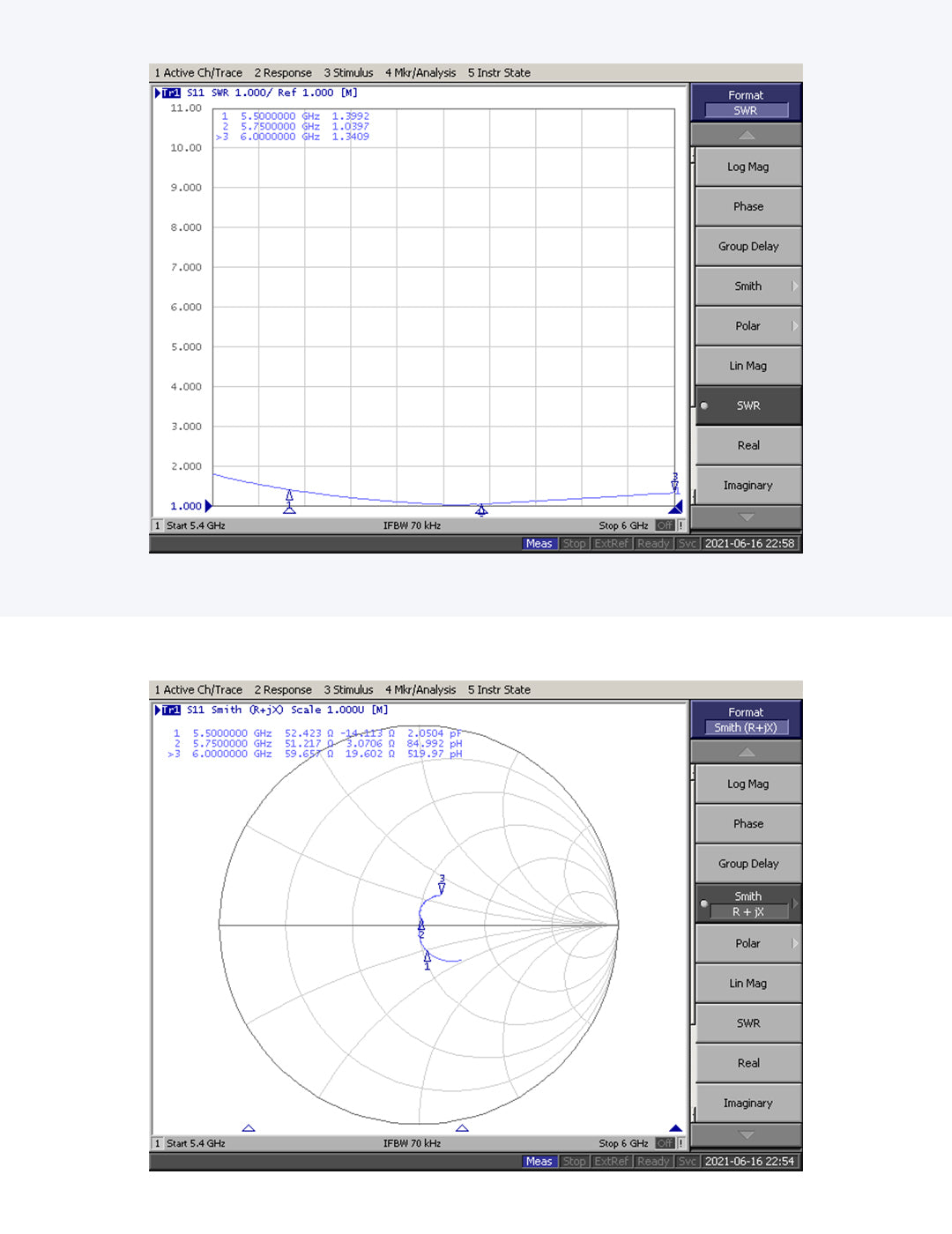

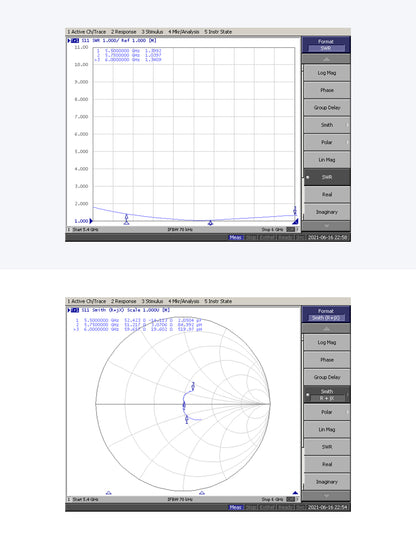

SWR: <1.25 at mid frequency
Connector: SMA

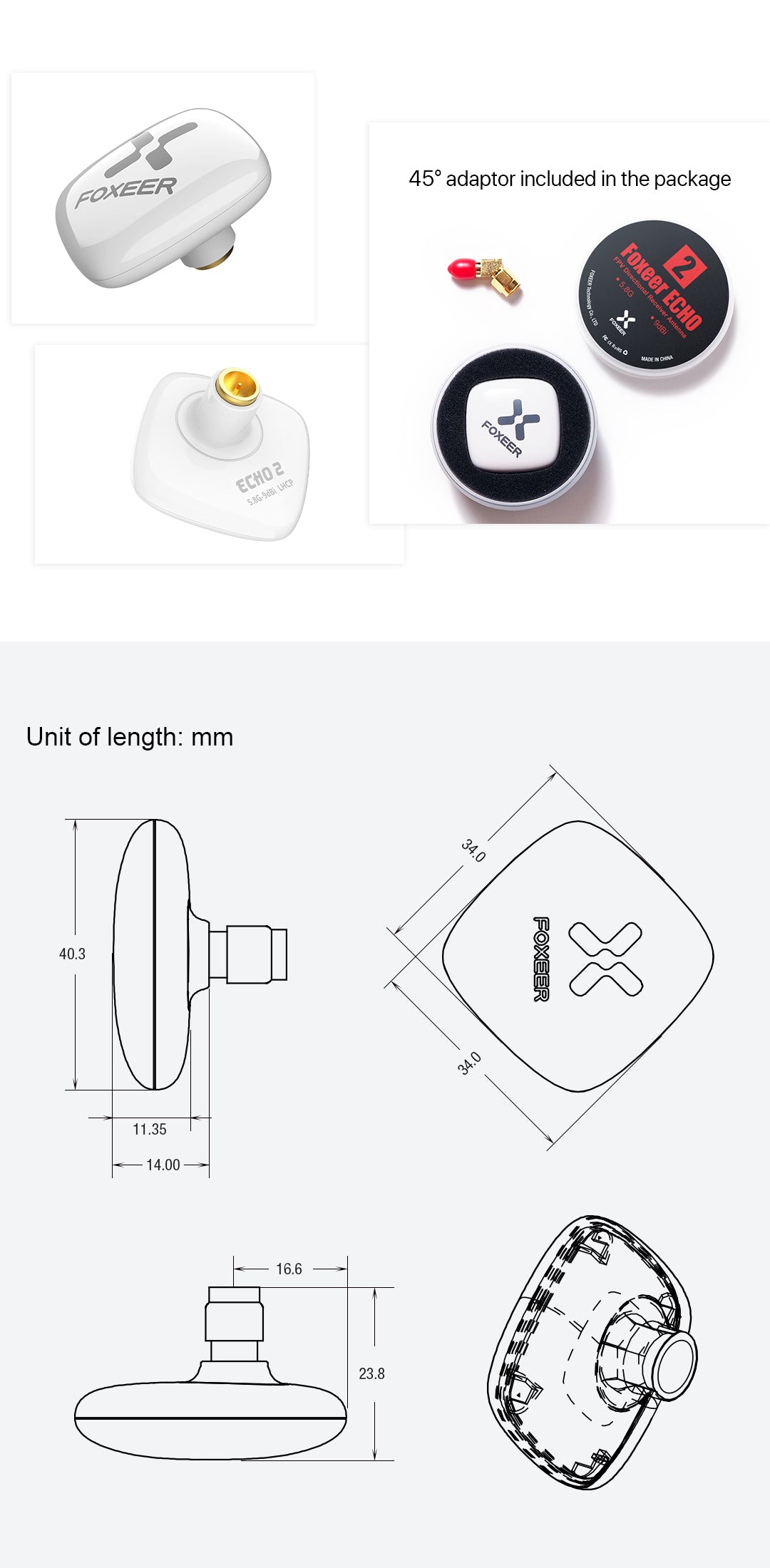

Size: 40*22 mm
Polarization: LHCP
Connector: SMA
Color white
Case material: PC
Weight: 8g

The package includes:
1x Echo Patch 2 5.8G antenna
