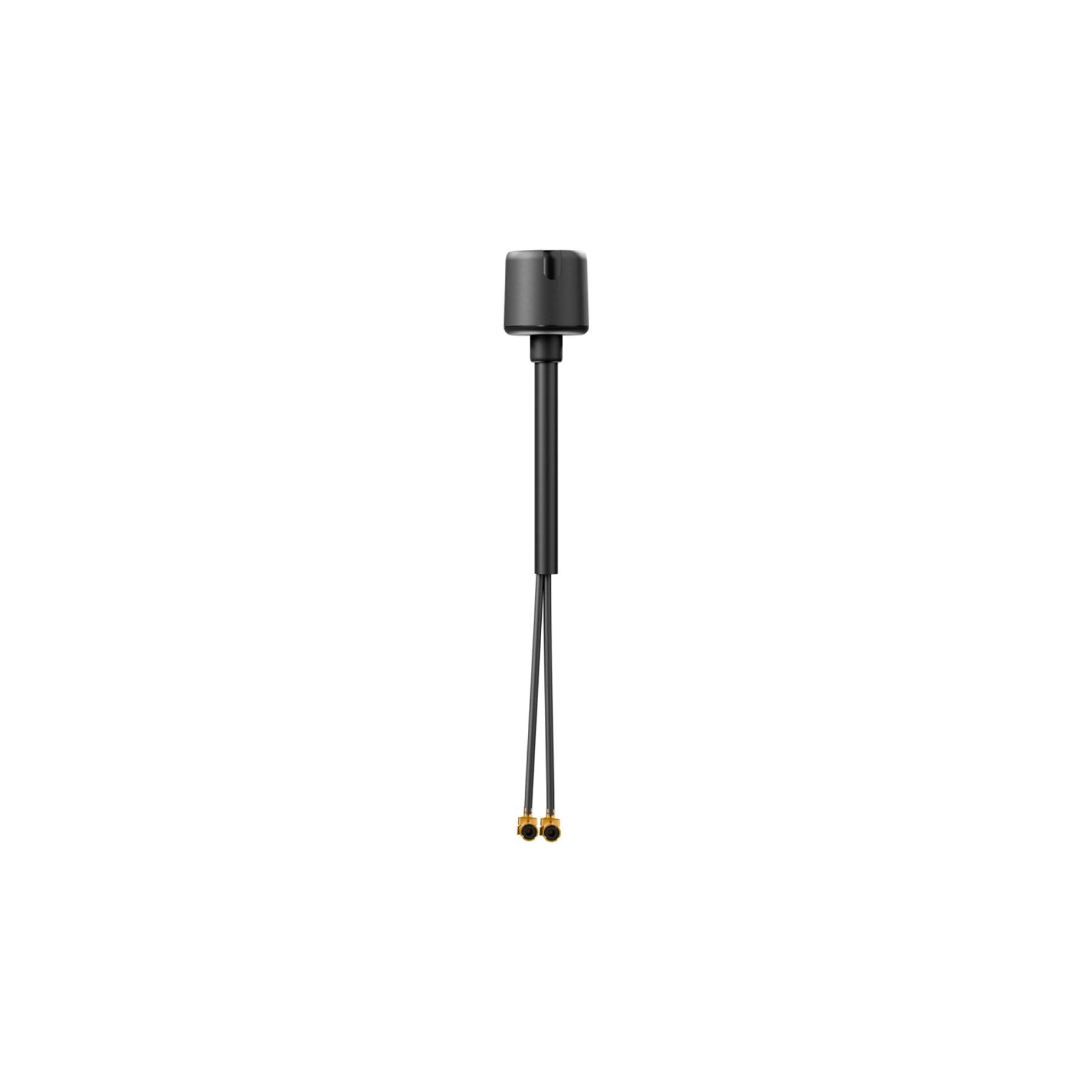

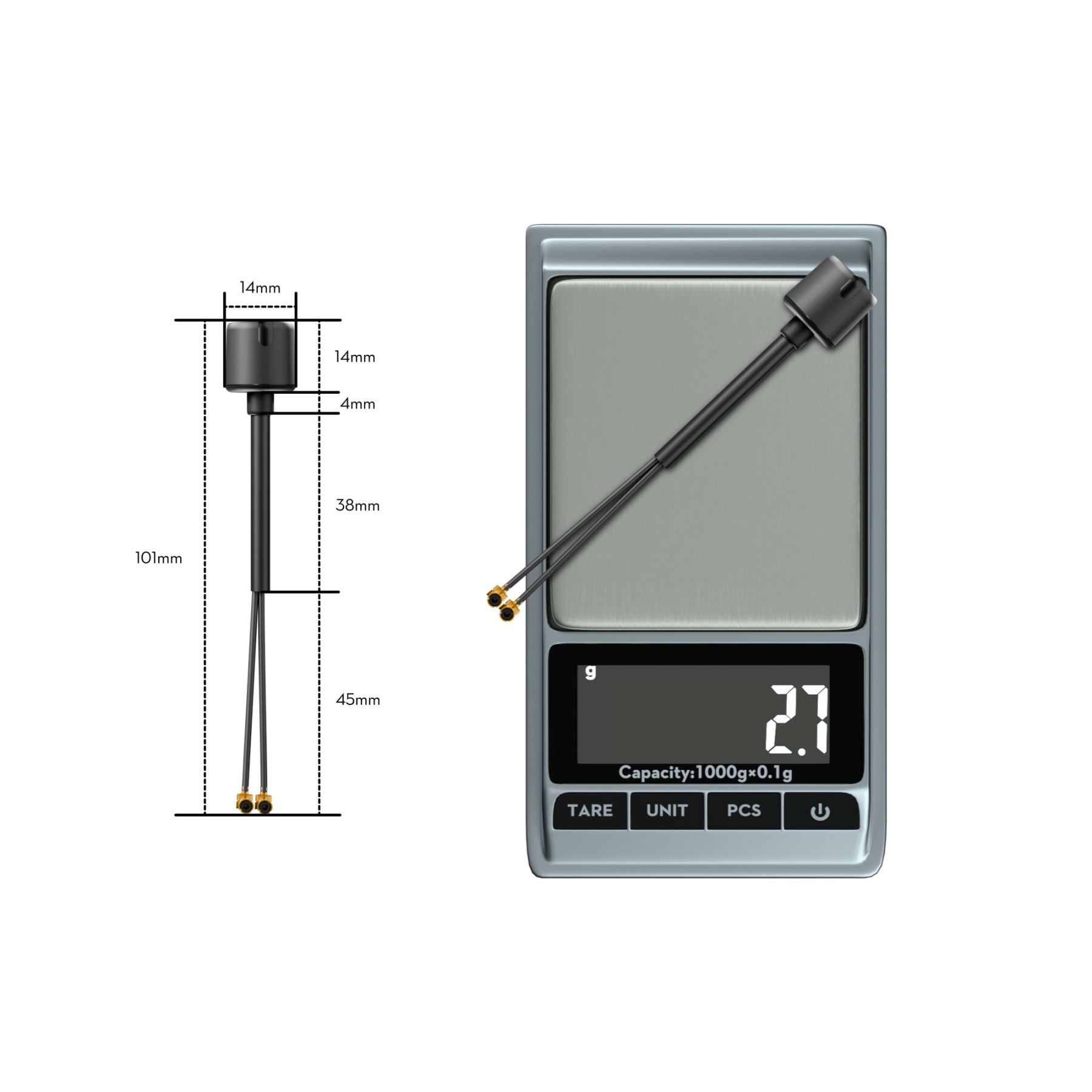

FLYWOO Bipolar Dual-Band 5.8GHz UFL 90mm Antenna for DJI O3/O4 PRO The FLYWOO Bipolar Dual 5.8GHz U.FL antenna is a specialized, high-efficiency antenna designed for the DJI O3 and O4 PRO aerial units. This lightweight 90mm version weighs only 2.9g, making it an ideal choice for racing and freestyle drones. It offers true dual 5.8GHz performance, linear polarization and excellent VSWR parameters, thanks to which it provides strong signal coverage and high resistance to interference. Thanks to the durable RF1.13 cable and U.FL connectors, it is easy to integrate and ensures maximum performance. Whether you're pushing range limits or flying in dense environments, this antenna will keep your FPV connection strong and stable. Specifications: Frequency range: 5700-5900 MHz (dual 5.8GHz) Gain: Dual 2.8 dBi VSWR: ≤1.6 Polarization: Linear Impedance: 50Ω Connector: 2 x U.FL (IPEX1) Cable type: RF1.13 Weight: 2.9 g Dimensions: Φ14 × 14 mm Cable length: 90 mm Compatibility: DJI O3 / O4 PRO air units The package contains: 1 × FLYWOO Bipolar Dual-Band 5.8GHz UFL 90mm Antenna for DJI O3/O4 PRO
