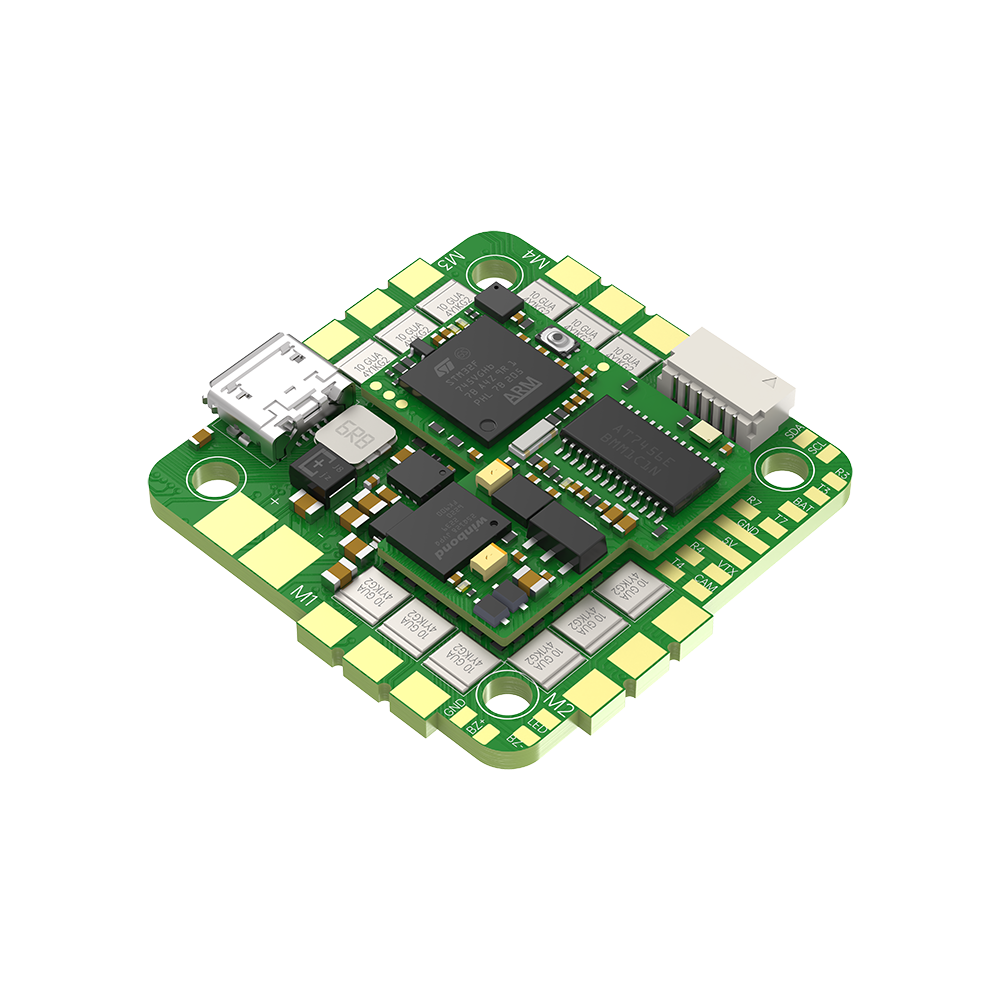

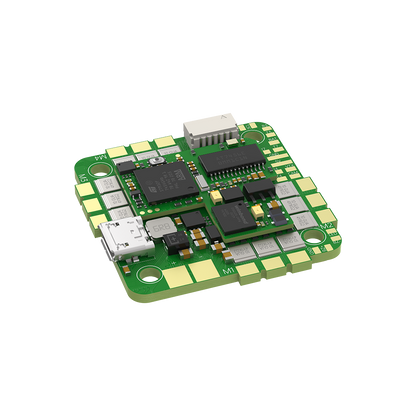

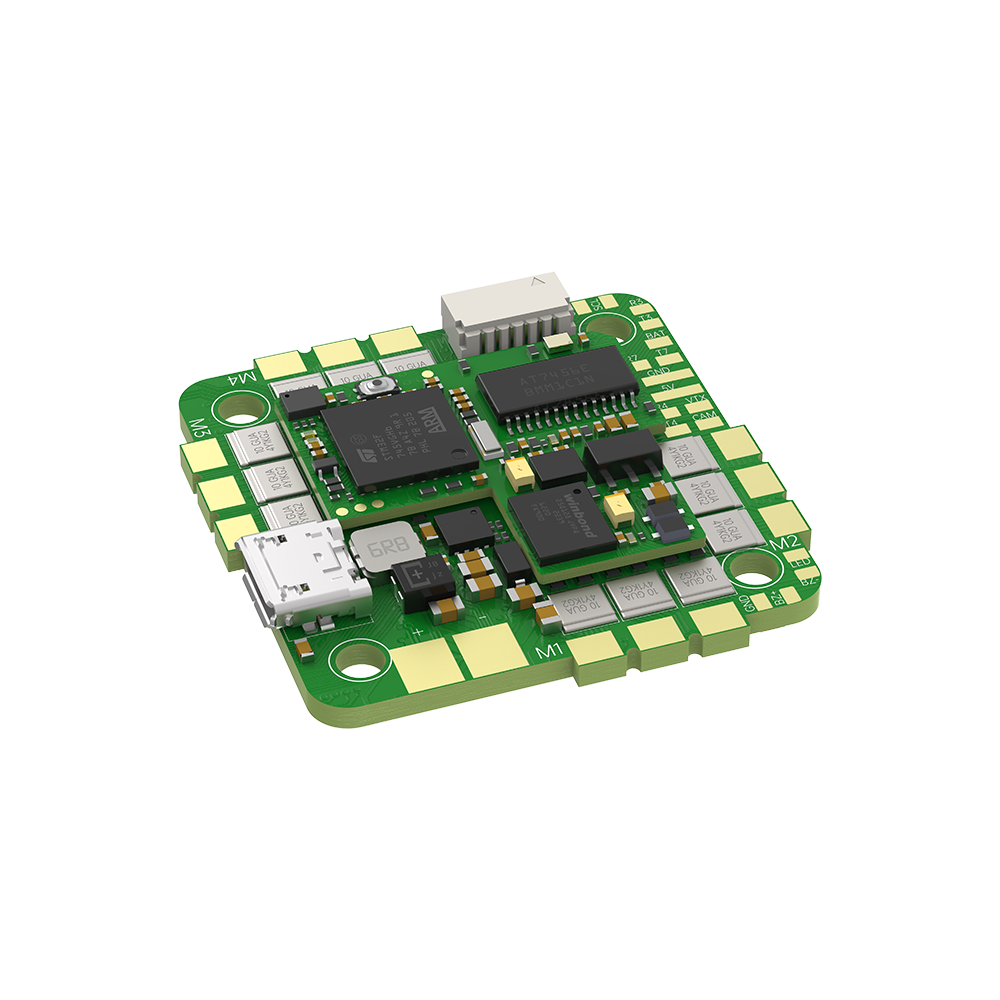

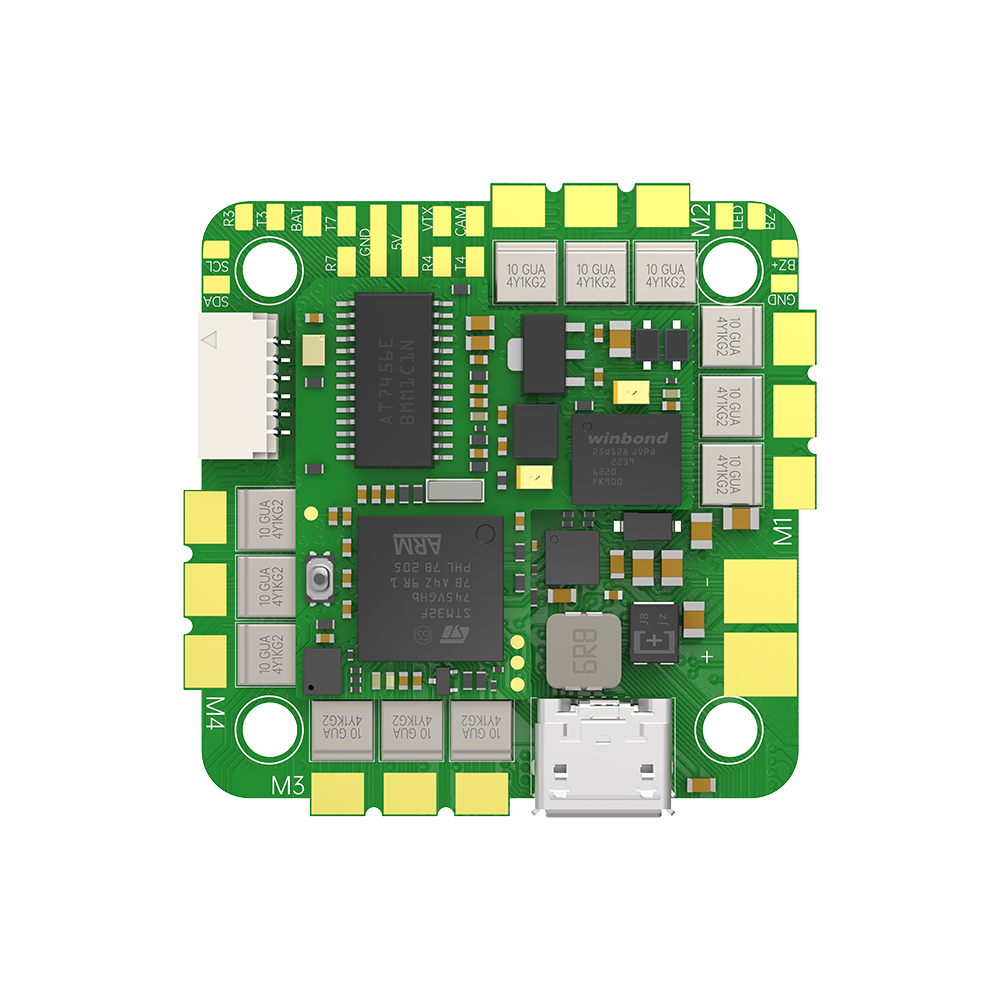

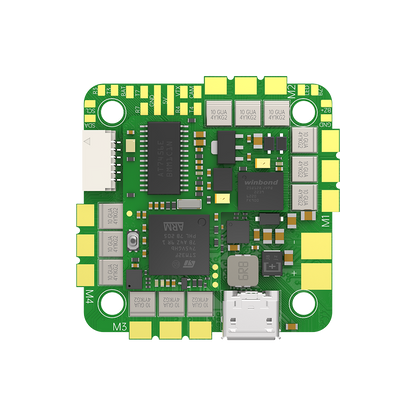

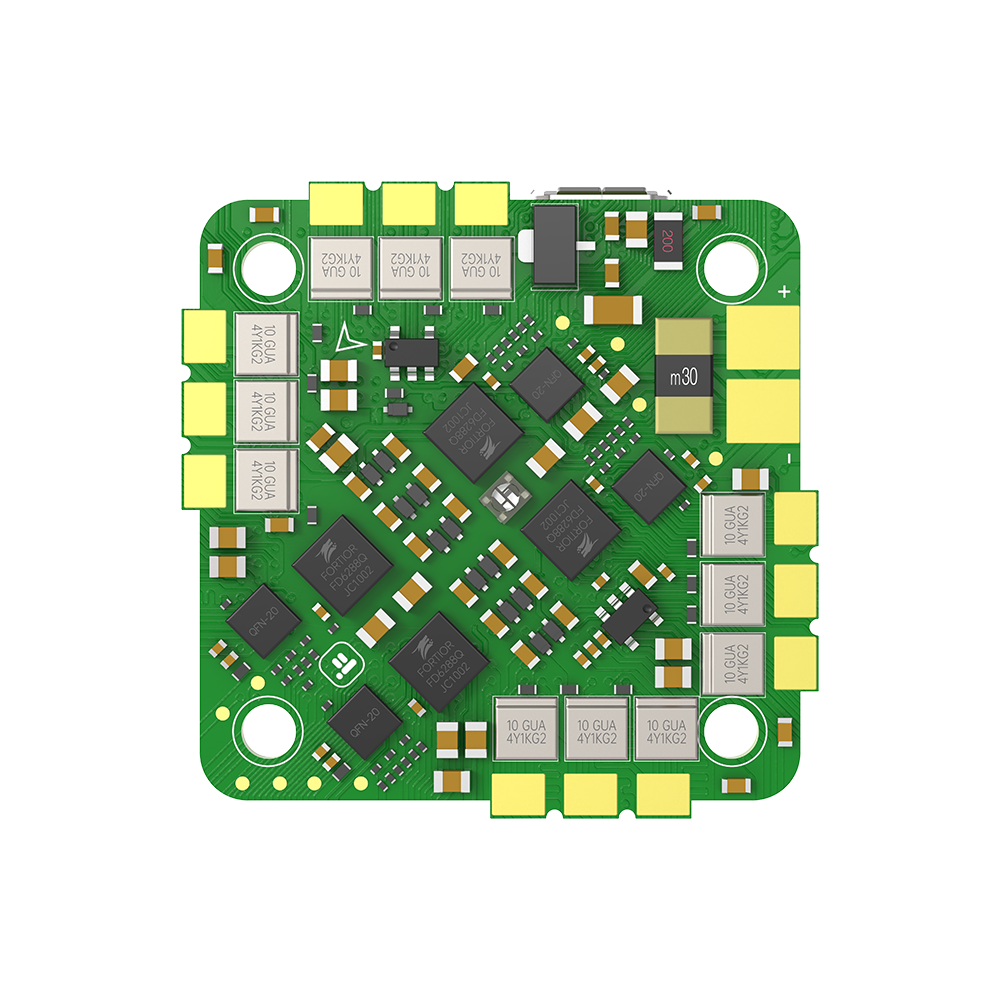

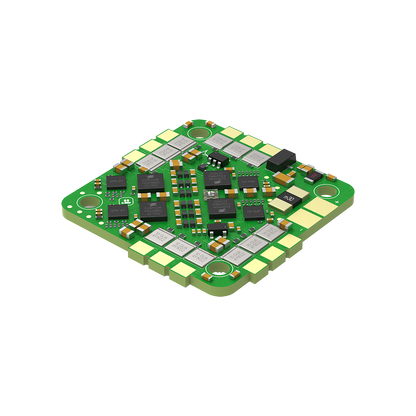

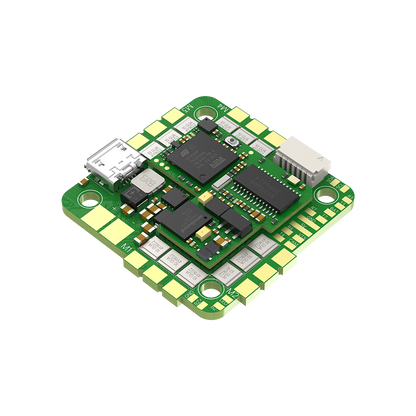

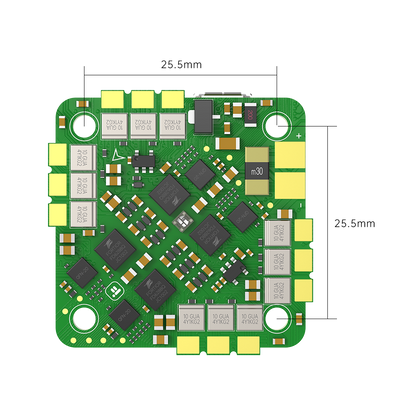

BLITZ Whoop F7 AIO V1.1
Function:
- Separate flight control board to minimize electrical gyro noise;
- Through connector DJI O3 and Caddx Vista/Polar Connector;
- FC PCB can be disassembled from ESC PCB;
- Fix enabled.
FC Specifications:
MCU: BGA-STM32F745
Gyroscope: ICM42688
Blackbox: 16 MB integrated flash
BEC output: 5V 2.5A
WS2812 LED strip: Yes
Buzzer: Yes
Barometer: DPS310
Connector: Micro-USB
OSD: IFLIGHT OSD (AT745E)
FC firmware: IFLIGHT_BLITZ_F7_AIO
Mounting pattern: 25.5*25.5mm φ3mm
Dimensions: 35*35mm
Weight: 10.5g
BEC: 5V 2A / 3A
Input voltage: 2-6S, support LIHV battery
Smartaudio / IRC Tramp VTX protocol supported

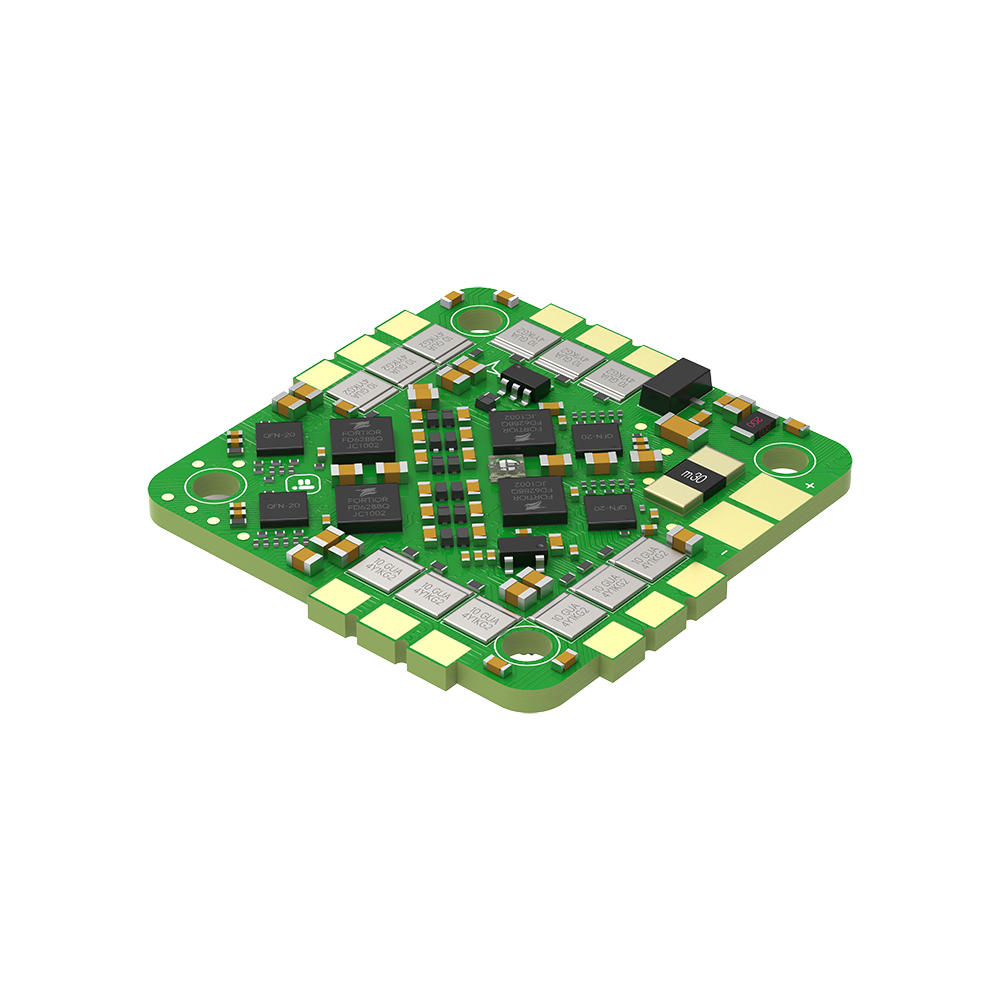

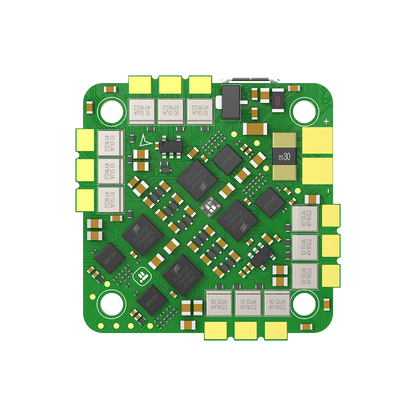

ESC Specifications:
ESC MCU: BB21
Driver: FD6288
Input voltage: 2-6S Support LIHV battery
Output current: 55A, peak value 65A (10 seconds)
ESC Firmware: Q-H-40 - Bluejay, 0.16, 24kHz
Current sensor: 200 ratio (1/10 mV/A)
BEC: NO
ESC telemetry: NO
Bidirectional DShot: Yes (need to use Bluejay firmware)
Supports DShot DShot150/300/600/MultiShot/ OneShot etc.
The package includes:
1x BLITZ F7 AIO
2 x capacitor 470uF/35V
1 x XT30U male 18AWG cable 70mm
1 x 1.0-7P cable 50mm-28mm
1 x 1.0-7P cable 50mm
4 x M2 silicone grommets
8x screws M2*12mm
8 x M2 transparent nylon nut
10 x 0.8 mm black Heat shrink tube 10 mm
