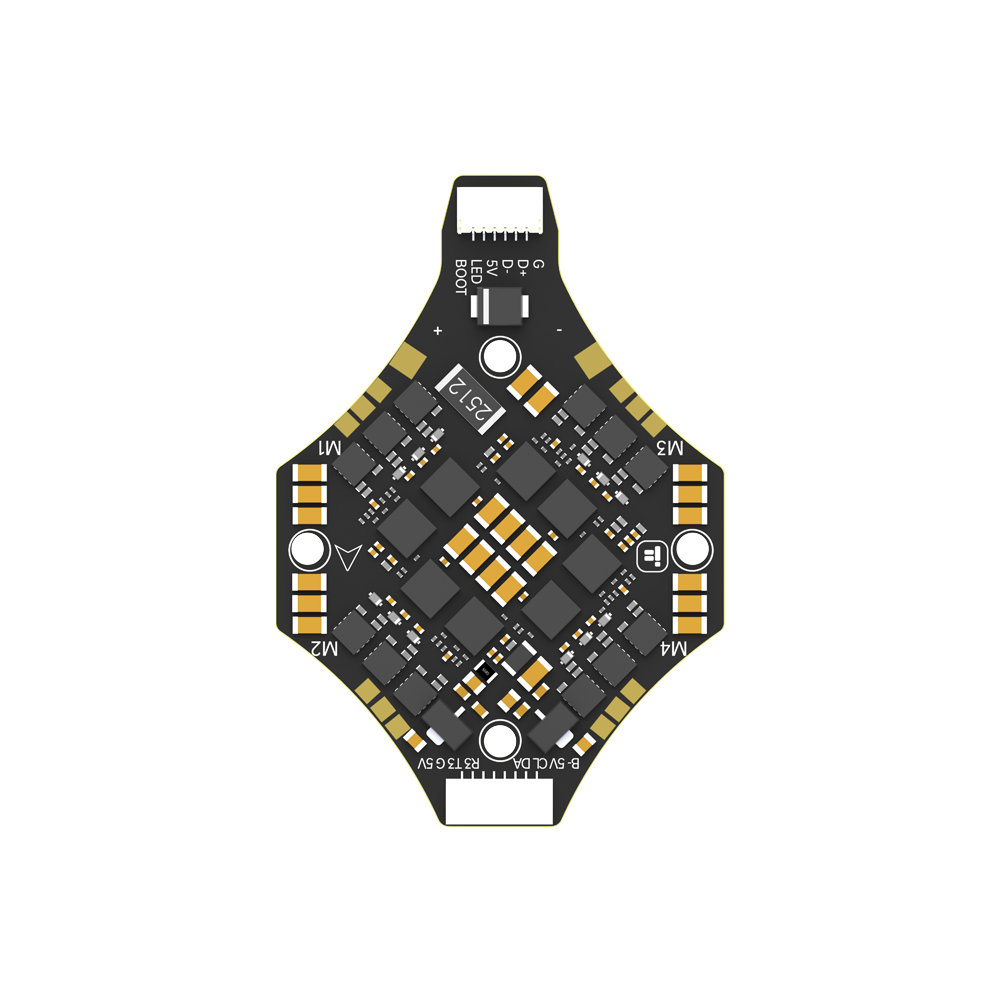

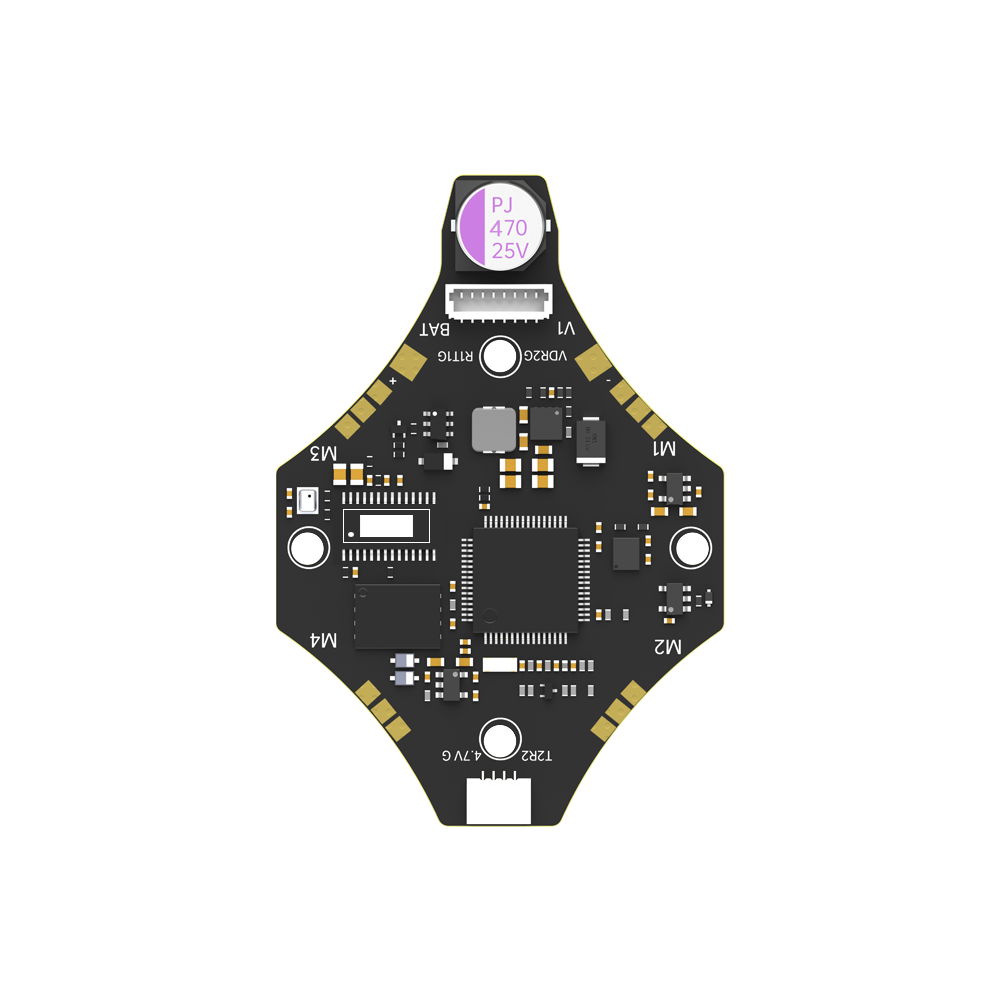

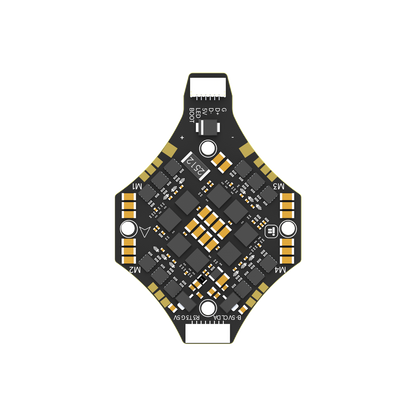

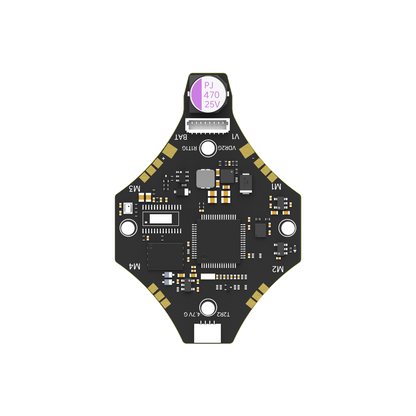

    BLITZ D25 HD F7 AIO (without OSD)

FC Specifications:

MCU: STM32F722
Gyroscope: ICM42688
Blackbox: 32 MB integrated flash
BEC output: 5V 2.5A
WS2812 LED strip: Yes
Buzzer: Yes
Barometer: DPS310
Connector: SH1.0 to Type C adapter
OSD: N/A (HD VTX version)
FC firmware: IFLIGHT_BLITZ_F722_X1
Mounting pattern: 25.5*25.5mm φ3mm
Dimensions: 32.5*32.5mm
Input voltage: 2-4S, support LIHV battery
Smartaudio / IRC Tramp VTX protocol supported
Weight: 12.8g±0.2g

ESC Specifications:

ESC MCU: STM32G071
Driver: FD6288
Input voltage: 2-4S Support LIHV battery
Output current: 20A, peak value 30A (10 seconds)
ESC firmware: IFLIGHT_BLITZ_G071_01
Current sensor: 200 ratio (1/10 mV/A)
BEC: NO
ESC telemetry: Yes (routed PCB, set UART6 for telemetry)
Two-way DShot: Yes
Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

Compatibility:
1. This AIO without OSD chip is only made for Defender 25 HD VTX.
2. Bigger size than BLITZ Whoop BGA F7 AIO.

Package included
1 x Defender 25 BLITZ F7 AIO
1 x capacitor 470uF/35V (on board)
1 x XT30U male 18AWG cable 70mm
1 x 1.0-7P cable 50mm-28mm
1 x 1.0-7P cable 50mm
4 x M2 silicone grommets
