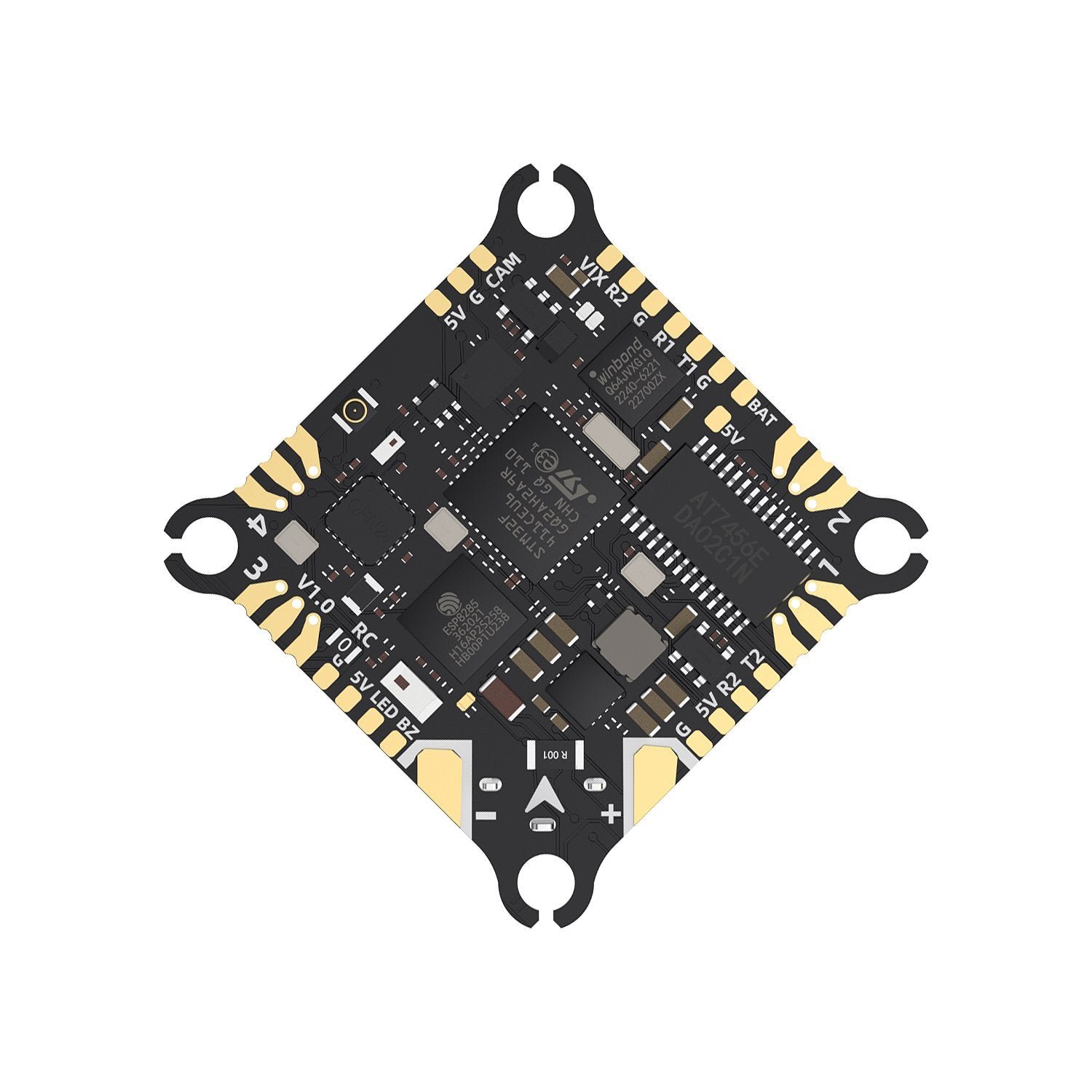

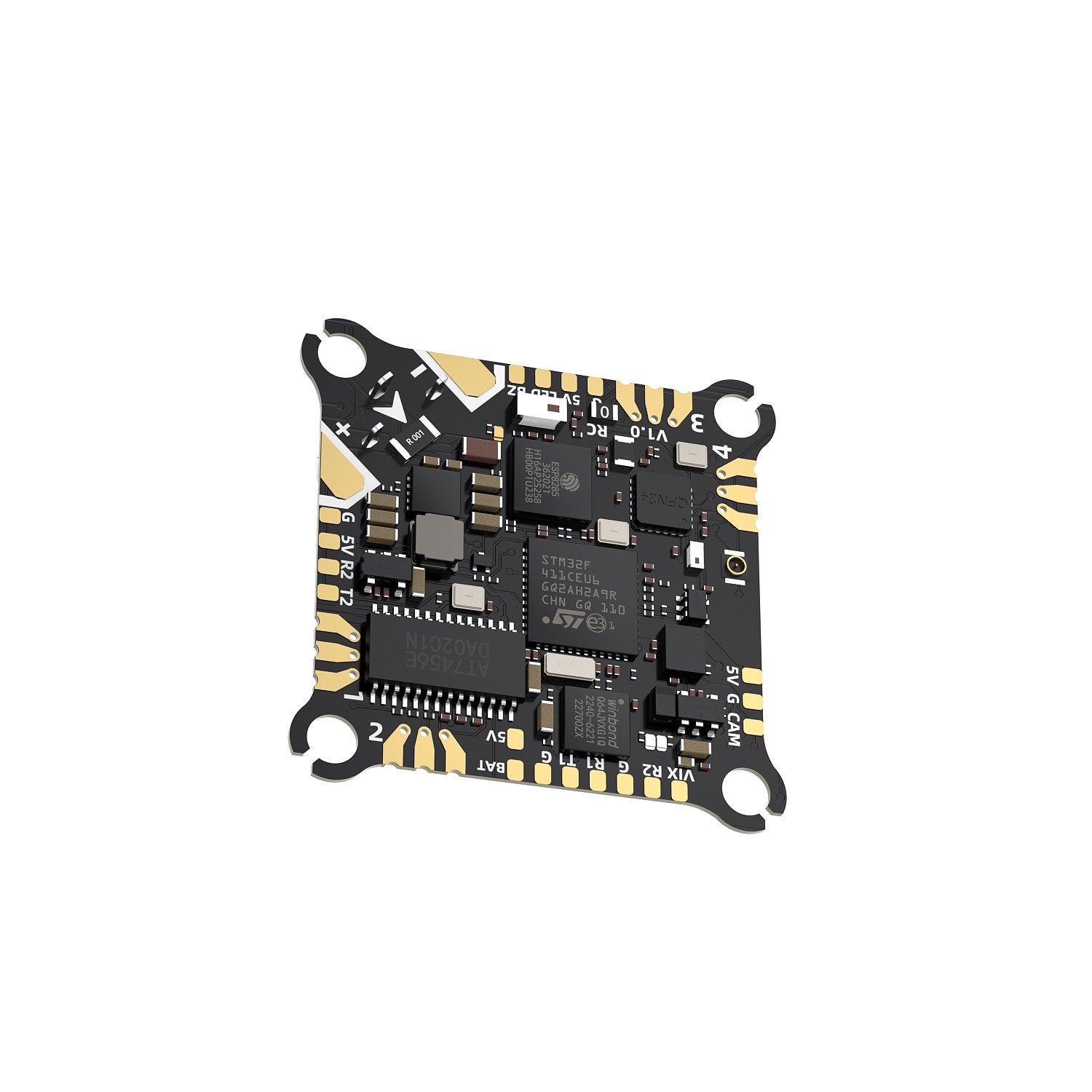

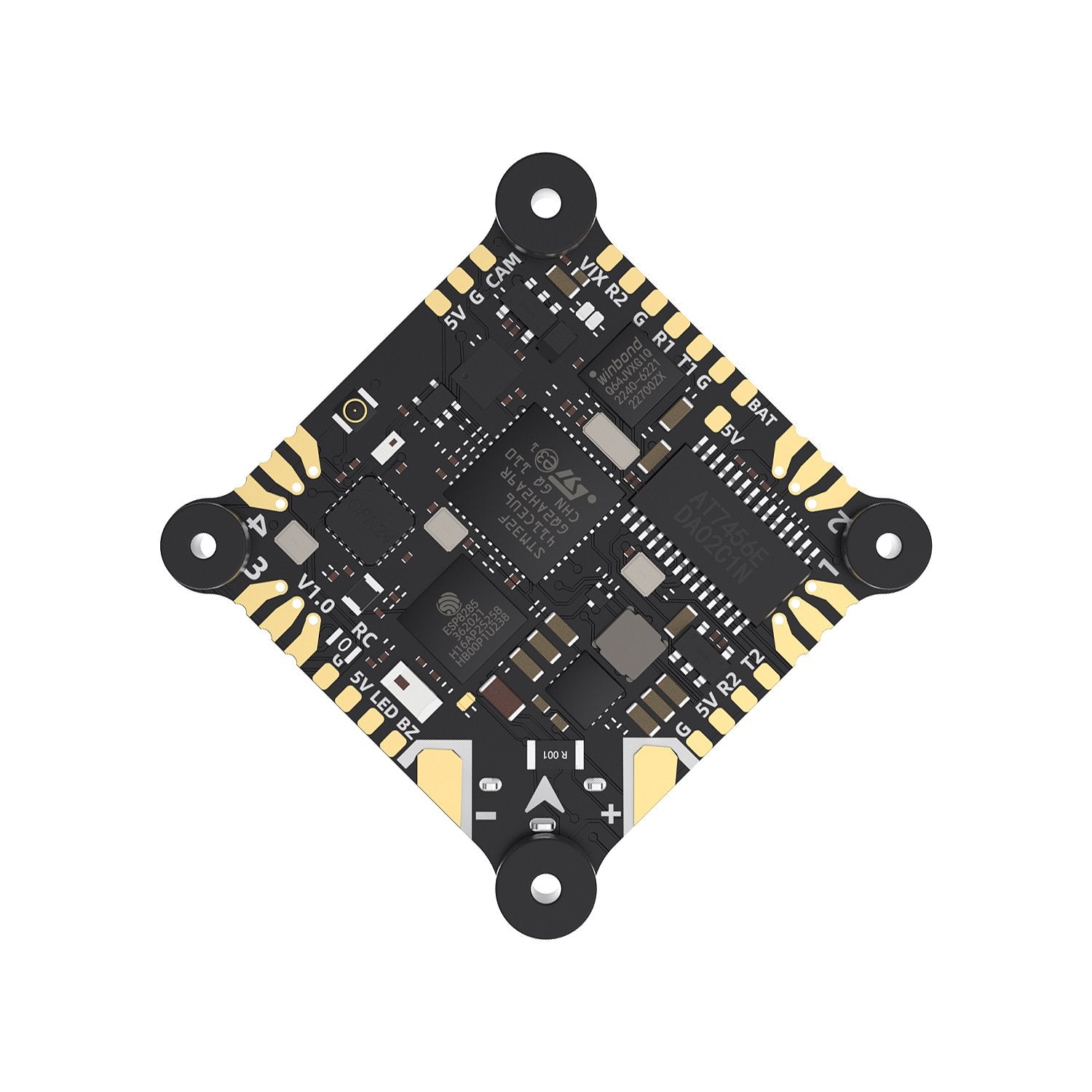

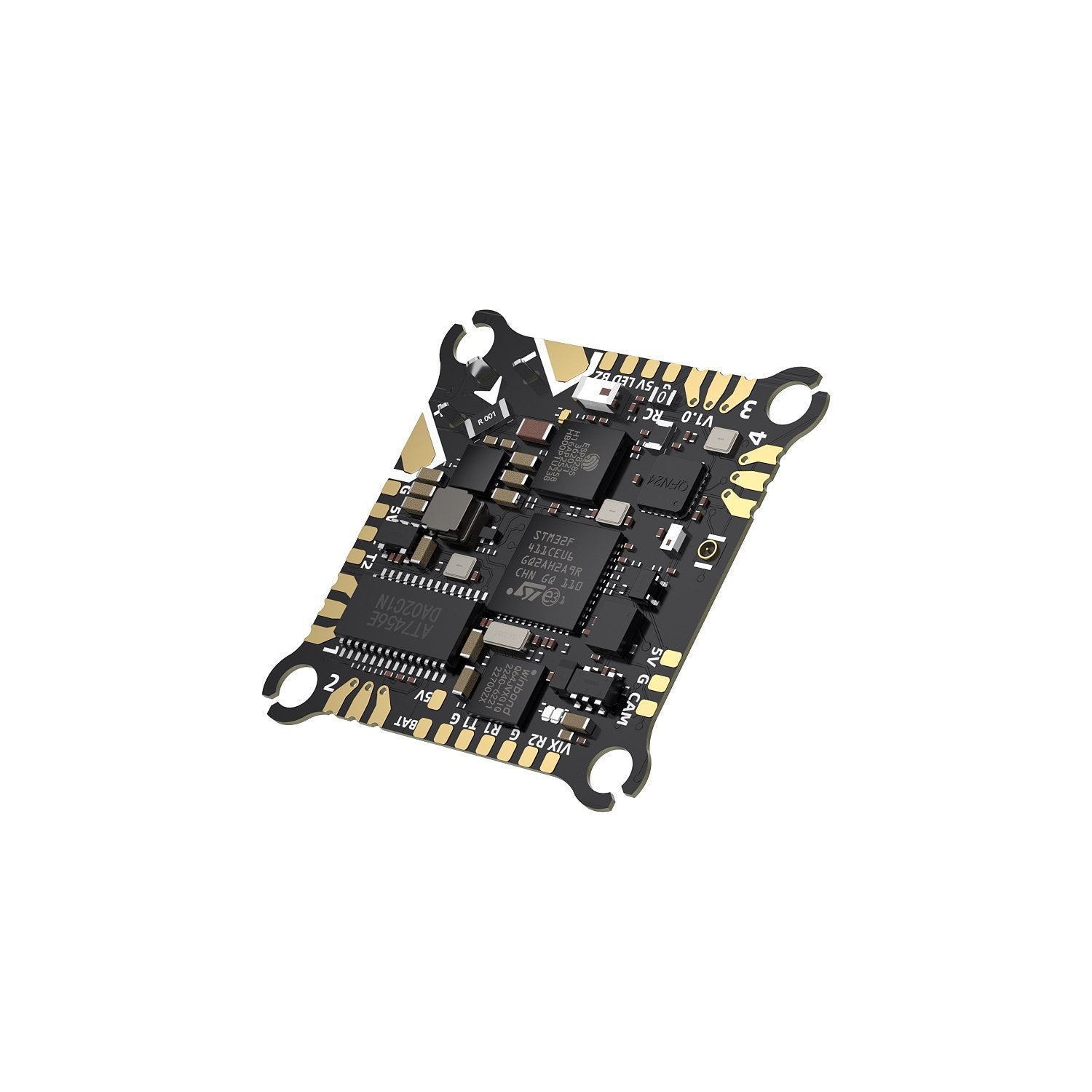

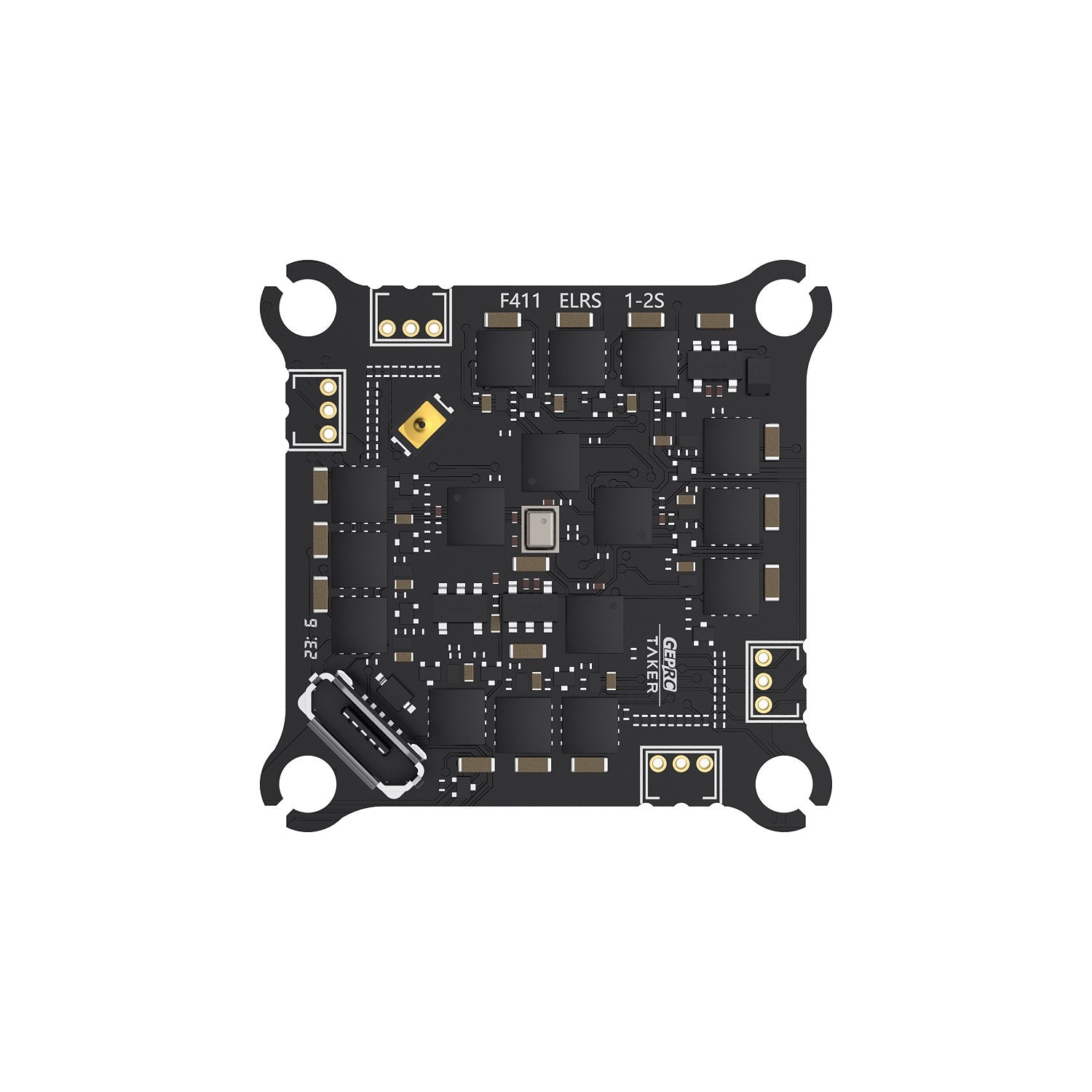

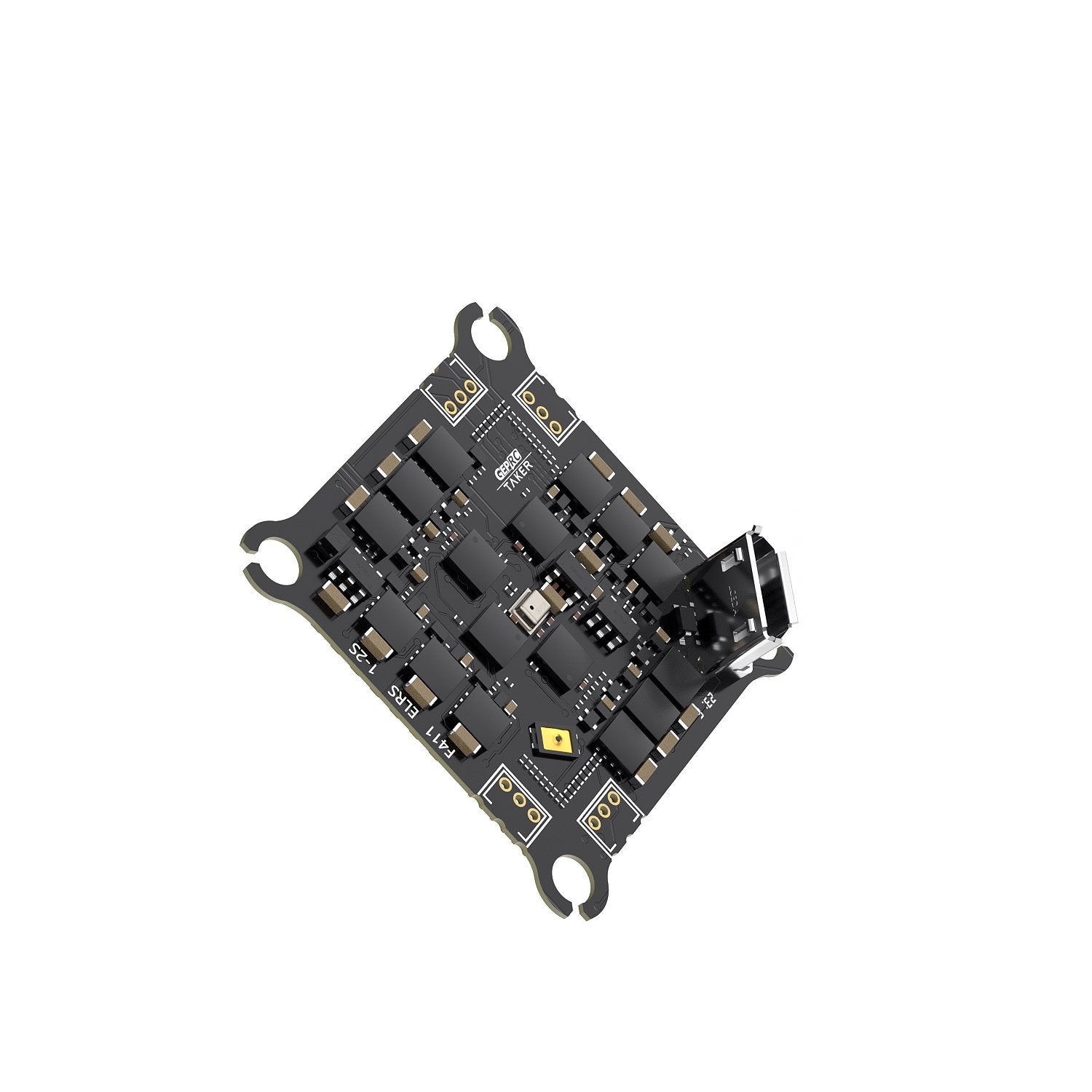

AIO FC GEPRC GEP-TAKER F411-12A-E 1-2S The TAKER F411-12A-E 1-2S AIO is a lightweight and highly integrated flight control system, weighing only 4.2g. It is suitable for 1.2-2 inch Whoop models or 3 inch toothpick models. The 12A overcurrent capability of the ESC has sufficient redundancy for a small model, and the integrated ELRS2.4G 3.0 receiver makes the installation more space-saving and complete. The main control of the F411 is equipped with a BMI270 gyroscope, which makes the flight silky and stable. Function: - Highly integrated and lightweight flight system - Supports 1-2S power supply and has higher battery compatibility - STM32F411 main control and BMI270 gyro solution, the flight is silky and stable - Motor wiring is reserved for welding or SH1 - Integrated ELRS2 Specifications: Model: TAKER F411-12A-E 1-2S AIO MCU: STM32F411 IMU: BMI270 Firmware Target: TAKERF411 OSD: Betaflight OSD with AT7456Ev UART: T1 R1 / T2 R2 SBUS: R2 Receiver: ELRS2.4G 3.0 Buzzer: Support LED: Support USB: Micro USB ESC MCU: EFM8BB21F16G Continuous current: 12A Explosive current: 13A Input voltage: LiPo/LiHv 1S-2S Support protocol: Dshot300/600, Oneshot, Multishot Blackbox: 8MB Galvanometer: Support Firmware Target: C-X-30 Size: 30.5mm * 30.5mm Fixing hole size: 25.5mm*25.5mm（M2） Weight: 4.2g The package includes: 1 x TAKER F411-12A-E 1-2S AIO 1 x set of cables
