    Code: 01040008_2

    AIO FC BETAFPV F405 2-4S Toothpick 20A BLHELI_32 V4-BMI270

    AIO FC BETAFPV F405 2-4S Toothpick 20A BLHELI_32 V4-BMI270

    Brand: BETAFPV

    €67,99
    €67,99 €67,99
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

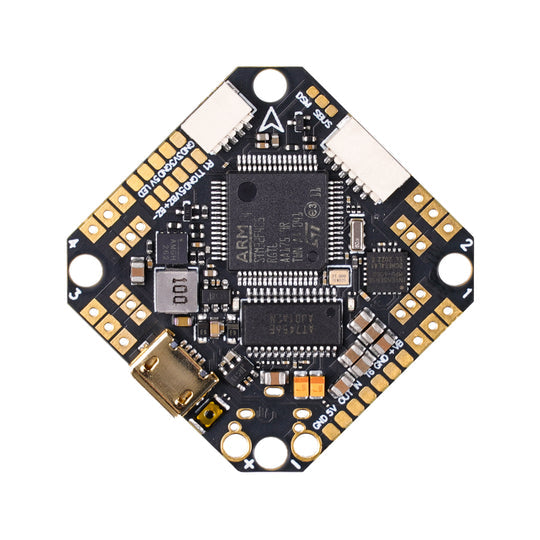

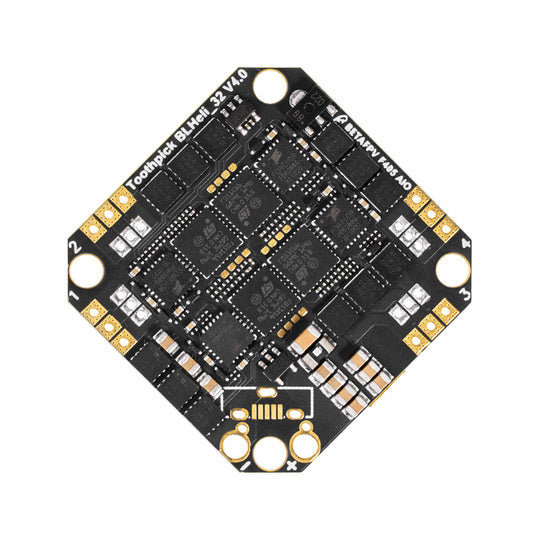

    Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4-BMI270

Compared to the V3 version, the new FC board updates the F411 chip to F405. It can handle 20A continuous current and up to 4S. The F405 2-4S AIO toothpick brushless flight controller also has a BMI270 gyroscope. Suitable for Beta95X V3 and Beta95X V3 HD Digital VTX.

FC Specifications:
CPU: STM32F405RGT6
Six-axis: BMI270
Size: 26x26mm, attachment pattern
Firmware version: Batefight-BETAFPV405-4.2.X
OSD: Built-in BetaFlight OSD (STM32 controls the OSD chip via SPI in DMA mode)
Receiver: Support Frsky XM/XM+ receiver/Futaba receiver/Flysky receiver/TBS Crossfire receiver/DSMX receiver
Connector: XT30, it can also be changed to XT60 if pilots need it.
Weight: 5.76g

ESC Specifications:
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 2S-4S Lipo
Continuous current: 20A
Peak current: 22A
Firmware: BLHELI-32
