Warning! This model has been discontinued and will no longer be available. Please see the available alternatives:
https://www.hobbydrone.cz/en/f4-2-3s-20a-aio-fc-v1/

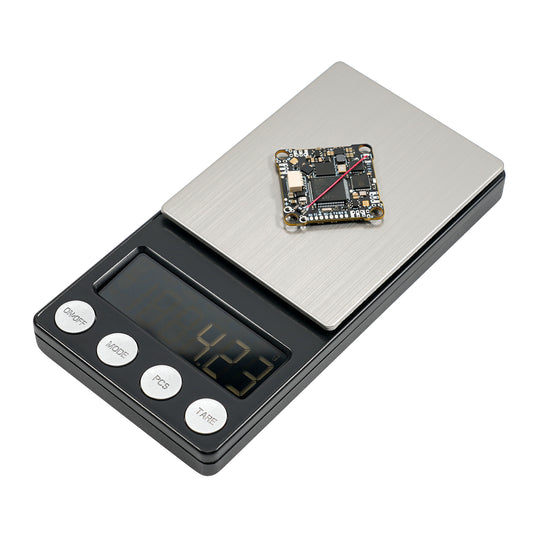

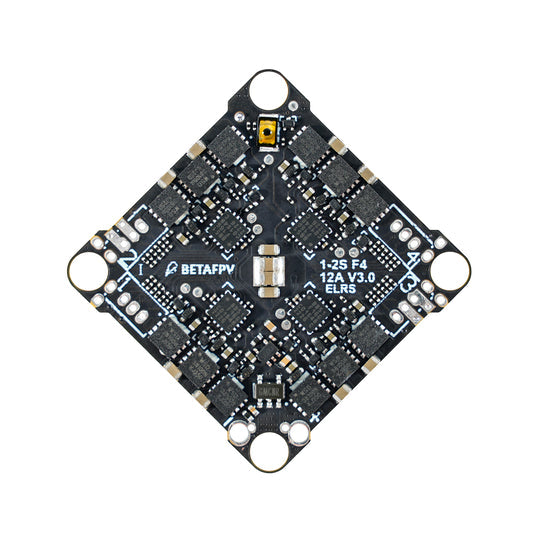

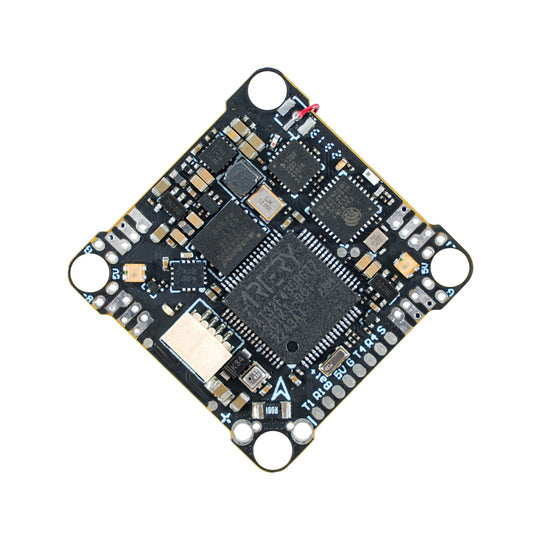

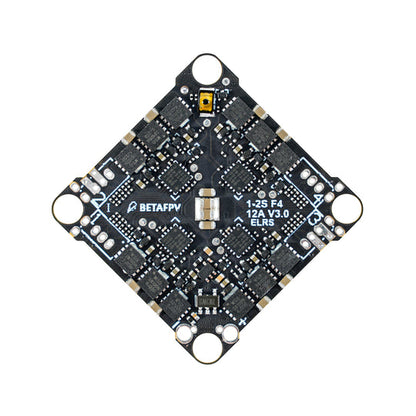

F4 1S 12A AIO FC V3 Serial ELRS 2.4G V3 (AT32F435) F4 1S 12A AIO Brushless FC V3, the FIRST flight controller designed specifically for HD VTX. This powerful controller features an STM32F405/AT32F435 chip for high-performance computing and a 5V 3A BEC solution for HD VTX. It weighs only 4.2 grams and includes a Serial ELRS 2.4G receiver, 16MB Black Box, barometer and current meter. Designed for HD VTX, it removes the AT7456E OSD chip and also adds support for external GPS via Betaflight 4.4.0. Specifications Six-axis: ICM42688P (SPI connection) MCU: AT32F435RGT7 (288MHz) Firmware version: ATBetaflight_4.3.2_BETAFPVF435_RC3 (AT32F435) Receiver: ELRS 2.4G serial receiver Receiver firmware version: BETAFPV AIO 2400 RX ELRS V2.5.2 Antenna: Enamelled wire Blackbox memory: 16 MB Sensor: barometer (BMP280), voltage and current Mounting hole size: 26mm x 26mm (suitable for black pattern mounting hole) BEC*: power supply 5V 2A@4V, power supply 5V 3A@8V USB port: SH1.0 4-pin Built-in ESC with 12A continuous and 25A peak current ESC input voltage: 1-2S ESC firmware: C_X_70_48_V0.19.2.hex for BB51 Bluejay hardware Signal support: D-shot300, D-shot600 Weight: 4.23g (without motor connectors), without power cable *BEC output current will decrease as temperature increases Recommend parts Drones: Meteor75 HD, Meteor75 Pro HD, Pavo Pico brushless quadcopter, 85mm frame like Meteor85 HD, 3" drones with toothpicks Battery: BT2.0 450mAh 1S 30C battery, 450mAh 2S 45C battery Motor: 1102 18000KV motor, 1103 11000KV motor Propellers: HQ3020 2-blade props, 2020 4-blade props Package 1 * F4 1S 12A AIO FC V3 4 * M2 * 10 machine screw 4 * M2 * 10 nylon screw 4 * M2 nuts 4 * shock-absorbing balls 4 * Angle socket JST 1.25 mm 4 * JST1.25mm straight socket 1 * SH1.0 4 pin adapter cable 1 * Type C to SH1.0 adapter 1 * XT30 power cable 1 * filter capacitor
