Warning! This model has been discontinued and will no longer be available. Please see the available alternatives:
- https://www.hobbydrone.cz/en/f4-2-3s-20a-aio-fc-v1/

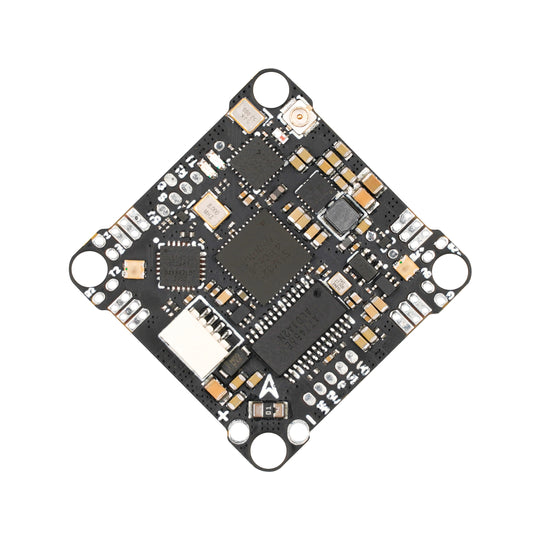

F4 1S AIO Brushless Flight Controller 12A (SPI Frsky V1.2)

F4 1S 12A AIO Flight Controller - A 1S 12A FC for building lightweight 3" lightweight drones like HX115 SE Toothpick Drone and HX115 LR Toothpick Drone. If you want to try a bigger FPV drone than 65mm/75mm with 1S power and still want smooth and smooth powerful flight actions, this FC which integrates 1S 12A ESC is definitely the best choice.

FC Specifications:
Item: F4 1S 12A AIO FC

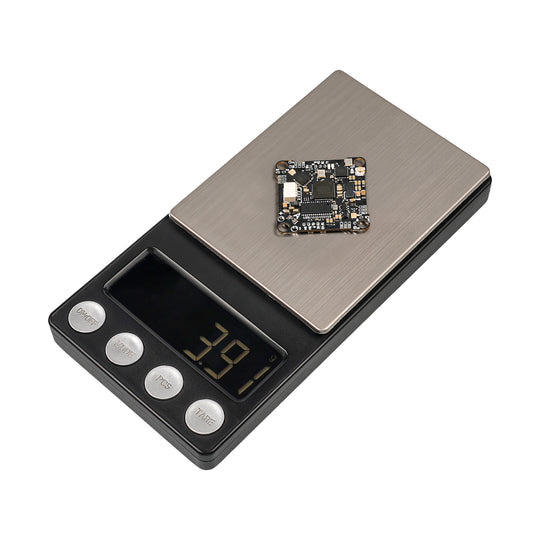

Weight: 4.74g (without power cable and BT2.0 connector)
CPU: STM32F411CEU6 (100MHz)
Six-Axis: MPU6000 (SPI connection)
Firmware version: betaflight_4.2.0_STM32F411
OSD: Built-in BetaFlight OSD (STM32 controls the OSD chip via SPI in DMA mode)
Receiver: Integrated Frsky SPI Receiver / Futaba Receiver / ELRS Receiver
Motor pin connector: 1.25mm header pins
Mounting hole size: 26 x 26mm (suitable for black pattern mounting hole)
USB port: Type-C (V1.0 board)

Specifications of 1S 12A ESC:
Built-in ESC with 12A continuous and 25A peak current
Input voltage: 1S Lipo (V1.0 board)
ESC firmware: Z_H_30_REV16_7.HEX
Signal support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM

This new BLHeli_S firmware (named Z_H_30_REV16_7.HEX) is supported by BLHeli Configurator, BLHeliSuite and Bluejay Configurator for setup.

Package:
1x F4 1S 12A AIO FC
4 x Anti-vibration rubber dampers
4 x M2 x 10mm screws
4 x M2 x 10mm screws
8 x M2 nuts
