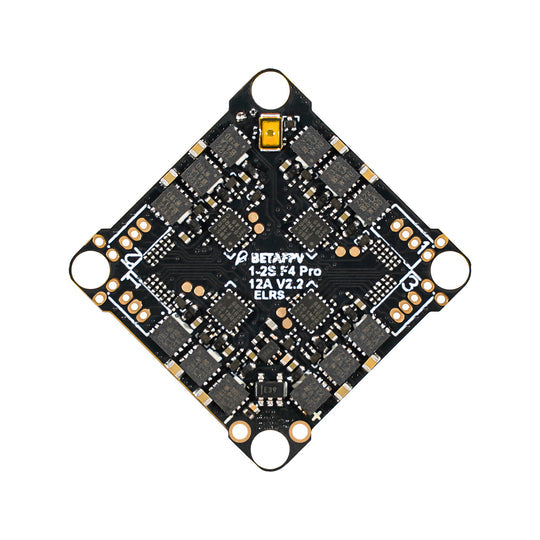

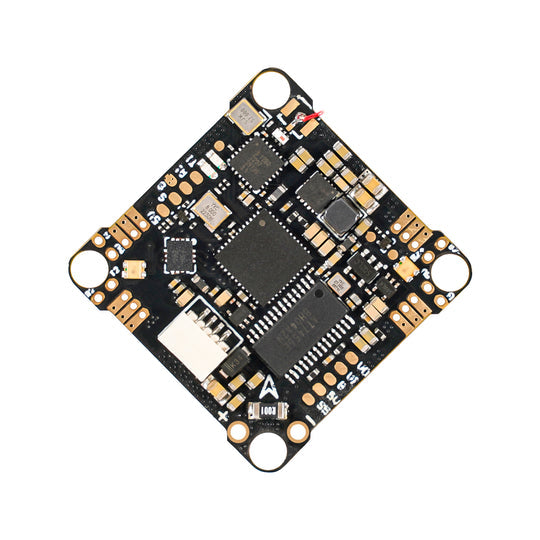

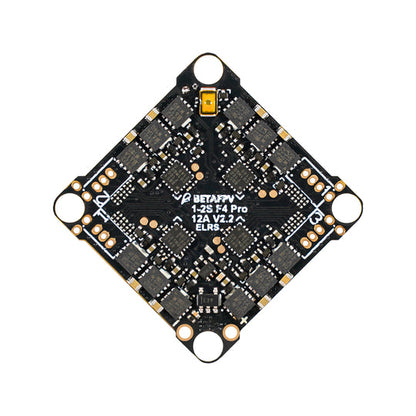

F4 1S AIO AC Flight Controller 12A - SPI ELRS 2.4G

F4 1S 12A AIO Brushless Flight Controller V2.2 is the default FC for Cetus X brushless quadcopter, also great for 85mm hup drones like Meteor85 and 3" toothpick drones like HX115 SE Toothpick Drone and HX115 LR Toothpick Drone.

This is an updated FC to V2.2 with BMI270 gyroscope and BB51 ESC hardware instead of ICM20689 gyroscope and BB21 ESC hardware.

FC Specifications:
Item: F4 1S 12A AIO FC
Weight: 4.74g (without power cable and BT2.0 connector)
CPU: STM32F411CEU6 (100MHz)
Six-Axis: BMI270 (SPI connection)
Firmware version: betaflight_4.3.1_BETAFPVF4SX1280
OSD: Built-in BetaFlight OSD (STM32 controls the OSD chip via SPI in DMA mode)
Receiver: SPI ELRS 2.4G receiver
Motor pin connector: 1.25mm header pins
Mounting hole size: 26 x 26mm (suitable for black pattern mounting hole)
USB port: SH1.0 4-pin

1S 12A ESC Specifications:
Built-in ESC with 12A continuous and 25A peak current
Input voltage: 1S-2S
ESC firmware: C_X_30_48_V0.18.1.hex for Bluejay BB51 hardware
Signal support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM

Package:
1x F4 1S 12A AIO FC
4 x Anti-vibration rubber dampers
4 x M2 x 10mm screws
4 x M2 x 10mm screws
4 x M2 nuts
8 x PH-1.25 motor connectors
1 x SH1.0 4-pin cable
1 x SH1.0 4-pin USB Type-C adapter
