    Code: HP0157.AG01MINI

    AG01-Mini Zorro & TX12 CNC Hall Gimbal RadioMaster (Single Gimbal)

    AG01-Mini Zorro & TX12 CNC Hall Gimbal RadioMaster (Single Gimbal)

    Brand: RadioMaster

    €55,54
    €55,54 €55,54
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

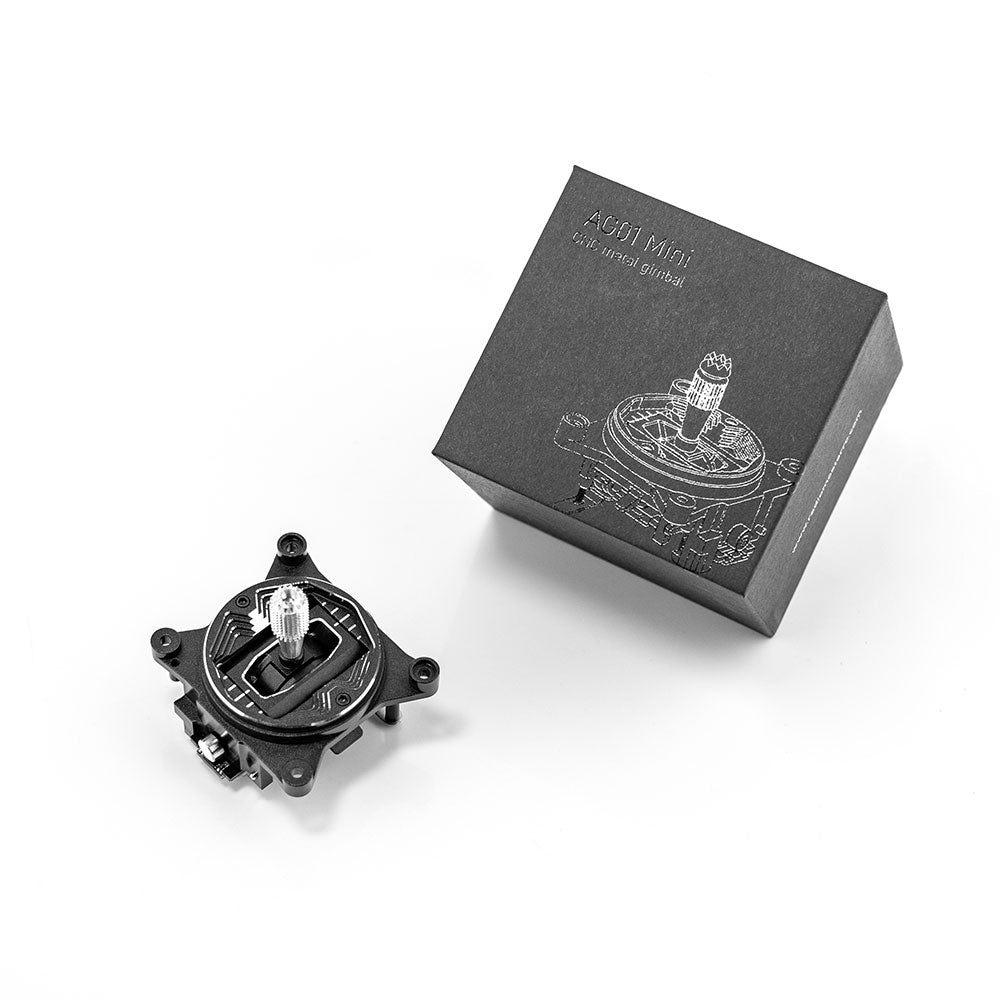

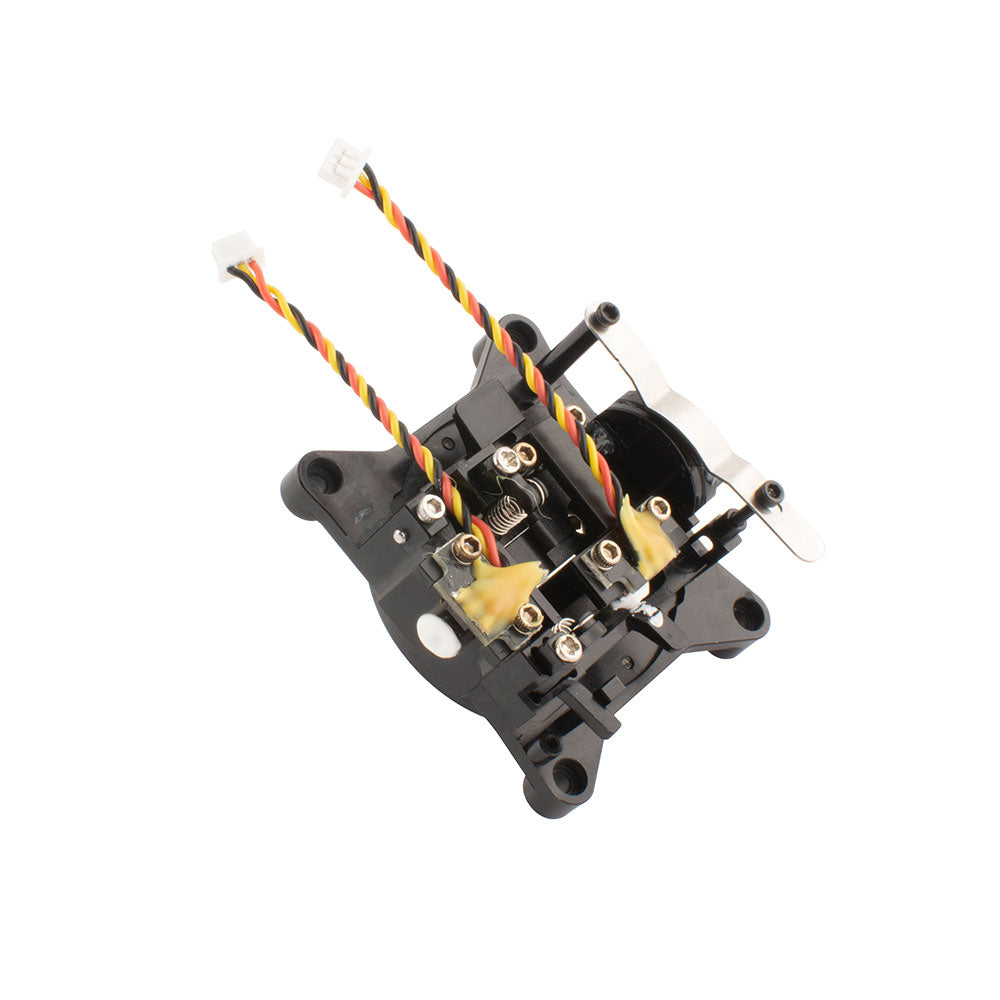

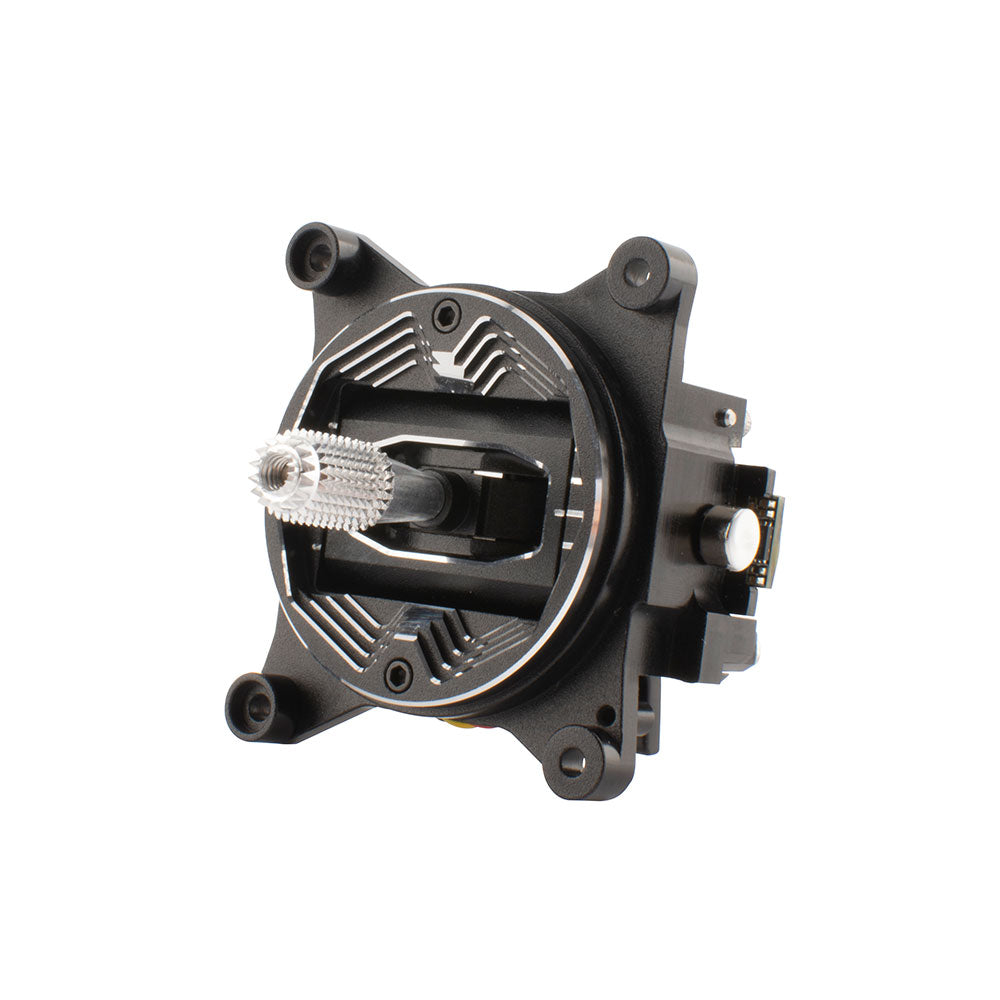

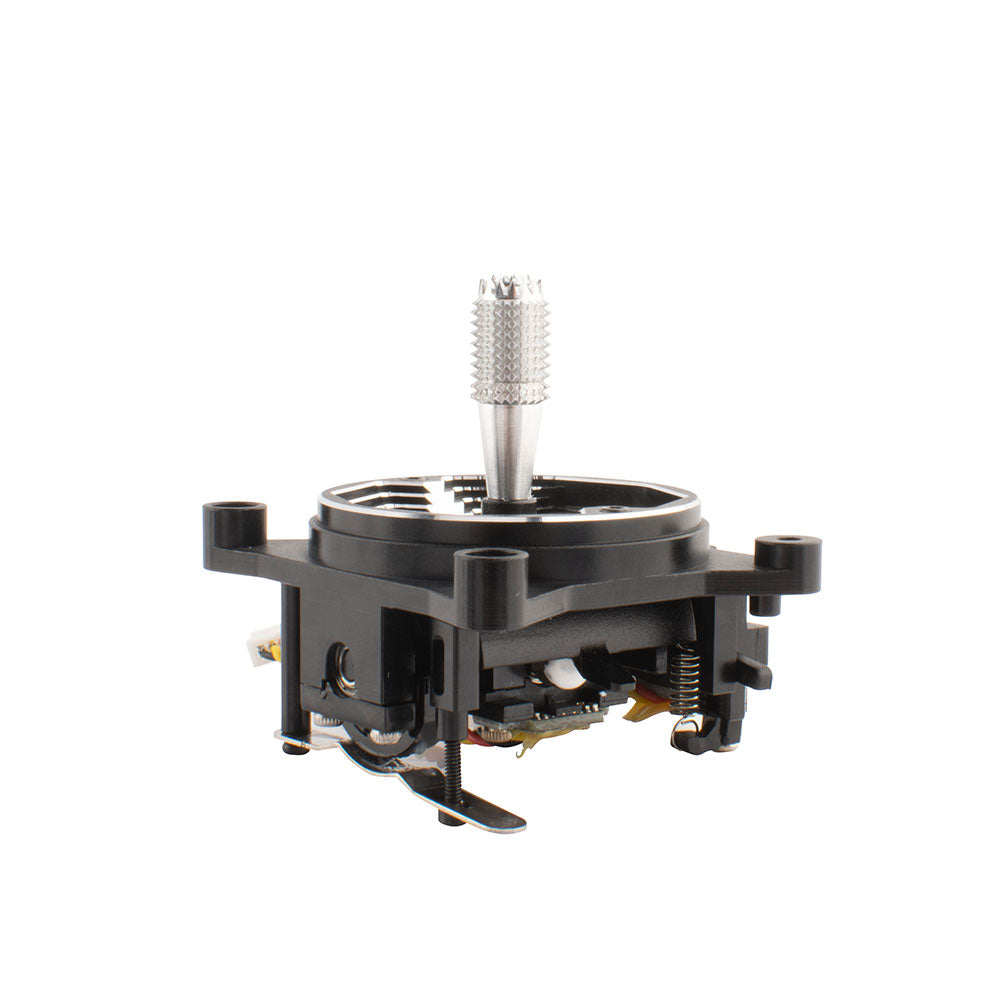

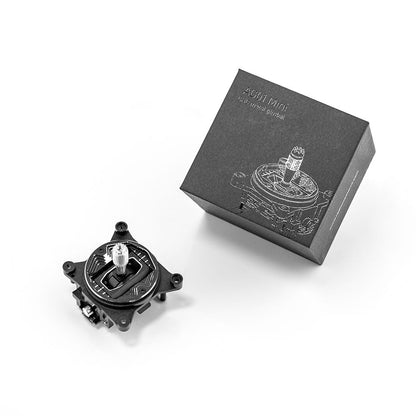

    AG01-Mini Zorro & TX12 CNC Hall Single Gimbal

Custom designed for the RadioMaster Zorro and TX12, the AG01 Mini suspension allows for unmatched accuracy and lever feel. An adjustable vertical travel angle is available (min. 38°, max. 54°). Aviation grade aluminum construction, non-contact indoor sensors and pre-installed Sticky360 Mini Gimbal Sticks.

Specifications:
Name: AG01 Mini CNC Hall Gimbal
Sensor type: Hall sensor
Working voltage: DC 3.3V
Linearity: real-time (no delay)
Adjustable vertical travel range: 38°—54°
Self-centering adjustment: Yes
Easy mode setting
Adjustable voltage: Yes
Quad bearing: Yes
Temperature range: -20°C-85°C
Dimensions: 49 x 42 x 48 mm
Weight: 42g (±0.3g)

Package:
Zorro & TX12 CNC Hall Gimbal - AG01 - (Single Gimbal)
