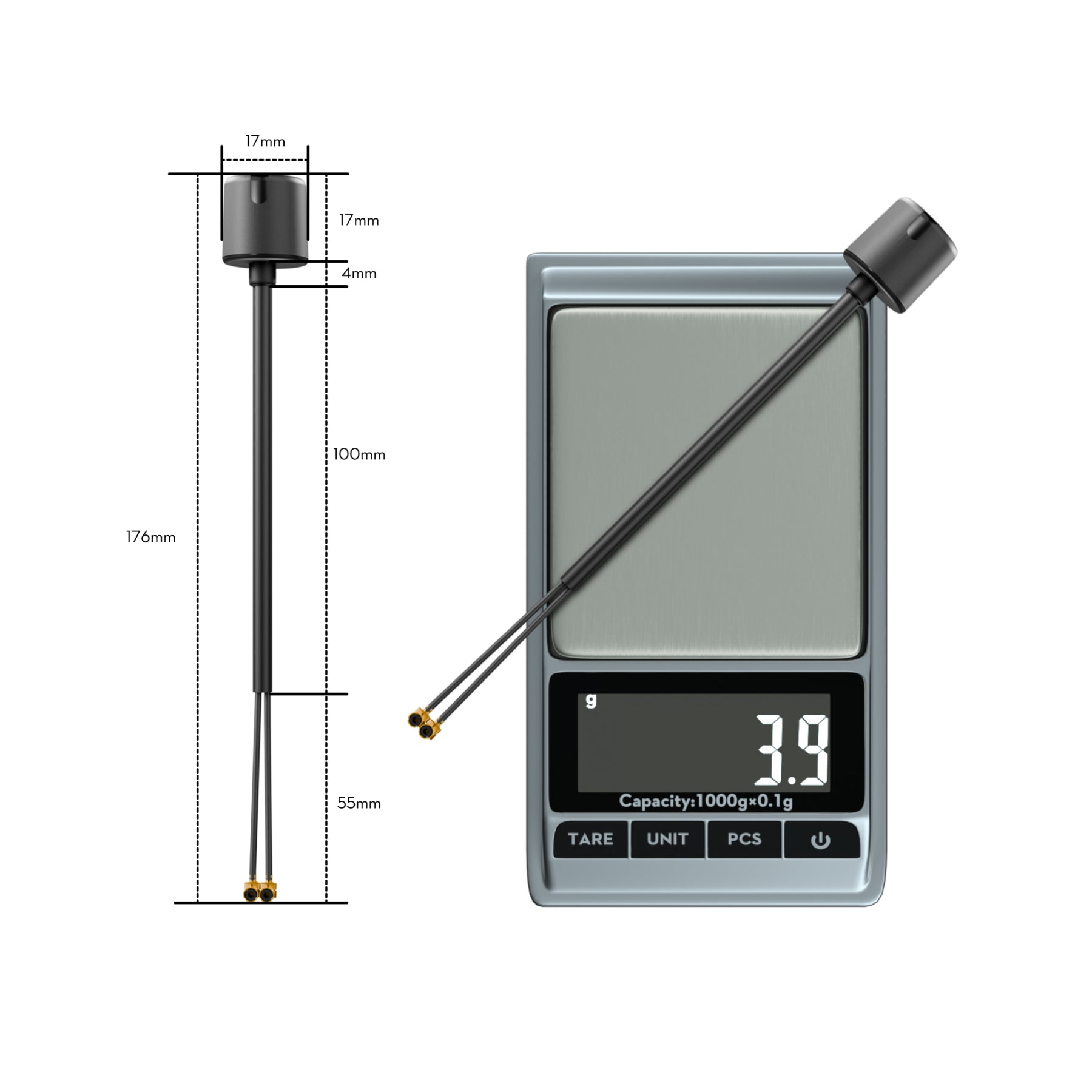

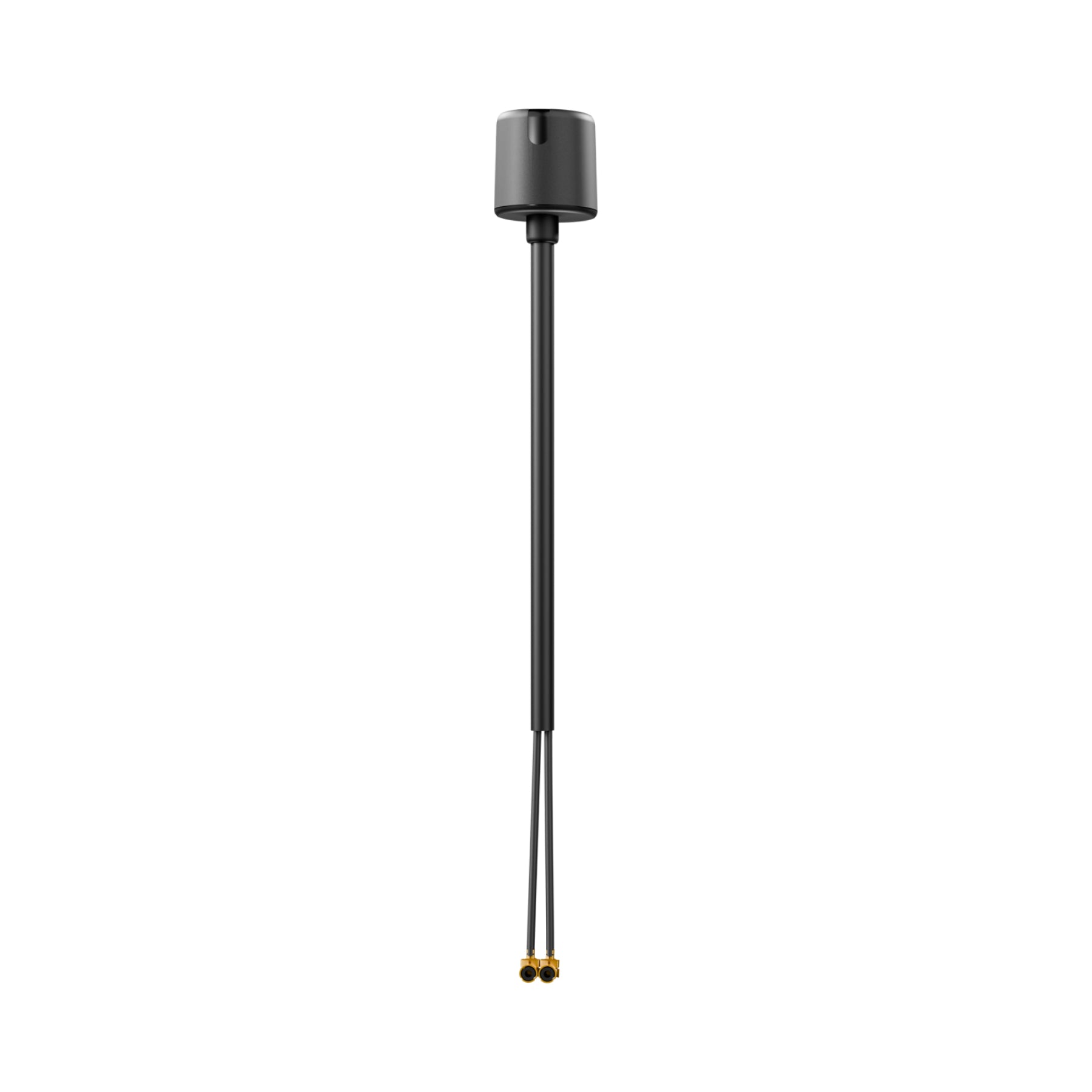

FLYWOO Bipolar Dual-Band 5.8GHz/2.4GHz UFL Antenna for DJI O3 / O4 PRO The FLYWOO Bipolar Dual-Band Antenna is a high-performance, dual-polarization antenna designed specifically for the DJI O3 and O4 PRO aerial units. It supports both 5.8GHz and 2.4GHz frequencies, significantly increases transmission distance and stability, and at the same time offers strong resistance to interference. With advanced dual technology, it outperforms standard DJI antennas, ensuring a more reliable connection and better signal clarity. The antenna is equipped with a lightweight RF1.13 cable and two U.FL connectors, making it an ideal choice for FPV pilots looking for maximum performance even in demanding conditions. With a total weight of just 5.3g, it offers the perfect balance between durability, efficiency and compactness. Specifications: Frequency range: 2400-2500 MHz / 5700-5900 MHz Gain: 2.5 dBi (2.4GHz) / 3.8 dBi (5.8GHz) VSWR: ≤1.6 Polarization: Linear Impedance: 50Ω Connector: 2 x U.FL (IPEX1) Cable type: RF1.13 Weight: 5.3 g Dimensions: Φ16 × 17 mm Compatibility: DJI O3 / O4 PRO air units The package contains: 1 × FLYWOO Bipolar Dual-Band 5.8GHz/2.4GHz UFL Antenna for DJI O3 / O4 PRO
