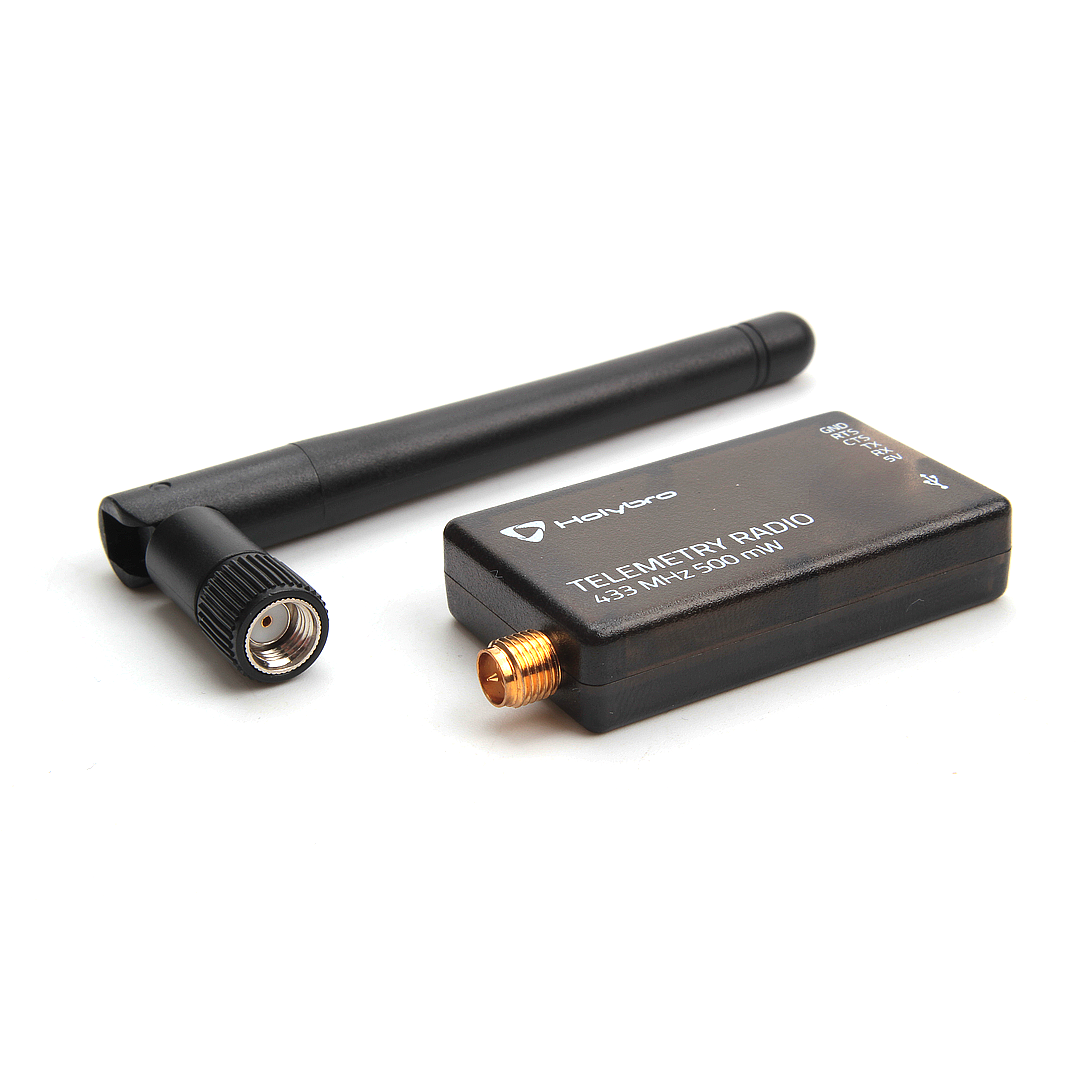

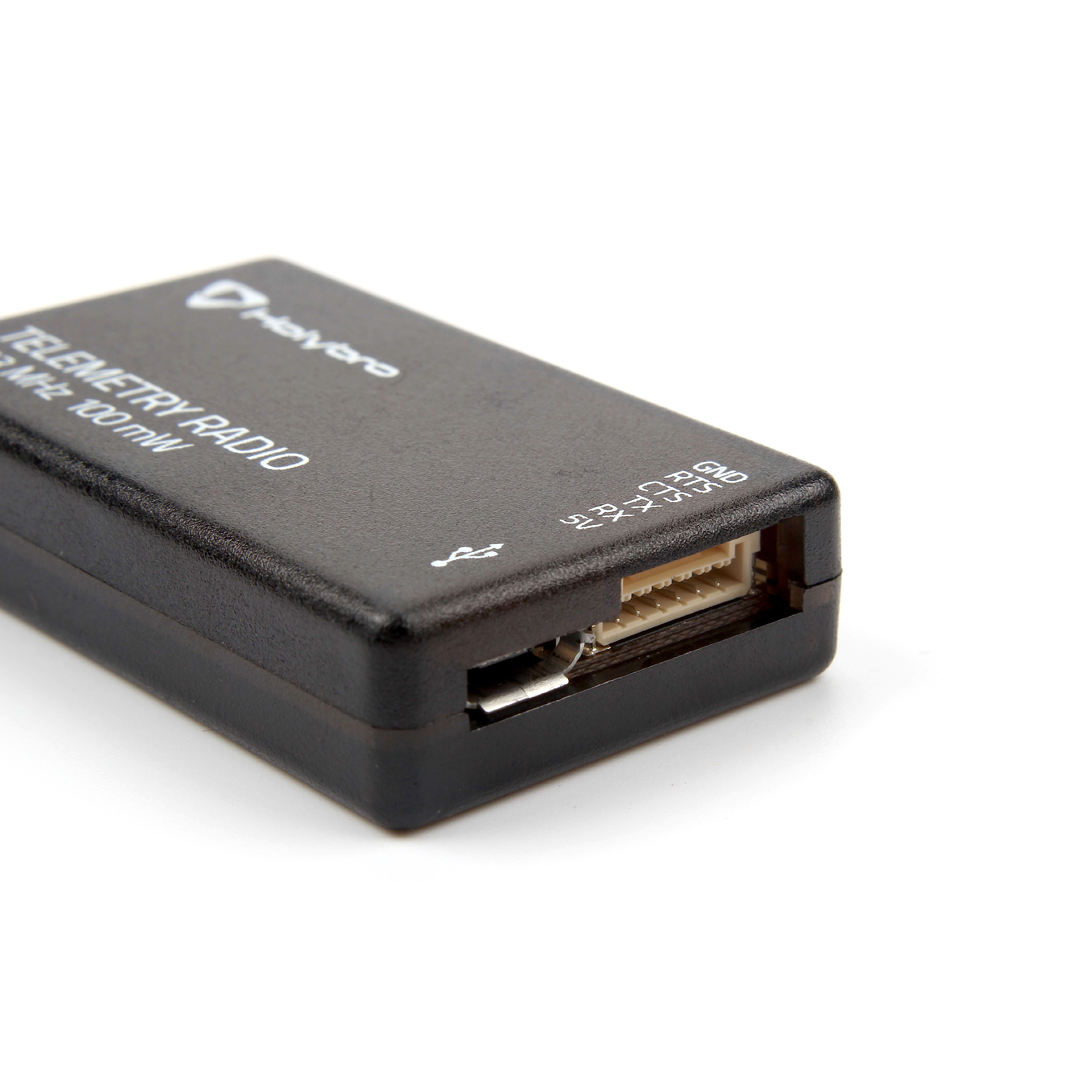

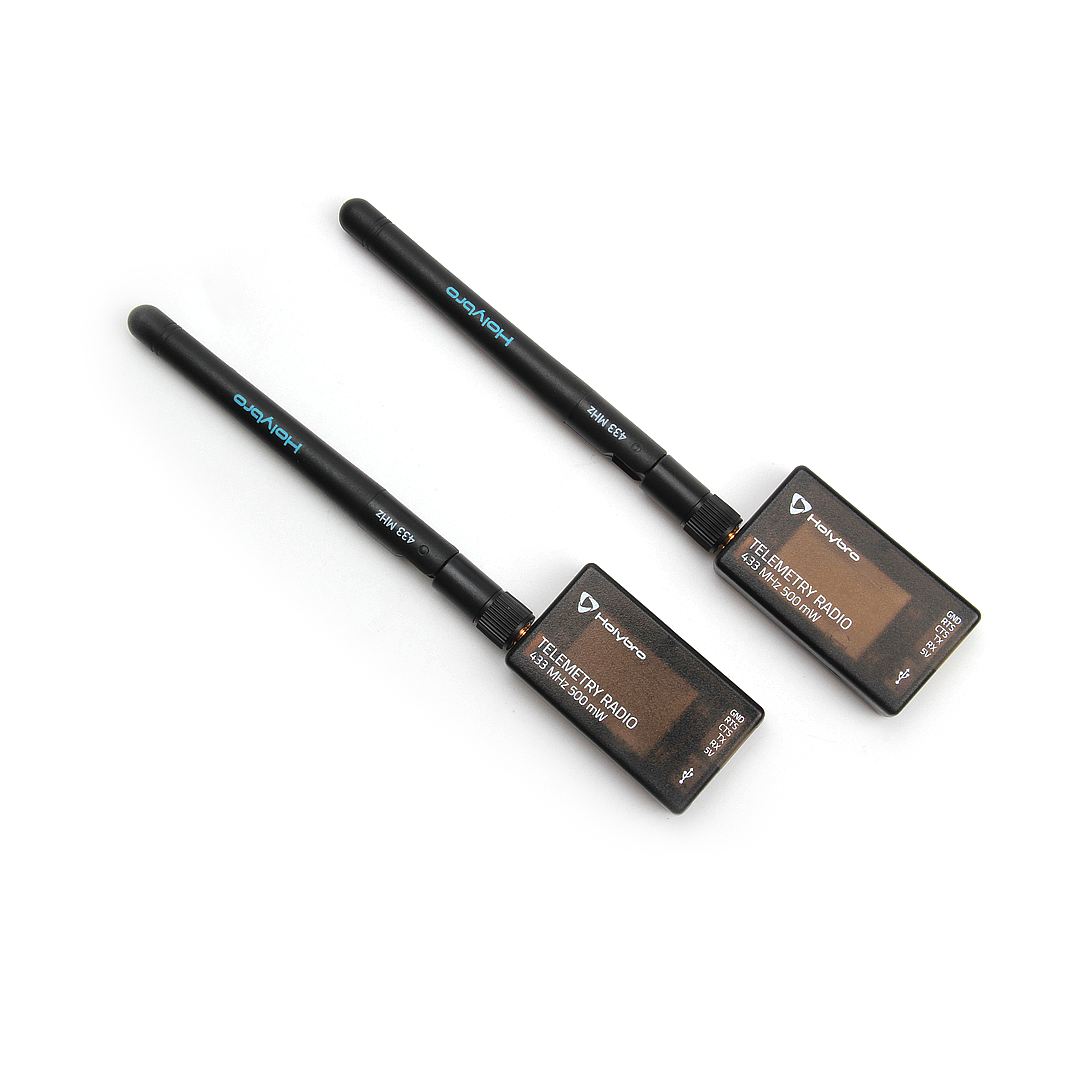

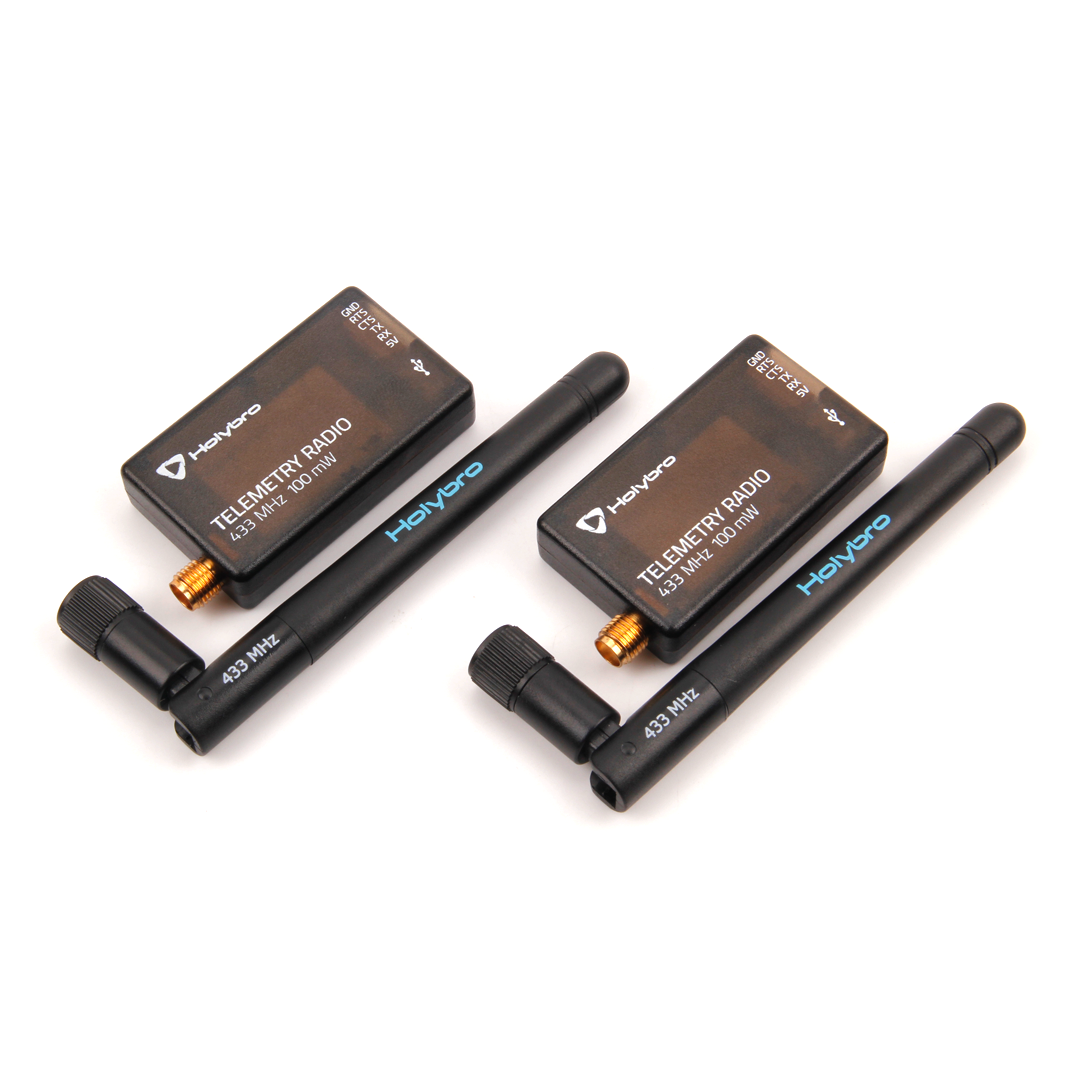

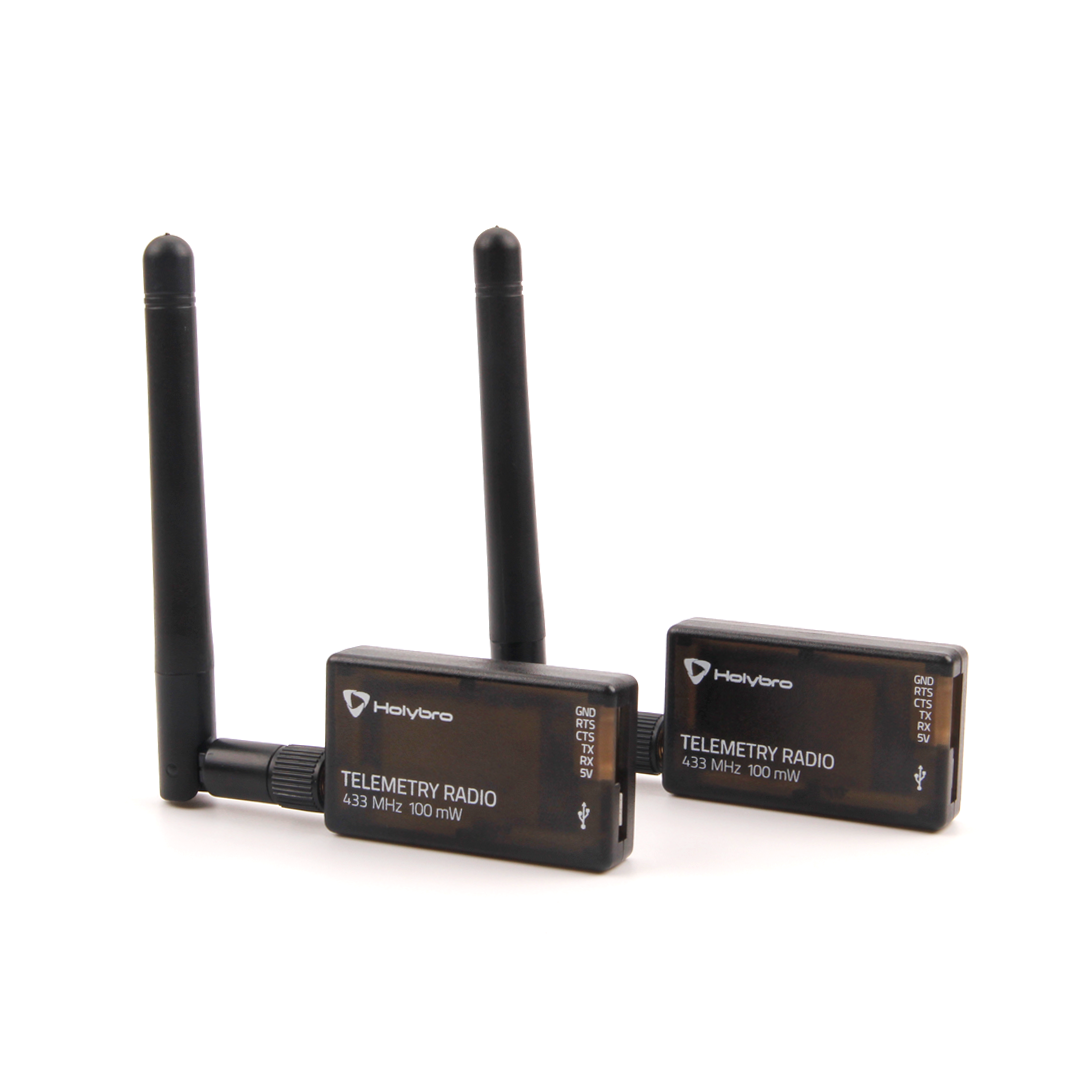

Telemetry Radio Holybro SiK V3 - 500mW 433MHz
Telemetry Radio Holybro SiK V3 - 500mW 433MHz
Brand: Holybro
Regular price
€62,99
Regular price
€62,99
Sale price
€62,99
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Holybro SiK V3 telemetry transmitter - 500mW 433MHz This Holybro SiK telemetry radio is a small, light and inexpensive open source radio platform that typically allows a range of better than 300m "out of the box" (the range can be extended to several kilometers using a patch antenna on the ground). This radio is plug-n-play for all Pixhawk Standard and other flight controllers and provides the easiest way to set up a telemetry link between your autopilot and ground station. It uses open source firmware that has been specially designed to work well with MAVLink packets and to integrate with Mission Planner, Ardupilot, QGroundControl, PX4 Autopilot. Transmitters can be either 915Mhz or 433Mhz and you should purchase the model that is appropriate for your country/region. Function: - Open-source SIK firmware - Plug-n-play for standard Pixhawk flight controllers. - The easiest way to connect the autopilot and the ground station - Interchangeable air and ground radio - Micro-USB port (Type-C adapter cable included) - Six-position JST-GH connector Specifications: - Maximum output power 100 mW/500 mW (adjustable) -117 dBm reception sensitivity RP-SMA connector - 2-way full-duplex communication via adaptive TDM UART interface - Transparent serial connection - MAVLink protocol framing - Frequency Hopping Spread Spectrum (FHSS) Configurable duty cycle - Error correction fixes up to 25% of open source SIK firmware bit errors - Configurable via Mission Planner and APM Planner - FT230X/FT231 is a USB to BASIC UART IC. - 28 x 53 x 10.7 mm (without antenna) - Supply voltage: 5V DC (from USB or JST-GH) - Transmit current: 100 mA at 20 dBm - Receiving current: 25 mA - Serial interface: 3.3 V UART - Weight: 7.4 g for 433MHz antenna - FCC ID: 2AP22-HT03-V3 The package contains: 2x Radio modules with antennas 1x Micro-USB to USB-A cable 1x Micro-USB to Micro-USB OTG adapter cable 1x Micro USB to Type C adapter 1x Cable JST-GH-6P to JST-GH-6P (for Pixhawk Standard FC) 1x JST-GH-6P to Molex DF13 6P (for Pix32, Pixhawk 2.4.6, etc.)
