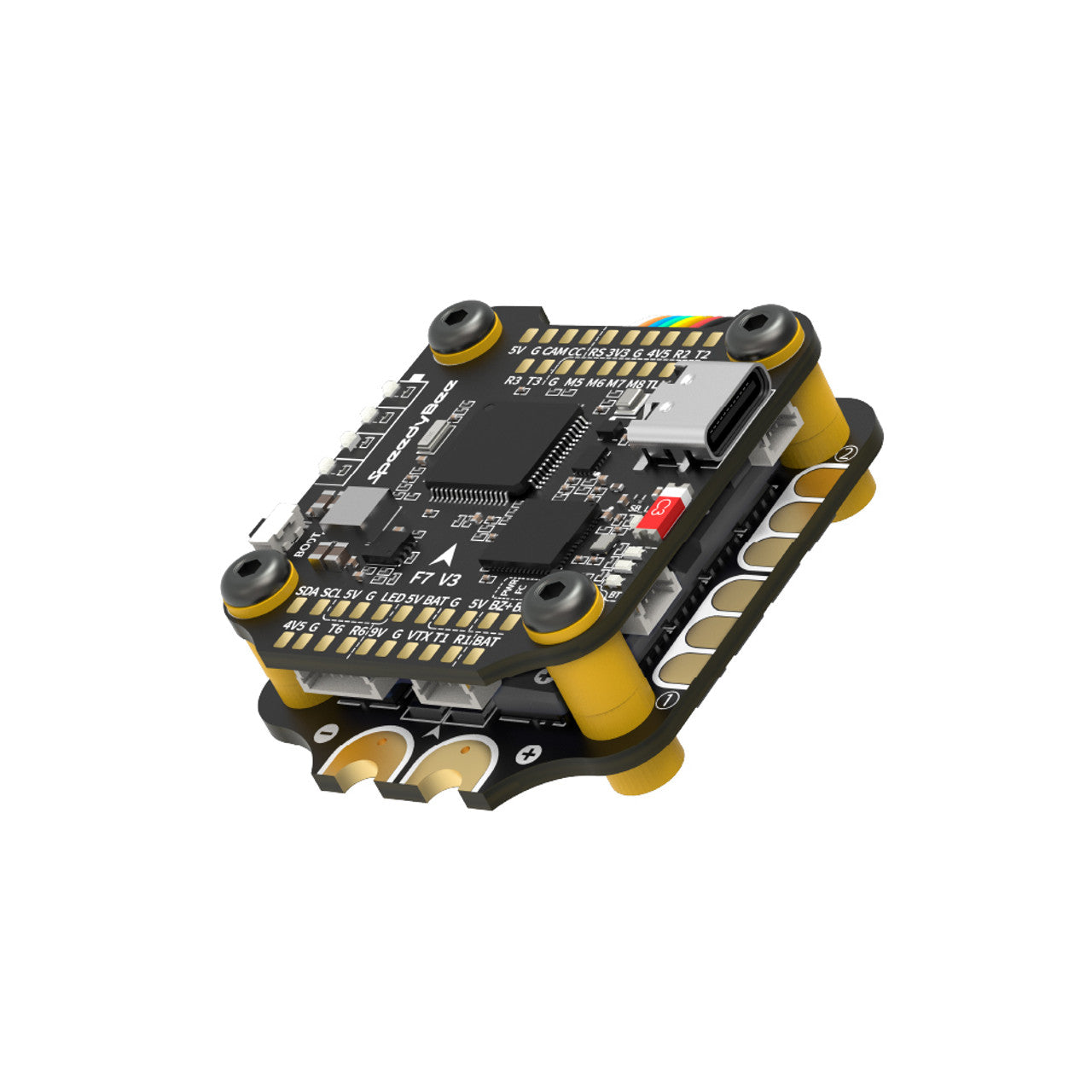

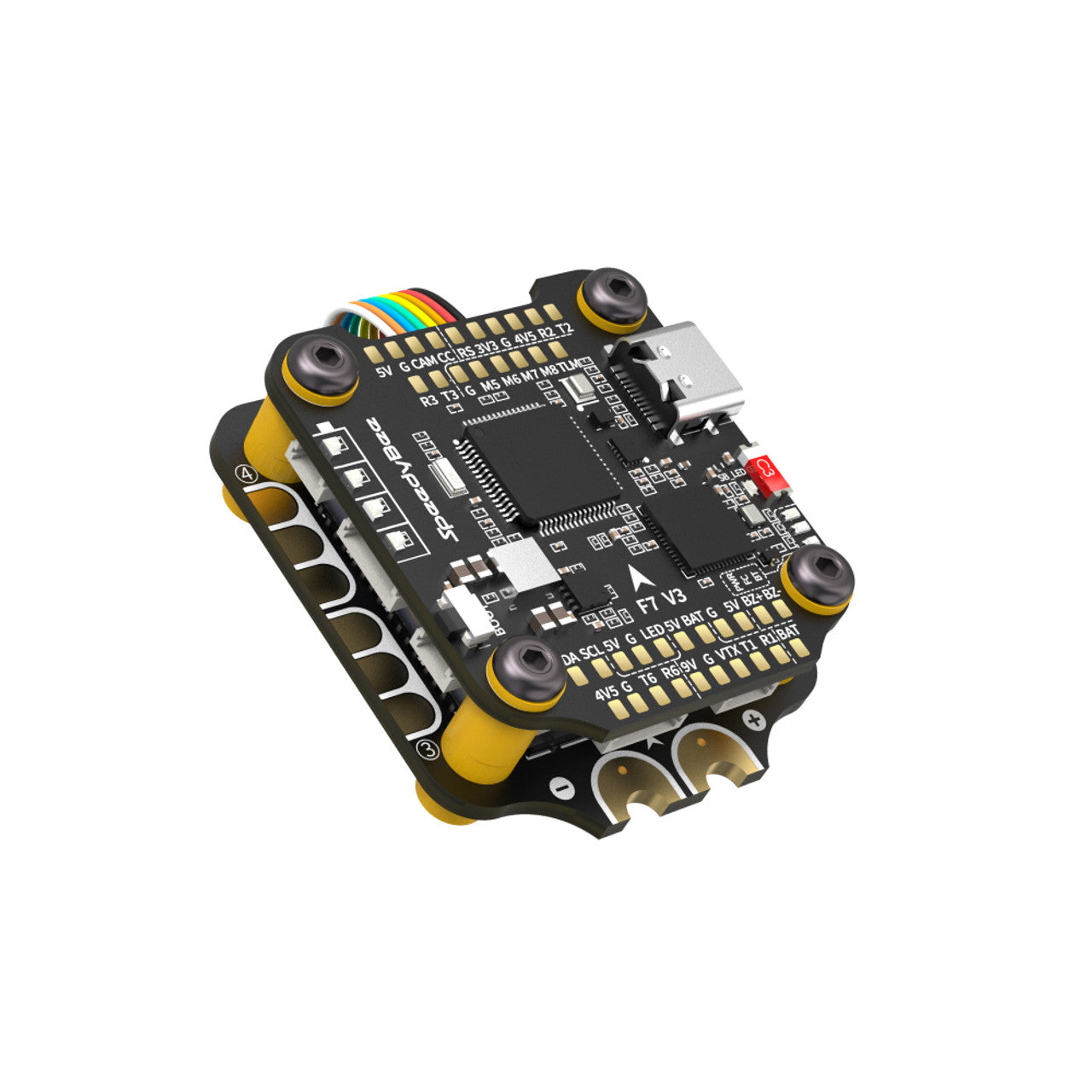

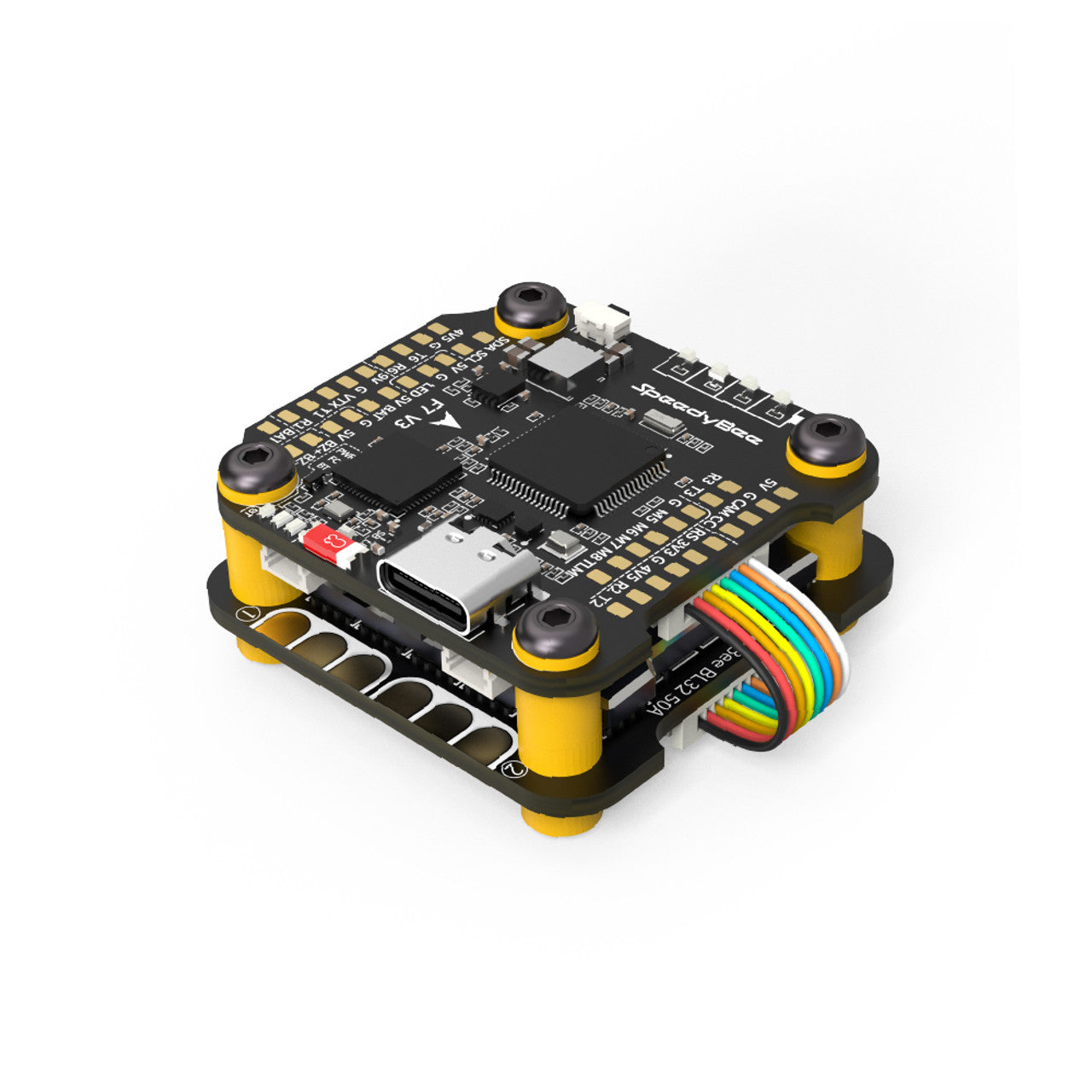

Stack SpeedyBee F7 V3 BL32 50A 30x30
Specifications:
Product Name: Flight Controller SpeedyBee F7 V3
MCU: STM32F722
IMU (gyroscope): BMI270
USB port type: Type-C
Barometer: BMP280
OSD chip: AT7456E chip
BLE Bluetooth: Supported. Used to configure the Flight Controller, the built-in single combined 2.4 GHz Wi-Fi-and-Bluetooth chip.
Firmware Flash FC wireless: Supported. Enter MENU > FC Firmware Flasher
Download/Analyze Blackbox: Supported. Please enter MENU > Blackbox Analyzer
DJI air unit connection method: Two ways are supported - 6-pin connector or direct soldering.
DJI Air Unit 6 Pin Plug: Supported. Fully compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no need to change any cable.
Flash (for BlackBox): 500 MB
BetaFlight Camera Control Pad: Yes (CC pad on front)
Power: 3S - 6S Lipo
5V output: 10 groups of 5V output, three +5V pads and 1 BZ+ pad (used for buzzer) on the front and 6 +5V output included in the connectors on the bottom. The total current load is 2A.
9V output: 2 groups of 9V output, one +9V pad on the front and the other included in the connector on the bottom. The total current load is 4A.
3.3V output: Supported. Designed for receivers with 3.3V input. Current load up to 500 mA.
4.5V output: Supported. Designed for the GPS receiver and module, even if the FC is powered via the USB port. Current load up to 1A.
ESC Signal Pad M1 - M4 on the bottom and M5-M8 on the front.
UART: 5 sets (UART1, UART2, UART3, UART4 (for ESC telemetry), UART6)
ESC Telemetry UART: R4(UART4)
I2C: Supported. SDA & SCL pads on the front. Used for magnetometer, sonar, etc.
LED Pad: Used for WS2812 LEDs controlled by Betaflight firmware.
Buzzer: BZ+ and BZ- pad used for 5V buzzer
BOOT Button: Supported.
[AND]. Press and hold the BOOT button and power on the FC at the same time, this will put the FC into DFU mode, this is for flashing the firmware when the FC freezes.
[B]. When the FC is powered on and in standby mode, the BOOT button can be used to control the LED strips connected to the LED1-LED4 connectors on the bottom. By default, short press the BOOT button to toggle the LED display mode. Long press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. In BF-LED mode, all LED1-LED4 strips will be controlled by Betaflight firmware.
RSSI Input: Supported. Named as RS on the front.
SmartPort: Not supported
Supported Flight Controller firmware: BetaFlight (default), INAV
Target firmware name: SPEEDYBEEF7V3
Mounting: 30.5 x 30.5mm (hole diameter 4mm)
Dimension: 41 (L) x 38 (W) x 8.1 (H) mm
Weight: 10.7g
Product name: SpeedyBee BL32 50A 4-in-1 ESC
Firmware: SpeedyBee BL32 50A
Configurator download link: http://github.com/bitdump/BLHeli/releases
Continuous current: 50A * 4
Explosive current: 55A (5 seconds)
TVS protection diode: Yes
Cooler: Yes
External capacitor: 1000uF Low ESR capacitor (included)
ESC protocol: DSHOT300/600
PWM frequency range: 16KHz-128KHz
Power: 3-6S LiPo
Output power: VBAT
Current Sensor: Support (Scale=490 Offset=0)
ESC telemetry: supported
Mounting: 30.5 x 30.5mm (hole diameter 4mm)
Dimension: 45.6 x 40 x 8.8 mm
Weight: 19.2g with cooler
