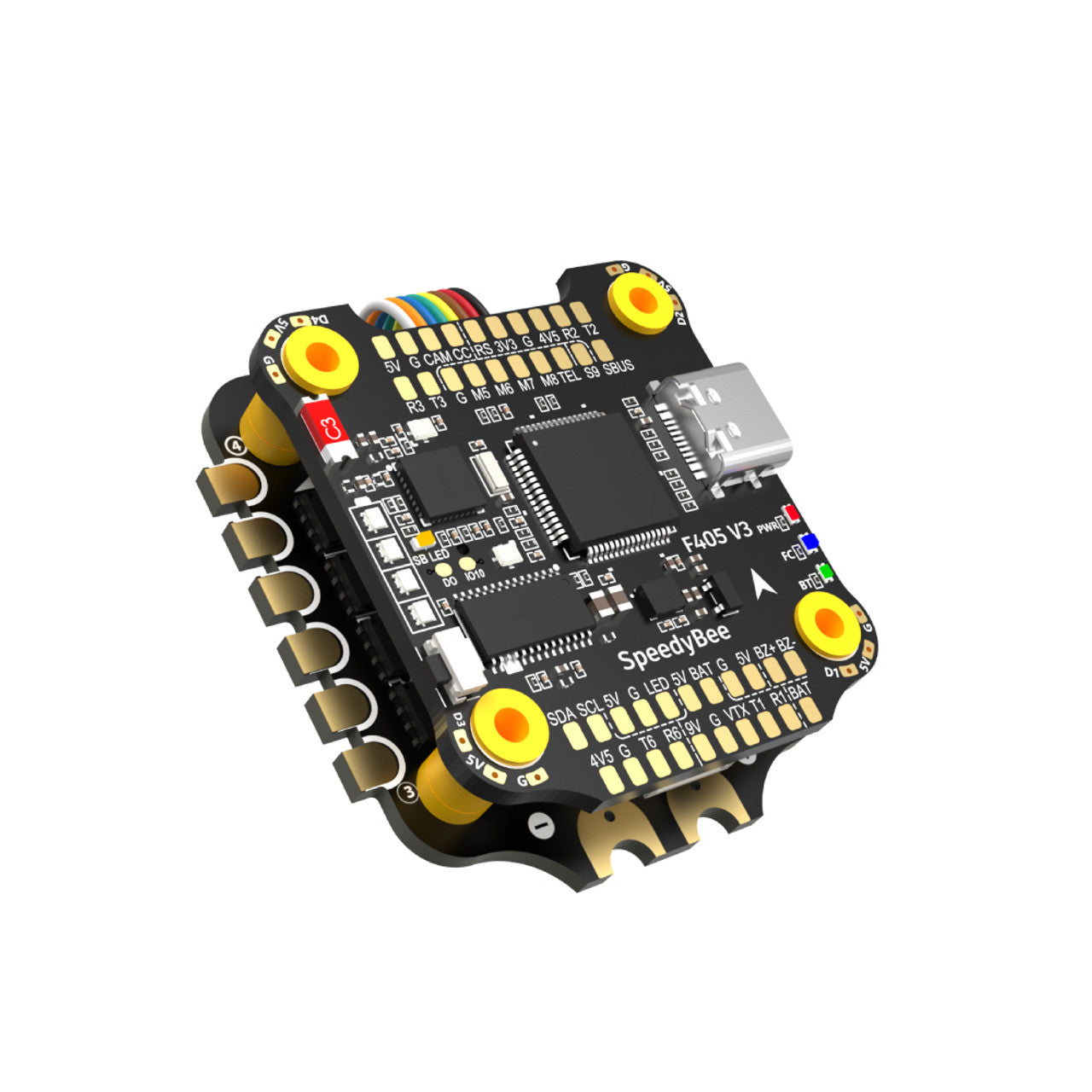

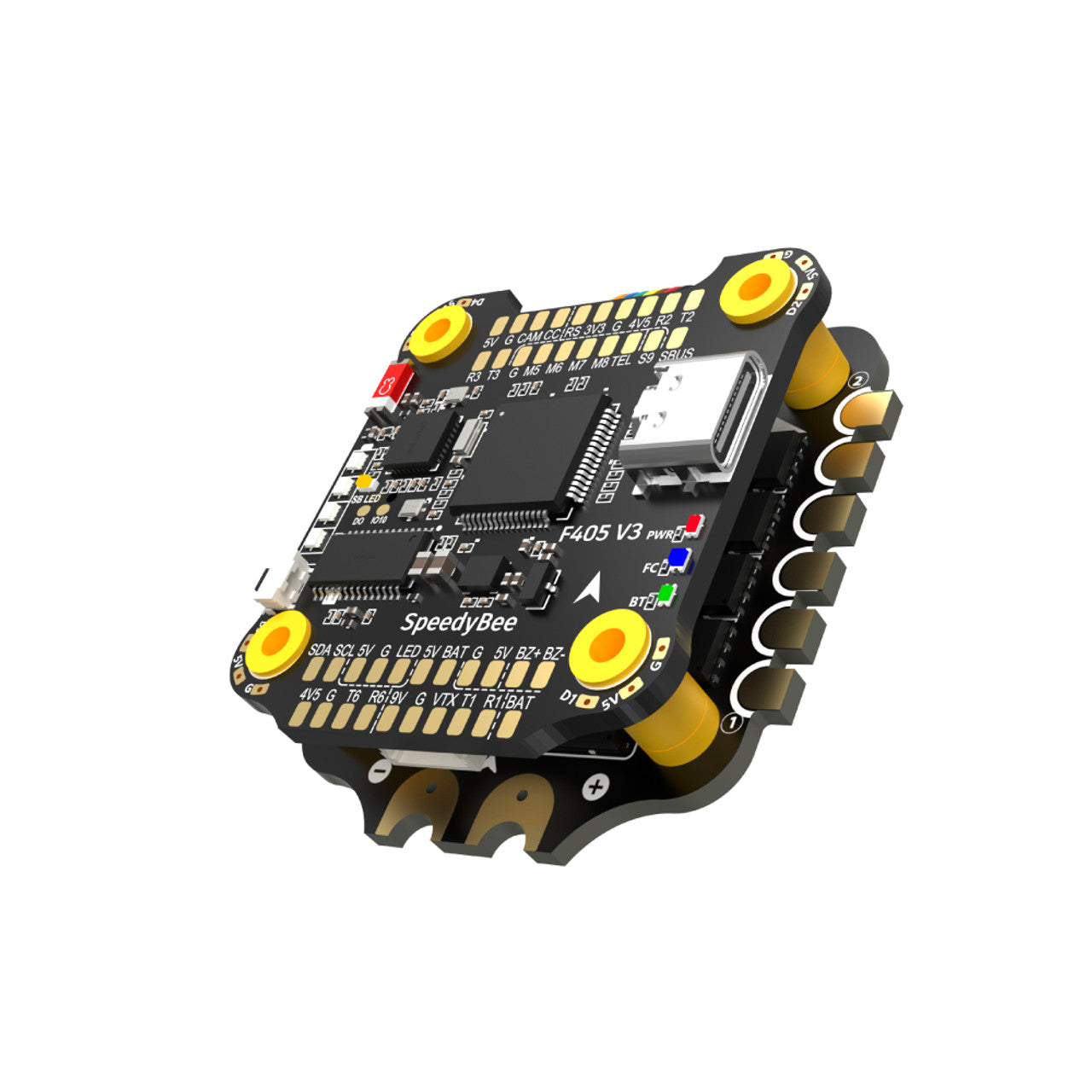

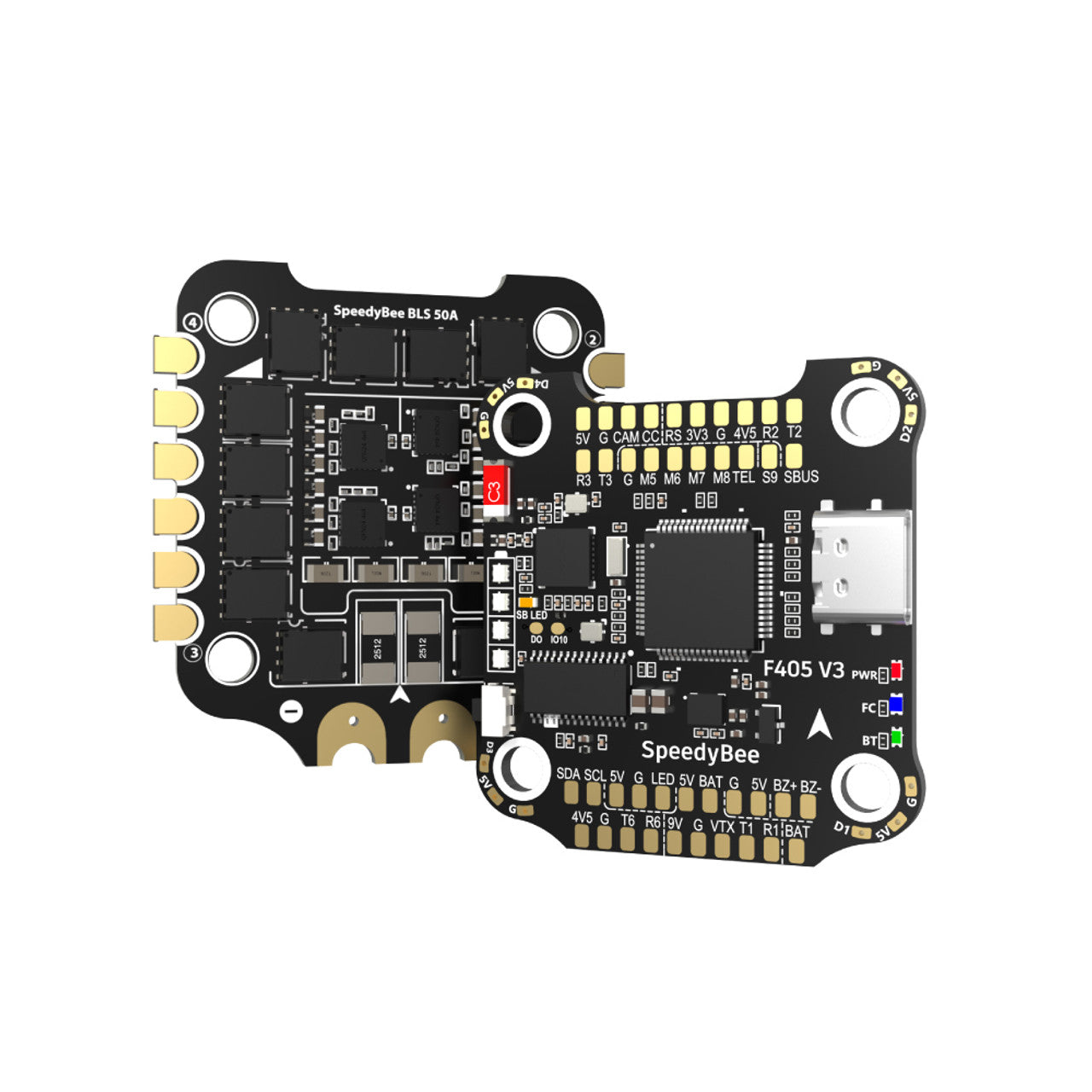

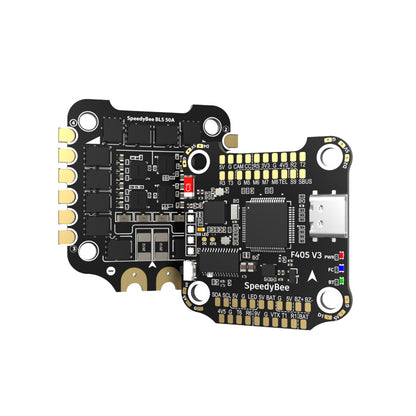

Stack SpeedyBee F405 V3 BLS 50A 30x30 FC&ESC
Made with robust MCU BB21 and large motor pads for easy soldering. Built with Japanese TDK filter SMT capacitors + integrated TVS protection diode, it brings a smooth flight experience. Real 50A output, ready for 6S motors. With a 4-level LED battery indicator, you can now fly anywhere without worry - even without a lipo checker! Can be used to build X8 drones, Y6 drones or fixed wings. Easy configuration with the SpeedyBee app.
Specifications:
-Product name: SpeedyBee F405 V3 30x30 Flight Controller
-MCU: STM32F405
-IMU (gyroscope): BMI270
- USB port type: Type-C
-Barometer: Built-in
-OSD chip: AT7456E chip
-BLE Bluetooth: Supported. Used for Flight Controller configuration (MSP should be enabled with baud rate 115200 on UART4)
-WIFI: Not supported
-DJI air unit connection method: Two methods are supported - 6-pin connector or direct soldering.
DJI Air Unit 6 Pin Plug: Supported. Fully compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no need to change any cable.
Blackbox MicroSD Card Slot: *Betaflight firmware requires the microSD card type to be either standard (SDSC) or high capacity (SDHC), so extended capacity (SDXC) cards are not supported (many high speed U3 cards are SDXC). The card MUST also be formatted with a FAT16 or FAT32 file system (recommended). So you can use any SD card smaller than 32GB, but Betaflight can only recognize a maximum of 4GB. We suggest you use this third-party format tool and select the Override format option and then format the card. See also recommended SD cards here or buy tested cards in our store.
-BetaFlight Camera Control Pad: Yes (CC pad on the front)
-Current sensor input: Supported. For the SpeedyBee BLS 50A ESC, set Scale = 386 and Offset = 0.
- Power input: 3S - 6S Lipo (via G, BAT pins/pads from 8-pin connector or 8-pads on the bottom)
-5V output: 9 groups of 5V output, four +5V pads and 1 BZ+ pad (used for buzzer) on the front and 4x LED 5V pads. The total current load is 2A.
-9V output: 2 groups of 9V output, one +9V pad on the front and the other included in the connector on the bottom. The total current load is 2A.
-3.3V output: Supported. Designed for receivers with 3.3V input. Current load up to 500 mA.
-4.5V output: Supported. Designed for the GPS receiver and module, even if the FC is powered via the USB port. Current load up to 1A.
-ESC signal: M1 - M4 on the bottom side and M5-M8 on the front side.
-UART: 6 sets (UART1, UART2, UART3, UART4 (reserved for Bluetooth connection)), UART5 (reserved for ESC telemetry), UART6
-ESC telemetry: UART R5 (UART5)
-I2C: Supported. SDA & SCL pads on the front. Used for magnetometer, sonar, etc.
-Traditional Betaflight LED Pad: Supported. 5V, G and LED pads on the bottom of the front. Used for WS2812 LED controlled by Betaflight firmware.
-Buzzer: BZ+ and BZ- pad used for 5V buzzer
-BOOT button: Supported.
[AND]. Press and hold the BOOT button and power on the FC at the same time, this will put the FC into DFU mode, this is for flashing the firmware when the FC freezes.
[B]. When the FC is powered on and in standby mode, the BOOT button can be used to control the LED strips connected to the LED1-LED4 connectors on the bottom. By default, short press the BOOT button to toggle the LED display mode. Long press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. In BF-LED mode, all LED1-LED4 strips will be controlled by Betaflight firmware.
-RSSI Input: Supported. Named as RS on the front.
-Smart Port / F.Port: Not supported
-Supported Flight Controller firmware: BetaFlight (default), INAV (INAV firmware can only use Multishot (recommended) and OneShot125. Please note that DShot is not supported.)
-Target firmware name: SPEEDYBEEF405V3
- Mounting: 30.5 x 30.5 mm (hole diameter 4 mm)
-Dimension: 41.6 (L) x 39.4 (W) x 7.8 (H) mm
- Weight: 9.6g

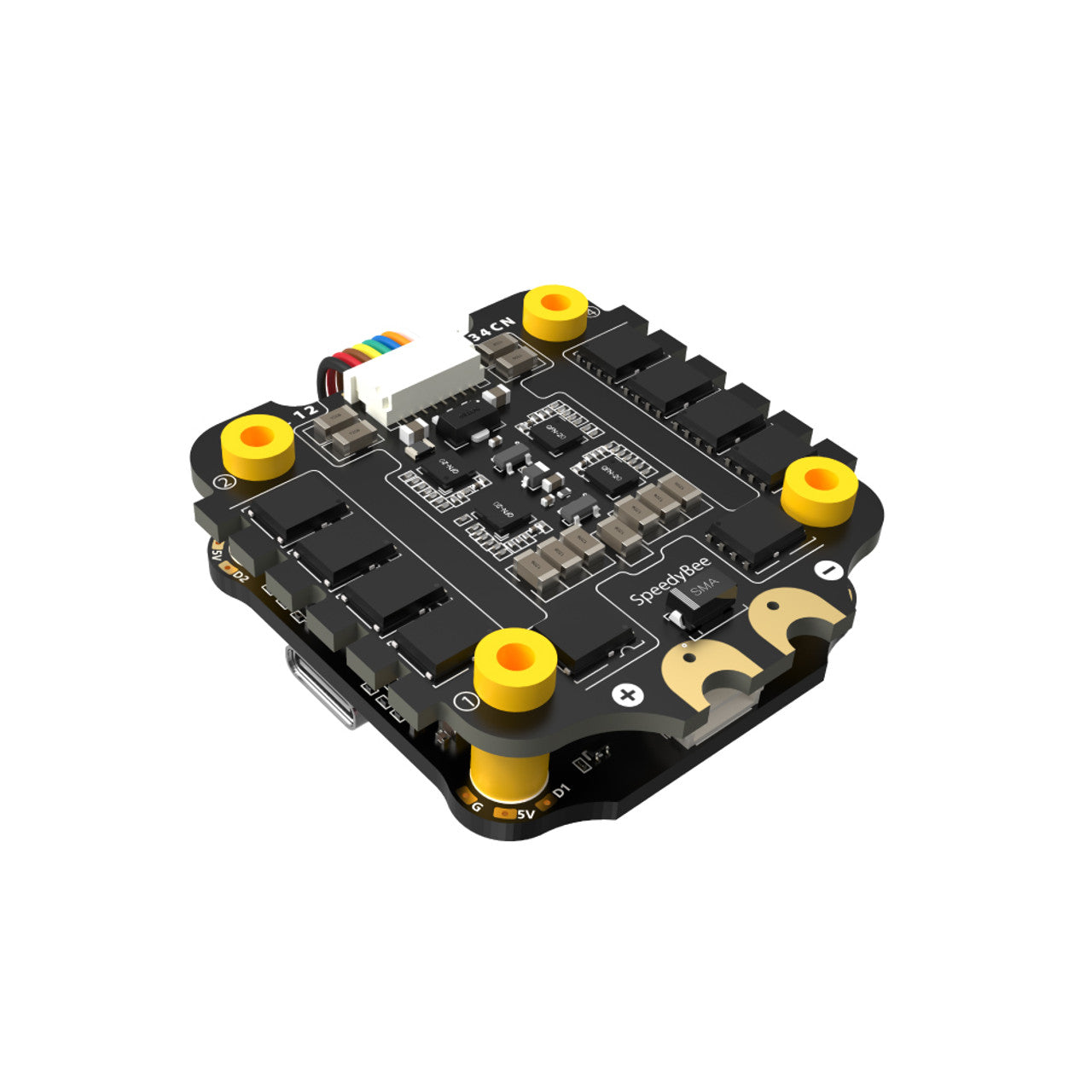

Product name: SpeedyBee BLS 50A 30x30 4-in-1 ESC
Firmware: BLHeli_S JH50
Wireless configuration: Full configuration supported in the SpeedyBee app
PC Configurator download link: https://esc-configurator.com/
Continuous current: 50A x 4
Explosive current: 55A (5 seconds)
TVS protection diode: Yes
External capacitor: 1000uF Low ESR capacitor (included)
ESC protocol: DSHOT300/600
Power: 3-6S LiPo
Output power: VBAT
Current Sensor: Support (Scale=386 Offset=0)
ESC telemetry: Not supported
Mounting: 30.5 x 30.5mm (hole diameter 4mm)
Dimensions: 45.6 x 44 x 6.1 mm
Weight: 13.8g
