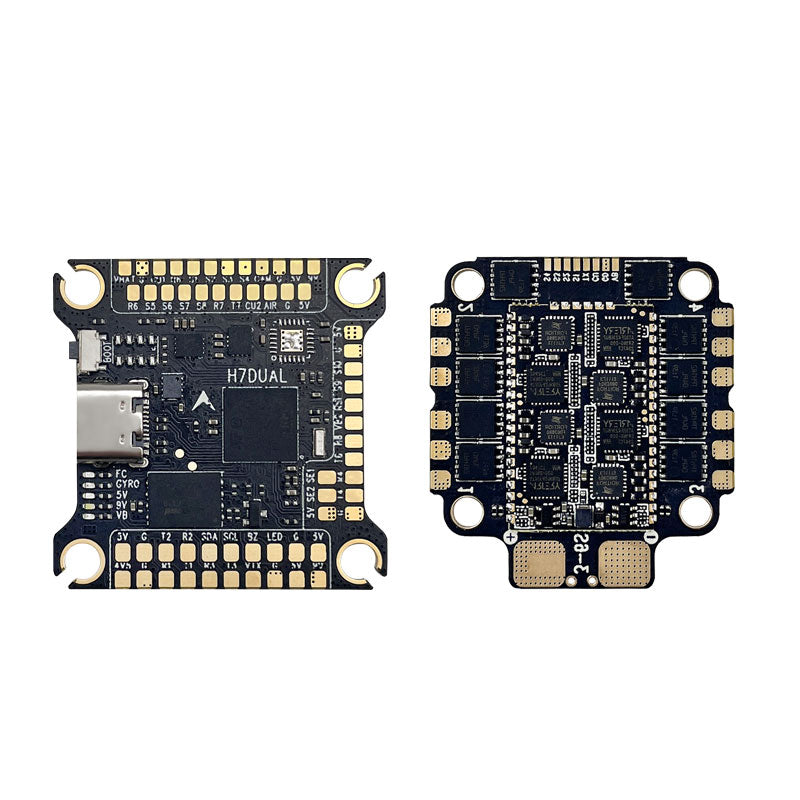

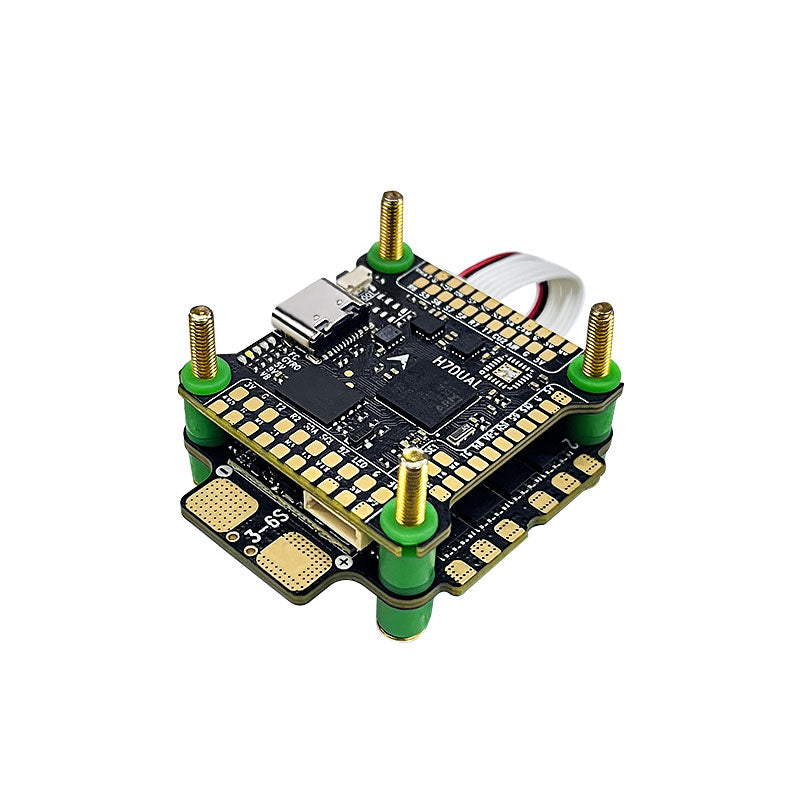

Stack Pilotix H743 BMI270*2 Bettle 3060 V1 AM32 60A
The Pilotix H743 controller is a high performance flight controller designed for advanced drone pilots. Features dual BMI270 gyroscopes for better stability and accuracy. The Bettle 3060 V1 integrated in this system offers robust computing power and versatility. AM32 60A Electronic Speed Controllers (ESCs) ensure efficient power management and smooth, responsive control of the drone's motors. This stack is ideal for demanding applications including FPV racing and freestyle flying due to its reliability and performance.
Control Unit Specifications:
- CPU: STM32H743VIH6
- Gyroscope: MPU6000/BMI270*2
- Barometer: BMP280, DPS310
- OSD: Supported
- Black Box: 128MB
- Motor output: 10 channels
- LED Strip: Supported
- Buzzer: Supported
- Receiver Protocol: ELRS/CRSF/SBUS/Frsky/Futaba/Flysky/TBS Crossfire/DSMX
- Universal serial port: 8 channels
- BEC output: 5V/2.5A, 9V/3A
- USB connector: Type-C
- DJI/Vista Digital Sky End: Supported
- Camera switching: Supported
- Sbus and VTX jumper switching: Supported
- Bluetooth: No
- Weight: 8.8g
- External dimensions: 36mm x 36mm
- Installation holes: 30.5mm x 30.5mm
- Firmware Name: AOCODARCH7DUAL
3060 Electric Controller Specifications:
- Maximum continuous current: 60A x 4
- Maximum peak current: 70A x 4
- Input Voltage: 3-6S Lipo
- Electrical controller protocol: Dshot300/Dshot600/PWM/Bi-directional Dshot
- MCU: AT32F421K8U7
- Integrated ammeter: Supported
- ESC telemetry: Supported
- Firmware: AM32_AT32PB4_540_F421_2.12.hex
- Weight: 13.9g
- External dimensions: 40mm x 40.7mm
- Installation holes: M3 30.5mm x 30.5mm
