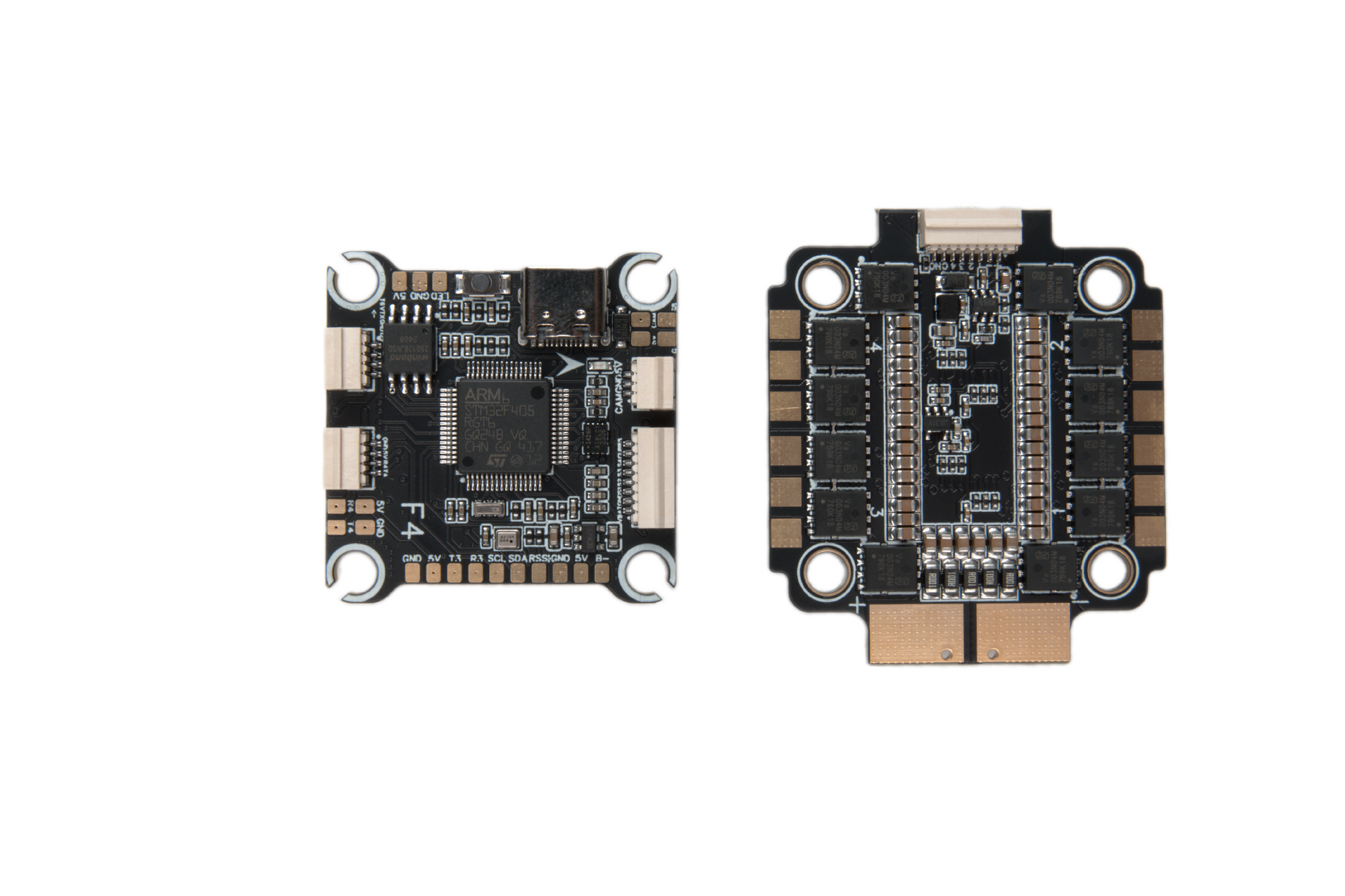

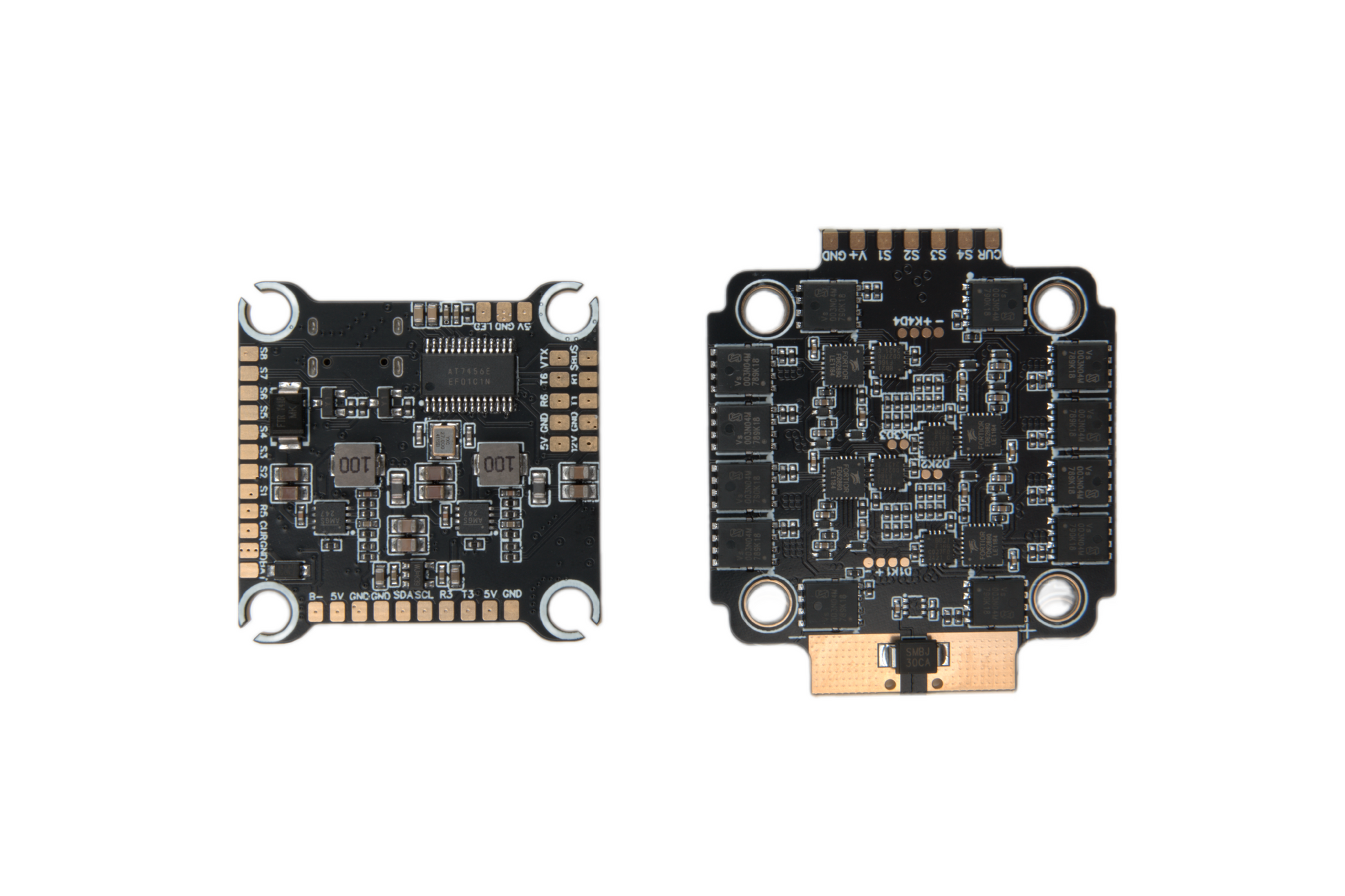

Stack Pilotix F405 V3 ICM42688 AM32 60A
Stack Pilotix F405 V3 60A is an advanced FC (Flight Controller) and Electronic Speed Controller (ESC) combination designed for high performance drones. The F405 processor offers fast and precise flight control for smooth and stable maneuvers. The ESC 60A provides enough power for a wide range of motors and propeller combinations, ensuring reliable and efficient performance.
Specifications:
-

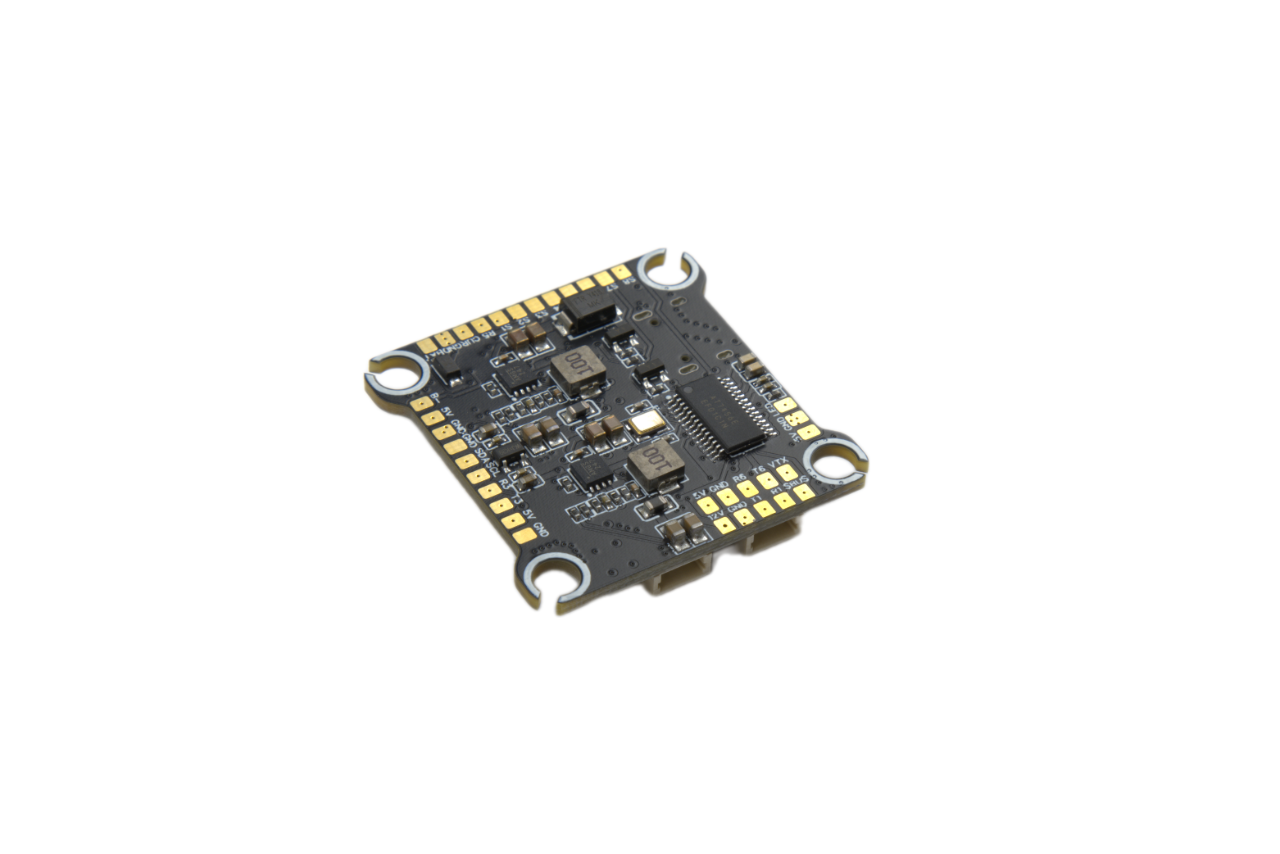

FC (flight controller)
- Firmware: Betaflight 4.4.3
- MCU: STM32F405RGT6
- Gyroscope: ICM42688P
- Barometer: SPL06
- OSD chip: AT7456E
- Blackbox: 16MB
- UARTs: 5
- Motor output: 8x
- I2C serial: SDA/SCL pads
- Mounting pattern: 30.5*30.5mm M3
- Dimensions: 37*37mm
- Weight: 7.8g
- BEC: 5V 3A/12V 2A
-

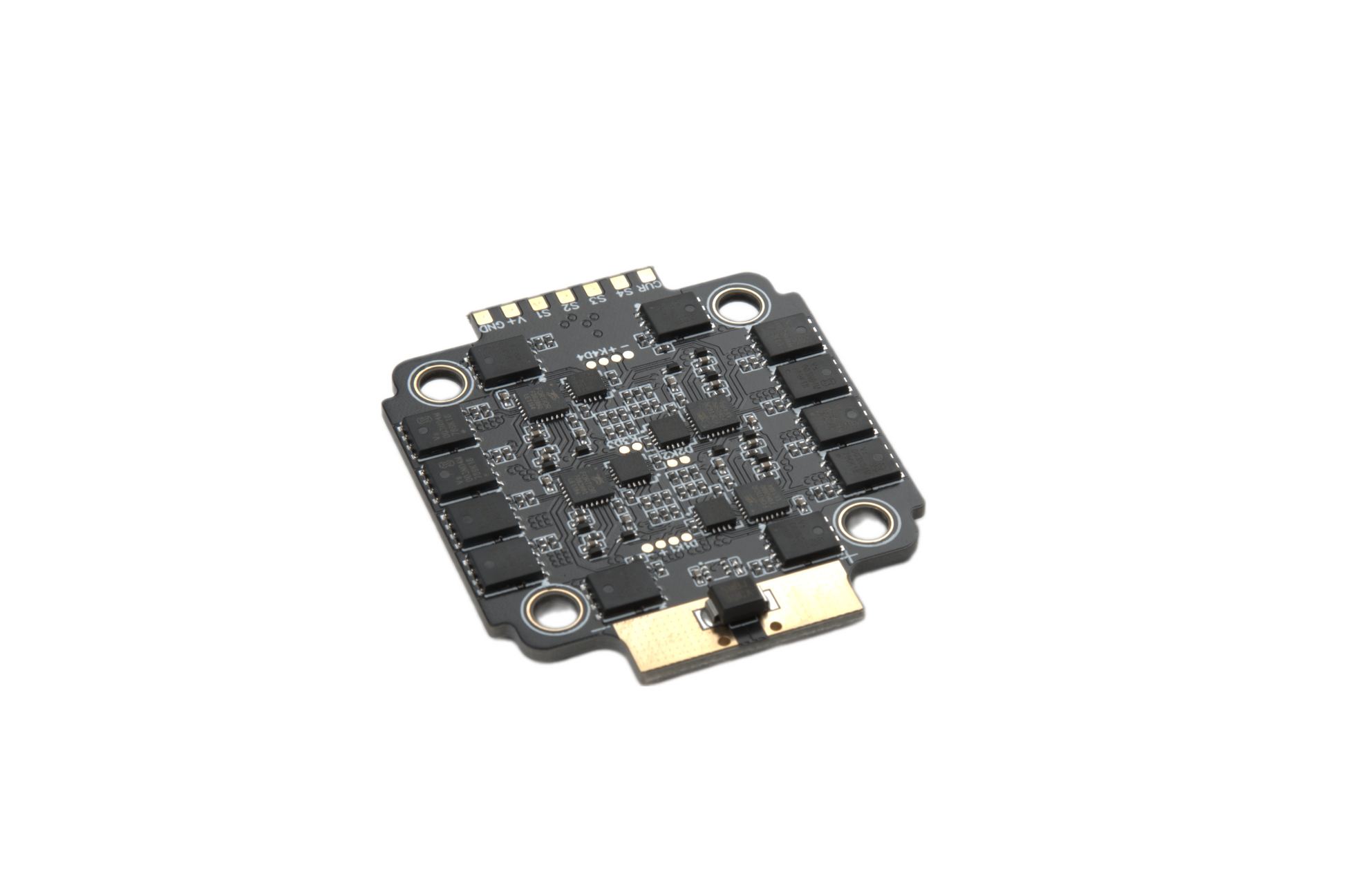

ESC (Electronic Speed Controller)
- Input voltage: 3-6S
- Continuous current: 60A
- Impulse current: 75A
- Current sensor: No
- ESC Firmware: Bluejay JH-30 V0.19.2
- ESC protocol: DShot150/300/600/MultiShot/OneShot etc.
- Dimensions: 48*42mm
- Mounting pattern: 30.5*30.5mm M3

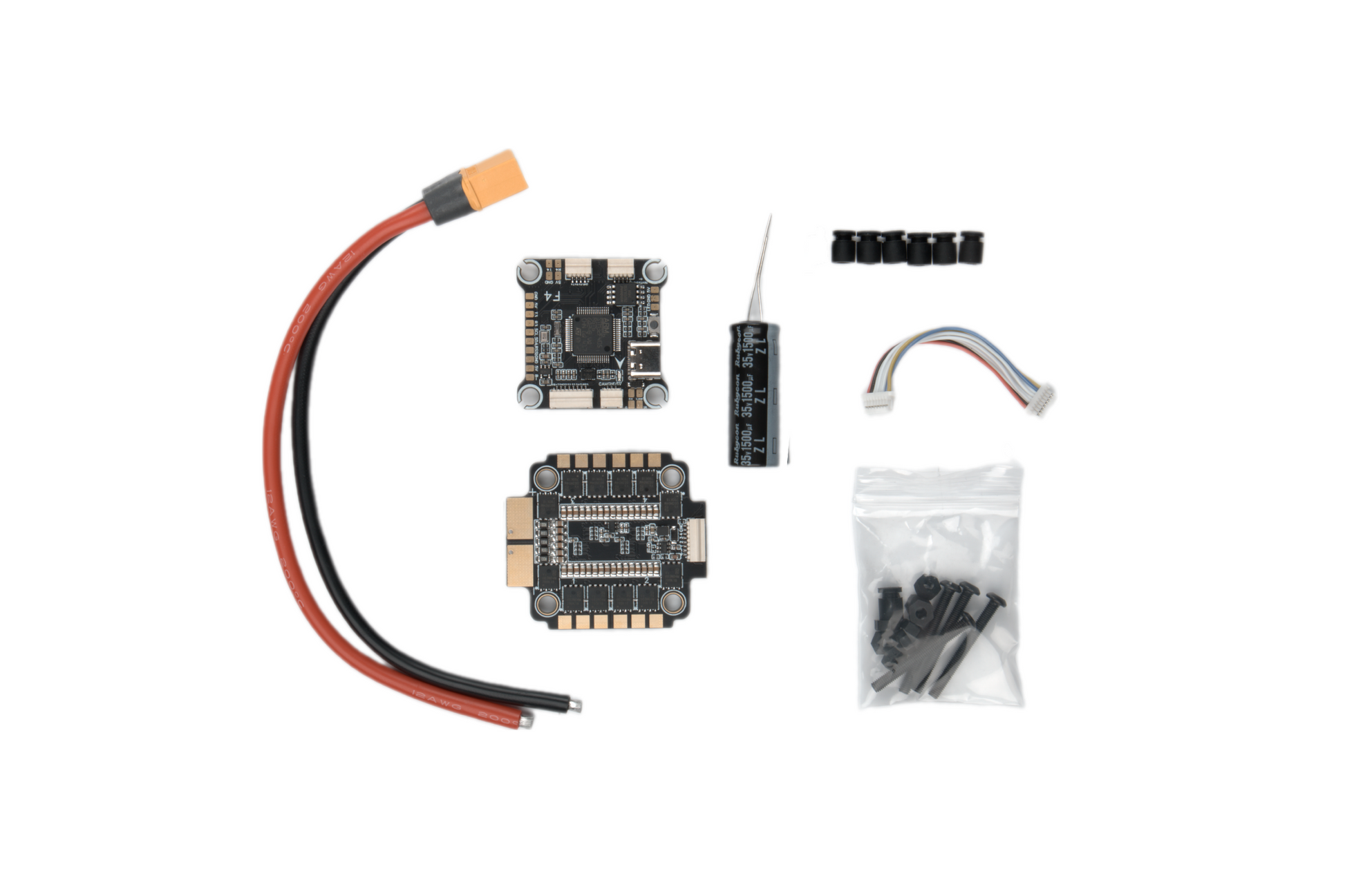

Package includes: 1x Stack Pilotix F405 V3 ICM42688 AM32 60A
