Code: SKU:GP107216

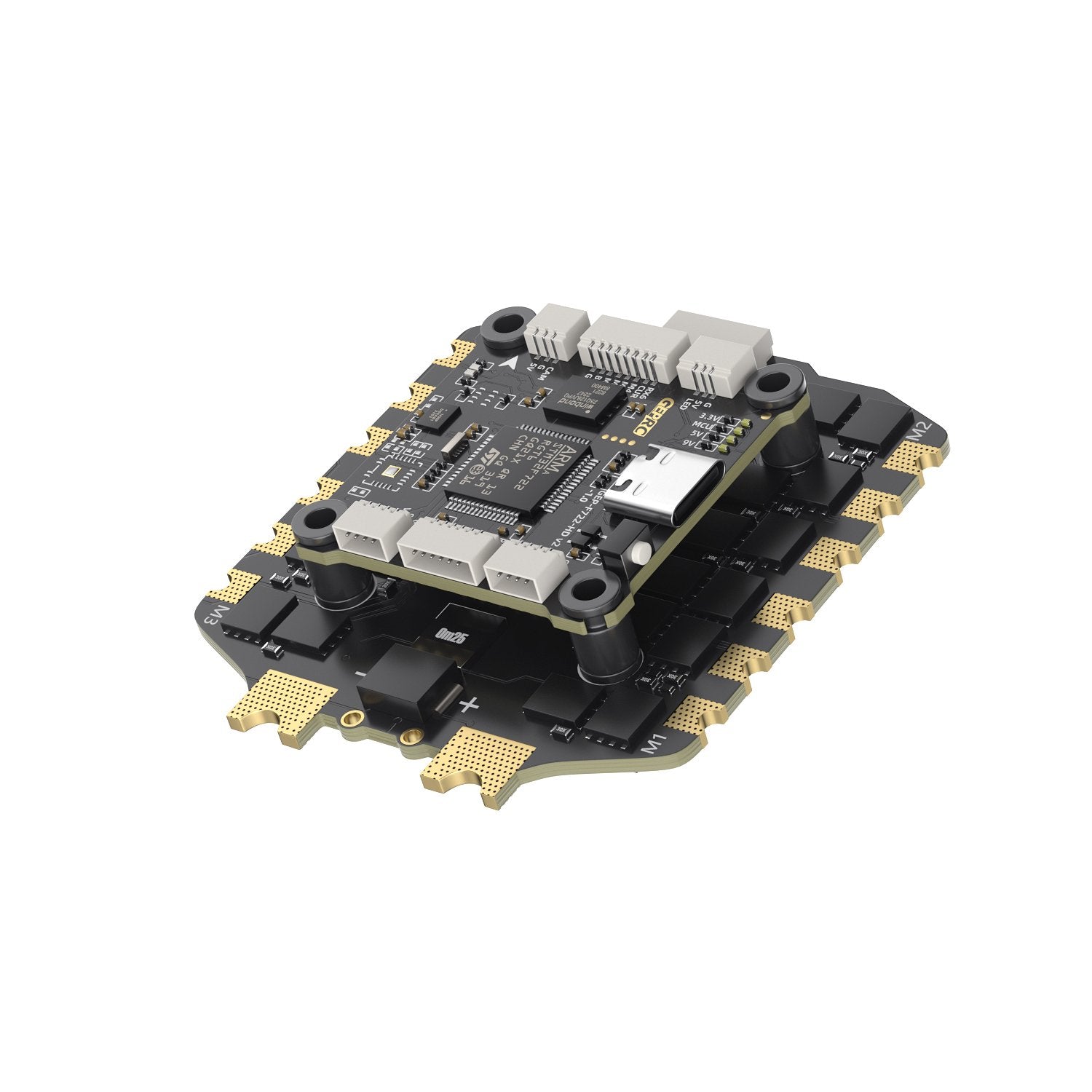

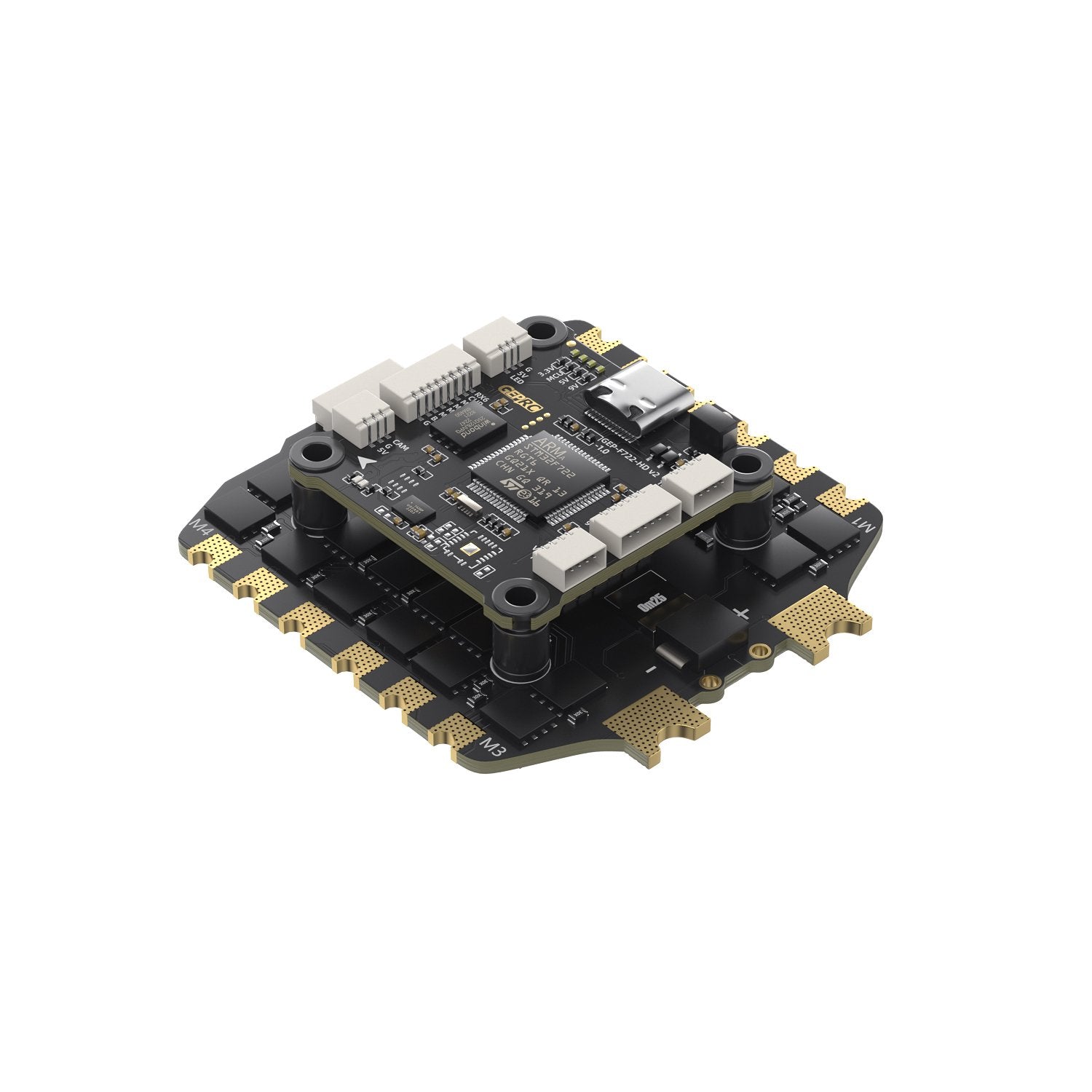

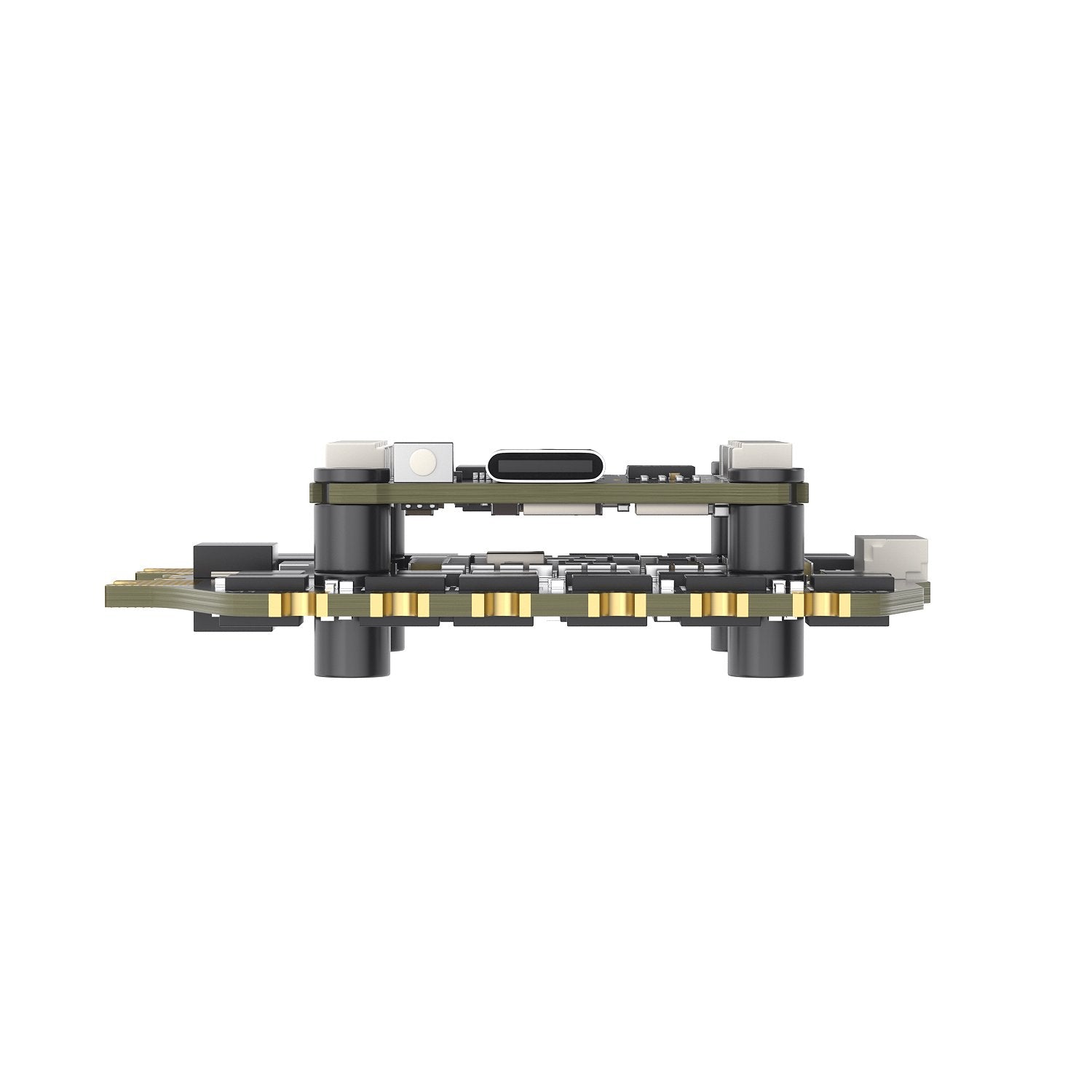

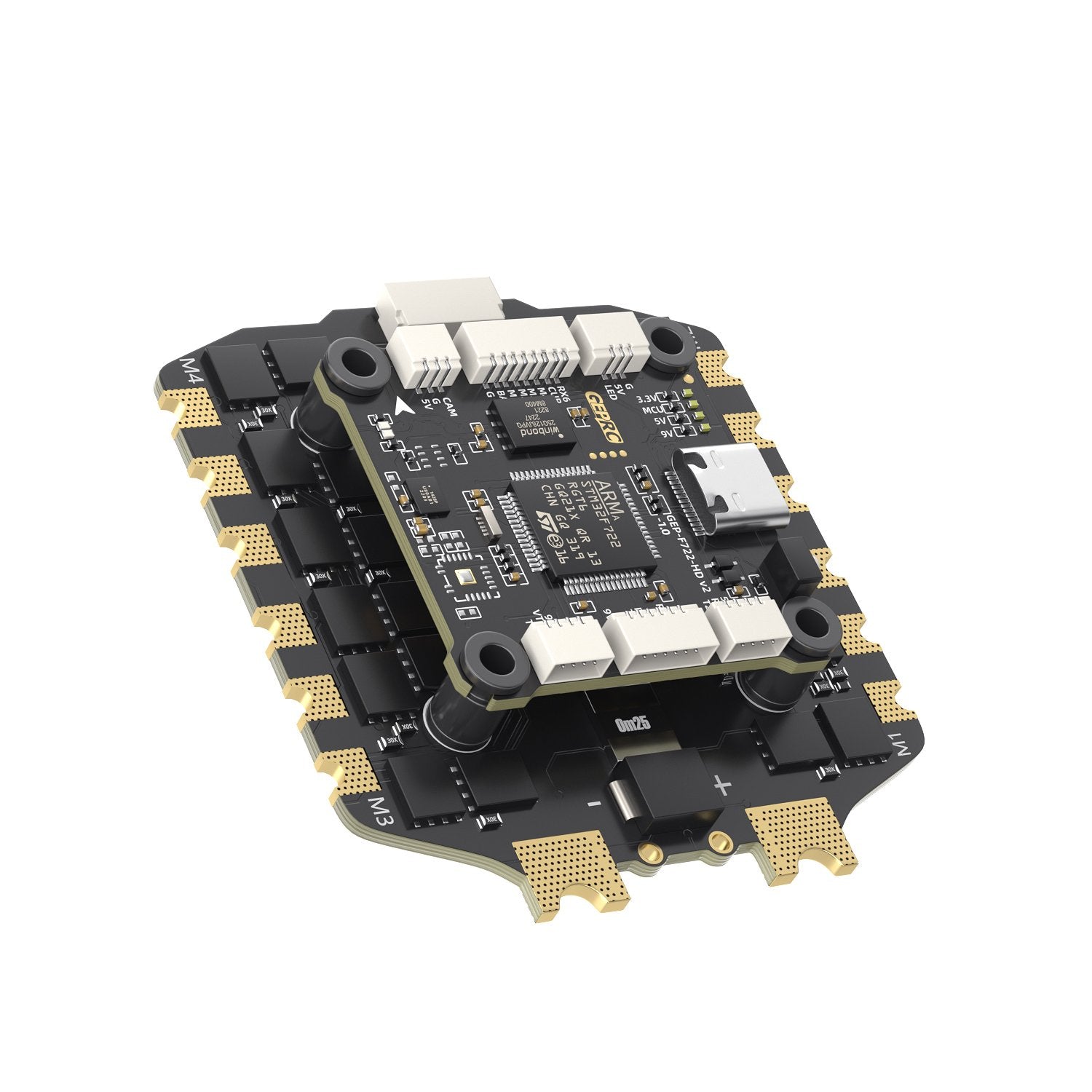

Stack GEPRC TAKER F722 BLS 80A V2
Stack GEPRC TAKER F722 BLS 80A V2
Brand: GEPRC
Regular price
€97,34
Regular price
€97,34
Sale price
€97,34
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Features:
- Using STM32F722 main chip
- Equipped with the latest gyroscope 42688-P
- 16M storage for black box
- Integrated LC filter
- Updated USB Type-C interface
- Direct connection to DJI Air Unit
- S TAKER H80_BLS 80A 4IN1 ESC, Dual MOS, High Current, Smooth Flight
- Simple and reasonable assembly, the damper ensures the stable operation of the gyroscope
- 9V@2.5A + 5V@3A dual independent BEC
Specifications:

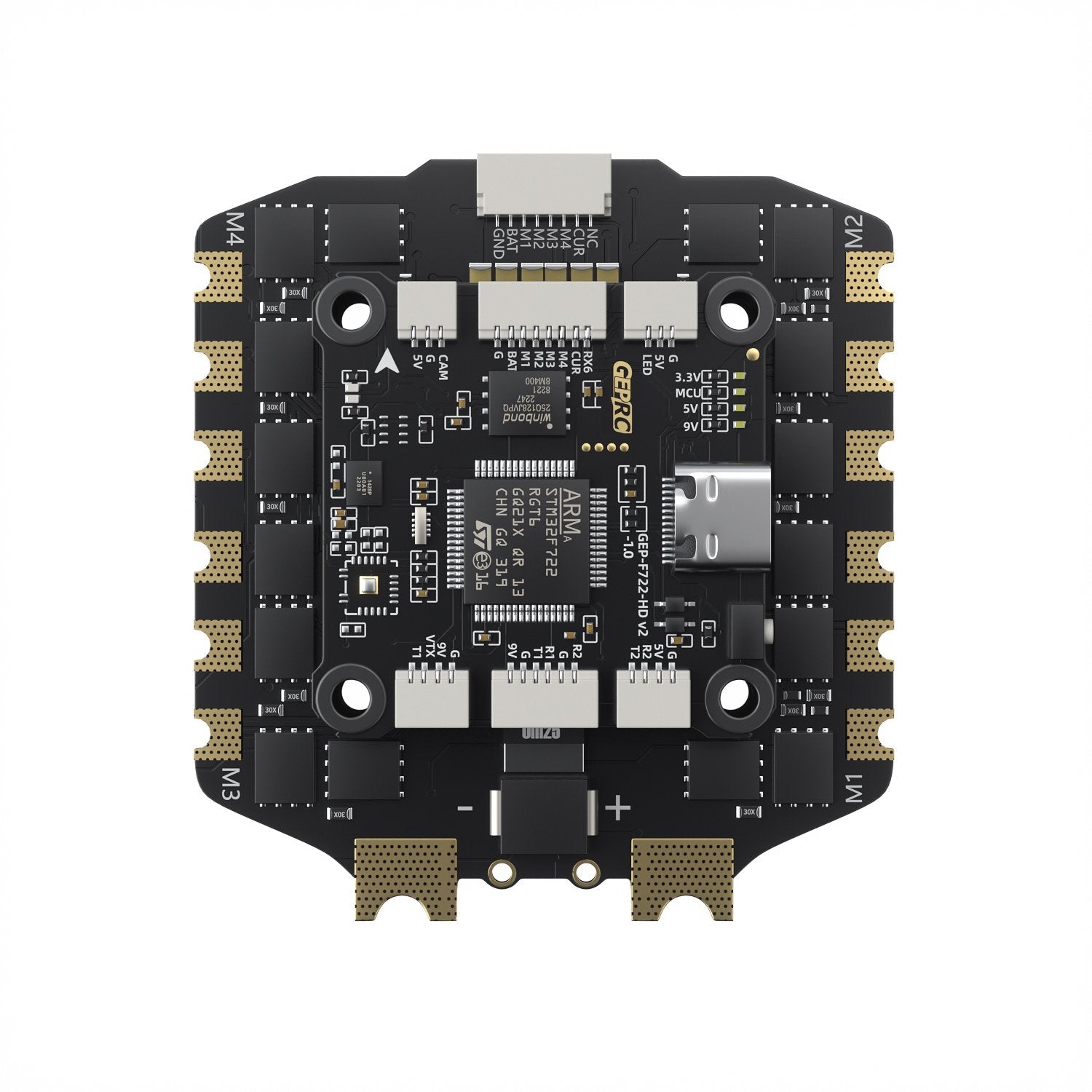

GEP-F722-HD v2 controller:
- MCU: STM32F722
- IMU: ICM42688-P (SPI)
- Connect to Air Unit: Directly connect to DJI Air Unit
- Black box: 16M on board
- USB interface: Type-C
- Barometer: Supported
- OSD: BetaFlight OSD with AT7456E chip
- BEC: 5V@3A, 9V@2.5A double BEC
- Firmware: GEPRCF722
- Dimensions: 36.85×36.85mm, mounting holes 30.5×30.5mm, φ4mm holes which will be reduced to φ3mm when using a silicone damper.
- Input voltage: 3-6S LiPo
- UART: 5
- Power supply filter: Integrated LC filter
- Weight: 8.1g

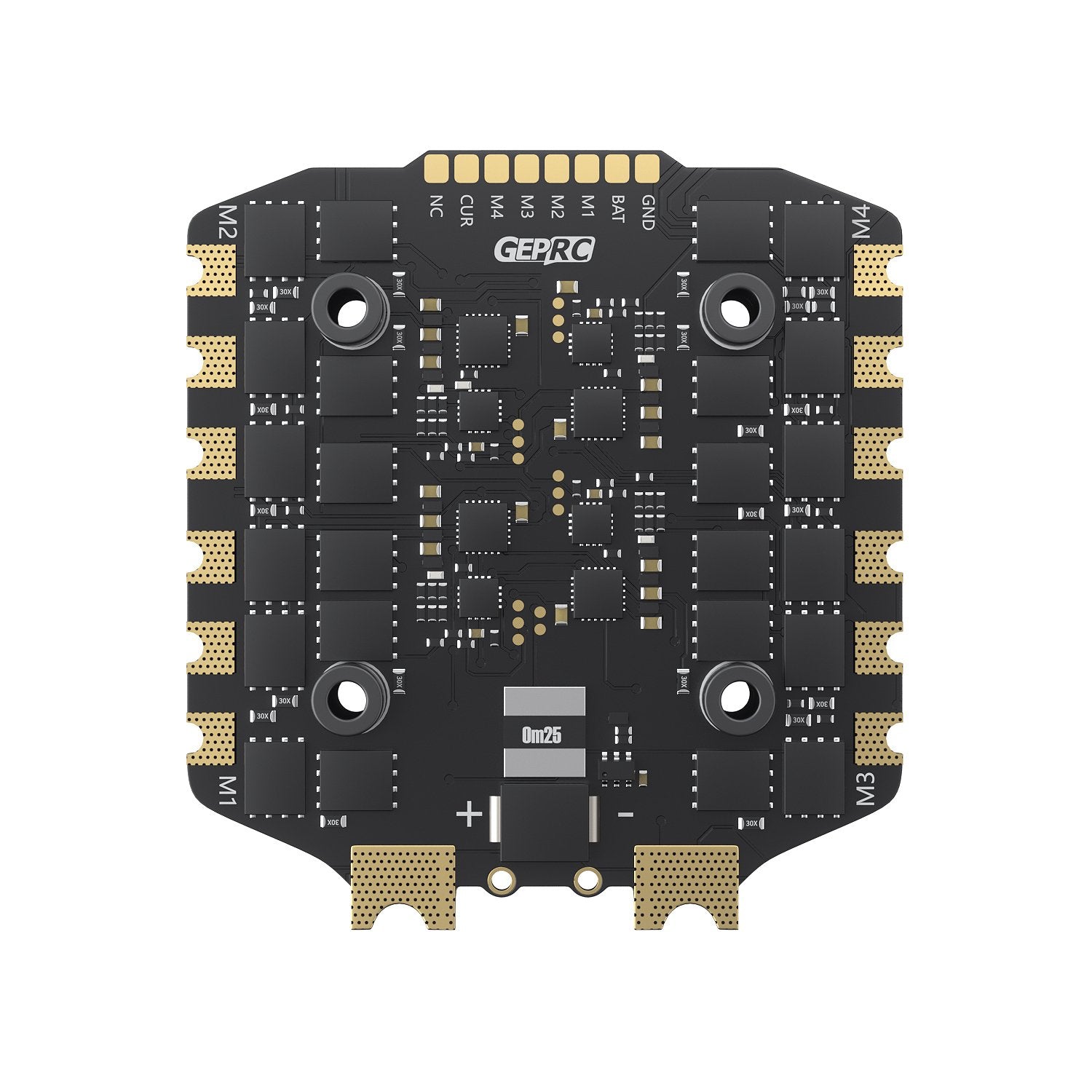

TAKER H80_BLS 80A 4IN1 ESC:
- Input voltage: 3-6S LiPo
- Current Meter: Supported
- Continuous current: 80A
- Maximum current: 85A (5 seconds)
- Supported protocol: Dshot 150/300/600
- Dimensions: 56.3 × 61.1mm, mounting holes 30.5 × 30.5mm, φ4mm holes which will be reduced to φ3mm when using a silicone damper.
- Weight: 28.1g
- Firmware: B_X_30
