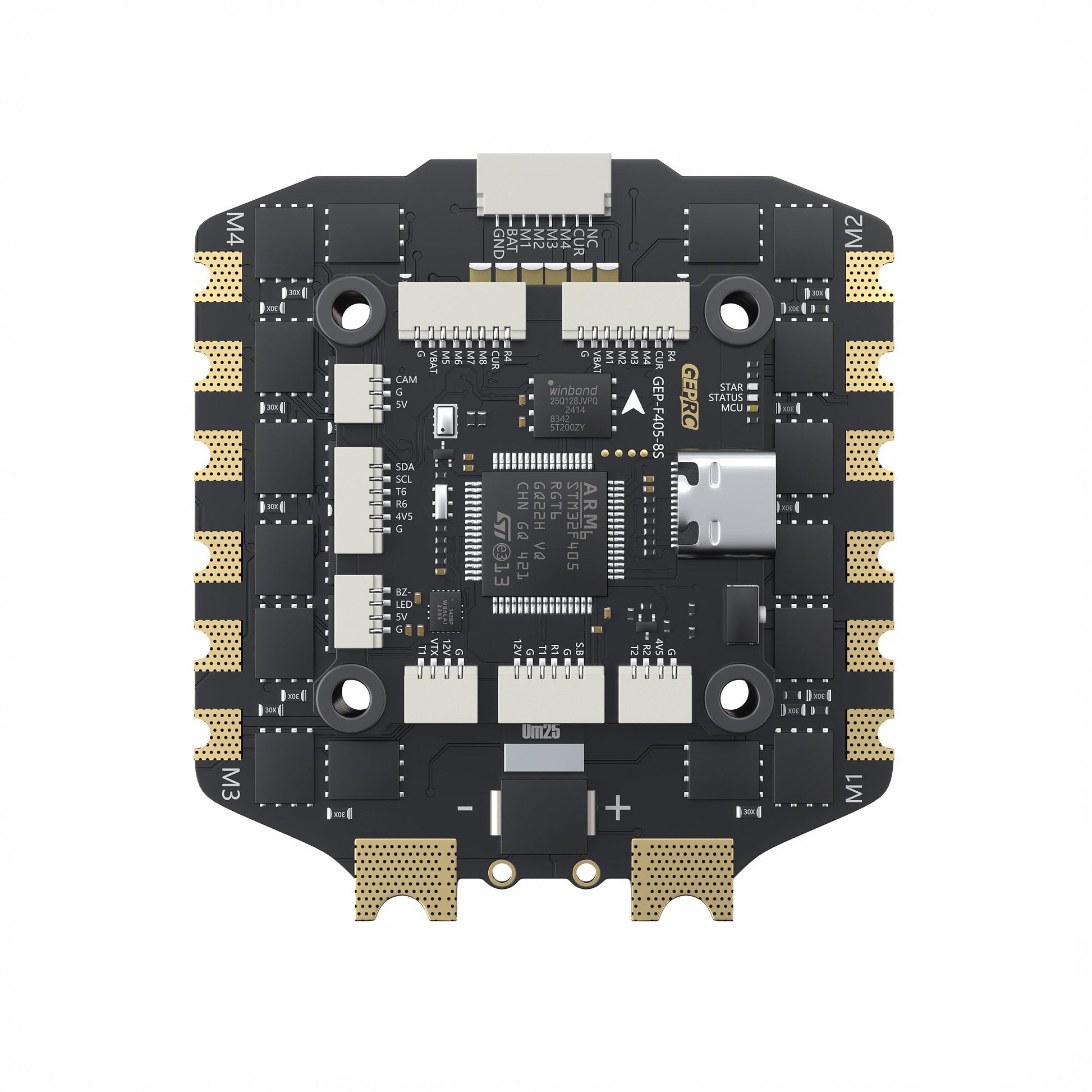

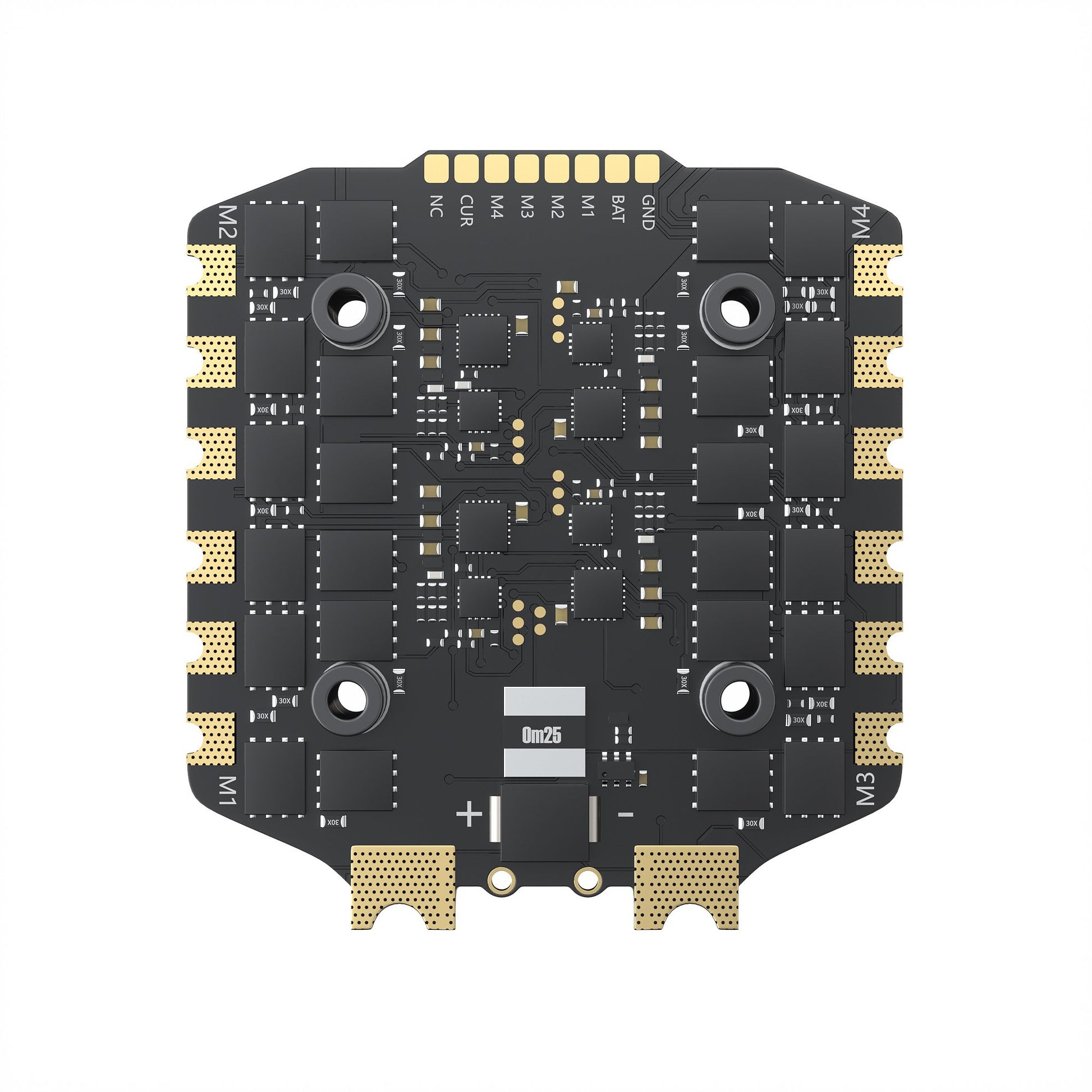

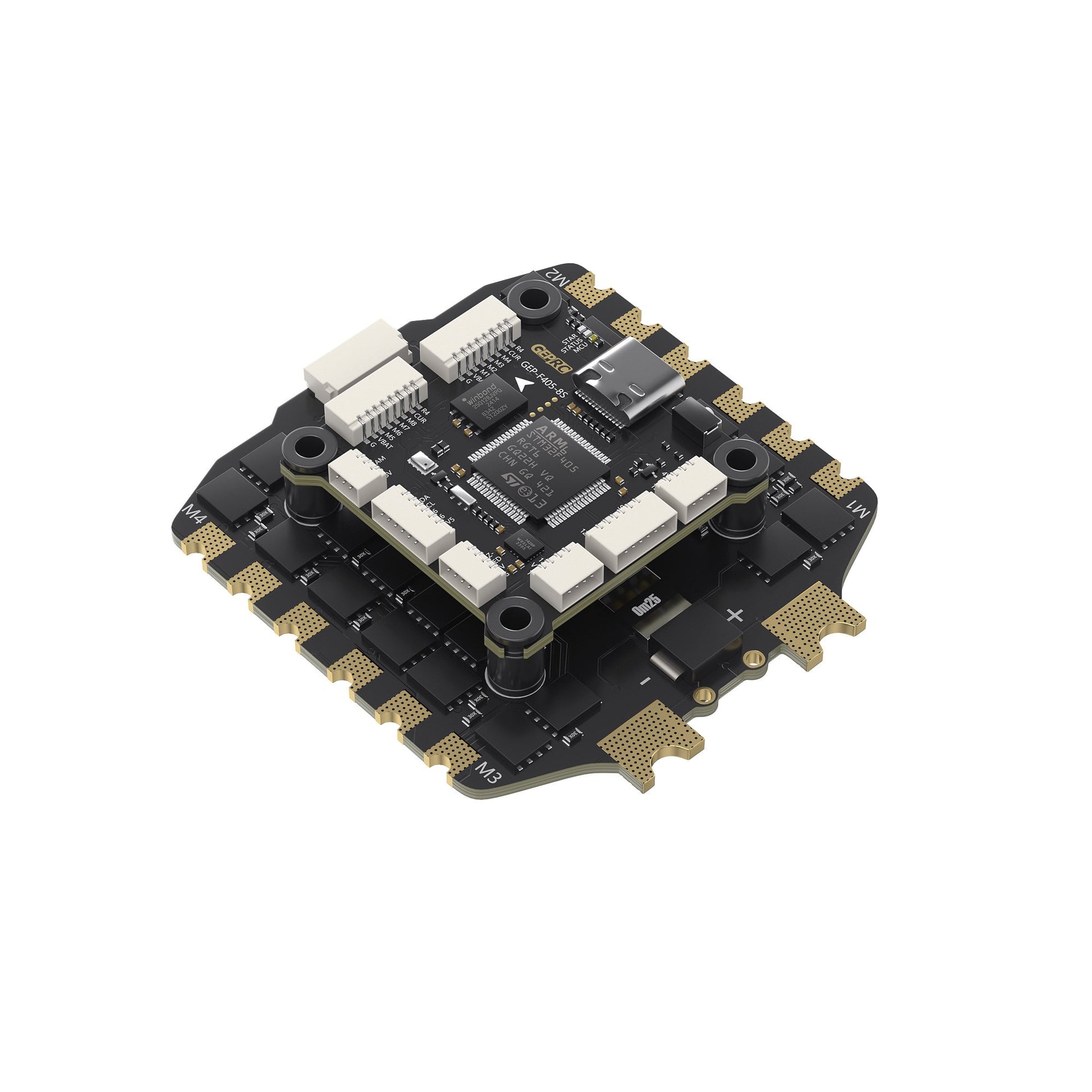

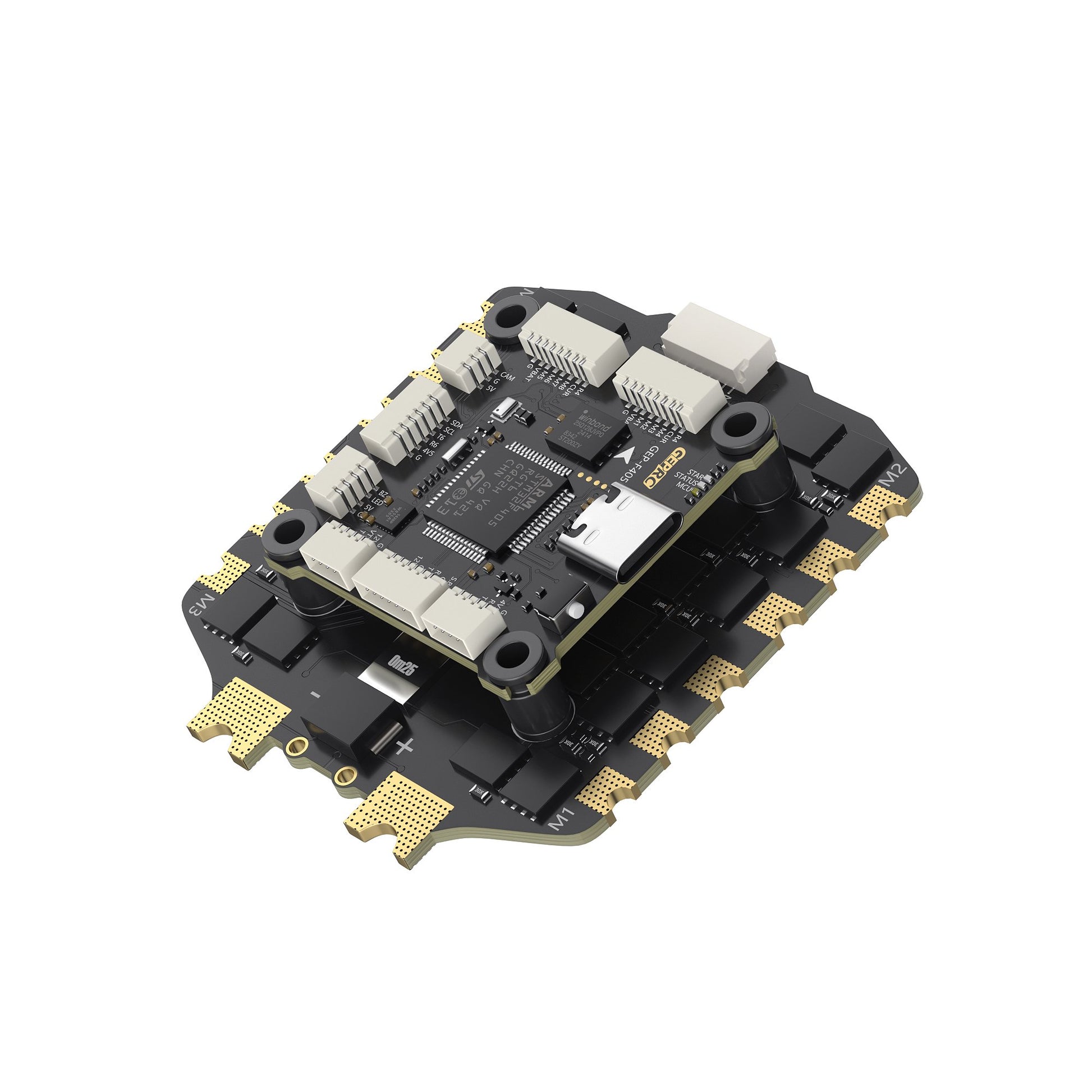

Stack AIO GEPRC TAKER F405 BLS 100A 8S STACK This flight controller and ESC combination is a powerful and versatile system designed for the needs of advanced FPV drones. With cutting-edge technologies such as STM32F405 chip, 42688-P gyroscope and 8S LiPo battery support, this kit provides smooth and reliable flight performance for racing, freestyle and movie drones. Features: GEP-F405-8S Flight controller: - STM32F405 chip: Ensures efficient processing for stable and responsive performance. - ICM42688-P Gyroscope: Advanced gyroscope with SPI interface for precise flight control. - 16M Black Box storage: Convenient on-board recording of flight data. - Integrated LC filter: Reduces noise for cleaner video and more stable signals. - USB Type-C interface: Easy connection and compatibility. - Compatible with DJI Air unit: Direct connection for seamless integration. - Two independent BECs: 12V@3A and 5V@3A outputs for powering accessories. - Shock absorbers: Stable performance of the gyroscope thanks to vibration damping. TAKER H100_8S_BLS 100A 4V1 ESC: - High current capacity: Continuous current of 100 A and surge current of up to 105 A for demanding constructions. - Dual MOS design: Higher efficiency and reliability for smoother flight. - Dshot support: Support Dshot 150/300/600 protocols for fast and reliable communication with ESC. - Integrated ammeter: Calibration for accurate current measurement. - Compact and lightweight: Designed for easy installation and minimal weight. Specifications: GEP-F405-8S Flight controller: - MCU: STM32F405 - Gyroscope: ICM42688-P (SPI) - Air unit connection: Direct connector for DJI Air unit - Black box: 16M on board - BEC: 5V@3A, 12V@3A - Motor outputs: 1: M1-M8 - Input voltage: 3-8S LiPo - UARTs: 6 UARTs - Size: 37 x 37 mm - Mounting: 30.5 x 30.5mm (φ4mm holes, reduced to φ3mm by damping rings) - Weight: 8.3 g TAKER H100_8S_BLS 100A 4V1 ESC: - Input voltage: 3-8S LiPo - Continuous current: 100A - Burst Current: 105A (5 seconds) - Supported protocols: Dshot 150/300/600 - Ammeter calibration: 200 - Size: 56.3 x 61.1mm - Mounting: (φ4 mm holes, reduced to φ3 mm with damping rings) - Weight: 28.8 g The package contains: - 1x FC board (GEP-F405-8S) - 1x ESC board (TAKER H100_8S_BLS) - 1x capacitor - 1x connecting cable O3 3 in 1 - 2x FC adapter cables - 1x SH1.0 silicone cable with 4 pins - 1x cable for connecting the camera - 1x VTX connection cable - 1x XT90 power cable - 4x screws M3×30 - 4x screws M3×25 - 8x nylon nuts - 12 x anti-shock silicone pads
