Code: SKU:GP106044

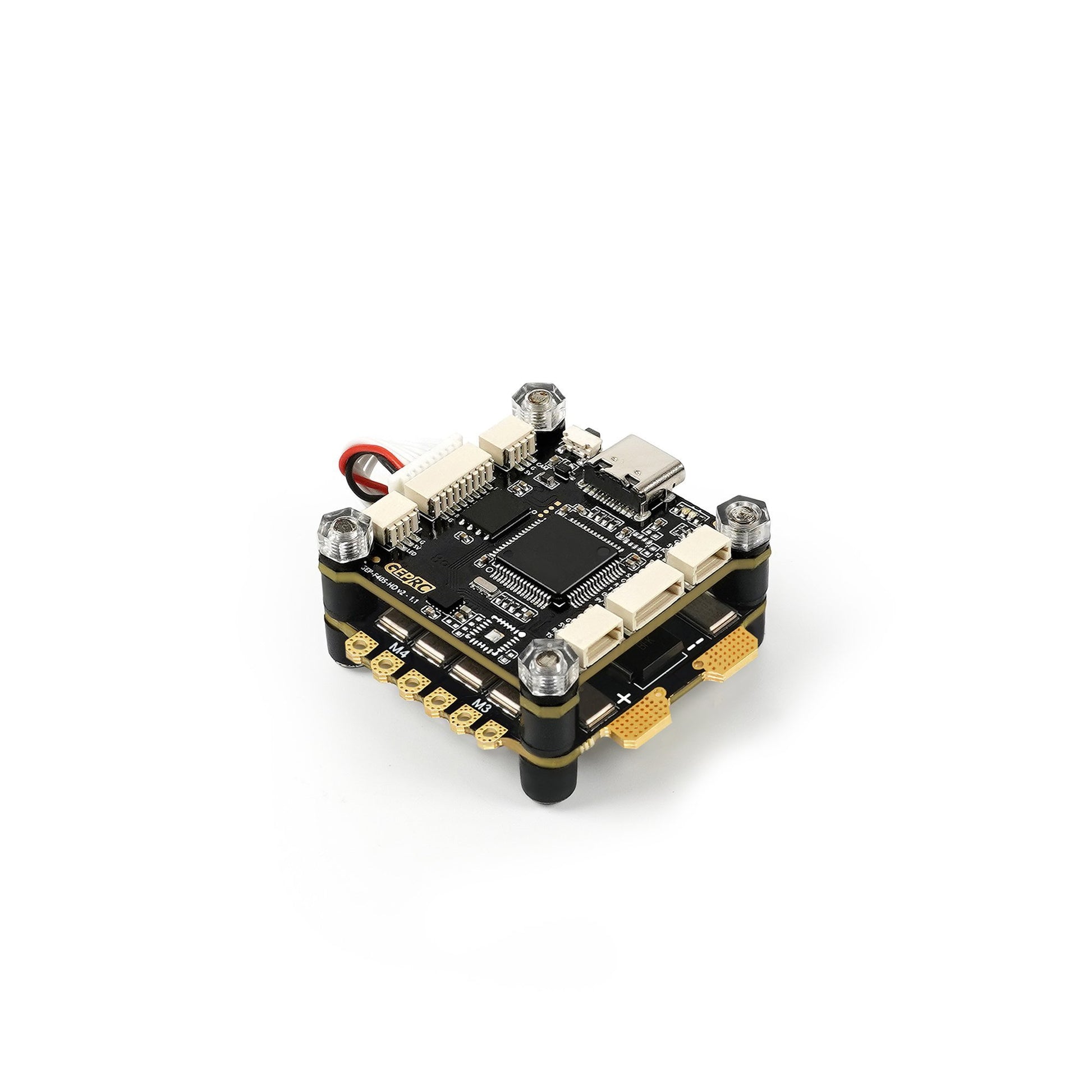

Stack GEPRC TAKER F405 BL32 70A
Stack GEPRC TAKER F405 BL32 70A
Brand: GEPRC
Regular price
€97,35
Regular price
€97,35
Sale price
€97,35
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

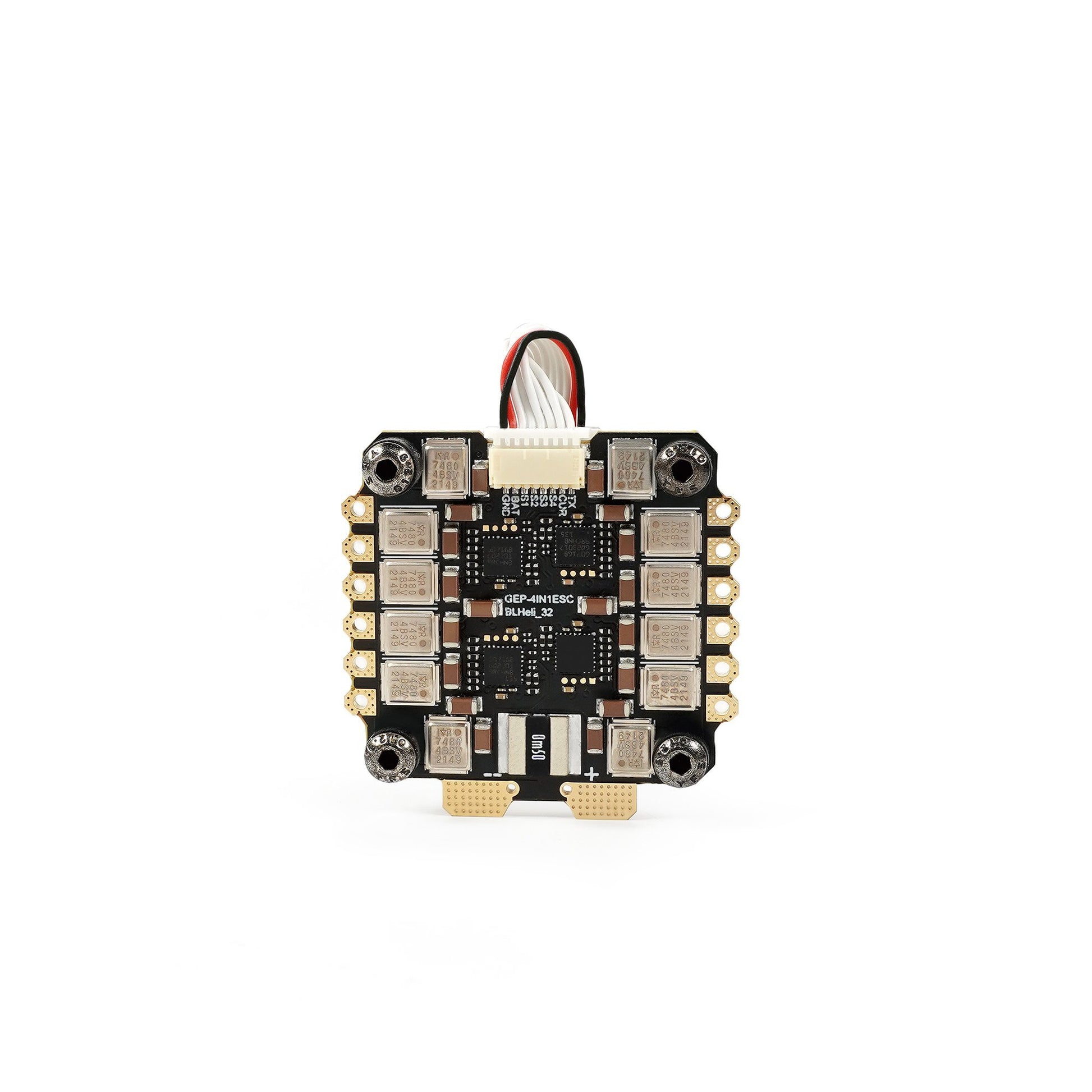

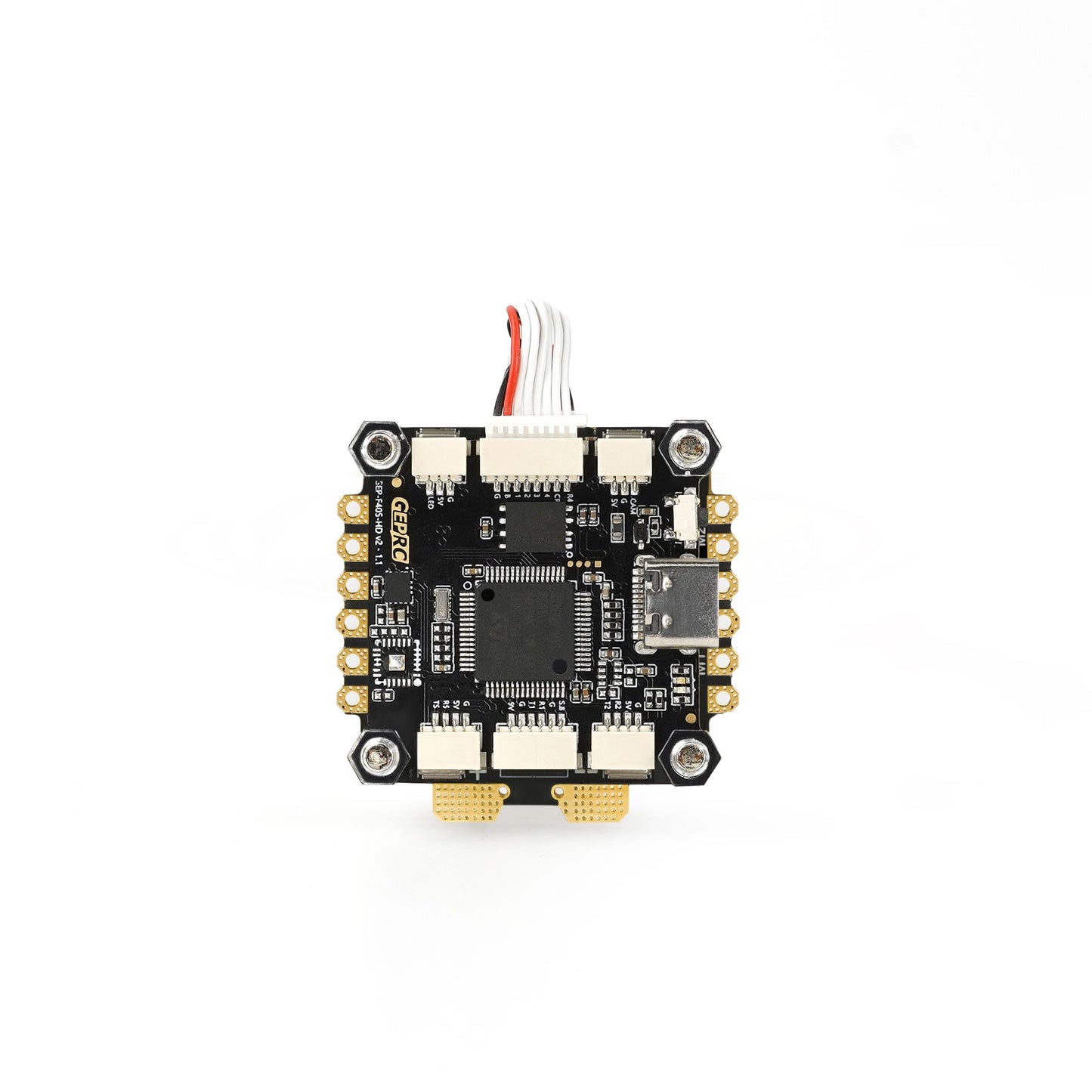

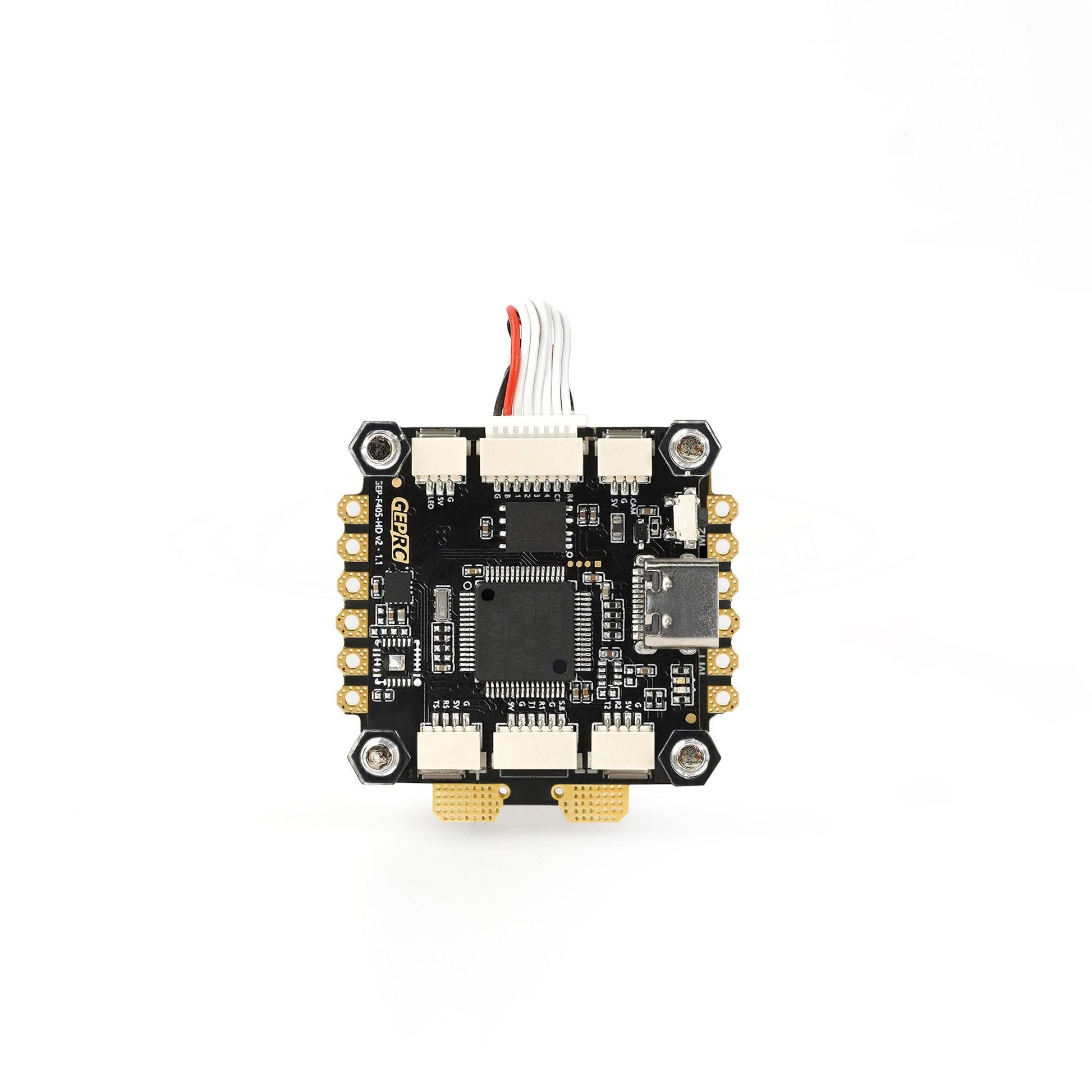

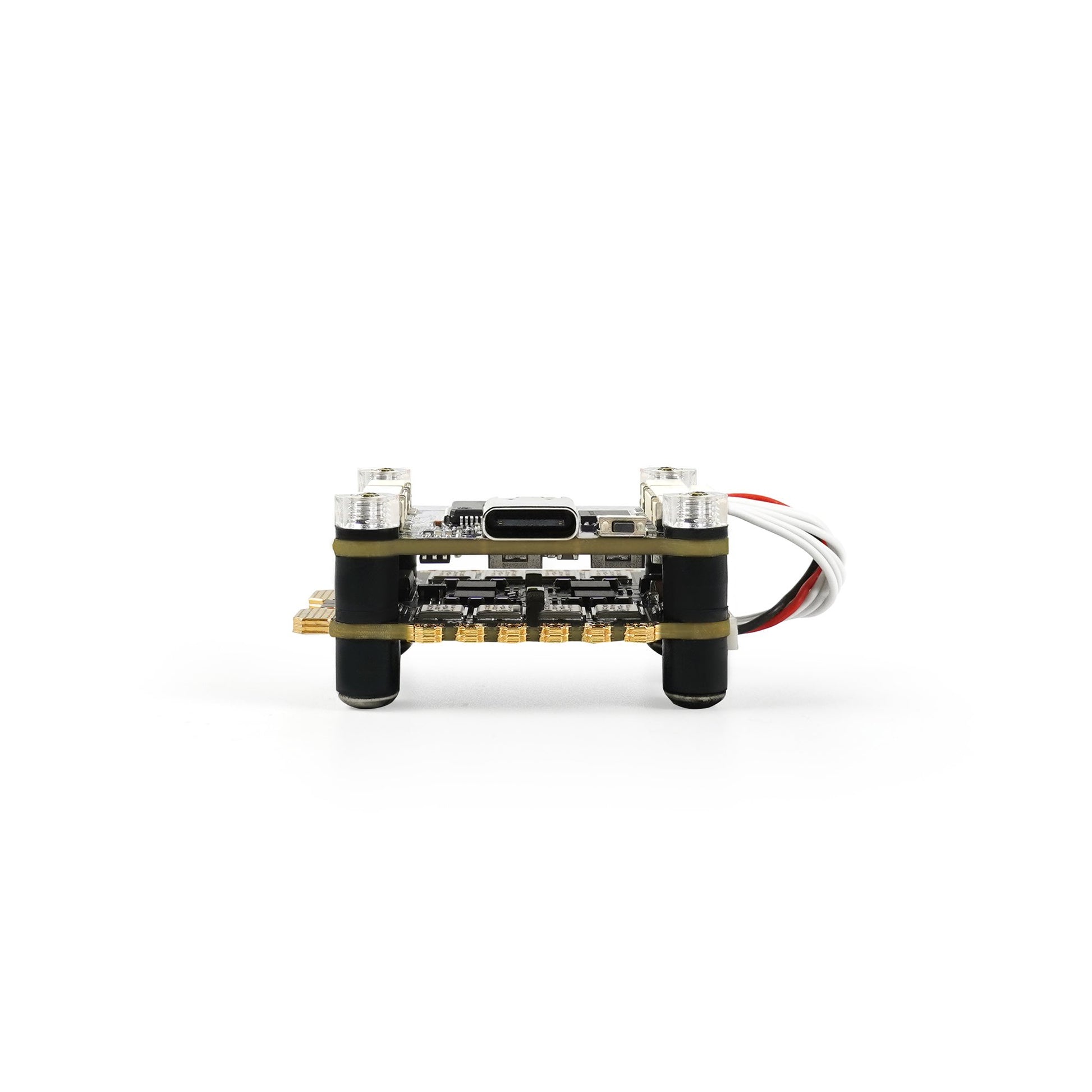

Stack GEPRC TAKER F405 BL32 70A The GEPRC TAKER F405 BL32 70A STACK is a plug-and-play flying tower system specifically designed for the DJI Air Unit. It uses STM32F405 chip, ICM42688-P gyroscope, integrated 16M black box and TAKER H70_96K 4IN1 ESC collocation, the flight dynamics is strong and has a more delicate hand feeling. The GEPRC TAKER F405 BL32 70A STACK can be directly plugged into the DJI air unit, which can save the trouble of welding. Upgrade the USB Type-C interface, which significantly extends the life of the socket and reduces the risk of poor contact. 9V@2.5A + 5V@3A dual independent BEC, more stable power supply for external devices. Function: - Use mainstream STM32F405 chip - Equipped with the latest gyroscope 42688-P - 16M storage in a black box - Integrated LC filter - USB Type C interface upgrade - Directly plugged into the DJI air unit - With TAKER H70_96K ESC, 70A continuous current, strong performance and the flight feeling is silky - Simple and reasonable installation method, the damper can make the gyroscope work very stable - 9V@2.5A + 5V@3A dual independent BEC Specifications: GEP-F405-HD v2 Flight Controller MCU: STM32F405 IMU: ICM42688-P(SPI) Air Unit Connection: Direct connection to DJI air unit Black box: 16M on board USB interface: Type-C OSD: BetaFlight OSD with AT7456E chip BEC: 5V@3A, 9V@2.5A dual BEC Firmware Target: GEPRCF405 Size: 36.8×36.8mm, hole 30.5×30.5mm, hole φ4mm will change to φ3mm after using the shock-absorbing silicone ring. Input voltage: 3-6S LiPo UART: 6 Power filter: Integrated LC filter Weight: 7.7g GEPRC TAKER H70_96K ESC Input Voltage: 3-6S Lipo Galvanometer: Support PWM frequency: 24-96K Continuous current: 70A Burst current: 80A (5 seconds) Support protocol: Dshot 150/300/600 Size: 42.6 * 42.1mm, hole 30.5 × 30.5mm, hole φ4mm will change to φ3mm after using the shock-absorbing silicone ring. Weight: 12.8g Target: GEPRC_G071_4IN1_96K The package includes: 1 x flight controller 1 x ESC 1x capacitor 1 x DJI Air Unit Adapter Cable 1 x Flight Controller Adapter Cable 1 x XT60 power cable 4 x M3*30 screws 4 x M3*25 screws 8 x nylon nuts 8x silicone grommets 2 x sh1.0 4pin silicone cable 1 x cable for connecting the camera
