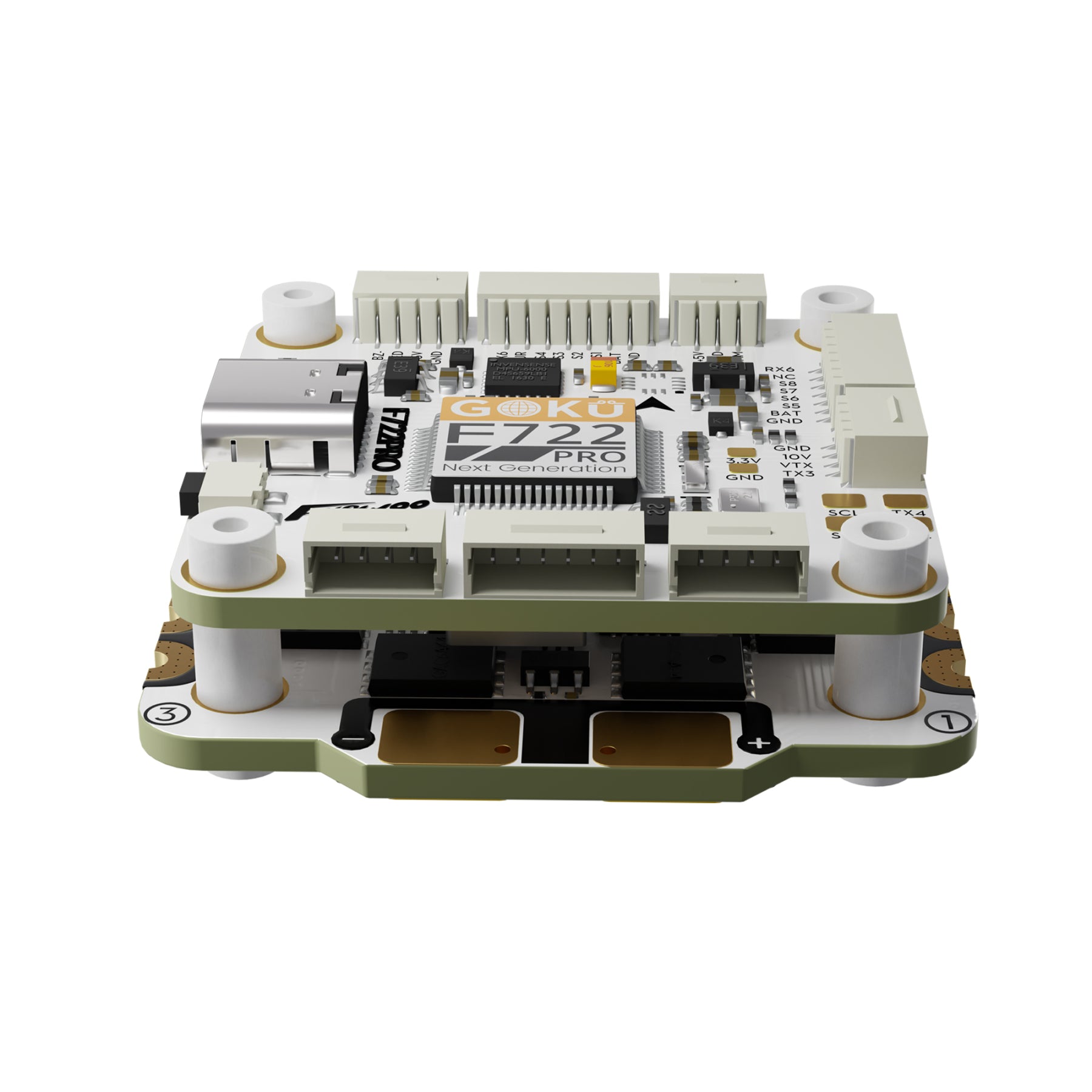

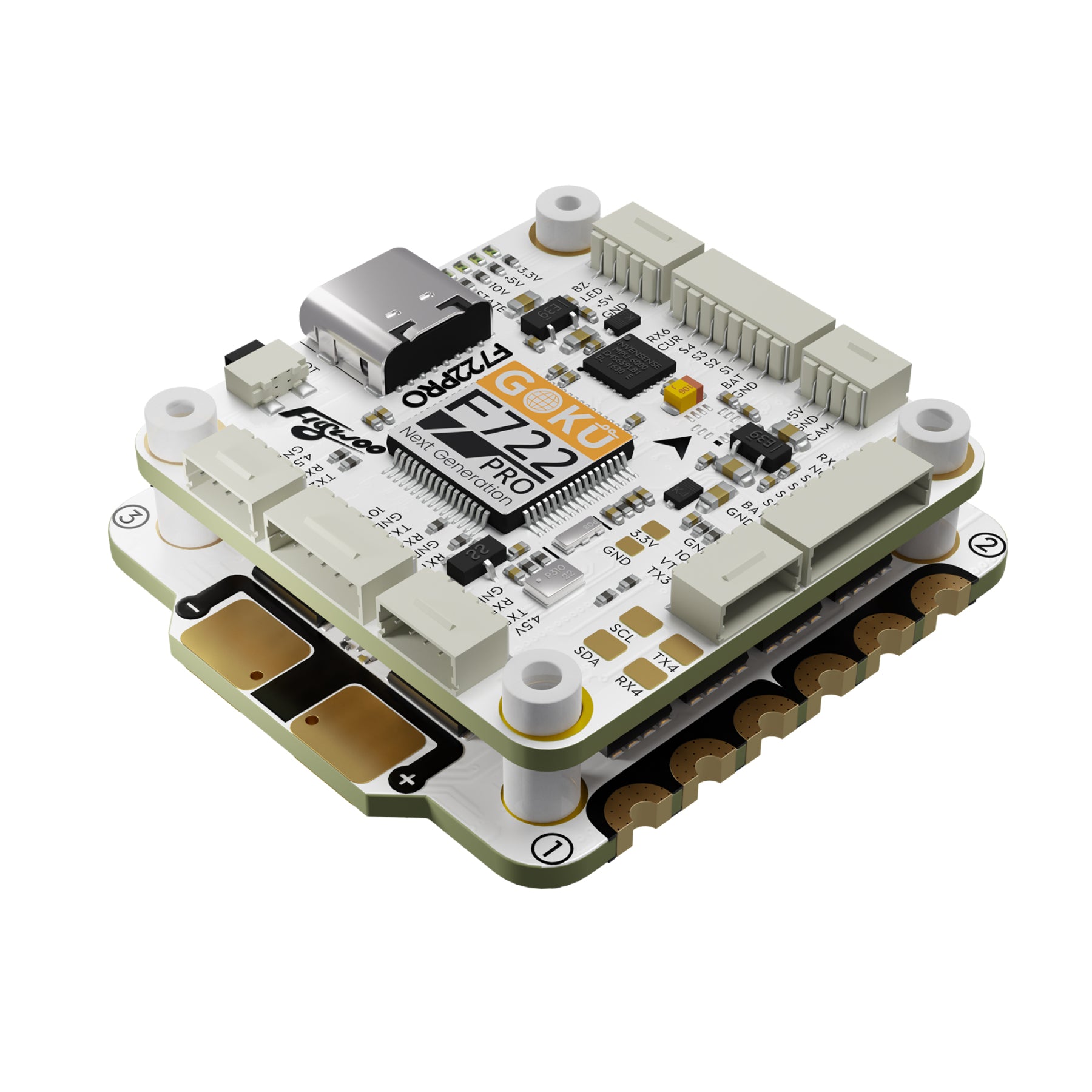

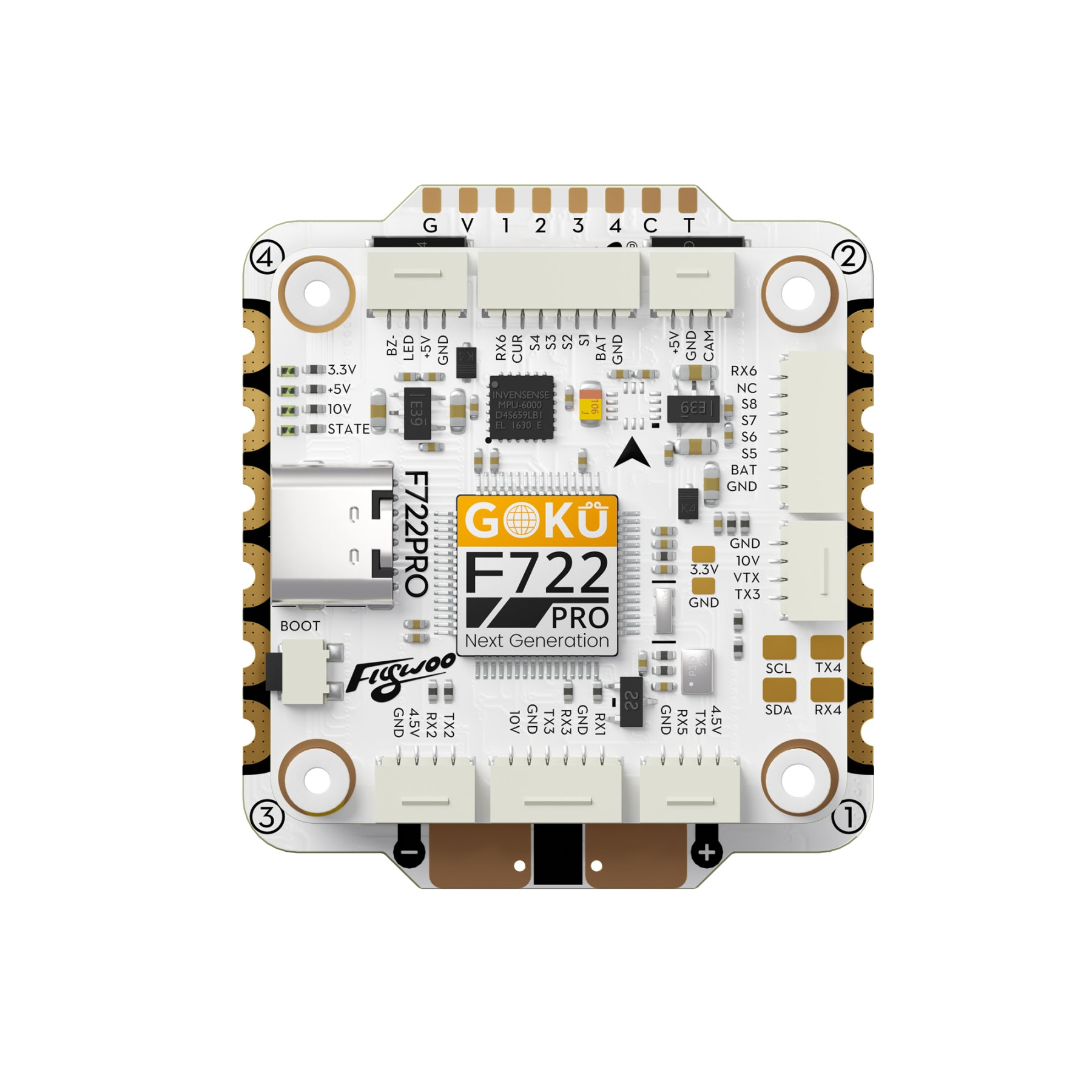

Stack FLYWOO GOKU F722 Pro V2 55A 32Bit 128K Stack (30x30)

The Flywoo GOKU F722 Pro V2 Stack is a powerful and feature-packed 30x30 flight system designed for demanding FPV applications. With STM32F722 microprocessor, ICM42688 gyroscope, barometer, OSD and 16MB black box, the flight controller offers precise control and rich telemetry. Combined with the GOKU G55M 4 in 1 ESC, compatible with both BL32 and AM32 firmware, it supports up to 55A continuous current and ultra-smooth 128kHz PWM frequency. With full plug-and-play support for DJI O3, analog VTX and GPS modules, this stack is the ideal choice for high-performance freestyle, racing or film drones.

Flight controller:

BF firmware: FLYWOO F722PRO
INAV firmware: FLYWOO F722PRO
MCU: STM32F722
Gyroscope: ICM42688
OSD: AT7456E
Barometer: DPS310 / SPL06
Black box: 16 MB
UART: 1 / 2 / 3 / 4 / 5 / 6
Input Voltage: 7.4V-26V (2-6S LiPo)
BEC: 10 V 3 A / 5 V 3 A
Dimensions: 37 x 37 x 8 mm
Mounting holes: M3 30.5 × 30.5 mm
Weight: 9.9 g

ESC:

Name: GOKU G55M 4-in-1
Firmware: BL32: GOKU_F4A32_PRO / AM32: AT32DEVF421
Supported protocols: DShot300 / DShot600 / DShot1200
PWM frequency: 24 K - 128 KHz
Input Voltage: 3-6S LiPo
Continuous current: 55 A
Weight: 15 g

The package contains:

1 x GOKU F722 PRO V2 Flight Controller
1 × GOKU G55M BL32\ AM32 4in1 ESC
1 x FC & ESC connection cable
1 x buzzer connection cable
1 x GPS connection cable
1 x DJI O3 connection cable
1 x receiver connection cable
4 x M3 damping balls
7 x M3 rubber rings
1 x analog VTX connecting cable
1 x camera connection cable
