ER6GV 2.4GHz ELRS PWM Receiver
The ER6GV receiver is specially designed for pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. The ER6GV is equipped with a dual antenna with a telemetry power of up to 50mw and can work stably with the receiver's 1S Lipo battery.
Note: The ER6GV receiver has the same functions as the ER6G, but also has a built-in high precision air pressure sensor (Vario).
Function:
- Based on the revolutionary ExpressLRS system
- High performance, high reliability, flexible configuration, fast response and ultra long range
- Support 6 PWM channels
- Optimized printed circuit board design
- Automatically voltage telemetry of external battery voltage or built-in receiver voltage
- ER6GV receiver is a built-in high precision air pressure sensor (Vario)
- Supports Wi-Fi updates and WEBUI configuration
- High quality 2.54mm connector
- Standard 15 cm high sensitivity antenna
- For fixed wing aircraft and gliders
Specifications:
Item: ER6GV 2.4GHz ELRS PWM Receiver
Power supply: DC 3.5 - 8.4V

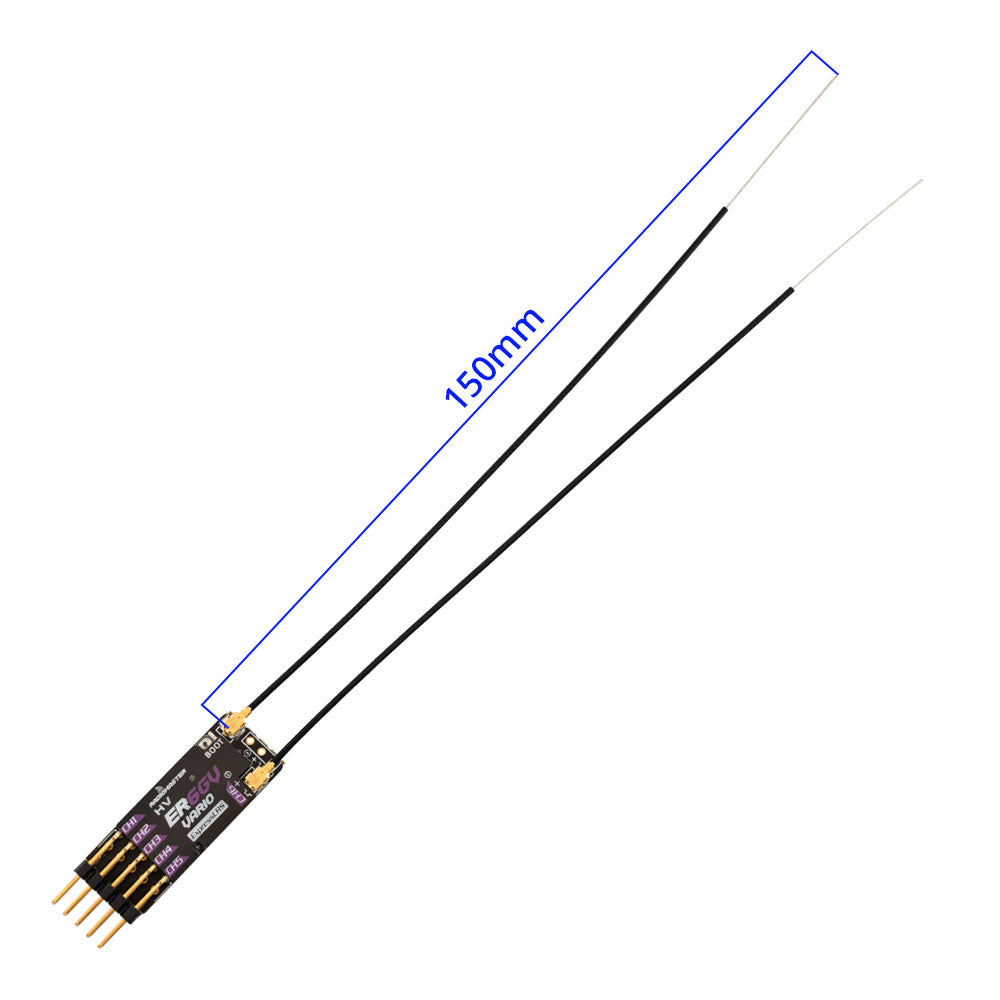

Antenna type: 15cm antenna with high sensitivity
Wireless protocol: ExpressLRS 3.2 pre-installed

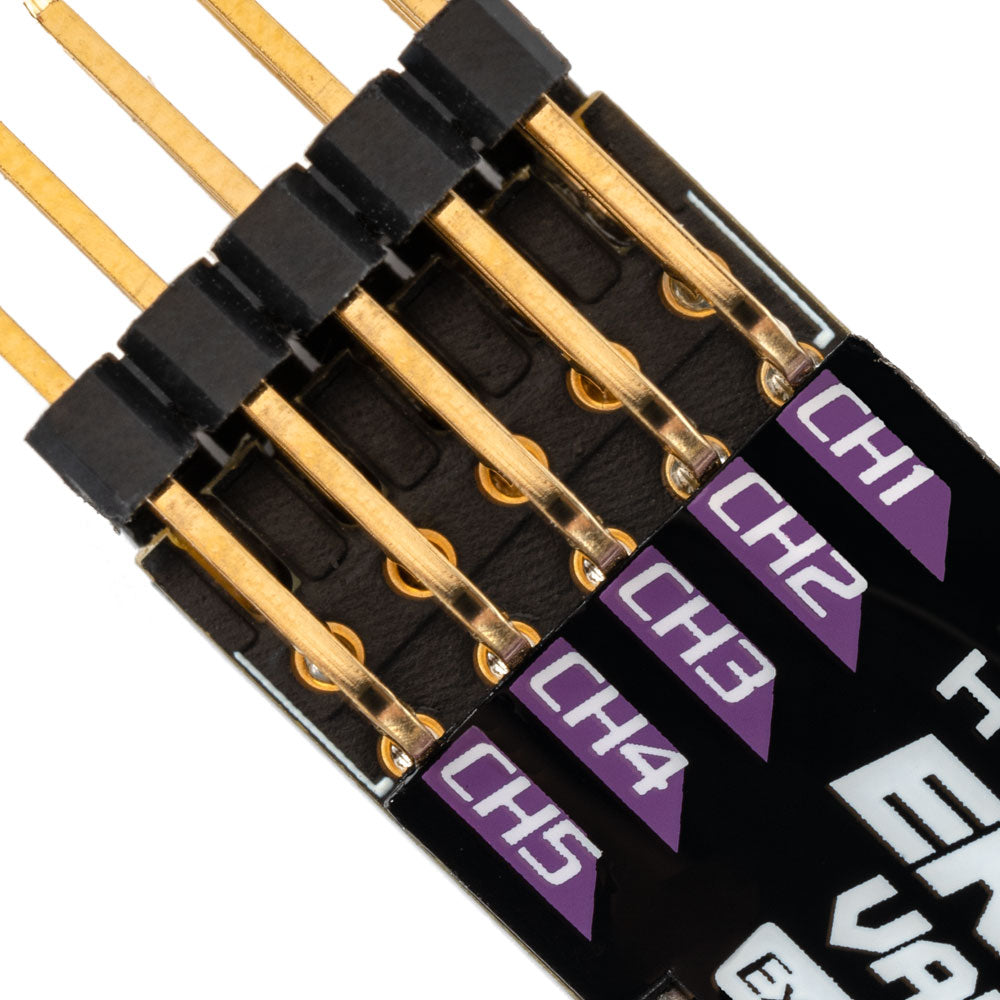

Output channel: 6CH PWM
Return power: 50 mw maximum (LUA adjustable)
Built-in high-precision air pressure sensor (Vario)
Battery voltage detection range: DC 3.0 - 26V
Weight: 5.0 grams

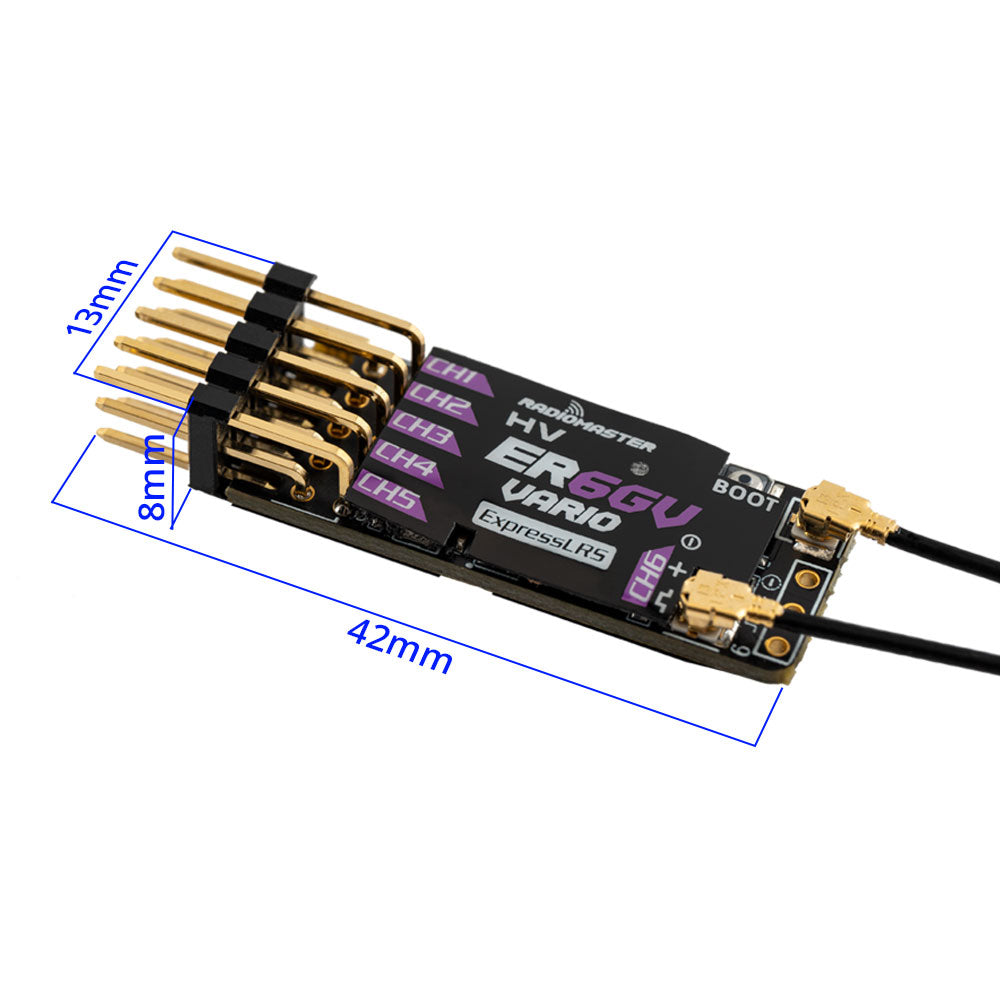

Dimensions: 42 x 13 x 8 mm
Firmware: Device category: Radiomaster 2.4 GHz / Device: Radiomaster ER6GV
