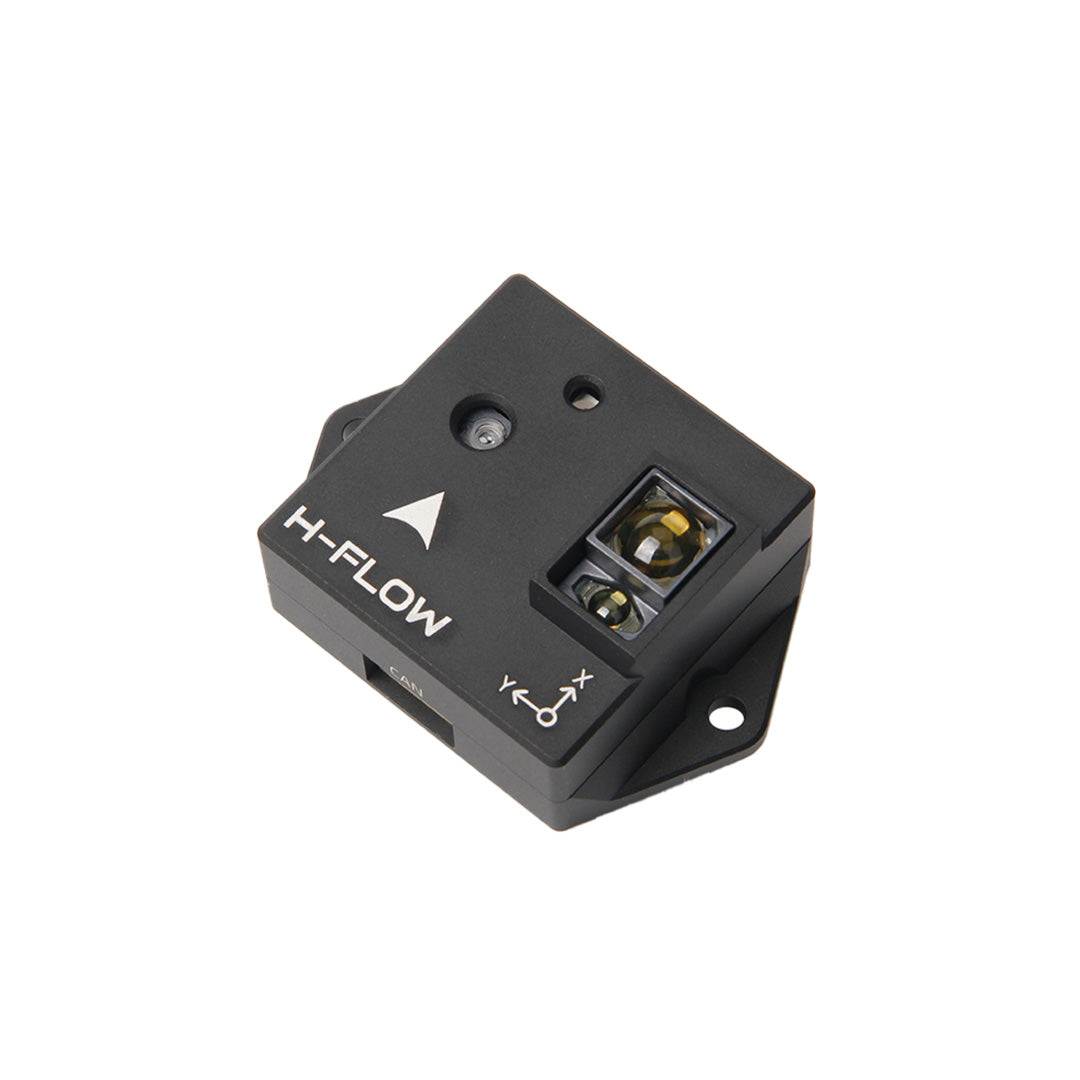

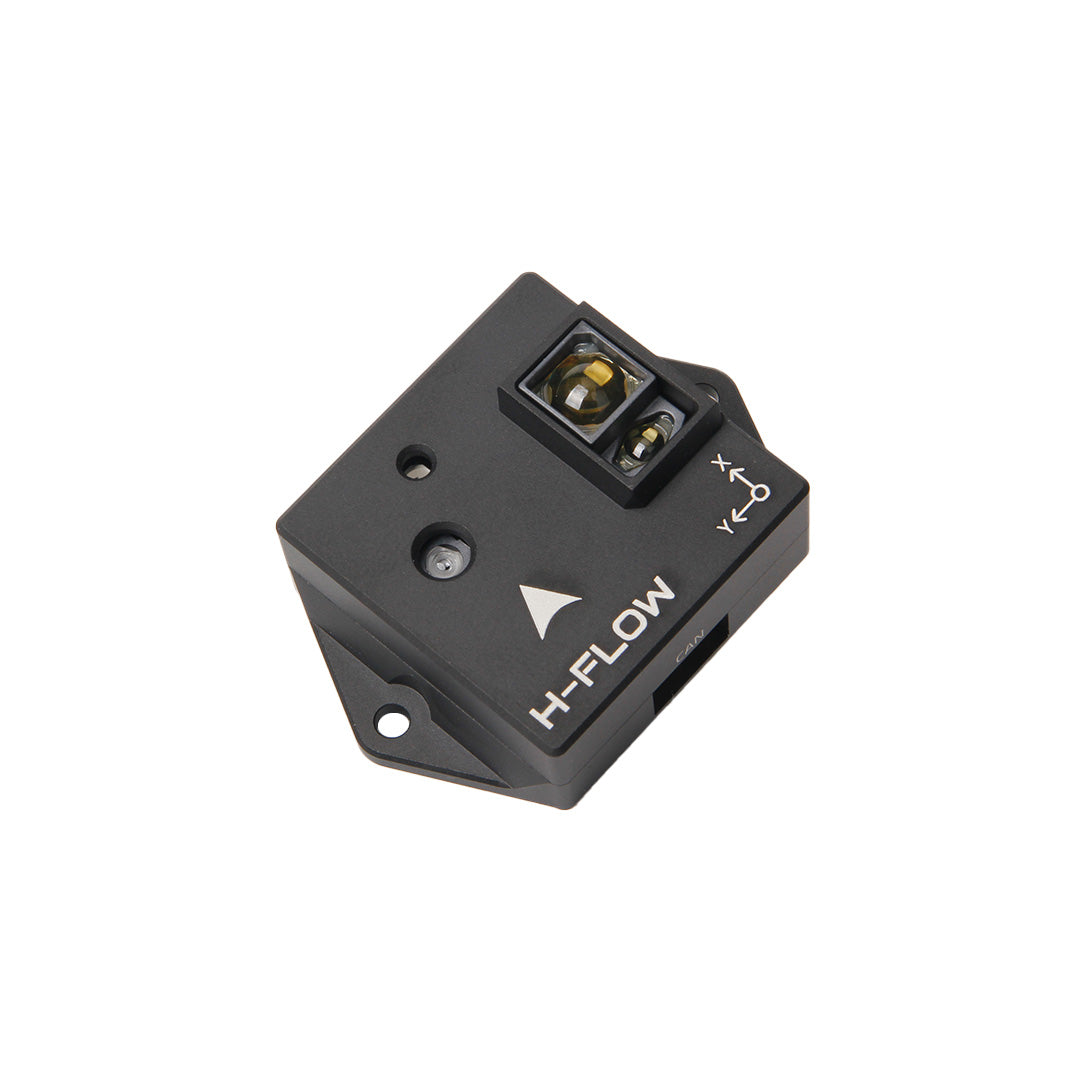

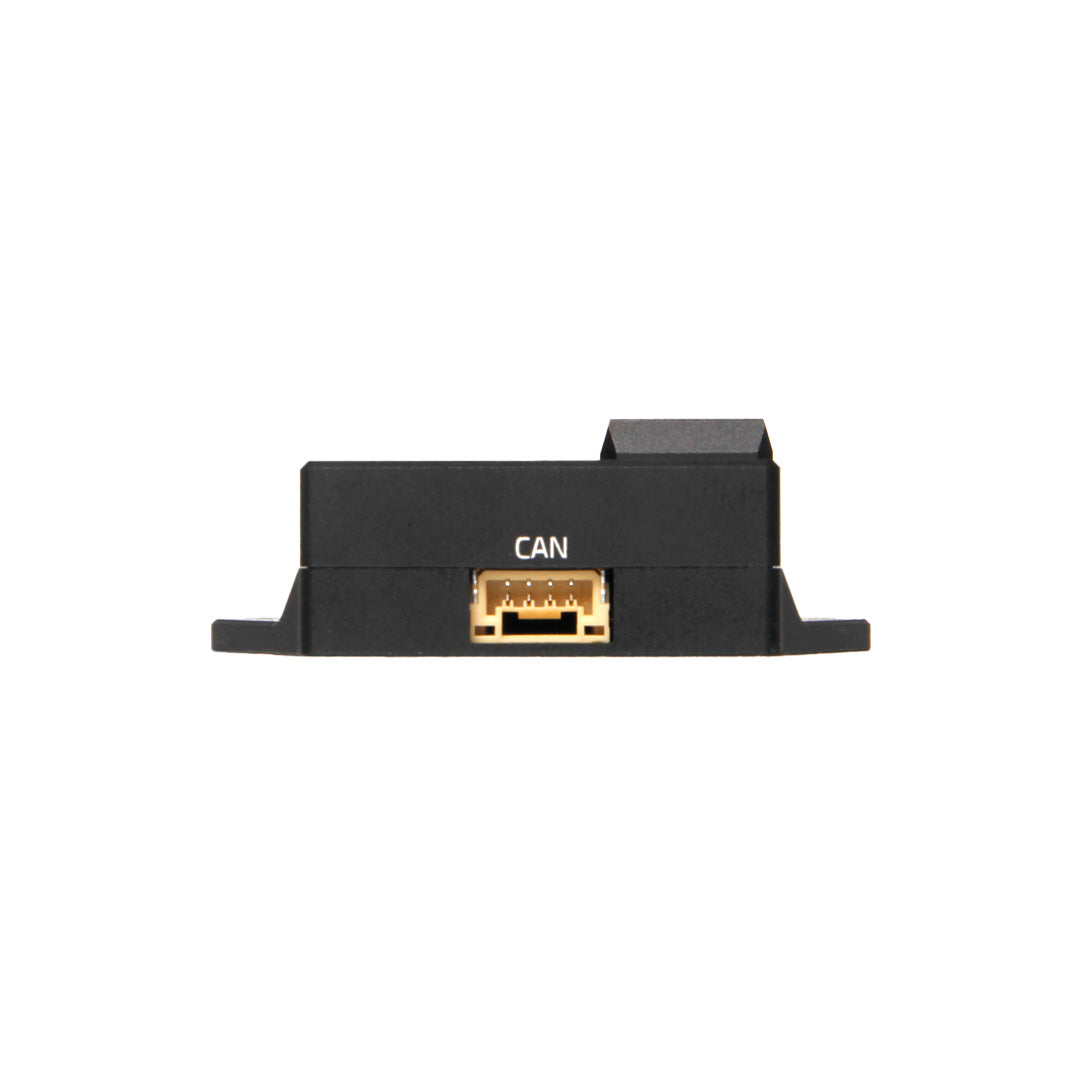

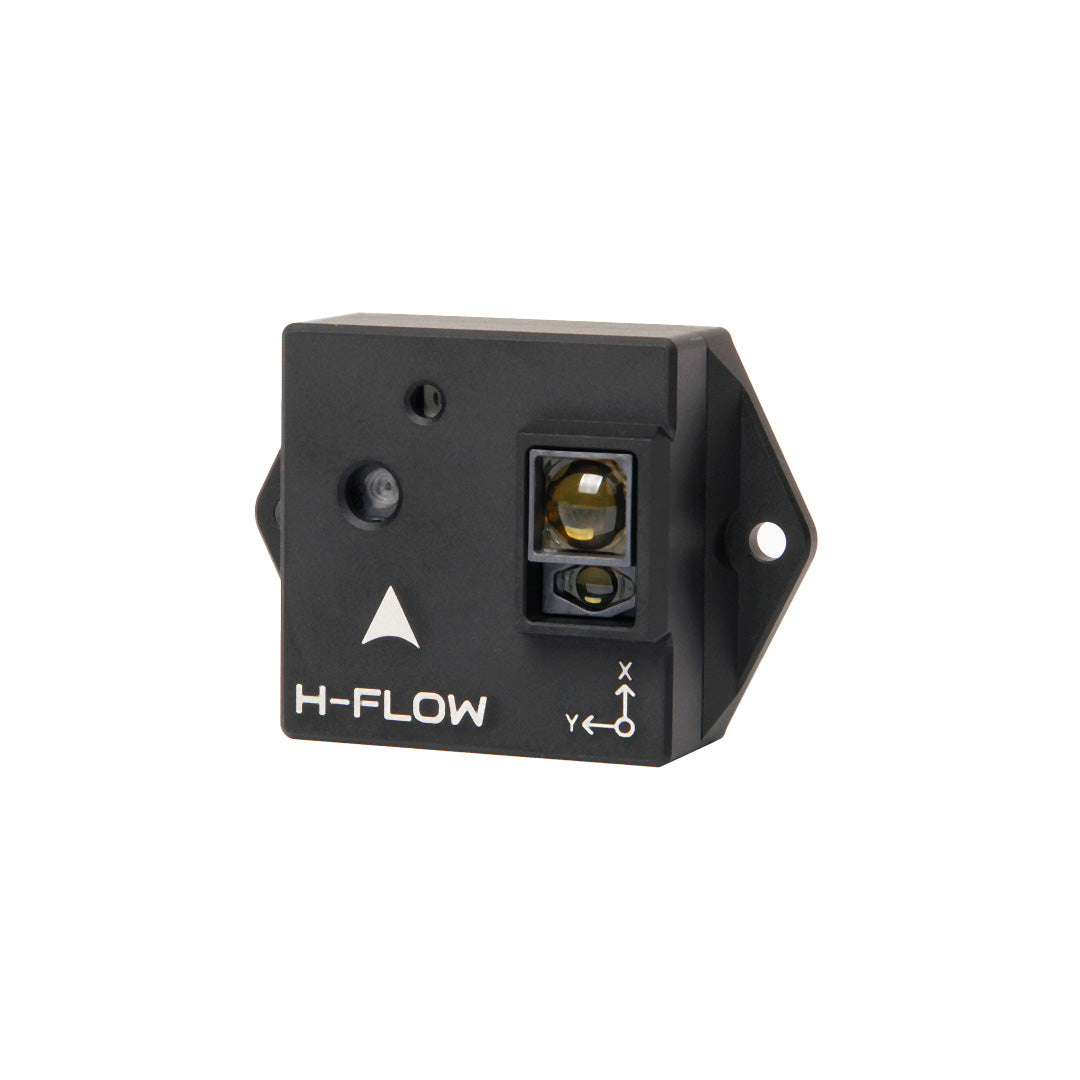

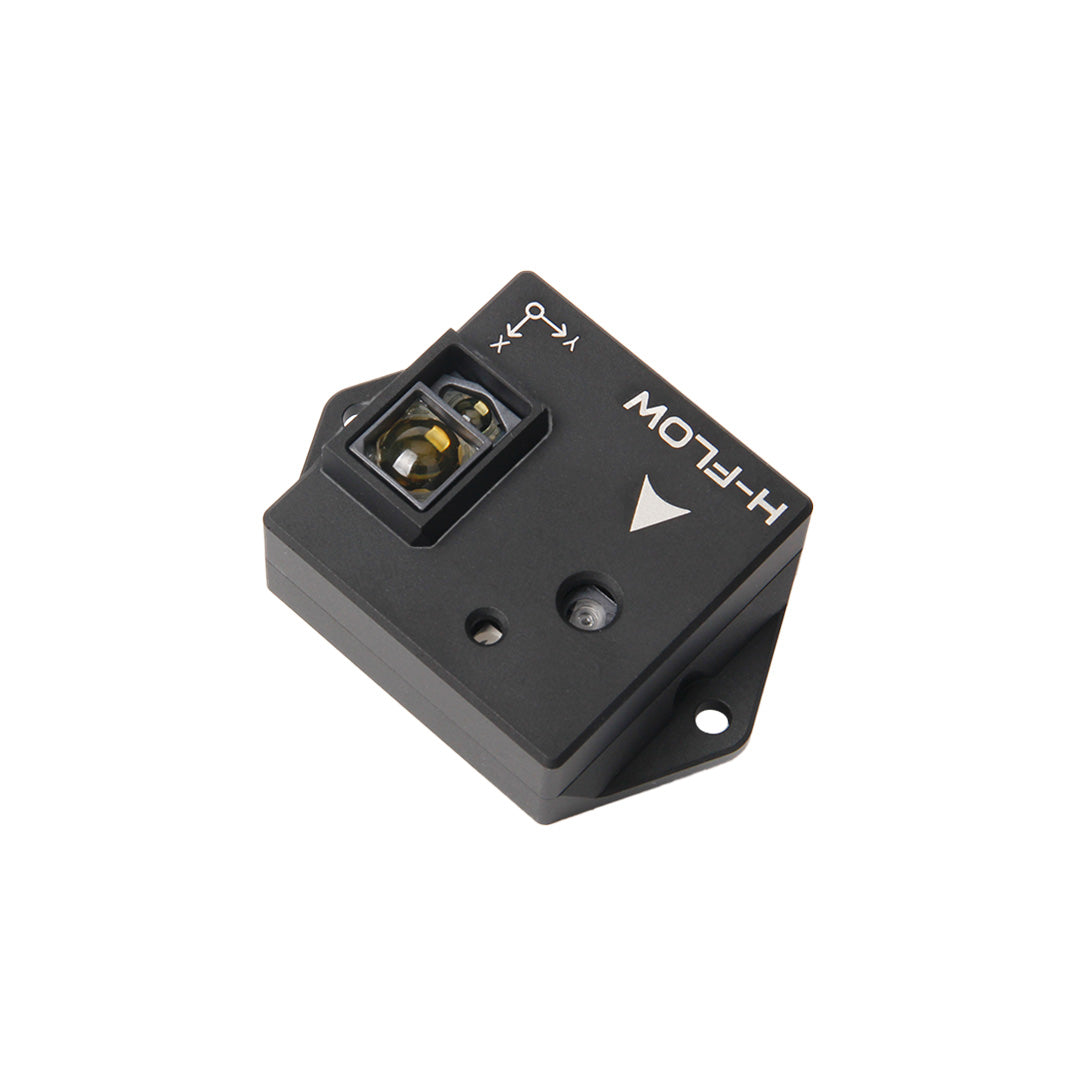

Holybro H-Flow optical flow and distance sensor module The Holybro H-Flow is a compact optical flow and distance sensor module that combines a PixArt PAA3905E1 optical flow sensor, a Broadcom AFBR-S50LV85D distance sensor, and an InvenSense ICM-42688-P six-axis IMU. This all-in-one design simplifies installation, while a built-in infrared LED improves visibility in low-light conditions. The H-Flow is equipped with a 4-pin CAN connector according to the Pixhawk standard, which ensures seamless integration with Pixhawk-compatible controllers via the CAN port. It uses the DroneCAN protocol and offers reliable and high-speed data transfer between the sensor and the flight controller. Features: - Integrated optical flow and rangefinder module - PixArt optical flow sensor for precise motion tracking - Broadcom ToF sensor for accurate distance measurement - Infrared LED for low light optical performance - DroneCAN protocol Specifications: - PixArt PAA3905E1 Optical flow sensor - Tracks in low light >5 lux - Effective viewing angle up to 42° - Wide working range from 80 mm to 30 m - Up to 7.4 rad/s - 40mW IR LED built into the board for better low light operation - Broadcom AFBR-S50LV85D time-of-flight distance sensor - Integrated laser light source with a wavelength of 850 nm - Field of View (FoV) 12.4° x 6.2° with 32 pixels - Typical distance sensing range up to 30 m - Operation in ambient light up to 200k lux - Works well in all surface conditions - 2° x 2° beam to illuminate 1 to 3 pixels - InvenSense ICM-42688-P 6-axis IMU - MCU STM32F412CEU6 - Standard Pixhawk CAN connector (4-pin JST GH) - Compact design - Software controlled CAN termination - Weight: 15.2g (3.5g without cover) The package contains: - 1x H-Flow - 1x 4-pole GH cable - 2x M2.5 screws - 2x M2.5 hexagonal nylon lock nuts
