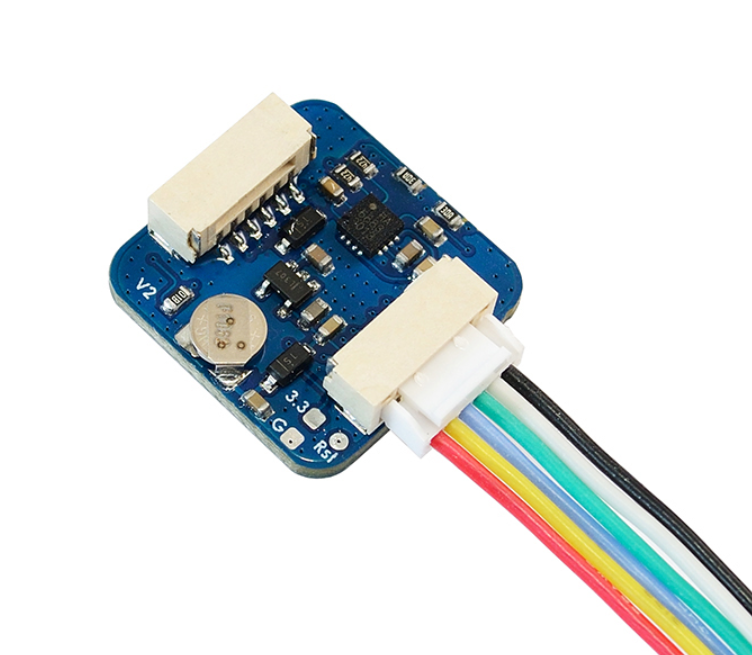

GPS module Mateksys M10Q-5883 with compass
Matek M10Q-5883 GNSS & Compass is a high-performance GPS module designed for drones, RC aircraft and other unmanned aerial vehicle (UAV) applications. It combines advanced positioning features with a reliable compass in a compact design.
Features:
- The M10Q-5883 uses a multi-constellation GNSS module powered by the u-blox M10 series
- The GNSS module features the u-blox M10 standard precision GNSS platform and provides exceptional sensitivity and acquisition time for all L1 GNSS signals. Supports simultaneous reception of four GNSS (GPS, GLONASS, Galileo and BeiDou). The high number of visible satellites allows the receiver to select the best signals. This maximizes location availability, especially in challenging conditions such as deep urban canyons. u-blox Super-S (Super-Signal) technology offers excellent RF sensitivity and can improve dynamic position accuracy in non-line-of-sight situations.
- 15 x 15mm2 high-gain patch antenna provides the best ratio between performance and small size. The omni-directional radiation pattern of the antenna increases the flexibility when installing the device.
Specifications:
GNSS module: u-blox SAM-M10Q-00B
Supported GNSS: GPS, GLONASS, Galileo, BeiDou
Compass: QMC5883L

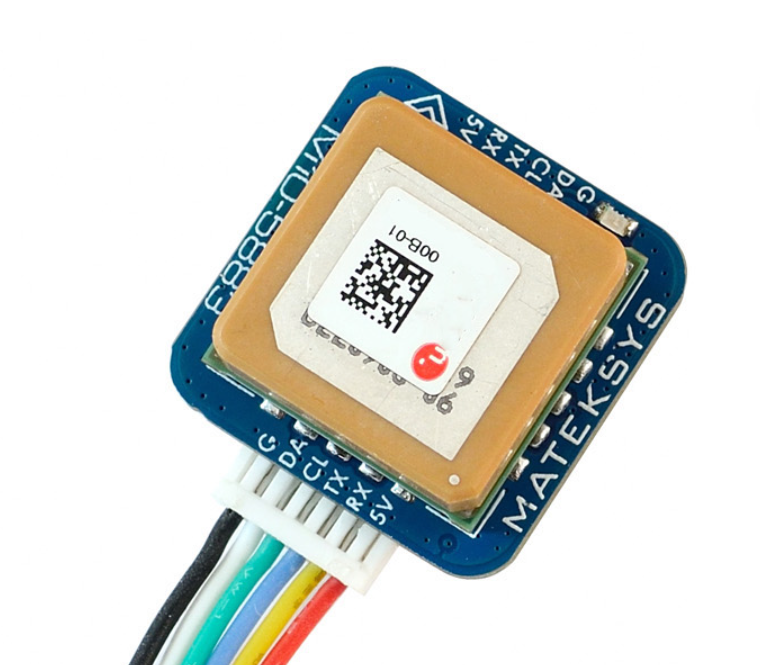

Antenna: 15 x 15 x 4mm patch antenna
Input voltage: 4V to 9V
Power consumption: about 13mA

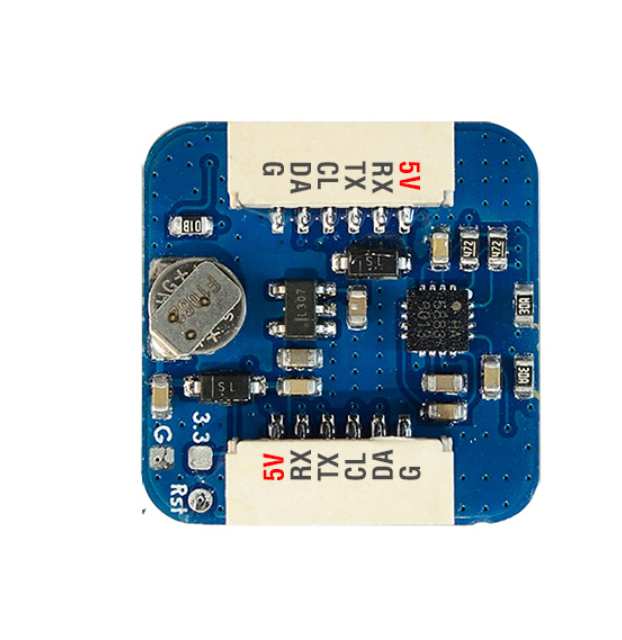

Interface:
-GNSS: UART (TX, RX)
-Compass: I2C (DA, CL)
Connector: JST-GH-6P (1.27mm pitch)
Protocol: UBX (u-blox) at 5Hz or NMEA at 1Hz
Operating temperature: -20°C to +80°C

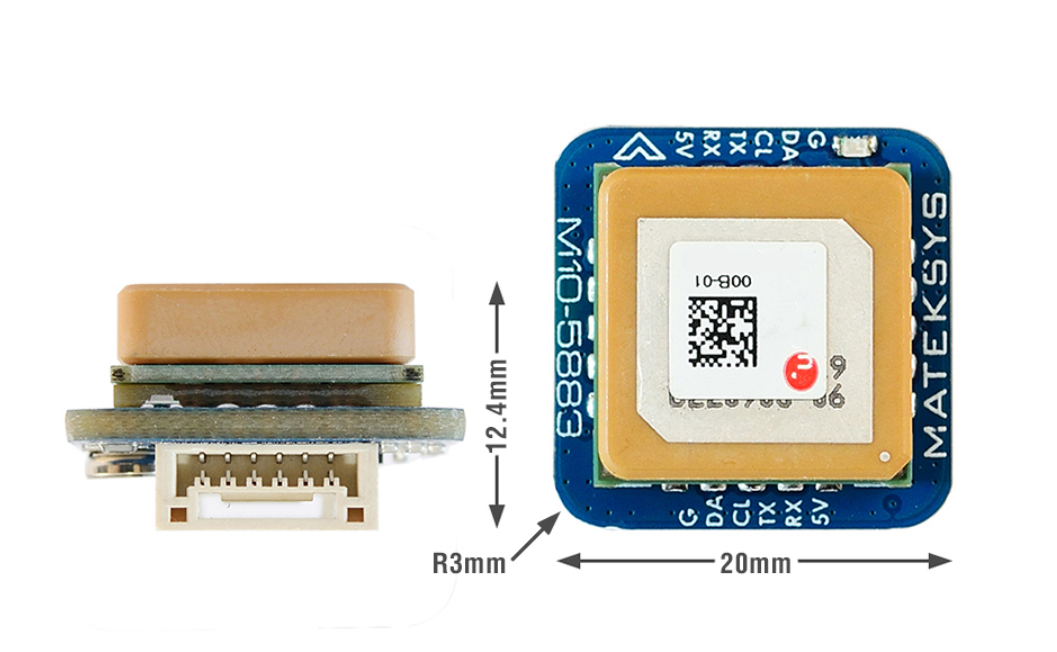

Dimensions: 20mm x 20mm x 12.4mm
Weight: about 8g
Package includes:

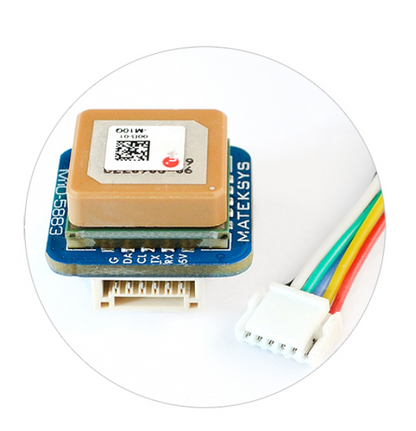

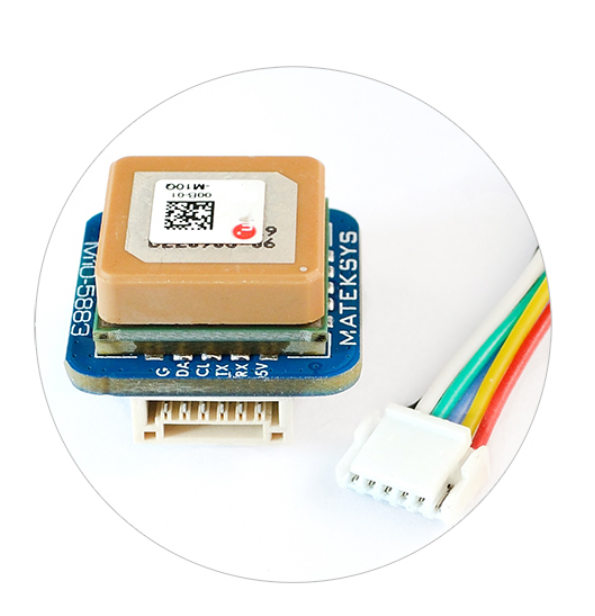

1x GNSS module and compass M10Q-5883
1x cable
