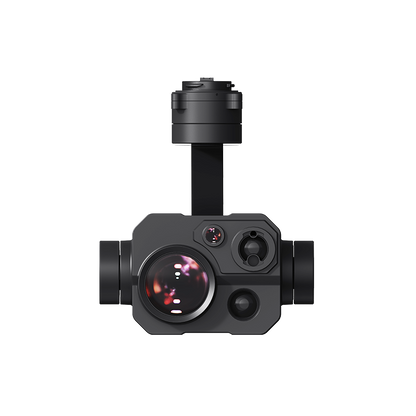

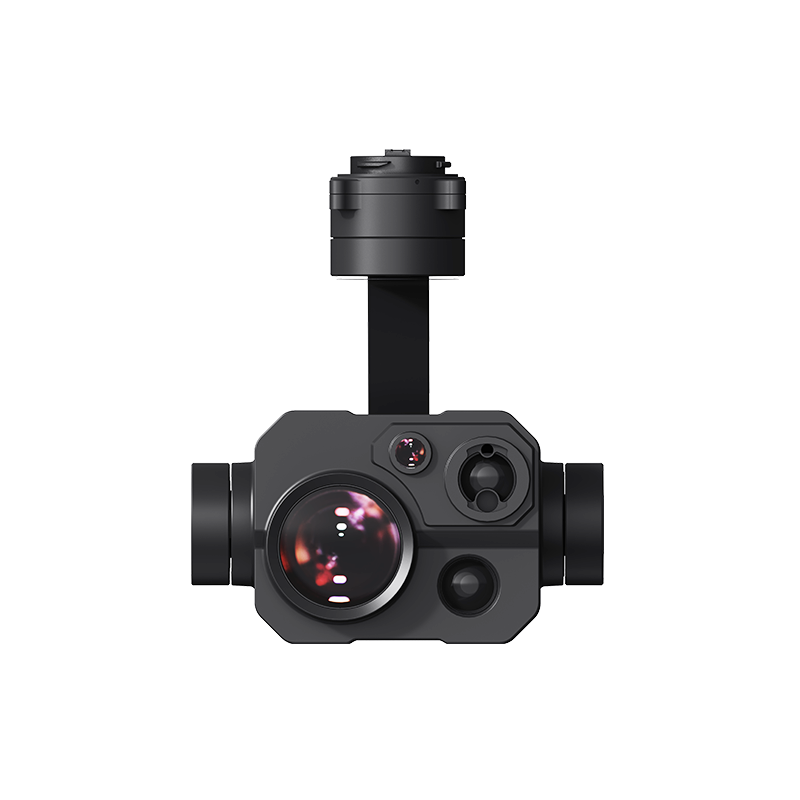

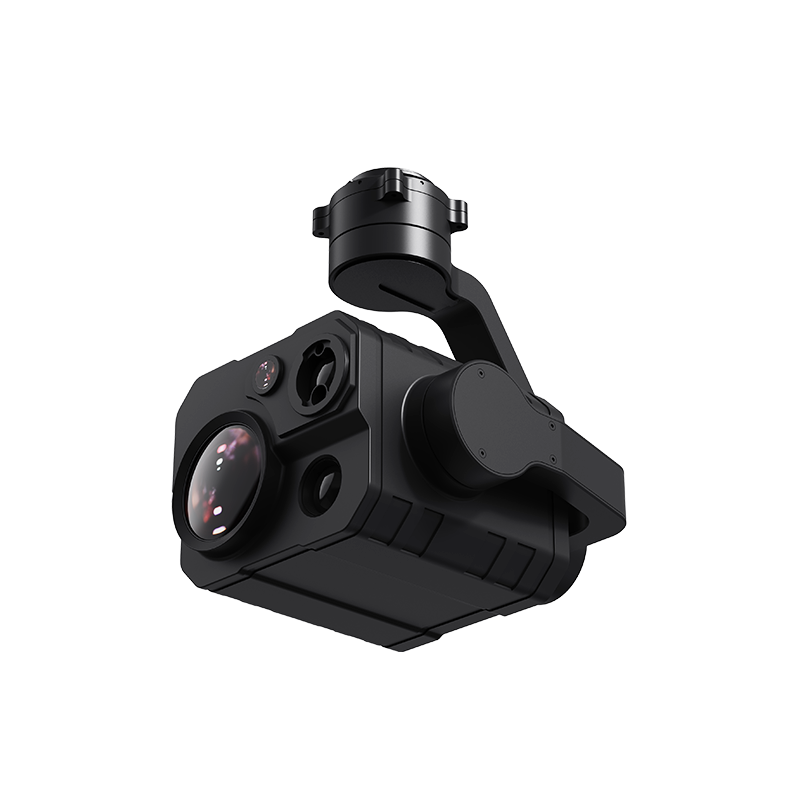

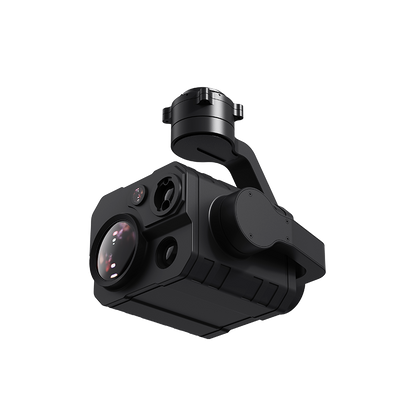

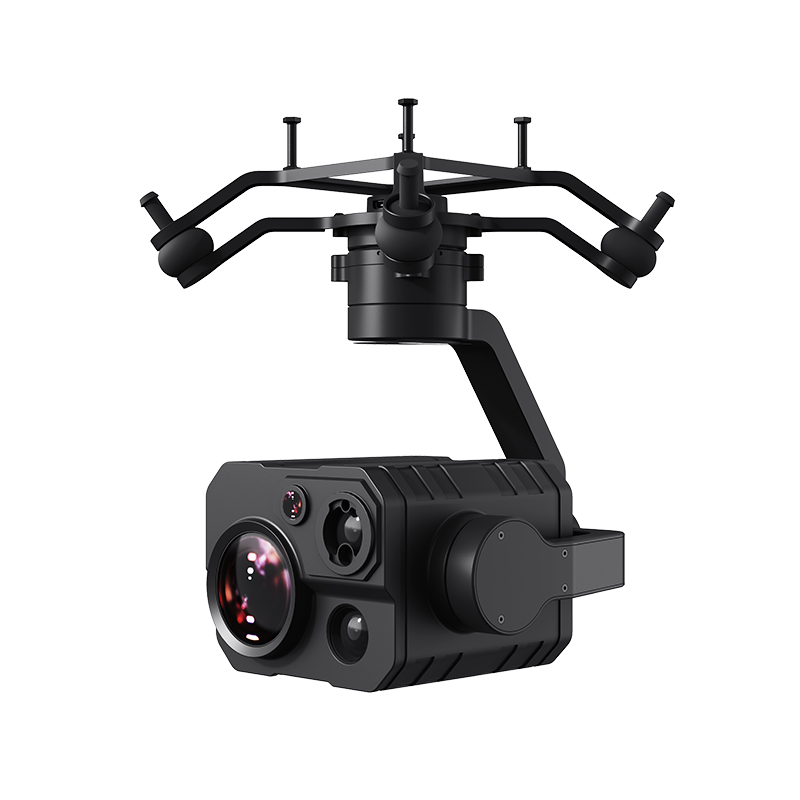

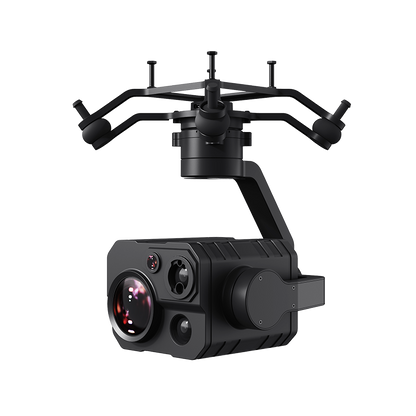

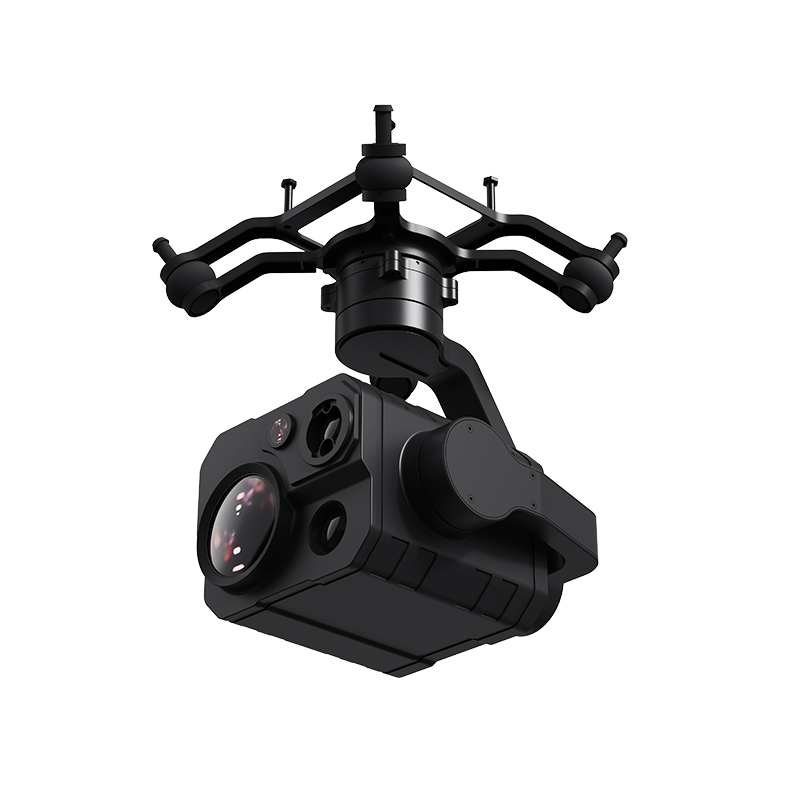

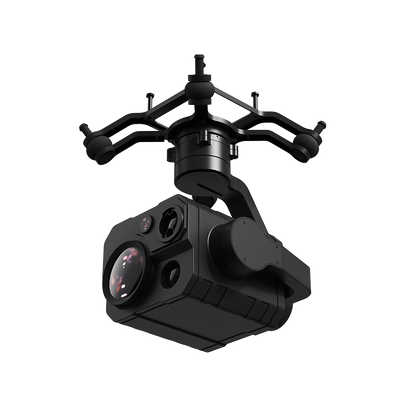

FPV HD Camera SIYI ZT30 EO/IR/LRF Gimbal

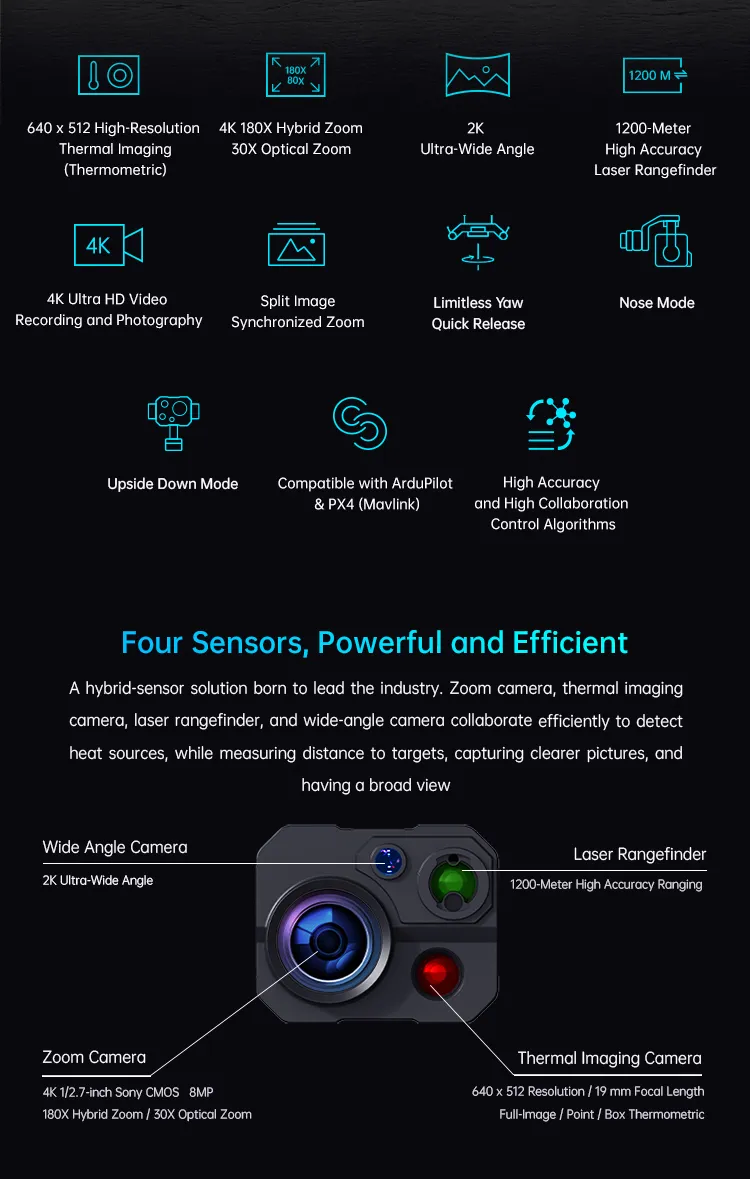

The SIYI ZT30 is an advanced EO/IR gimbal system designed for demanding aerial missions requiring precision, clarity and multi-functional capabilities. It offers a high-resolution 640x512 thermal sensor with temperature measurement function, a powerful 4K camera with 30x optical and 180x hybrid zoom and a laser rangefinder with a range of 1200 meters. The ZT30 provides an unrivaled situational overview in a compact design.
With 2K ultra-wide-angle imaging, split view and synchronized zoom, the ZT30 allows operators to monitor thermal and optical records at the same time with high accuracy. It supports infinite rotation (yaw), quick-release mounting, nose mode, and inverted installation, ensuring flexible use on various UAV platforms.
Specifications:
Overall:
Video output: Ethernet
Control signal input: S.Bus, UART, Ethernet UDP / TCP
Output of control signals: S.Bus
Stabilization: High-precision 3-axis stabilization (yaw, pitch, roll)
Voltage: 11-25.2V (3S to 6S)
Consumption: Average 9 W, peak 20 W
Protection: IP4X
Working temperature: -10 to 50 °C
Dimensions (with quick-release mount): 134.5 × 140 × 201 mm
Weight (with handle): 854 g

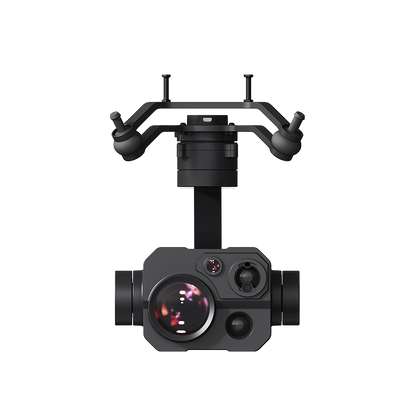

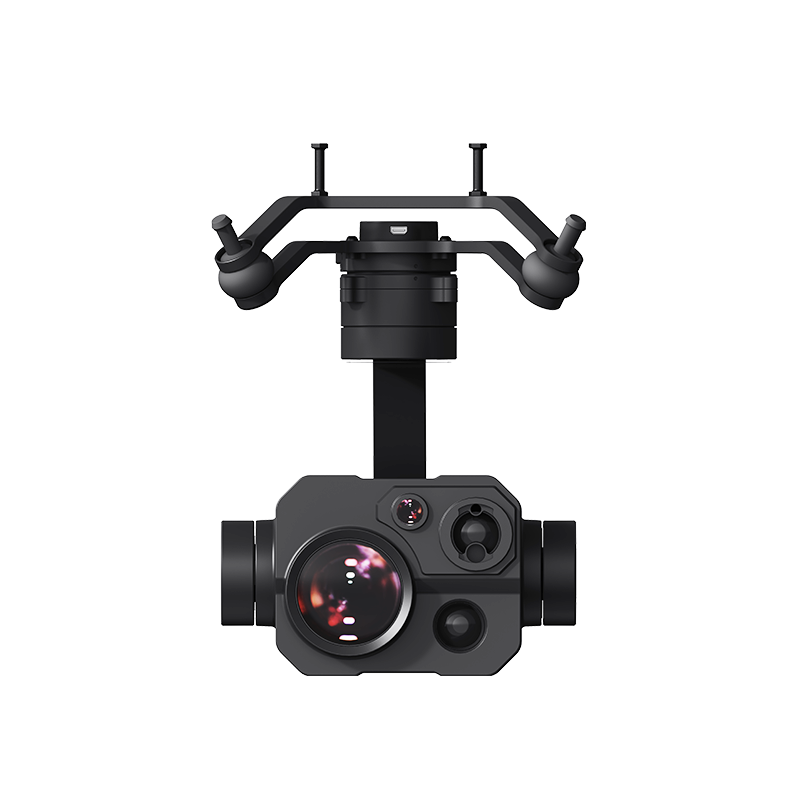

ZT30 quick-release clamp:
Dimensions: 140 x 140 x 63 mm
Weight: 104 g
Gimbal:
Angular stability: ±0.01°
Pitch control: -90° ~ +25°
Yaw control: unlimited
Control of rotation (roll): -45° ~ +45°
Zoom camera:
Lens: 30x optical / 180x hybrid zoom
Focal length: 4.8-149mm (±5%)
Sensor: 1/2.7" Sony CMOS, 8 MP
Aperture: F1.3–4.8 (±5%)
Field of view: Without zoom – diagonally 65.4°, horizontally 58.1°
At 30× zoom – diagonally 2.48°, horizontally 2.14°
Video resolution: 4K@30fps, 2K@30fps, 1080p@30fps, 720p@30fps
Photo: 4K (3840 × 2160)

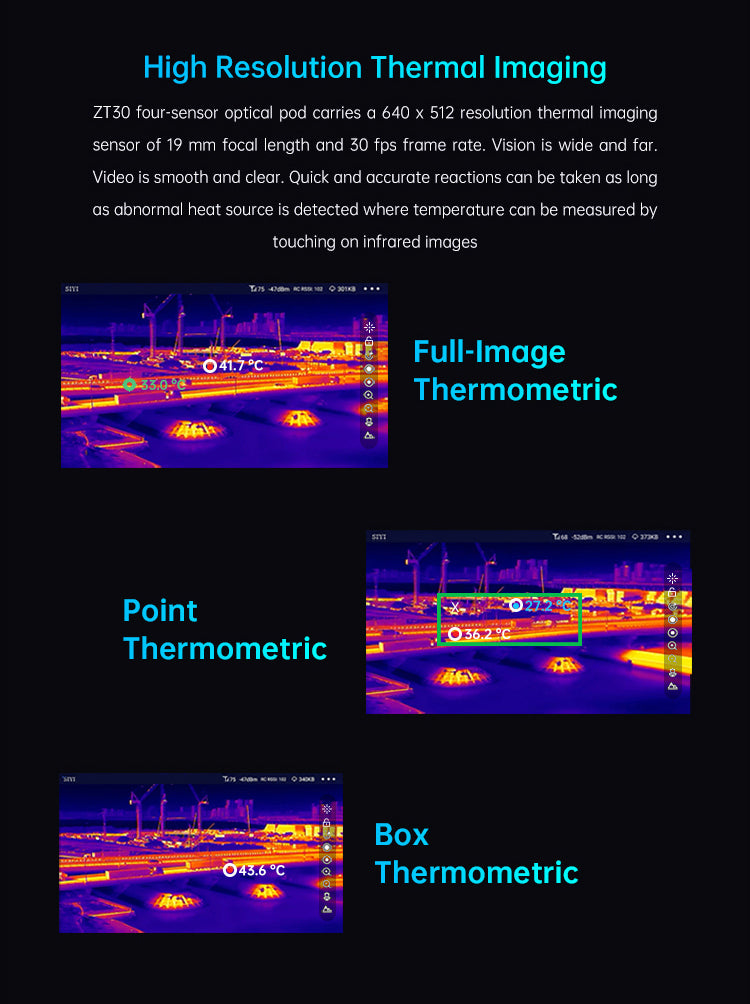

Thermal camera:
Sensor: Uncooled VOx microbolometer
Resolution: 640 × 512
Digital zoom: 2x
Focal length: 19 mm, aperture F1.1, fixed focus
Wavelength: 8-14 μm
Temperature measurement range:
- High sensitivity: -20 to +150 ℃
- Low sensitivity: 0 to +550℃
Accuracy: ±2℃ / ±3℃
Measurement modes: Full area, point, box measurement
Wide angle camera:
Sensor: 1/2.8" Sony CMOS, 4 MP
Equivalent focal length: 20 mm
Field of view: Diagonally 93°, horizontally 84.5°
Video resolution: 2K@30fps
Photo resolution: 2K (2560 × 1440)
Laser Rangefinder:
Range: 5-1200 m
Wavelength: 900-908 nm
Resolution: 0.1 m
Accuracy: ±1 m (3-100 m), ±1 + L*0.25% m (100-600 m)
Pulse frequency: 3 Hz
Max. power: 5 mW
In general:
Bitrate: 15 Mbps (H.265 codec)
File format: FAT32, exFAT
Image format: JPG
Video format: MP4
MicroSD: Class10, max. 256 GB
Shooting mode: Single shot
Exposure mode: Evaluative
The package contains:
1 × ZT30 four-sensor optical gimbal
1 x ZT30 quick release anti-vibration mount
1 x protective case
1 × S.Bus Y cable for MK15 / HM30
1 x Universal 3 in 1 Control Cable
1 x gimbal power cable
1 x Ethernet cable for gimbal
1 x SIYI Link cable
1 x RJ45 Ethernet cable
1 x UART cable for PX4 / ArduPilot
1 x ZT30 mounting screw set
1 x Cover for O4 Air Unit (Black)
1 x DJI O4 camera mount
1 x damping camera mount
6 x damping balls
6 x HD damping balls
4 x M2×4 screws
6 x M1.4×10×4 screws with washer
