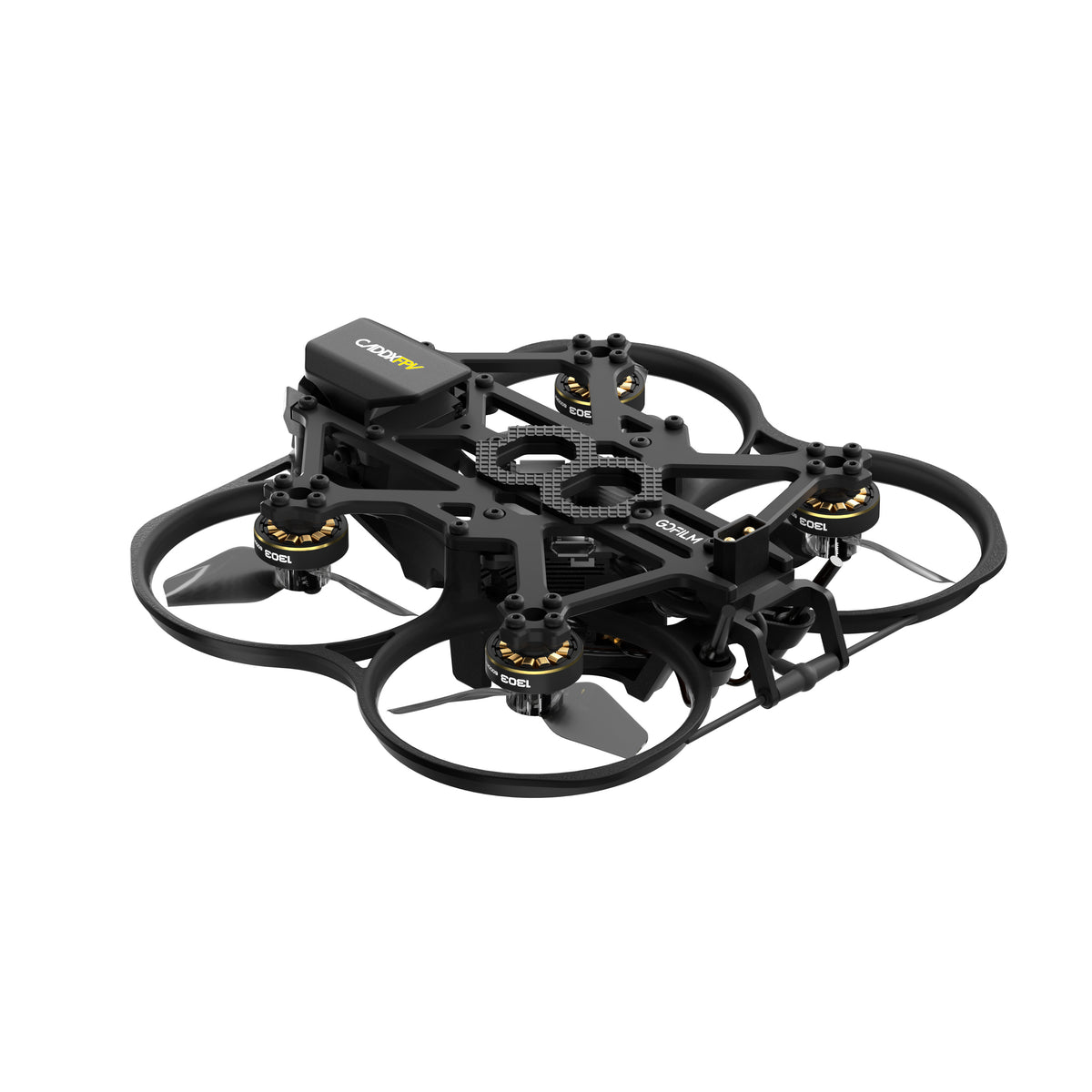

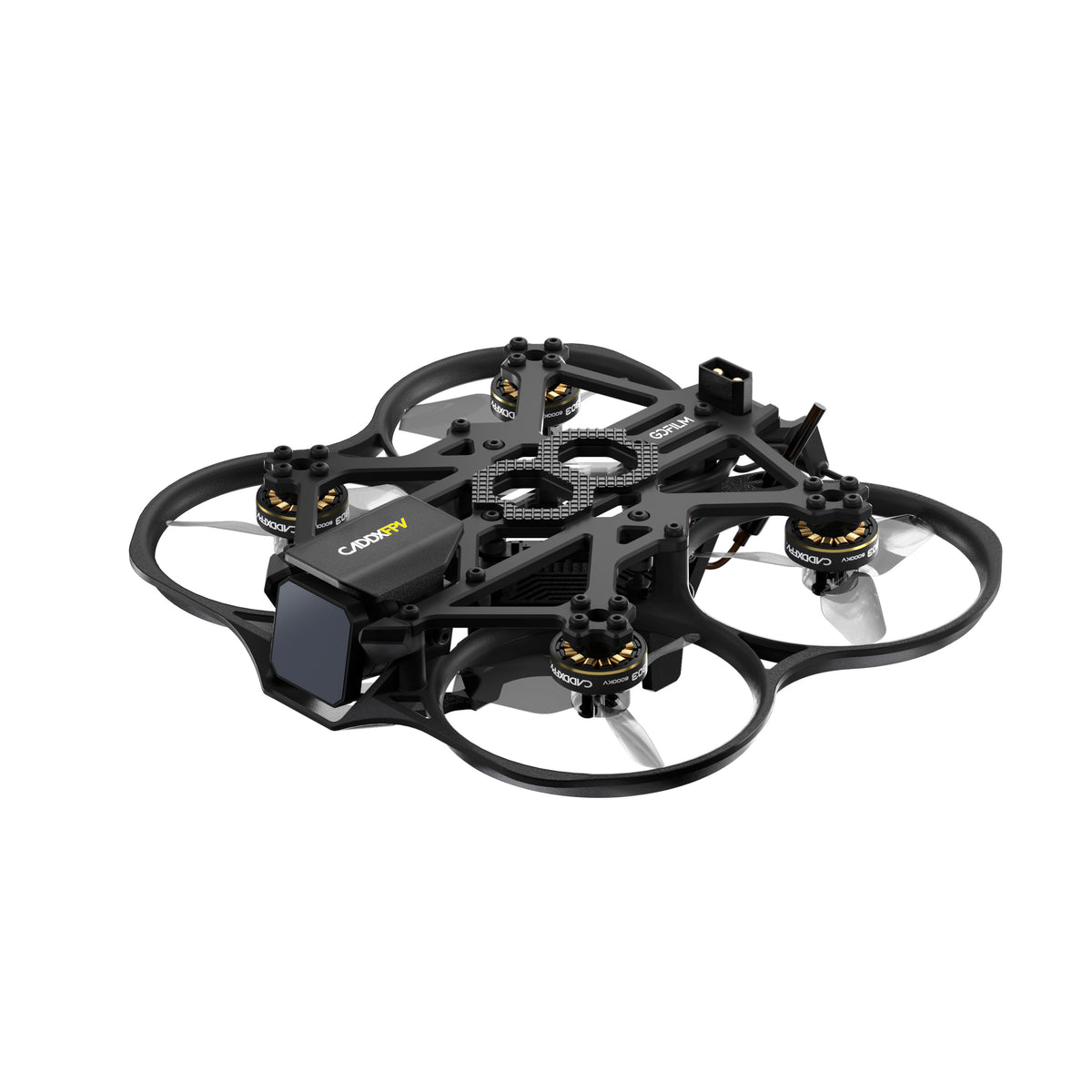

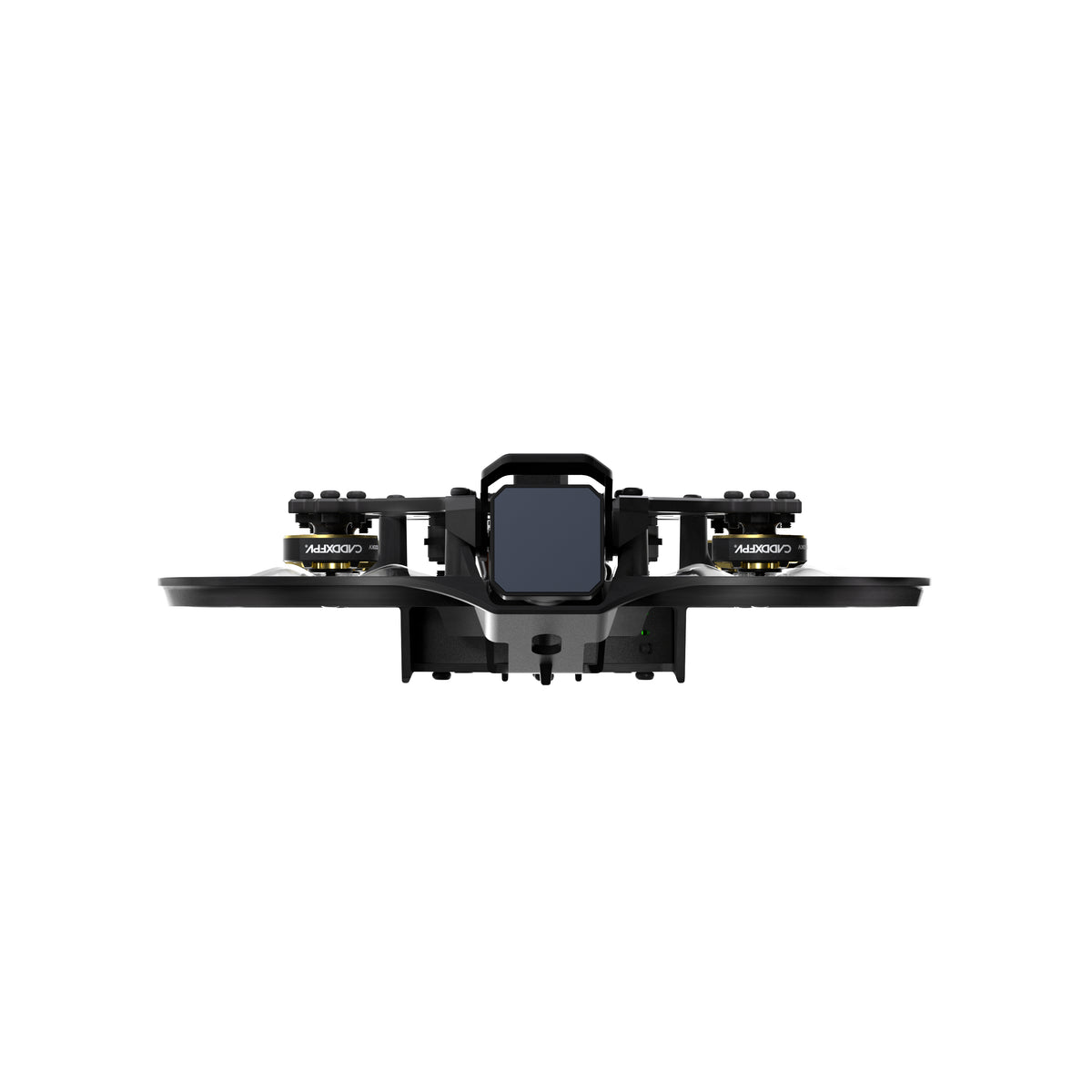

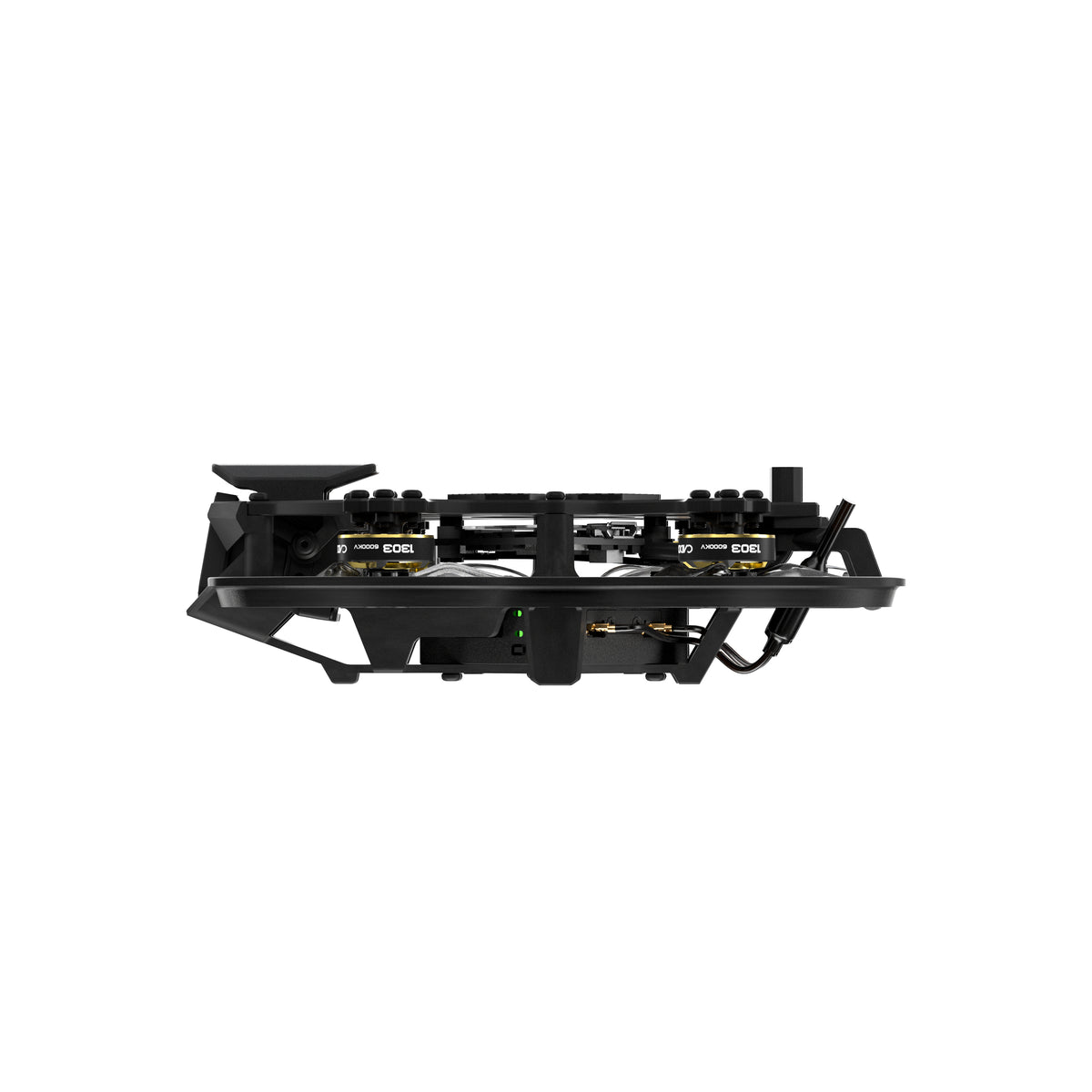

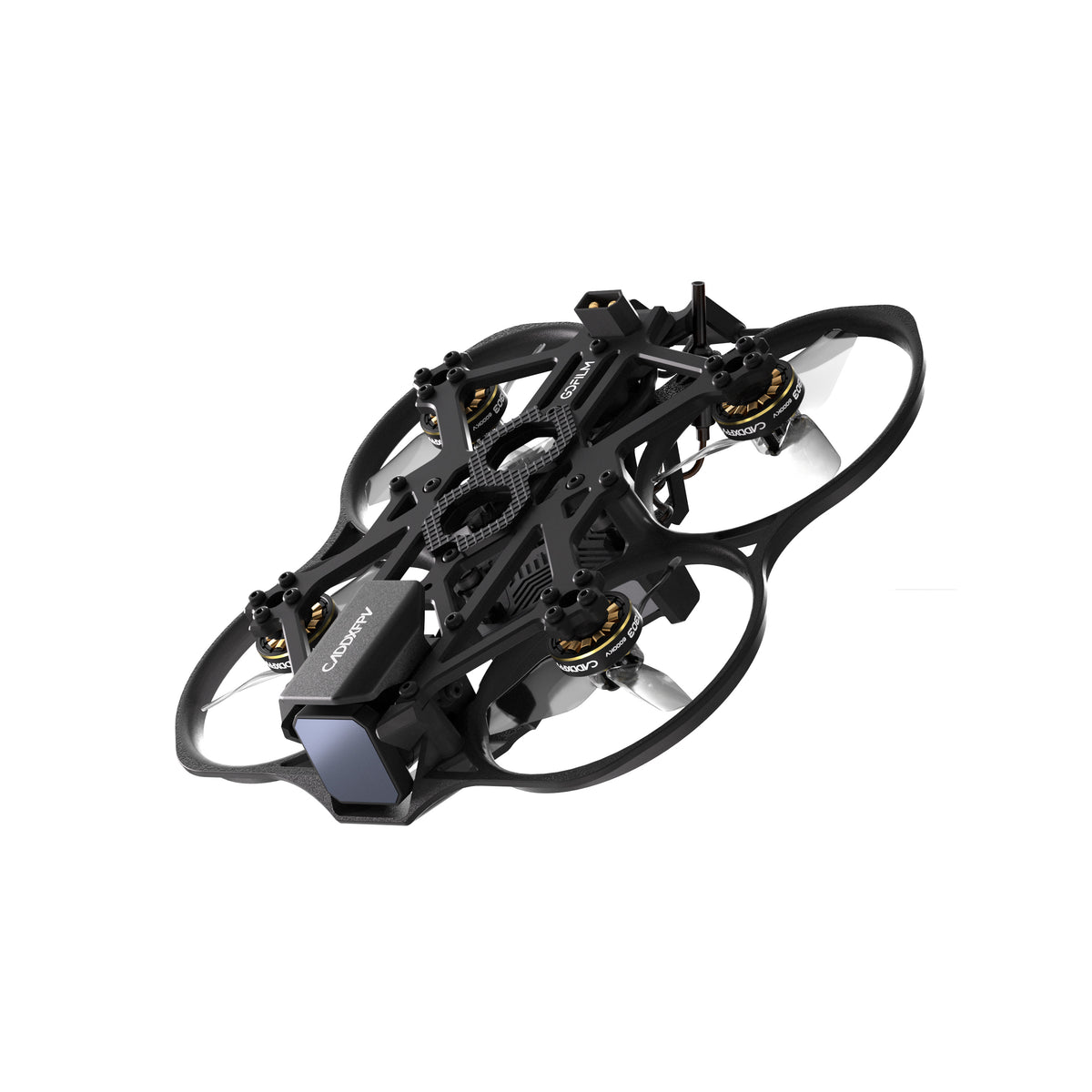

CADDXFPV Gofilm 20 FPV kit
The Gofilm 20 is CaddxFPV's first FPV drone. Equipped with the Avatar Moonlight Kit, it shoots stable and lag-free HD videos, making it easy to capture cinema-quality images day or night. The Gofilm 20 features a lightweight design, occupies a smaller footprint and weighs about 115g, ensuring agile flight and extended endurance. It has a 94mm wheelbase with a damping structure and a robust drive system.
HD Digital VTX System:
- Standard with Moonlight Kit, offers improved image quality and low-light performance for night photography.
- Supports 4K/60fps, ensuring FPV includes true 4K. Shooting stable and HD videos without unnecessary latency brings a smoother FPV experience to pilots.
- Equipped with EIS and Gyroflow technology. Supports manual shutter and manual ISO settings.
- The moonlight camera has 160° FOV, which gives you a more natural and realistic image for a perfect flying experience.
- In addition, the 25.5mm and 20mm mounting hole design accommodates various accessories.
Specifications:
Model: Gofilm 20
FC: CADDXF4_AIO_ELRS
VTX: Moonlight Kit
Wheelbase: 94 mm
Engine: 1303 6000KV
Propeller: HQprop T2×2×3

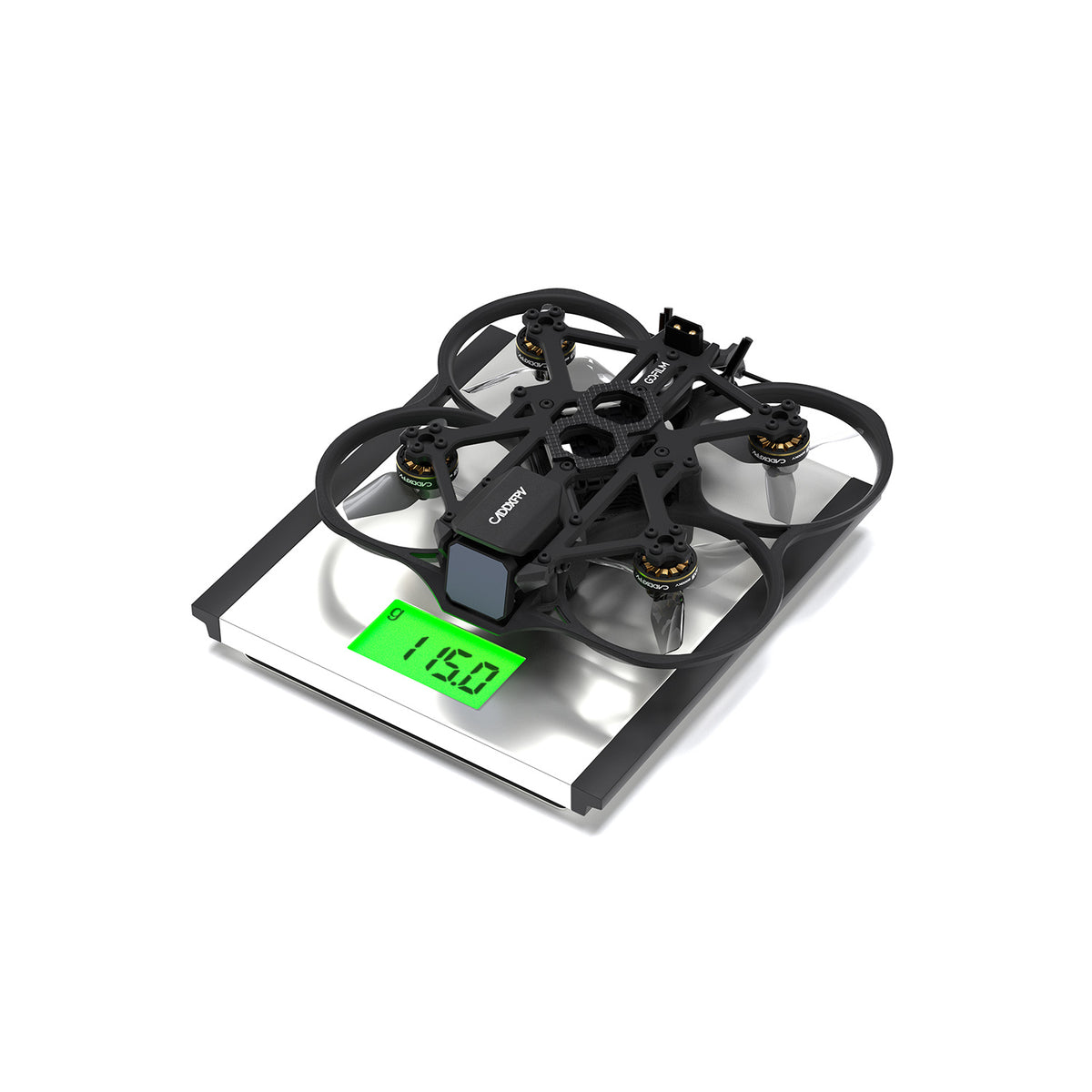

Weight: 115±5g
Dimensions: 133×123×39 mm
Flight time: 4S 650mAh & about 5.5 minutes
Receiver: ELRS 2.4G
Battery interface: XT30
FC parameters:
MCU: STM32F405RGT6
GYRO and IMU: ICM42688
Barometer: BMP280
ExpressLRS receiver: ELRS V3.0 UART
ESC: 20A 4-IN-1
Blackbox: 8 MBp
Power supply support: 2-4S Lipo/Lihv
Mounting hole Distance: 25.5×25.5mm
Firmware target: CADDXF4_AIO_ELRS
VTX parameters:
Model: Moonlight Kit
Firmware Name: AvatarMoonlight_Sky_X.X.X
Communication frequency: 5.725-5.850 GHz
Transmitter Power (EIRP): FCC: <30dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm
I/O interface: JST1.0*4 (power cable); JST0.8*6(USB); microSD card slot; IPEX-1.
Sensor: Starlight sensor
FOV: Max 160°
Aperture: F2.1
Shutter: Shutter
ISO: 100-25600
Recording resolution: 4K@30/60fps; 2.7K@30/60fps;
1080p@100/60fps; 720p@60fps
Max Mbps: 150 Mbps
Video format: MP4 (H.264)
3D DNR: Support
Gyro Flow: Support
Built-in EIS: Support
Wide power input: 7.4V-25.2V
Power consumption: 12V@1.4A, 8V@2.2A
Memory card type: U3 microSD, Max 256G
Camera Size: 19.6mm x 19mm x 24mm
VTX Size: 15.3mm x 34.5mm x 34.5mm
VTX installation hole: 20×20mm/25×25mm (M2)
Weight: 38.5g (antenna not included)
OSD: Screen mode
Latency: Average delay of 22 ms
Antenna: 2 (IPEX)

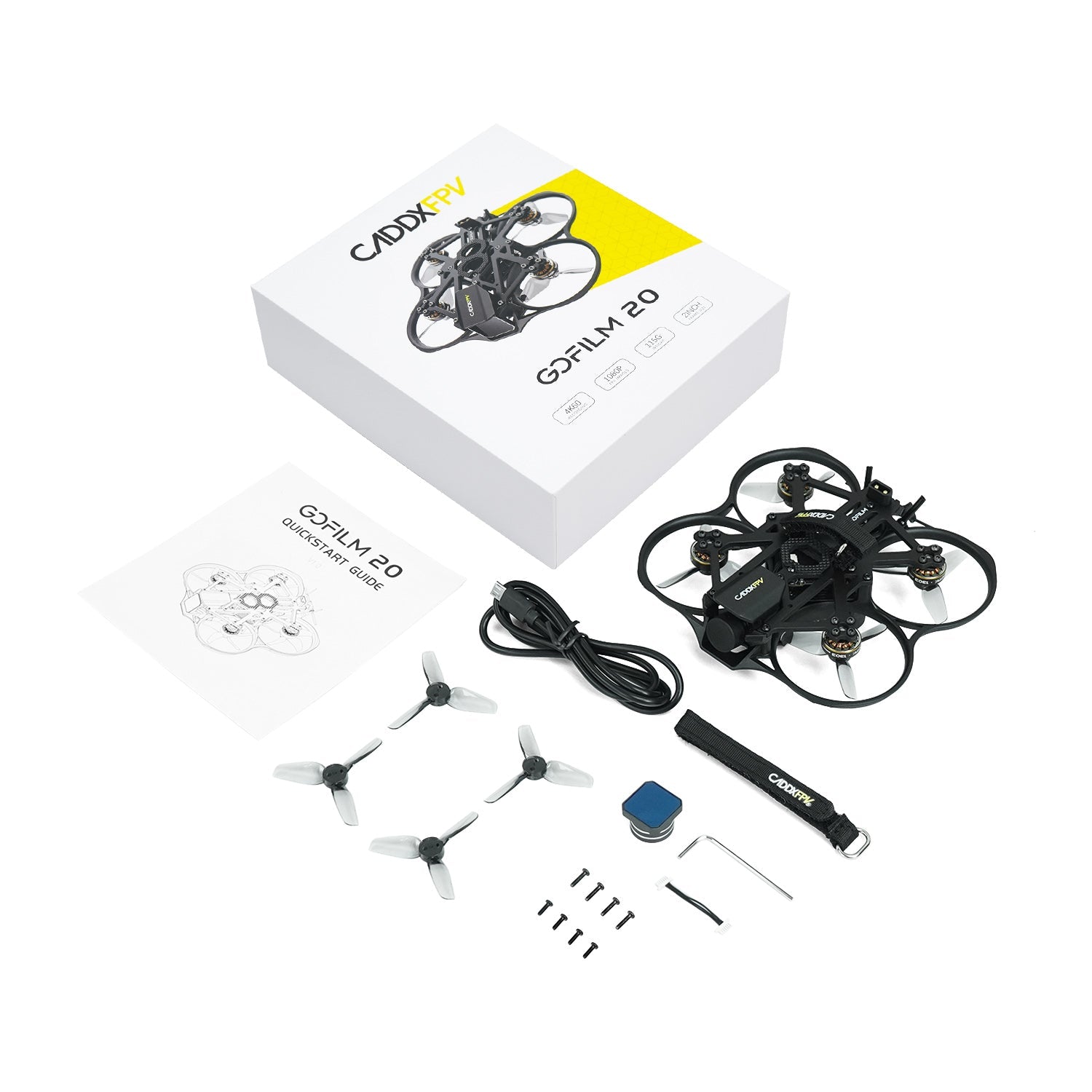

The package includes:
1x FPV kit CADDXFPV Gofilm 20
