Code: SKU:SPEEDYBEE-F7V3

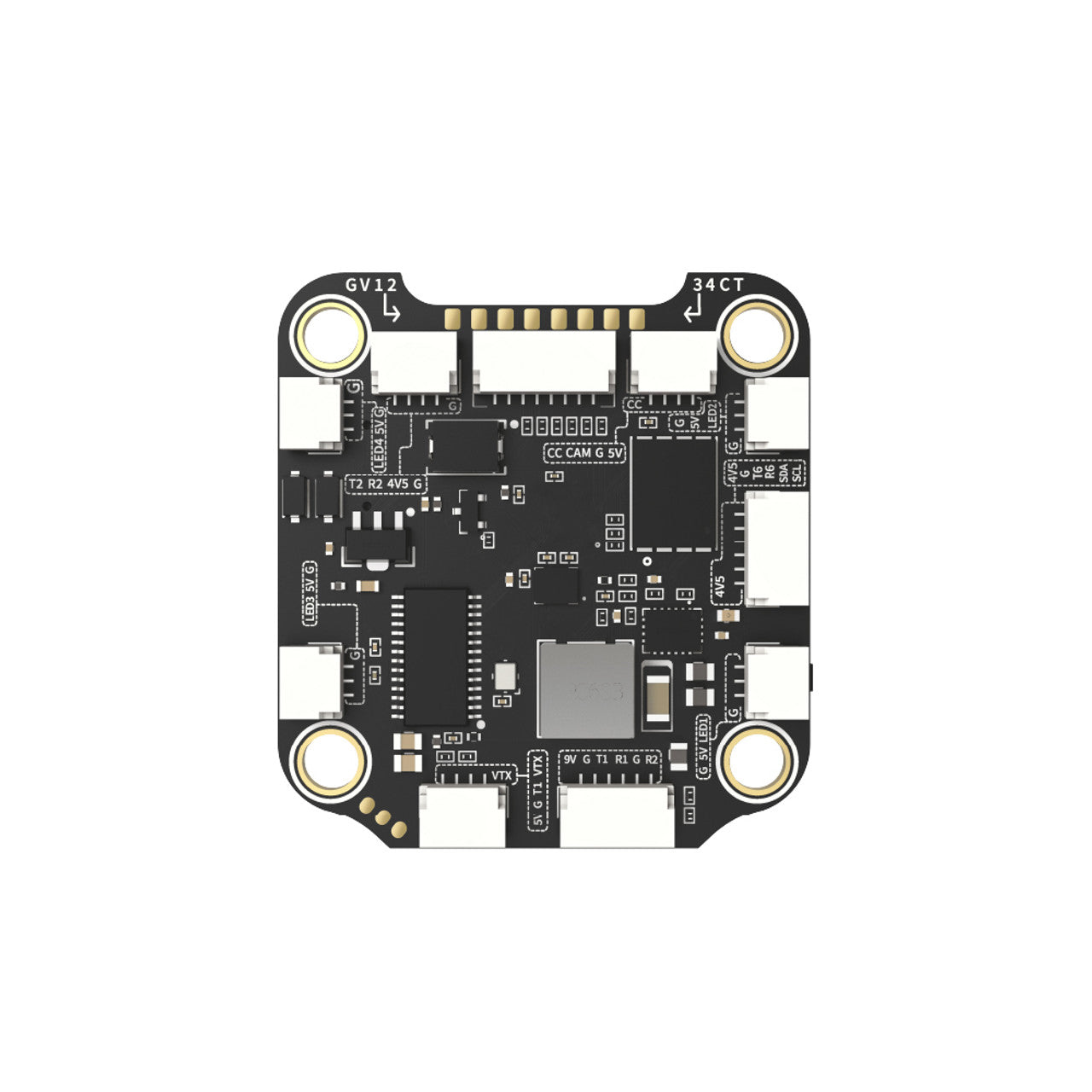

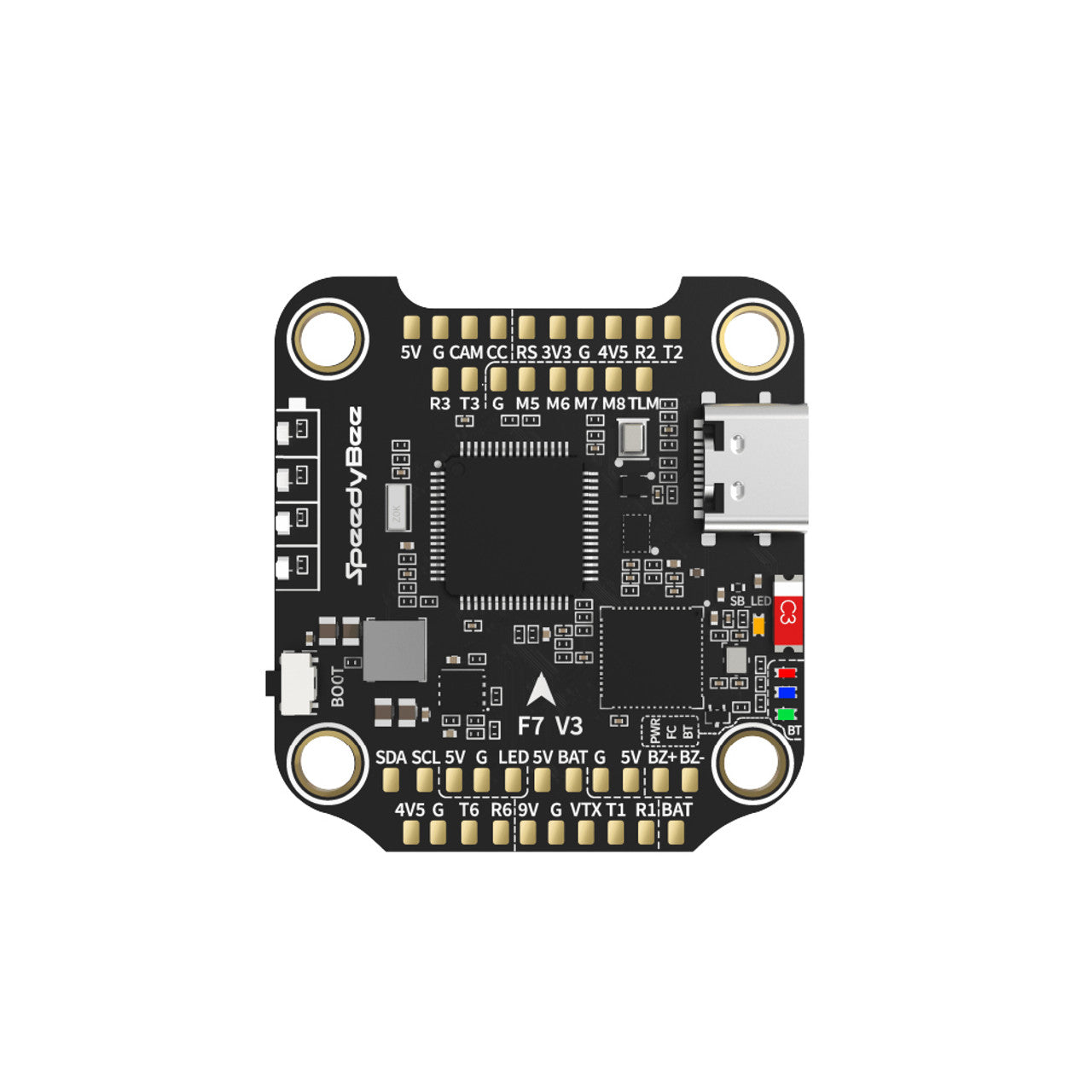

FC SpeedyBee F7 V3
FC SpeedyBee F7 V3
Brand: SpeedyBee
Regular price
€45,99
Regular price
€45,99
Sale price
€45,99
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
SpeedyBee F7 V3 Flight Controller SpeedyBee F7 V3 Flight Controller is F722 FC with BMP280 barometer, OSD, 500 MB Blackbox memory, built-in FC LiPo monitoring system and many more features. Equipped with soldering-free connection options. Function: -500 MB of integrated Blackbox Flash memory -8 Engine power ideal for X8 Cinelifters -30.5 x 30.5 mm assembly pattern -FC LiPo monitoring system -Built-in barometer - 4 LED plugs - F722 FC -Buzzer Specifications: Performance: 1) 10 groups of 5V output, three +5V pads and 1 BZ+ pad (used for Buzzer) on the front and 6 +5V outputs included in the connectors on the bottom. The total current load is 2A. 2) 2 groups of 9V output, one +9V pad on the front and the other in the connector on the bottom. The total current load is 4A. 3) Supported. Designed for the GPS receiver and module, even if the FC is powered via the USB port. Current load up to 1A supported. Designed for receivers with 3.3V input. Current load up to 500 mA. WiFi support, used for data transfer, e.g. firmware flashing and blackbox analysis. I2C: Supported. SDA & SCL pads on the front. Used for magnetometer, sonar, etc. Flight controller firmware support: BetaFlight (default), EMUFlight, INAV ESC signal M1 - M4 on the bottom side and M5-M8 on the front side. LED: Used for WS2812 LEDs controlled by Betaflight firmware. UART: 5 sets (UART1, UART2, UART3, UART4, UART6) DJI Air Unit Socket: Fully integrated DJI Air Unit JST slot BLE support which is used to configure the Flight Controller Buzzer: BZ+ and BZ- pad used for 5V buzzer Mounting: 30.5 x 30.5 mm, hole size 4 mm Dimensions: 41(L) x 38(W) x 8.1(H)mm OSD: BetaFlight OSD with AT7456E chip BlackBox: 500MB flash data on board BetaFlight Camera Control Pad: Yes ESC telemetry: UART UART4 RX Power: 3S - 6S Lipo Target: SPEEDYBEEF7V3 SmartPort: Supported Baro: BMP280 (I2C) MCU: STM32F722 Trigger button: Yes RSSI input: Yes IMU: BMI270 USB: Type-C Weight: 9g
