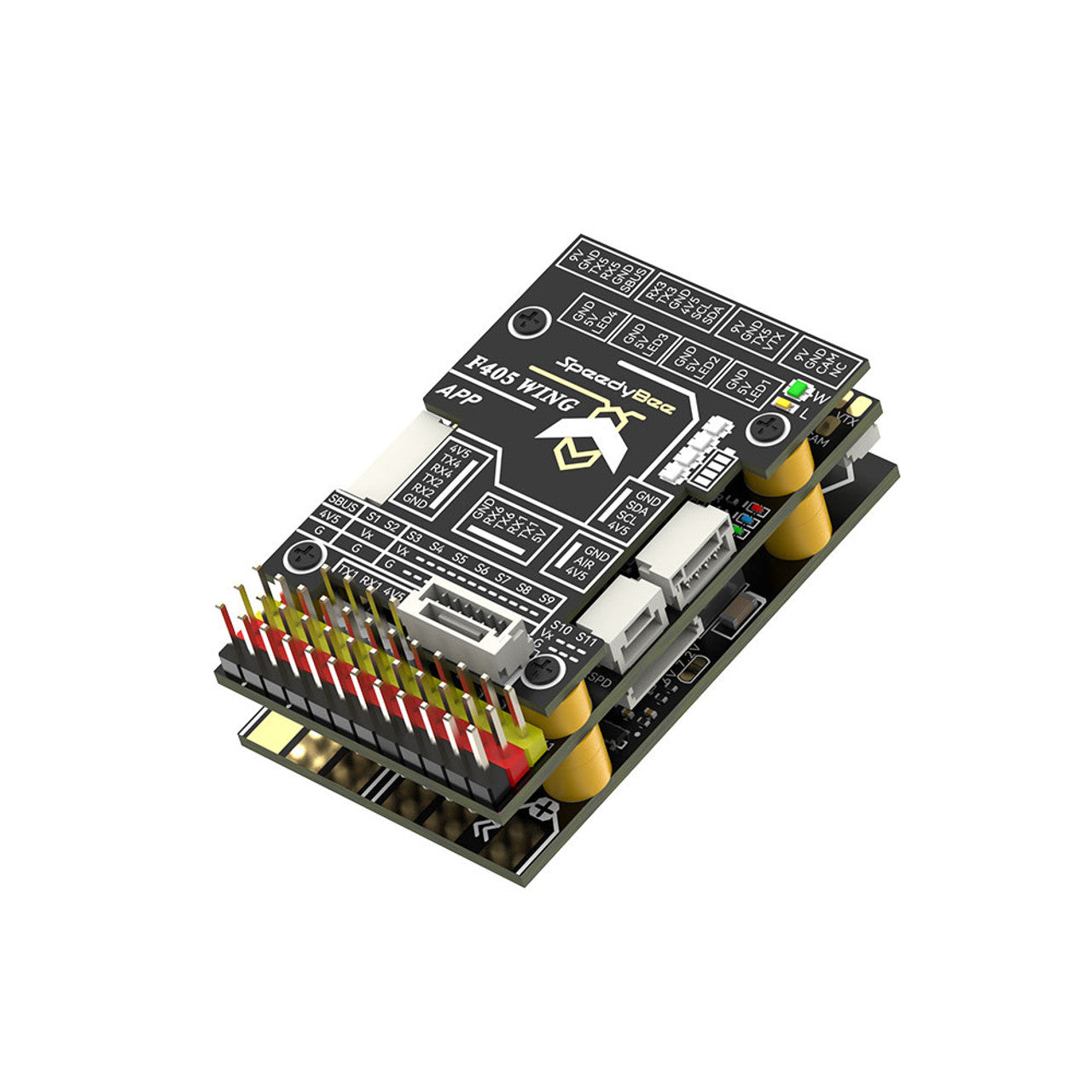

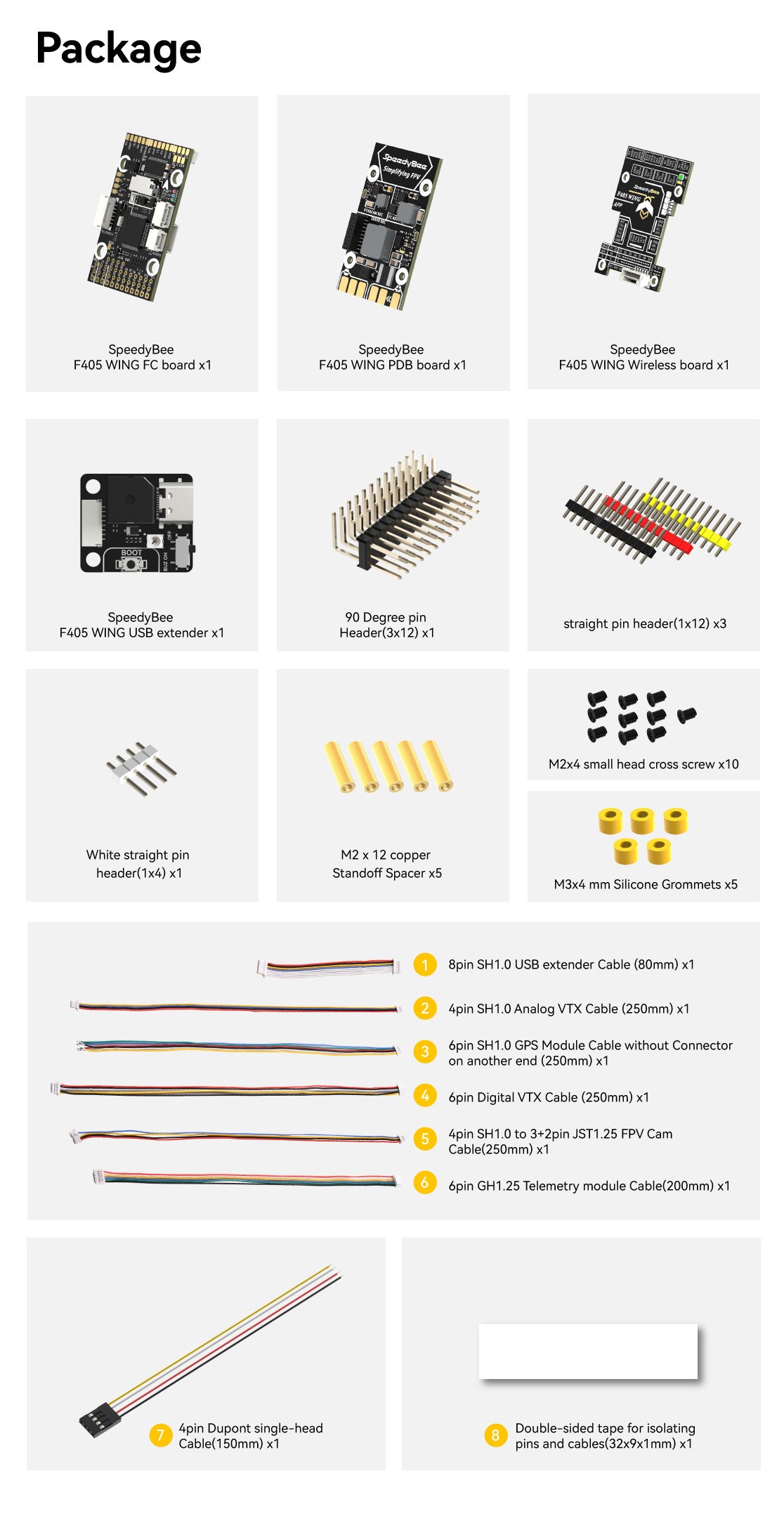

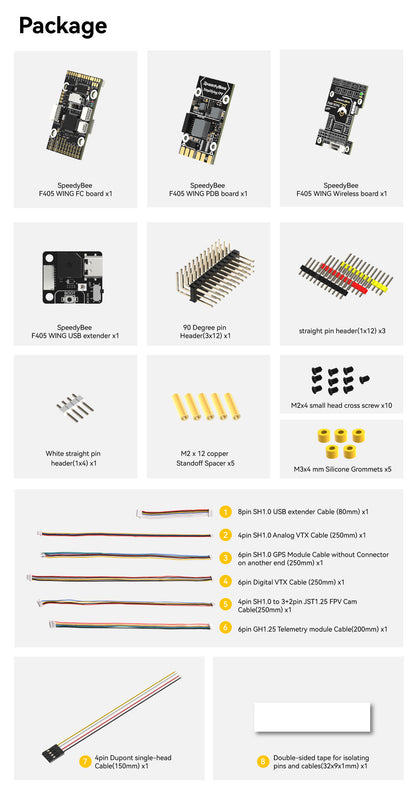

SpeedyBee F405 WING APP Fixed Flight Controller

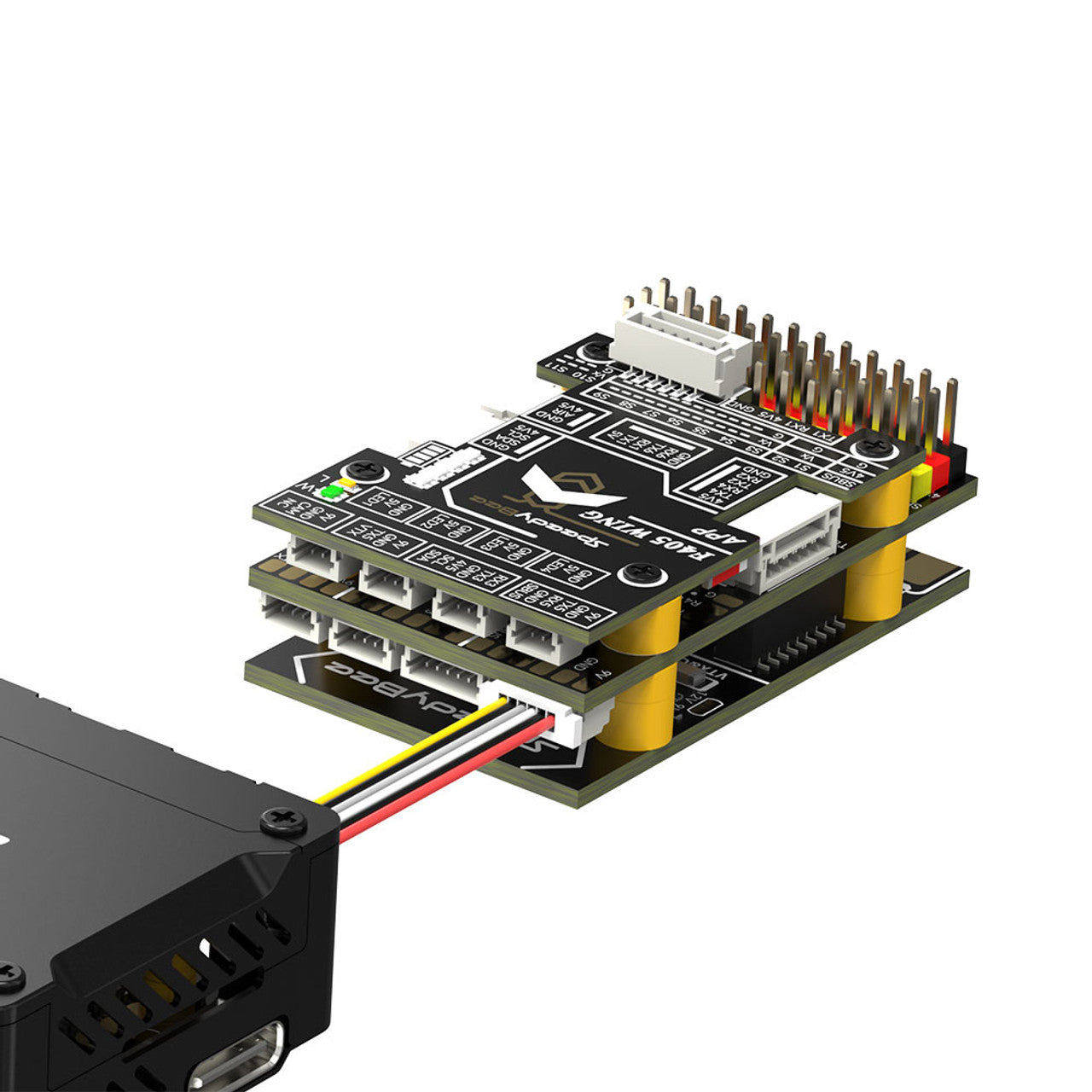

F405 WING APP - easy installation, wireless configuration. It supports wireless configuration via the Speedybee and QGroundcontrol apps, without the need for drivers or data cables. Support for BLE, WI-FI and classic Bluetooth. Connect your digital VTX, receiver, camera, analog VTX and GPS to complete the build in time. It also comes with 4x LED connectors so you can light up your plane without a headache. Dual firmware: INAV for easy FPV flight control, Ardupilot for advanced options. Stabilize Flight, Auto Takeoff, Wing Racing and Formation Flying.
Specifications:

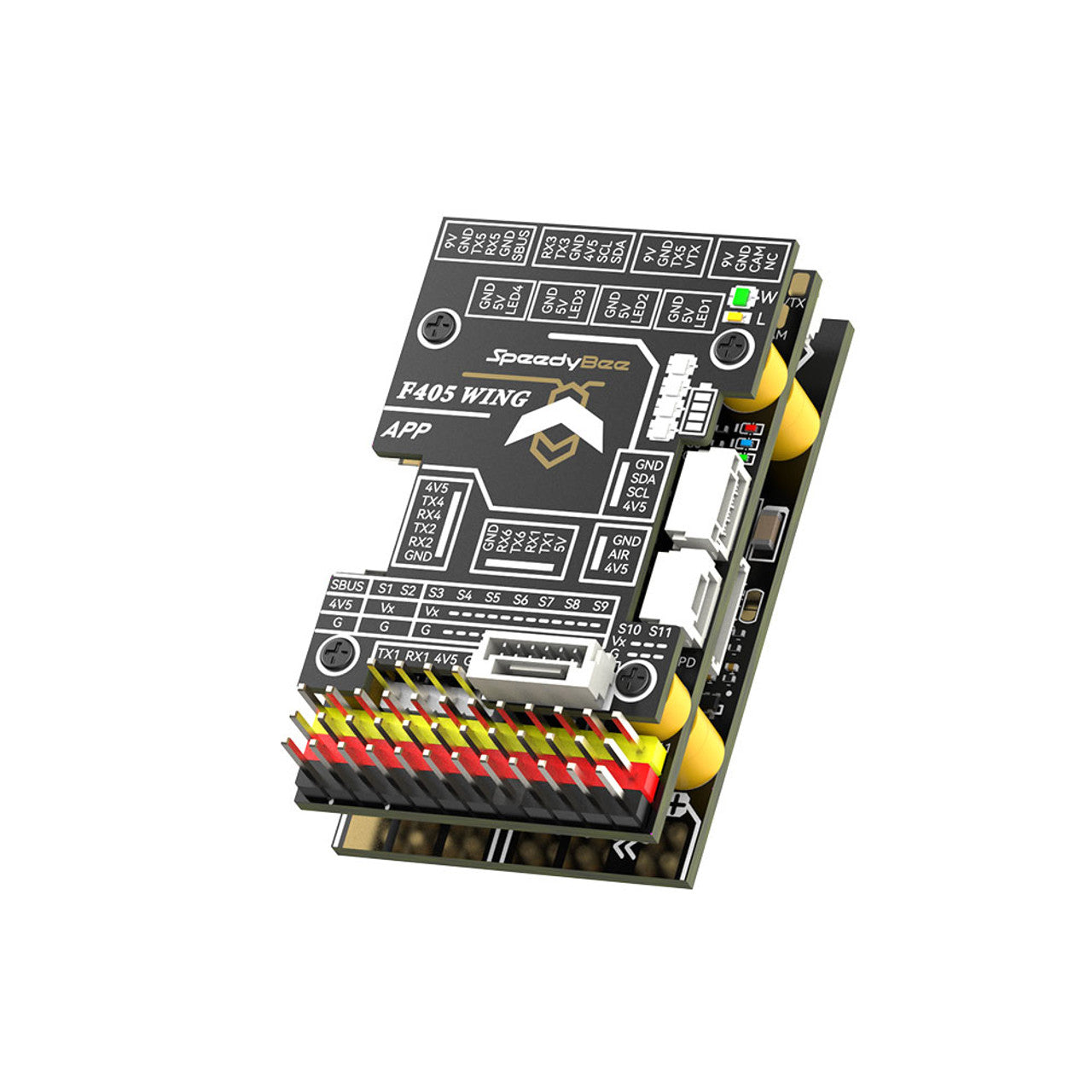

Product Name: SpeedyBee F405 WING FC board
MCU: STM32F405, 168MHz, 1MB Flash
IMU (gyroscope and accelerometer): ICM-42688-P
Barometer: SPL006-001
OSD chip: AT7456E
Blackbox: MicroSD card slot
UART: 6 sets (USART1, USART2, USART3, UART4, UART5, UART6 (reserved for board wireless telemetry connection))
I2C: 1x Used for magnetometer, digital air speed sensor
ADC: 4x (VBAT, Current, RSSI, Analog AirSpeed)
PWM: 12x (11+1 LED pad)

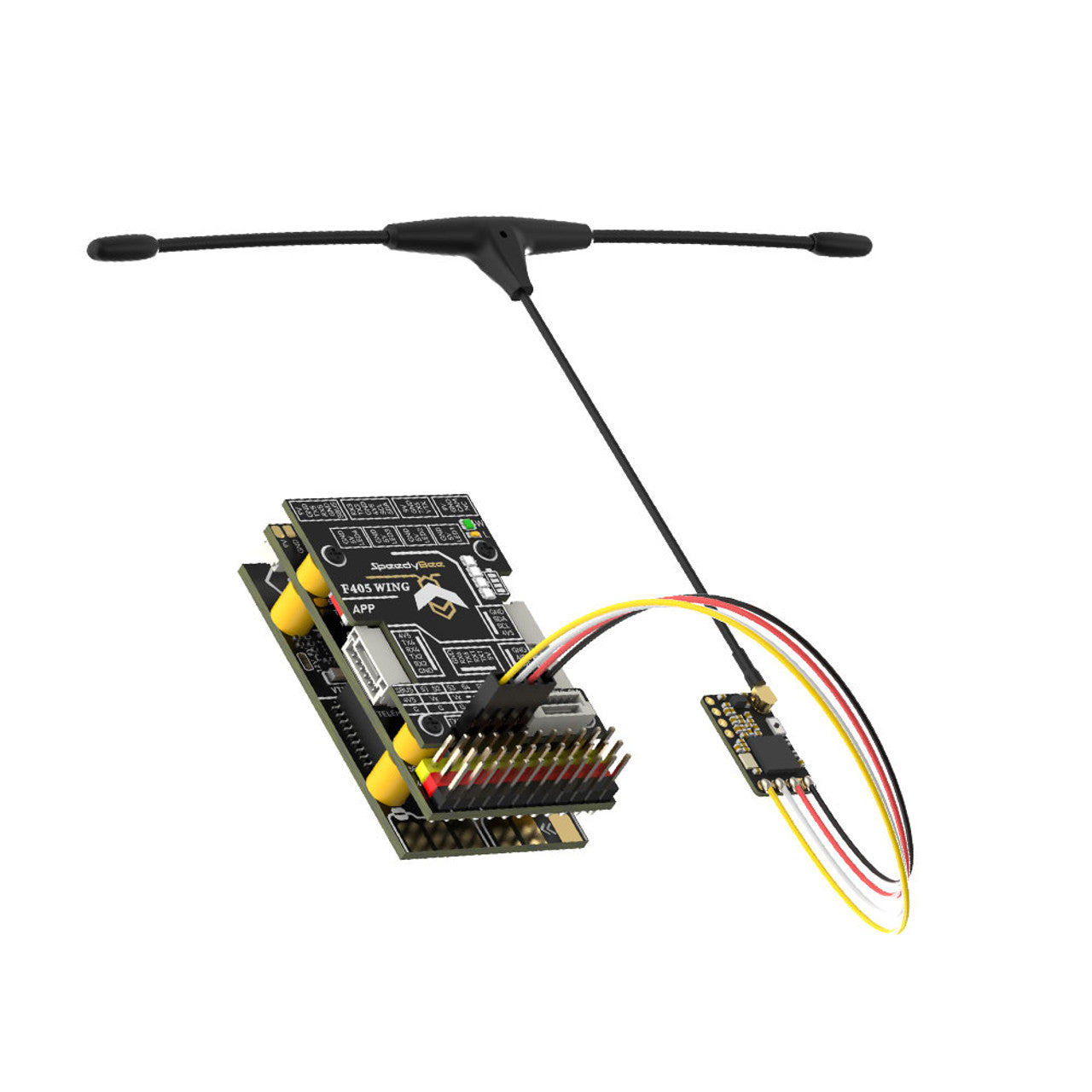

ELRS/CRSF receiver: Supported, connected to UART1
SBUS: Built-in inverter for SBUS input (UART2-RX)
LED: 3x LED for FC STATUS (blue, green) and 3.3V indicator (red) 1x RGB
RSSI: Supported, named as RS.
Supported FC firmware: INAV:SpeedyBeeF405WING (default) / ArduPilot: SpeedyBeeF405WING
Weight: 8.9g

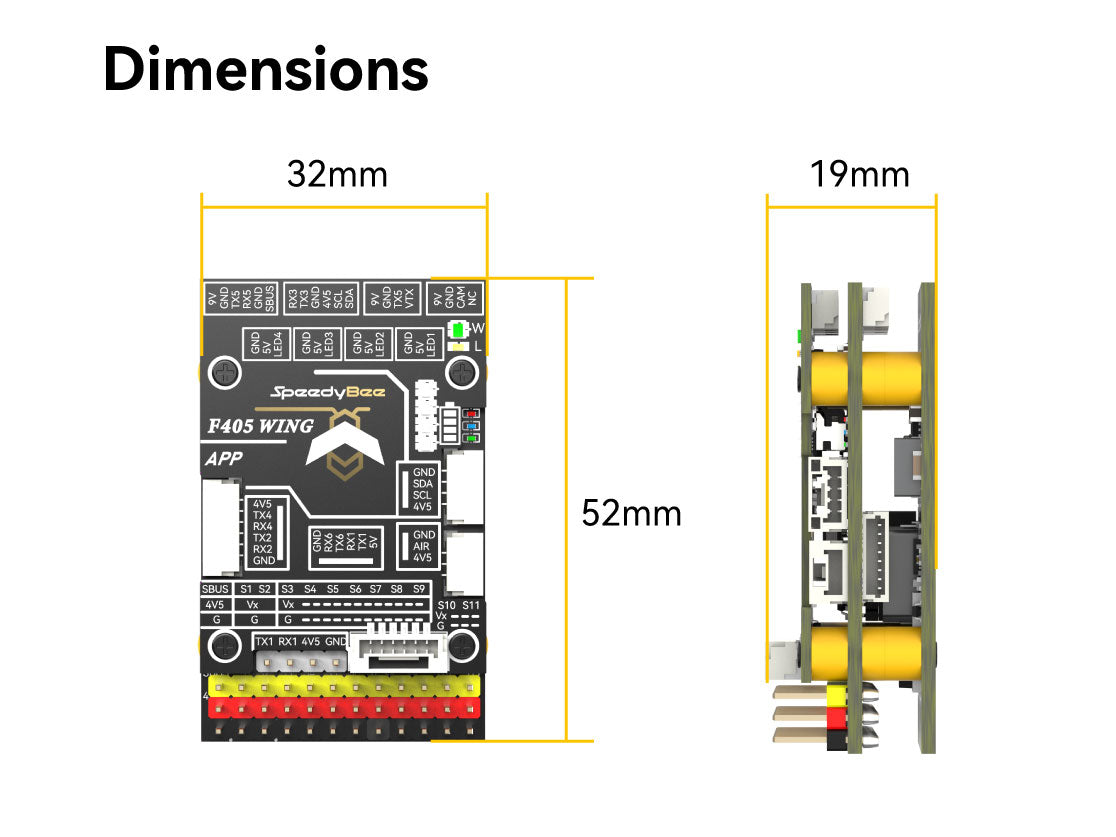

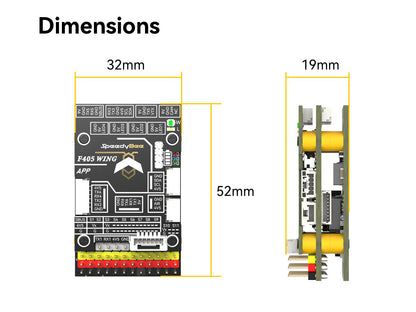

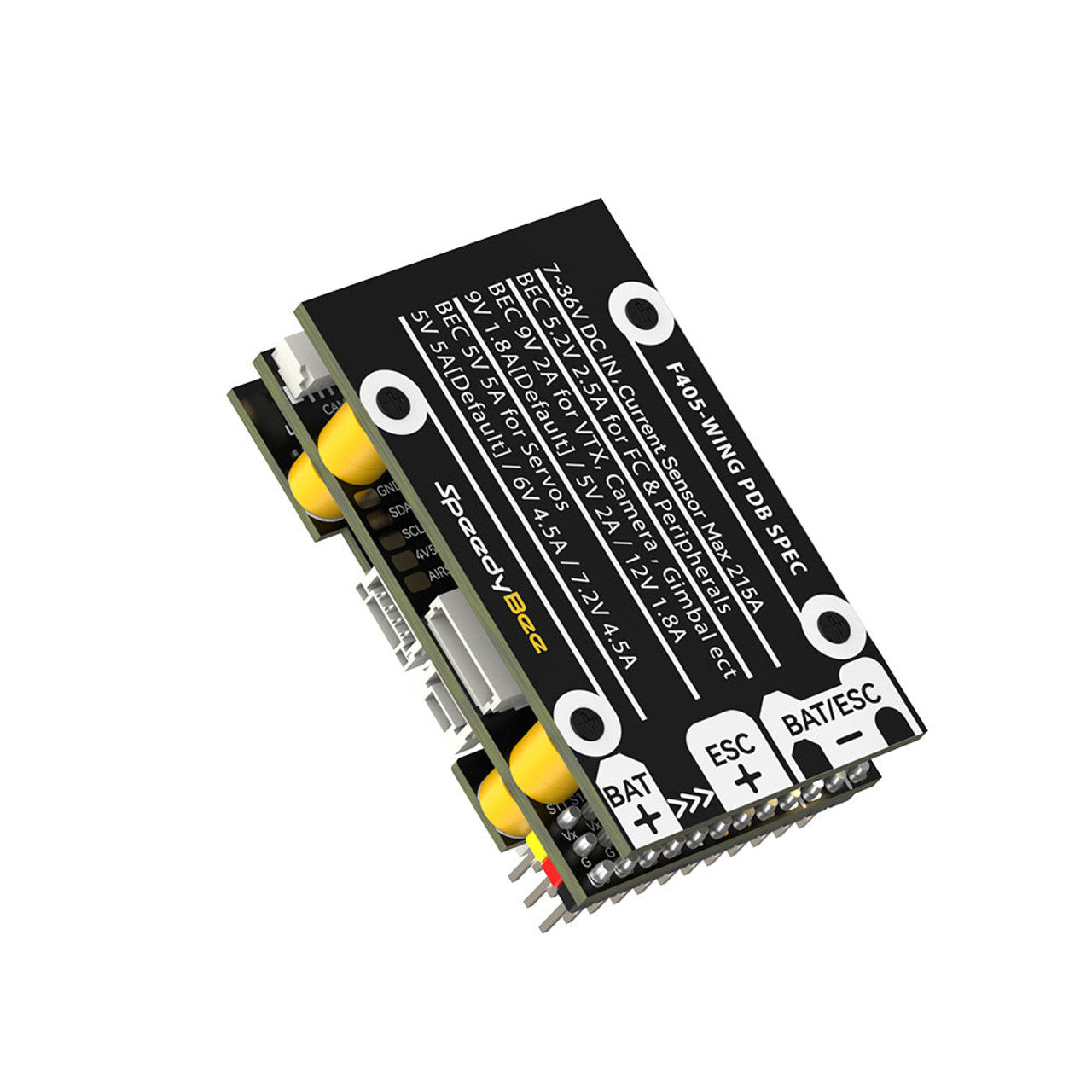

Product Name: SpeedyBee F405 WING PDB Board
Input voltage range: 7~36V (2~6S LiPo)
Battery Voltage Sensor: Connect to FC VBAT board, 1K:10K (Scale 1100 in iNav, BATT_VOLT_MULT 11.0 in ArduPilot)
Battery current sensor: 90A continuous, 215A peak Connect to FC board Current (Scale 195 in iNav, 50 A/V in ArduPilot)
TVS protection diode: Yes
FC BEC Output: Output 5.2V +/- 0.1V DC Continuous Current 2.4A, 3A Peak Designed for FC, Receiver, GPS Module, AirSpeed Module, Telemetry Module, WS2812 LED_Strip
VTX BEC output: Output 9V +/- 0.1V DC Continuous current 1.8A, 2.3A Peak voltage adjustable, 9V Default, 12V or 5V via jumper Designed for analog video transmitter, digital video transmitter, camera.
Servo BEC output: Output 4.9V +/- 0.1V DC Continuous current 4.5A, 5.5A Peak voltage adjustable, 4.9V Default, 6V or 7.2V via jumper Designed for servos.
Weight: 11.4g
Product Name: SpeedyBee F405 WING Wireless Board
Wireless configuration (long press the BOOT button for 6 seconds to switch modes):
- BLE mode, connect to Speedybee APP;
- Wi-Fi mode, connect to QGroundControl APP, Speedybee APP, MissionPlanner, etc.;
- Classic Bluetooth SPP mode, connect to QGroundControl APP, MissionPlanner.
LED strip controller (short press BOOT to switch effects, long press 2 seconds to switch modes):
- 4x WS2812 LED strip connector, adjustable colors and flashing modes;
- Max 5.2V 1.3A, supports about 70pcs 5050 WS2812 LED beads.
On-board battery status indicator: 4x RGB indicator LEDs for displaying the battery status with a series of lights
Weight: 4.2g
