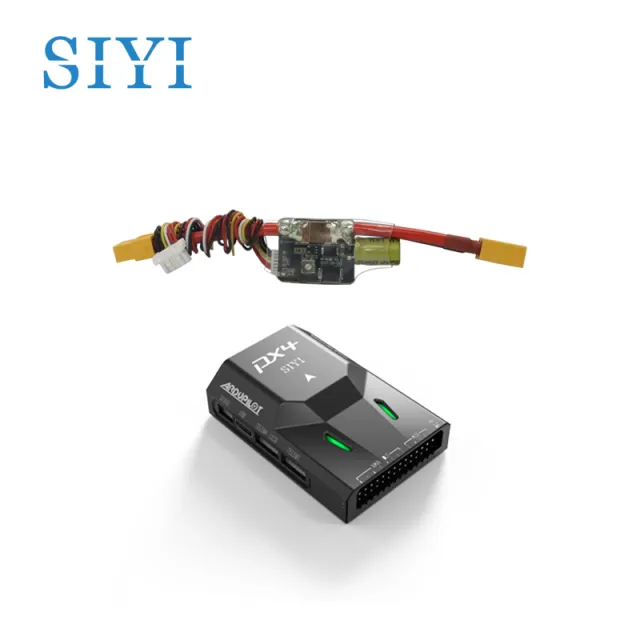

FC SIYI N7 Autopilot Basic Combo
FC SIYI N7 Autopilot Basic Combo
Brand: SIYI
Regular price
€279,90
Regular price
€279,90
Sale price
€279,90
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

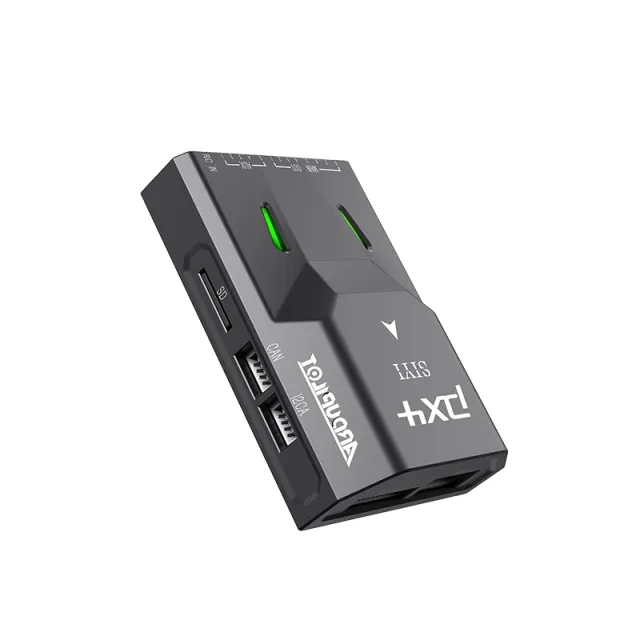

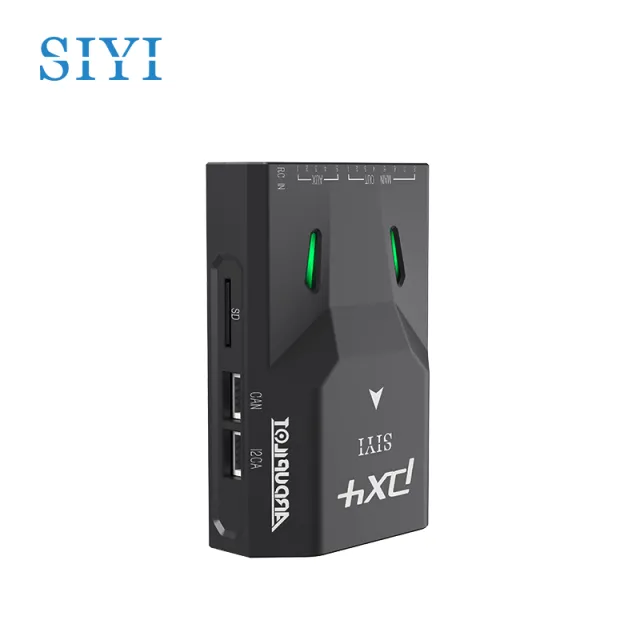

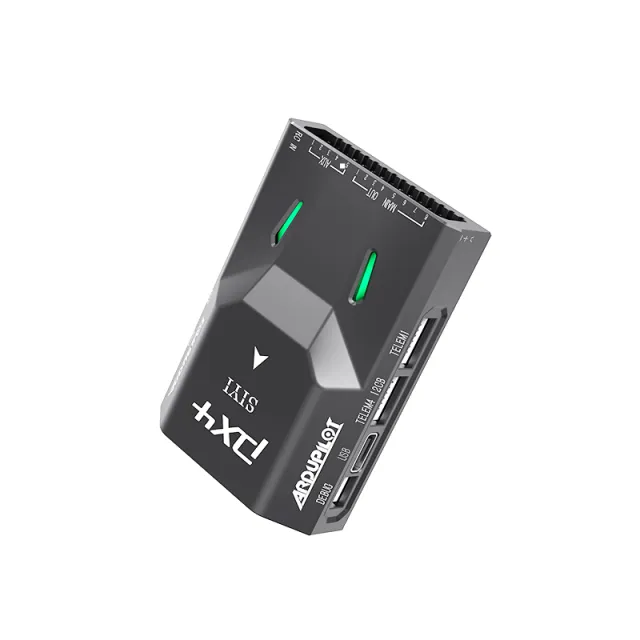

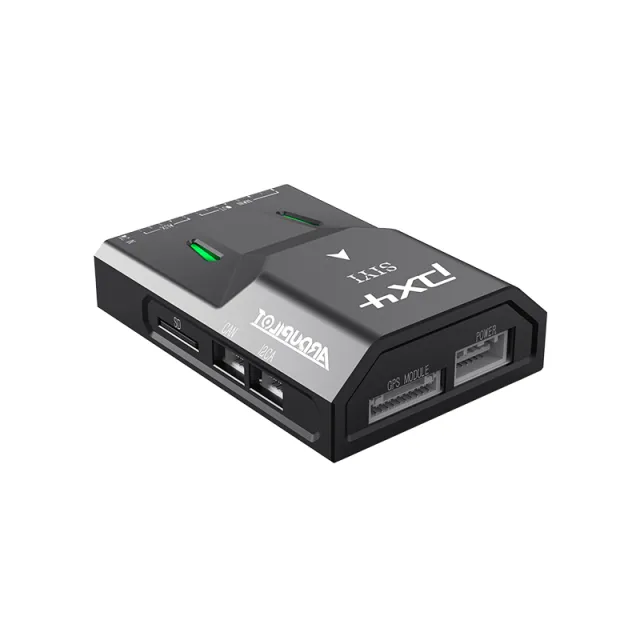

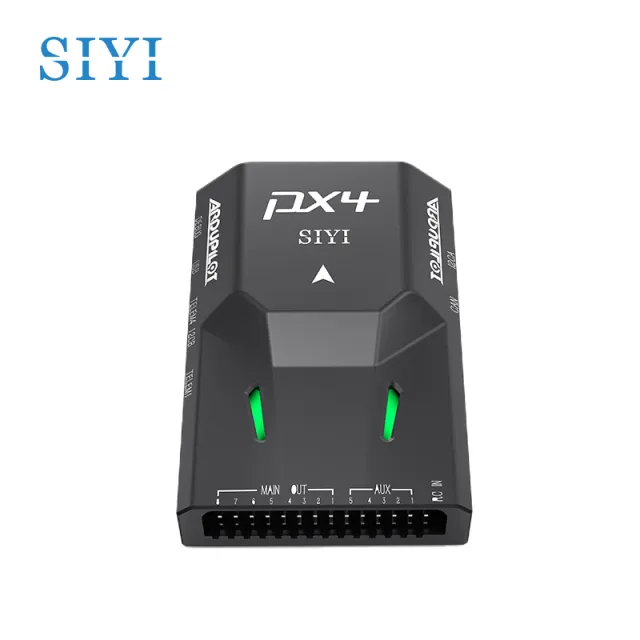

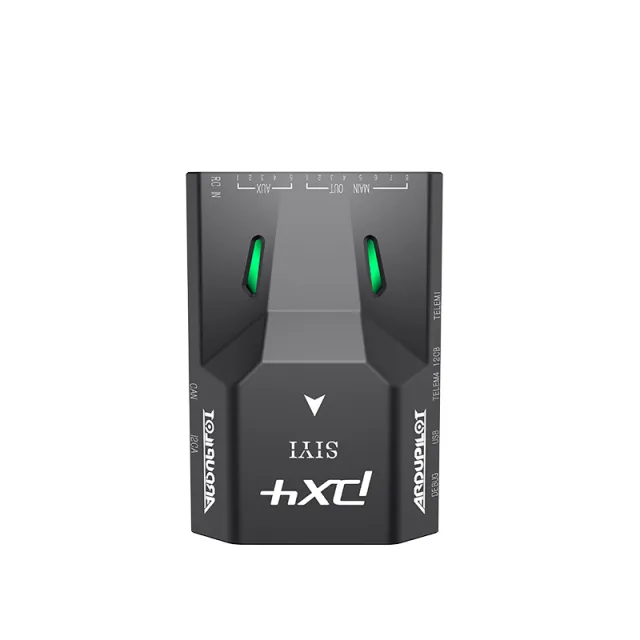

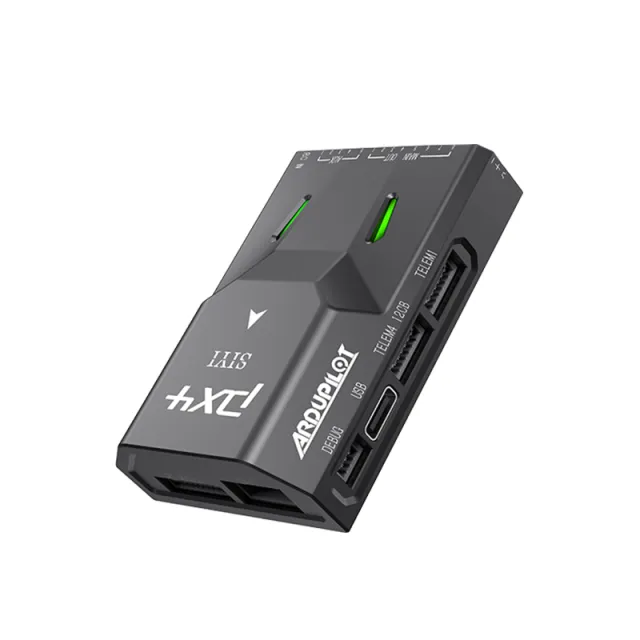

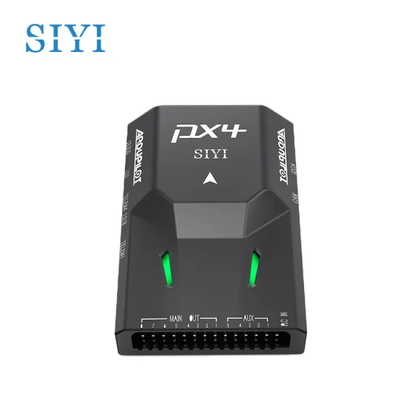

FC SIYI N7 Autopilot Basic Combo
High Performance Flight Controller with STM32H743IIK6 Processor
Designed for advanced flight applications, this flight controller is equipped with STM32H743IIK6 main processor and STM32F103 co-processor, which support diverse models and firmware such as PX4 and ArduPilot for aircraft, multirotors, helicopters, VTOL, UGV and USV. With dual processors, high-quality sensors and extensive I/O options, this controller is built for precision, stability and flexibility.
Main Processor:
- Processor: STM32H743IIK6, 32-bit Arm® Cortex®-M7, 480 MHz, with 2 MB memory and 1 MB RAM
- Coprocessor: STM32F103, 32-bit Arm® Cortex®-M3, 72 MHz, with 20 KB SRAM
Sensors:
- Accelerometer/Gyroscope: Equipped with BMI088 and ICM20689 for high precision motion sensing
- Electronic Compass: IST8310 for accurate direction feedback
- Barometer: MS5611 for reliable altitude data
External Interface:
- UART Serial Ports: 4
- I2C Ports: 3
- CAN Interface: 1

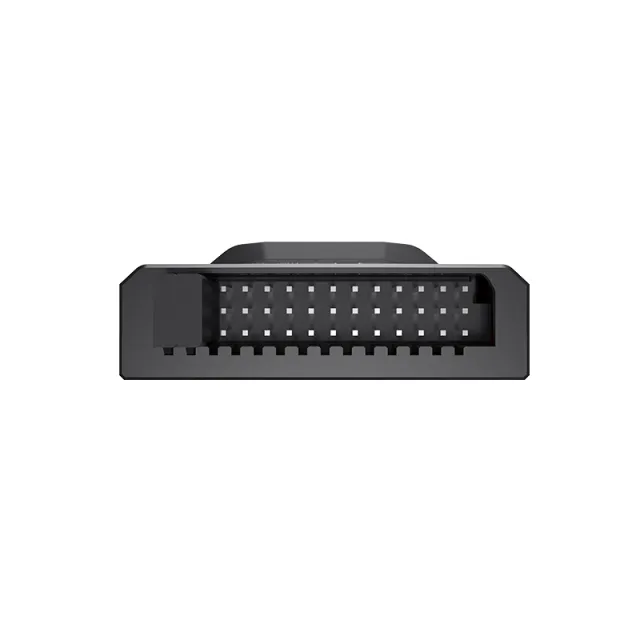

- PWM Outputs: 8 standard PWM IOs + 5 programmable IOs
- RC Input (SBUS): 1

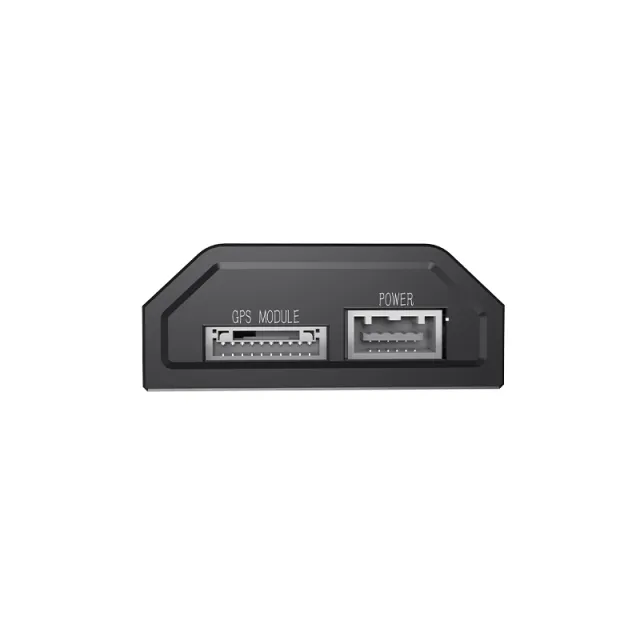

- Power Module Input: 1
- GPS & Security Ports: 1

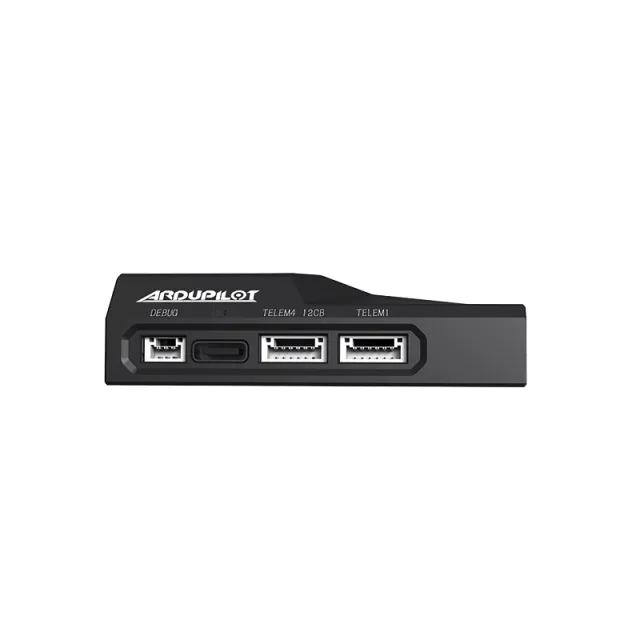

- USB (Type-C): 1

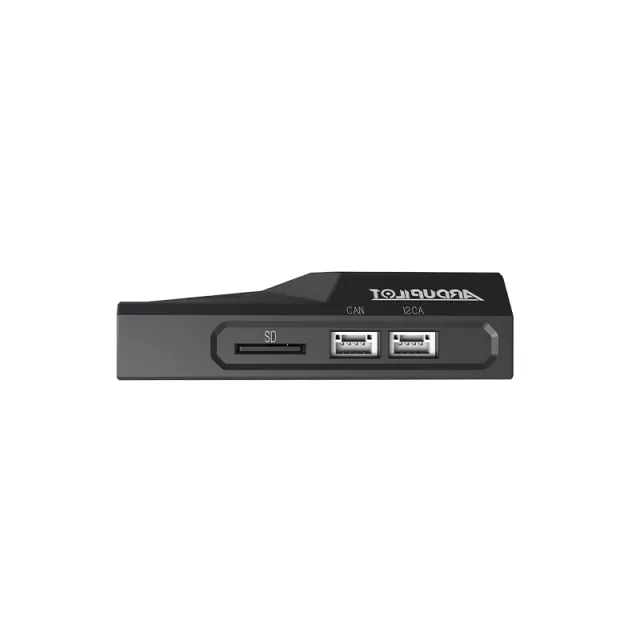

- TF Card Slot: 1
General Specifications:
- Firmware Compatibility: PX4 / ArduPilot (Aircraft, Multirotor, Helicopter, VTOL, UGV, USV Support)
- Module Supply Voltage: 4.5 - 5.5 V
- USB Supply Voltage: 5 V (±0.25 V)
- Servo Supply Voltage: 0 - 10 V
- Operating Temperature: -20 °C to 65 °C
- Dimensions: 47 x 68 x 19 mm
- Weight: 57 g
