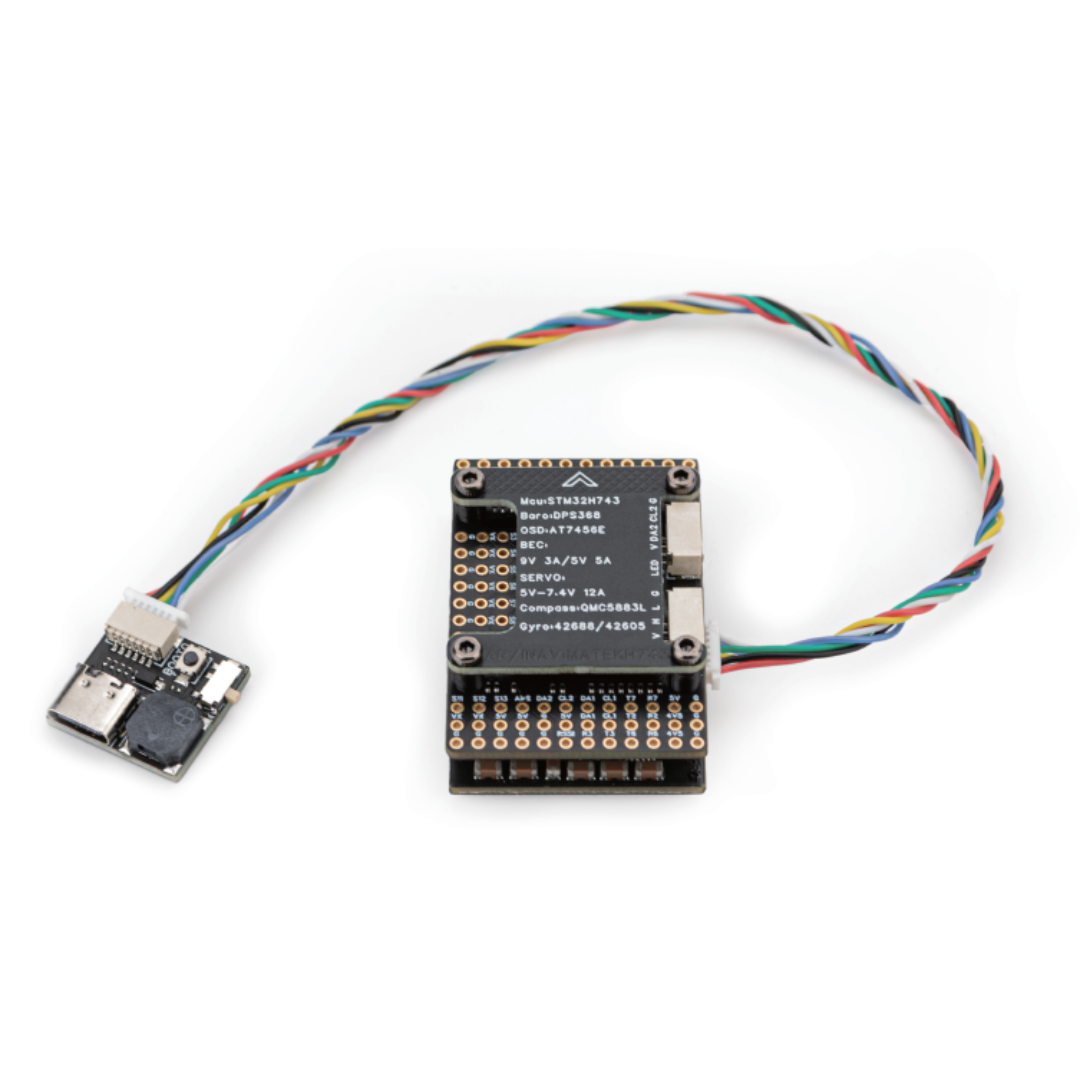

Pilotix H743-WING V3 Advanced flight controller
H743-WING V3 is a high-performance flight controller for UAV applications, optimized for stability, accuracy and robust performance. Its compact and lightweight design makes it ideal for a wide range of advanced UAV systems.
Key features:
- MCU: STM32H743VIH6 with 2 MB Flash and 1 MB RAM. Operating frequency: 480MHz.
- Gyroscopes: ICM-42688-P and ICM-42605) optimized for UAVs.
- Barometer: DPS368 from Infineon Semiconductor, waterproof to IPX8 for excellent accuracy.
- Connections: 13 PWM output ports with CAN bus expansion for additional outputs.
- Power management: Power: built-in BEC supplies provide a total power of up to 130W for connected devices.
- Storage: TF card slot (max. 32GB) for extensive data recording.
Specifications:
MCU: STM32H743VIH6
Gyroscope: ICM-42688-P + ICM-42605 dual
Barometer: DPS368
Compass: QMC5883L
OSD: Analog/HD OSD
7xUART, 13xPWM, 2xI2C, 1xCAN, 4xADC (VLT2, CURR2, ASPD, RSSI),
Built-in 9V BEC
Video Switch: Dual CAM switch on PinIO board
BLACKBOX: TF card slot on board, max capacity 32GB
Input voltage: 12-28V DC (3-6S LiPo)
BEC: 5V/6.2V/7.4V 12A (servo) & 5V 5A (other devices) & 9V 3A (VTX and Camera)
Firmware: INAV: MATEKH743 Ardupilot: MATEKH743
Dimensions and Weight: 30.5mm*44.5mm*7.5mm
Weight: 27g

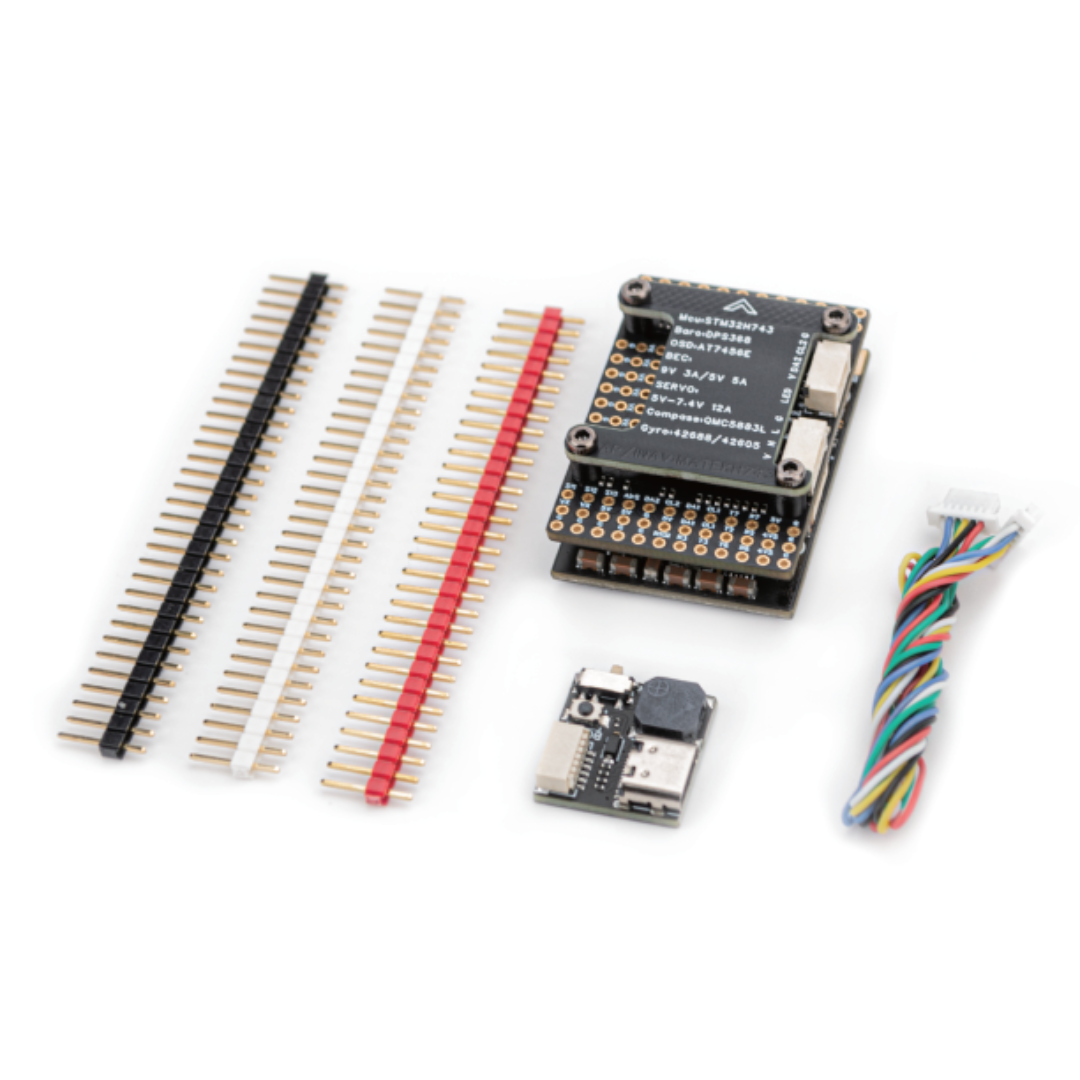

The package contains:
1x Pilotix H743-WING V3 Advanced flight controller.
