Code: SKU:01040009_2 FUTABA

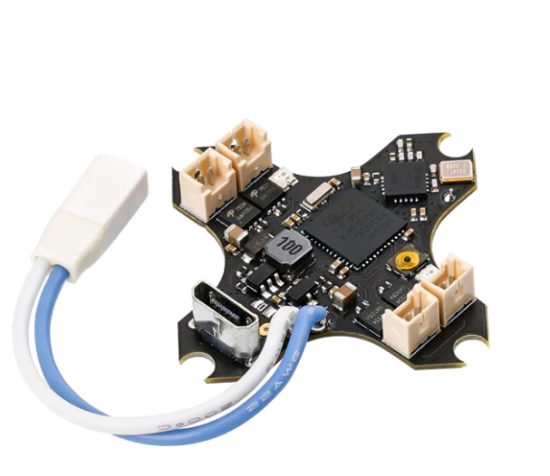

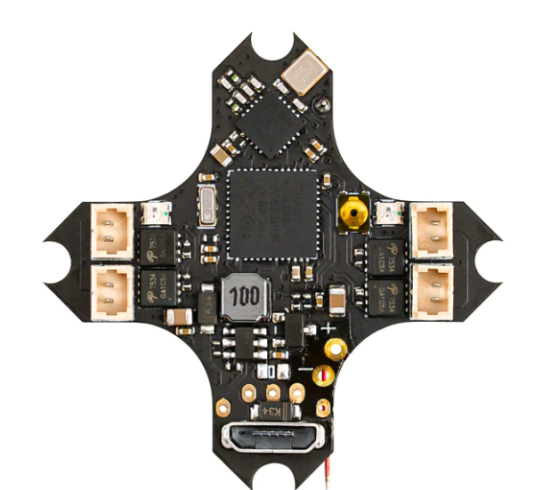

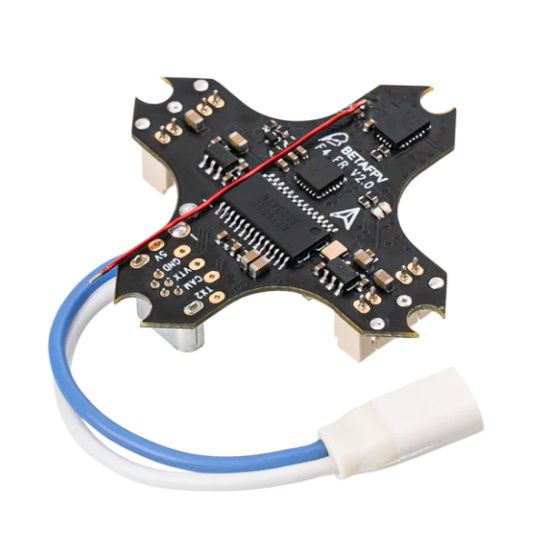

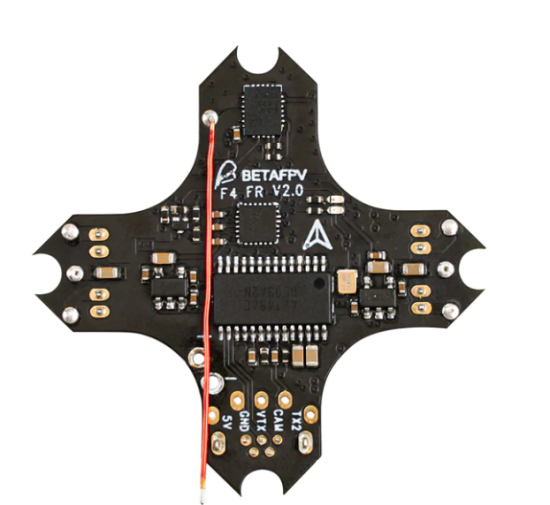

FC BETAFPV F4 Brushed (Futaba + OSD) 2022 Version
FC BETAFPV F4 Brushed (Futaba + OSD) 2022 Version
Brand: BETAFPV
Regular price
€42,99
Regular price
€42,99
Sale price
€42,99
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
F4 Brushed Flight Controller (Futaba + OSD) Version 2022 Compared to the previous version of F4 Brushed Flight Controller V1.2, V2.0 now comes with Frsky D8 SPI receiver, which can be compatible with Futaba S-FHSS, Frsky D16 FCC and Frsky D16 LBT protocols. The power cable uses BT2.0 connector instead of PH2.0, which solves the problem of voltage drop, and the discharge can be more efficient, which brings better power and response performance to this board. What's more, BETAFPV BT2.0 series battery compatibility makes it convenient to upgrade in the future. In addition, it supports custom RGB lights in the Betaflight configuration. Configuration log: FRSKY_D Frsky D8 FRSKY_X Frsky D16 FCC FRSKY_X_LBT Frsky D16 LBT SFHSS Futaba S-FHSS Specifications: CPU: STM32F411CEU6 Six-axis: MPU6500 ESC: All FETs are rated for a maximum of 30A Motor: Support 6x15mm/7x16mm/8x20mm/8.5x20mm etc motors. Size: 26mm x 26mm, fully compatible with Inductrix quad frame and mounting pattern Firmware version: Betaflight BETAFPVF411RX 4.2.11 OSD: Built-in BetaFlight OSD (STM32 controls the OSD chip via SPI in DMA mode) Receiver: SPI Frsky D8 (CC2500 chip, adjustable) Power cable: 55mm, with BT2.0 connector Weight: 3.68g (with power cable) LIST OF RECOMMENDED PARTS: Battery: BT2.0 300mAh 1S Battery Frame: 65mm Micro Whoop Frame Supports: 31 mm 3-blade Motors: BETAFPV 7x 16mm brush motors (2CW+2CCW) VTX: M03 25-350mW VTX Recommended drones: Beta65S BNF Micro Whoop Quadcopter Package: 1 x F4 Brushed Flight Controller (BT2.0 Connector) 4x screw M1.2x4mm 4x screw M1.4x5mm 4 x Anti-vibration rubber dampers
