Code: SKU:01040009_1 FRSKY D8
FC BETAFPV F4 Brushed (Frsky Rx + OSD) 2022 Version
FC BETAFPV F4 Brushed (Frsky Rx + OSD) 2022 Version
Brand: BETAFPV
Regular price
€57,22
Regular price
€57,22
Sale price
€57,22
Unit price
/
per
Taxes included.
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

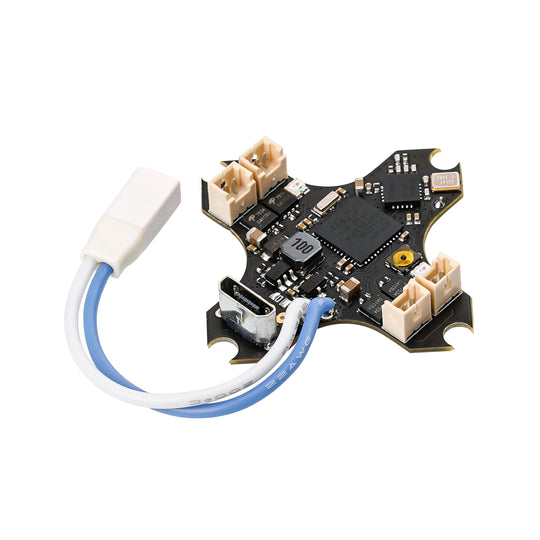

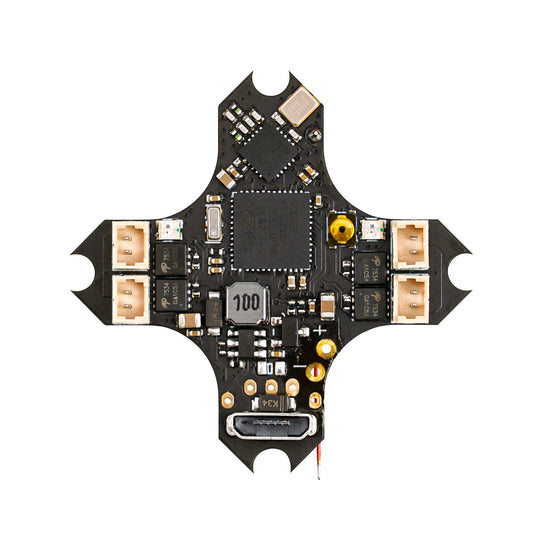

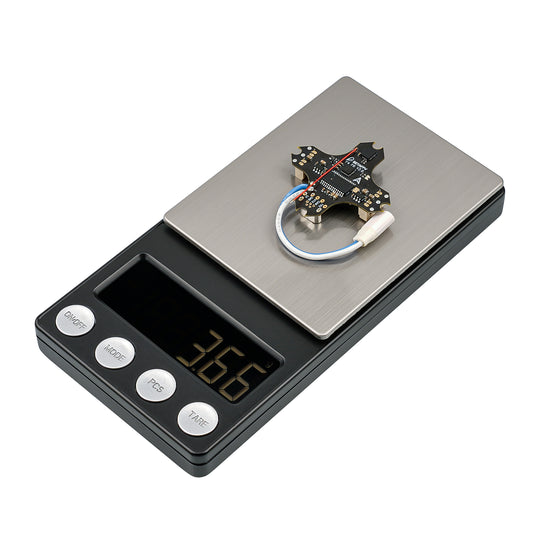

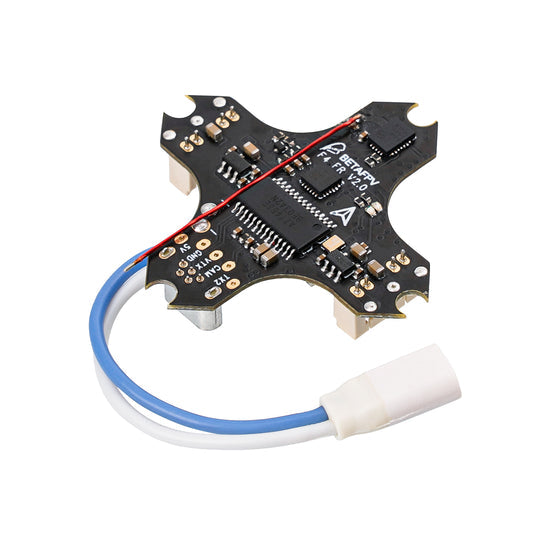

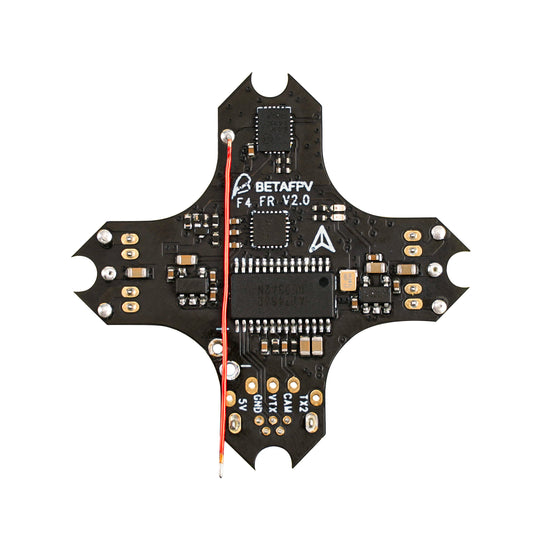

F4 Brushed Flight Controller (Frsky Rx / Futaba + OSD) Version 2022 The classic F4 brushed flight controller returns with new changes and special shapes. Built-in CC2500 chip, the default protocol is factory configured to Frsky D8 and can be modified to Frsky D16 FCC, Frsky D16 LBT or Futaba. In addition, the power cable uses a BT2.0 connector instead of PH2.0, which improves performance and is compatible with BETAFPV BT2.0 series batteries. Specifications: Compatibility: for Beta 65S CPU: STM32F411CEU6 Six-axis: MPU6500 ESC: All FETs are rated for a maximum of 30A Motor: Support 6x15mm/7x16mm/8x20mm/8.5x20mm etc. Size: 26x26mm, fully compatible with Inductrix quad frame and mounting pattern Firmware version: Betaflight BETAFPVF411RX 4.2.11 OSD: Built-in BetaFlight OSD (STM32 controls the OSD chip via SPI in DMA mode) Receiver: SPI Frsky D8 (CC2500 chip, adjustable) Power cable: 55mm, with BT2.0 connector Weight: 3.68g (with power cable) LIST OF RECOMMENDED PARTS: Battery: BT2.0 300mAh 1S Battery Frame: 65mm Micro Whoop Frame Supports: 31 mm 3-blade Motors: BETAFPV 7x16mm brush motors (2CW+2CCW) VTX: M03 25-350mW VTX Recommended drones: Beta65S BNF Micro Whoop Quadcopter Package: 1 x F4 Brushed Flight Controller (BT2.0 Connector) 4x screw M1.2x4mm 4x screw M1.4x5mm 4 x Anti-vibration rubber dampers
