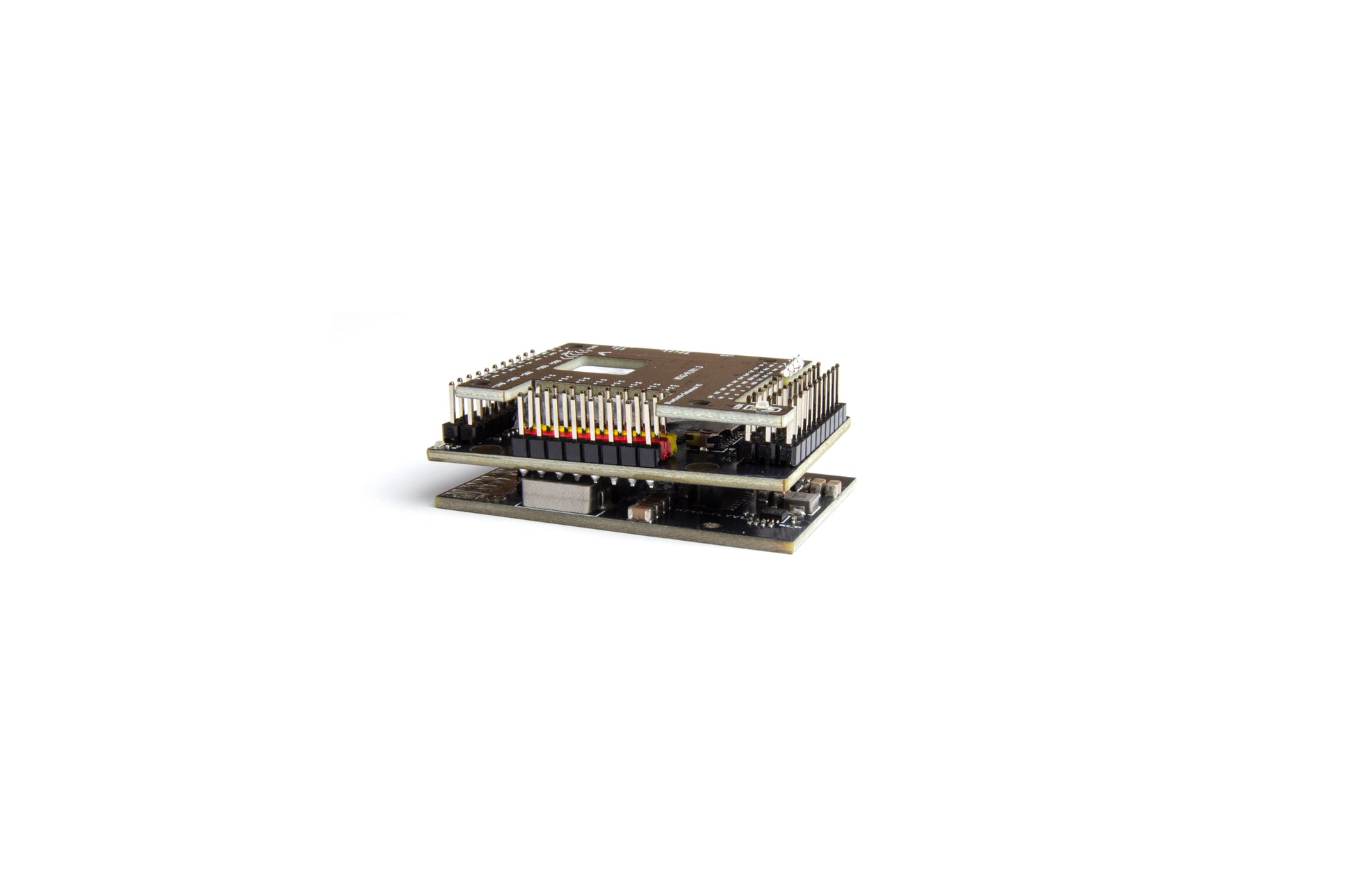

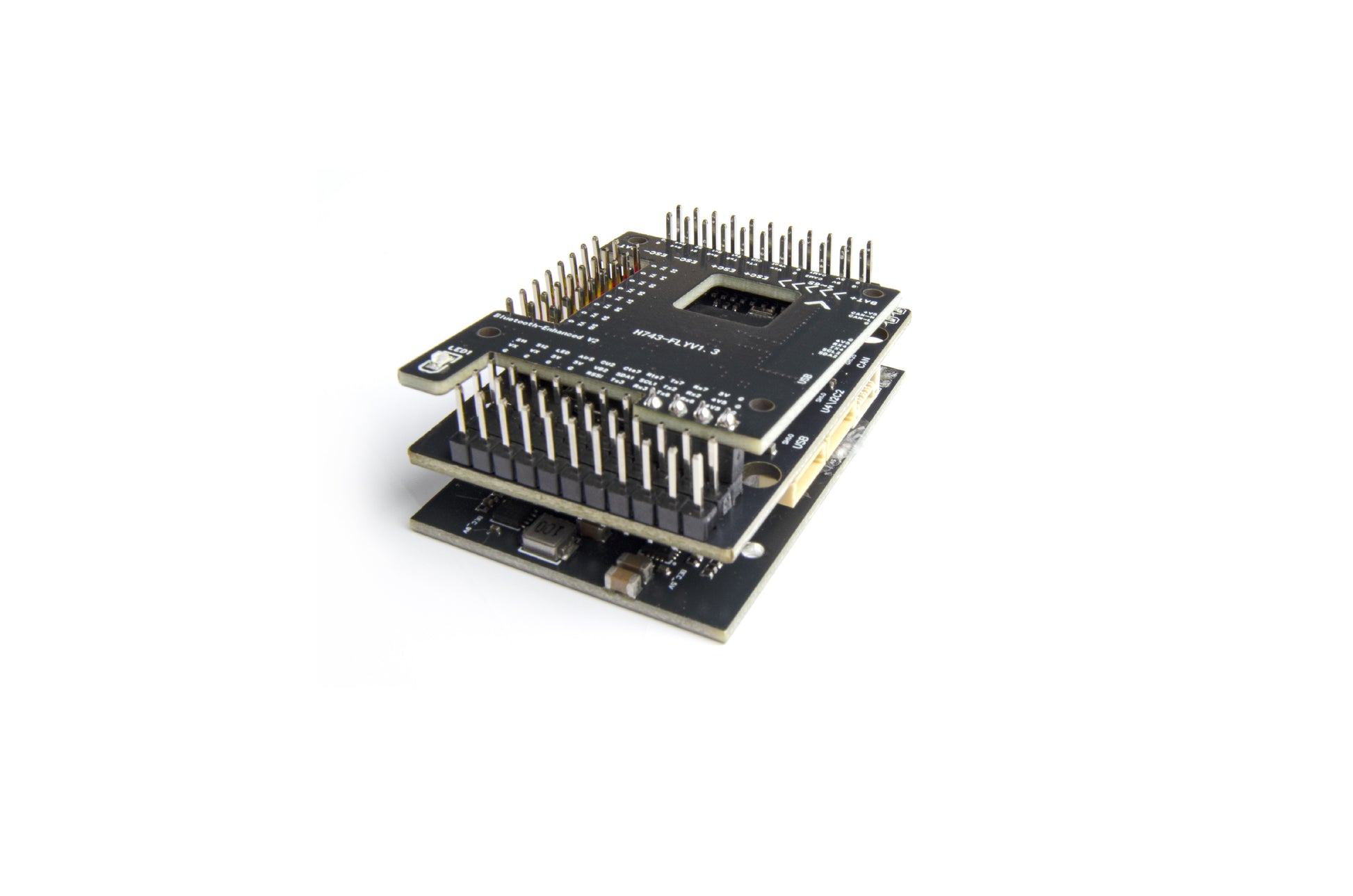

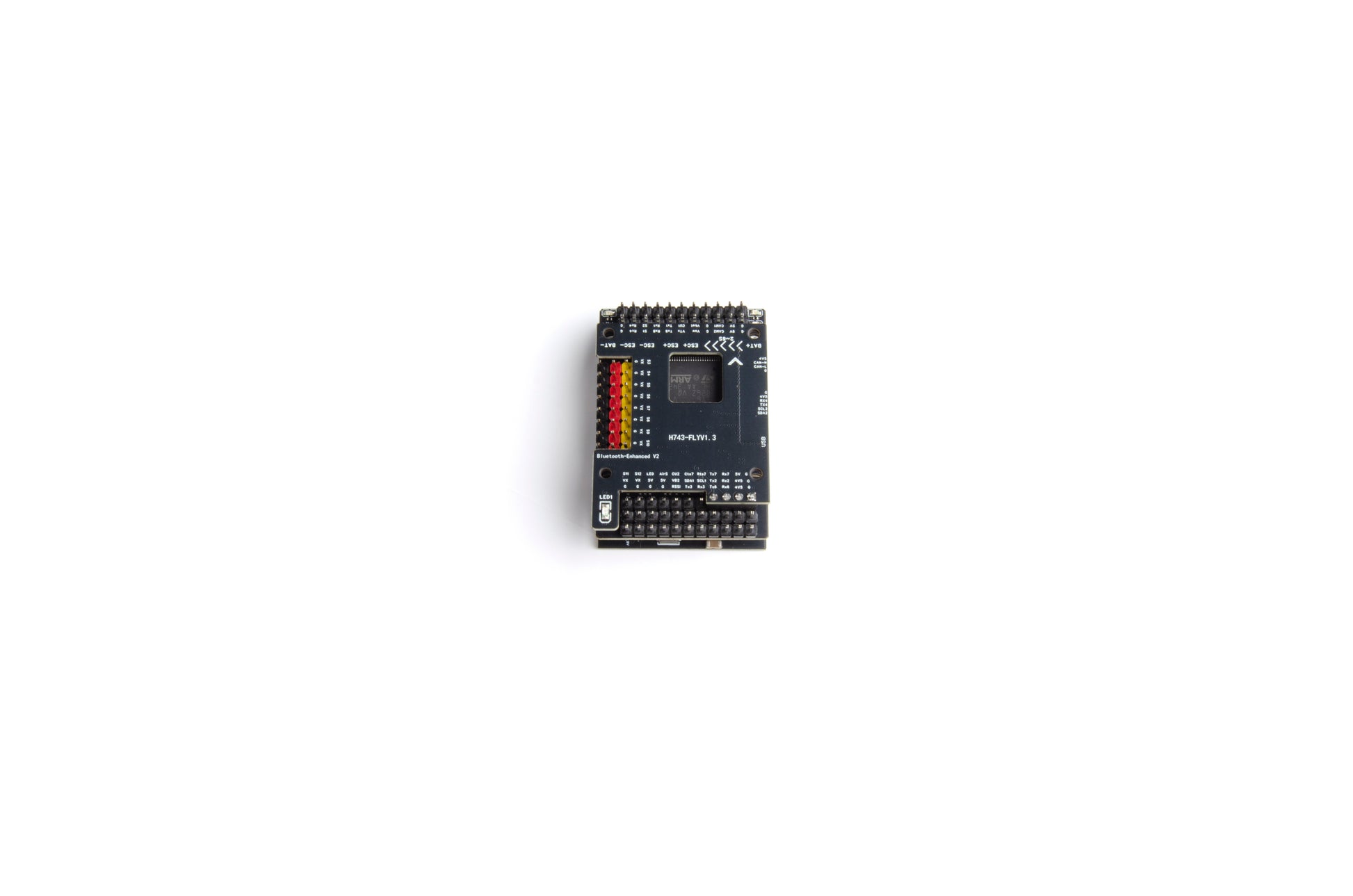

FC AET H743 Basic flight controller
AET-H743-Basic is a high performance flight controller designed for advanced drone applications. Featuring a powerful STM32H743 microcontroller and two ICM42688P IMUs, this controller offers excellent performance, robust connectivity, and versatile power options. It supports up to 13 PWM/Dshot outputs, multiple UARTs and features such as on-board OSD, two camera inputs and Bluetooth connectivity. This flight controller is ideal for users who require advanced features, customizable power outputs and seamless integration into high performance drone systems.
Other features:
- Firmware loading: DFU mode for initial firmware
- UART mapping: All UARTs are DMA capable
- RC input: (supports all protocols except PPM).
- PWM output: DShot support, up to 13 outputs
- Battery monitoring: Internal voltage and current sensors, handles up to 6S LiPo
- Compass: External compass support
- Analog cameras: Supports 2 cameras with switchable video output
- Bluetooth: Supports SPP and BLE serially via UART7
Specifications:
MCU: STM32H743
IMUs: ICM42688P: Dual ICM42688P
Outputs: 13 PWM/Dshot outputs
UARTs: 1: 8 UARTs, one with CTS/RTS flow control
CAN: 1 port
USB: Dedicated USB board
Barometer: USB 3.0: DPS310 or SPL06
Servo Rail BEC: 5V/6V/7V 10A
VTX BEC: 9V 2A, GPIO Driven
5V BEC: 4A
MicroSD Slot: Yes
Camera Inputs: 2-way Camera Input
OSD: AT7456E
I2C Ports: I2C: 1: 2
Dimensions: 36 x 47 x 17mm
Weight: 45g
Power options:
5V BEC: 20W (4A)
9V BEC: 18W (2A)
9Vsw BEC: 10W (1A) controlled by MCU
4V5: 5W (1A) from USB or 5V BEC
VX (Servo rail): 50W (10A), adjustable voltage
BAT (battery input): 1.5V (battery input): 5A max.

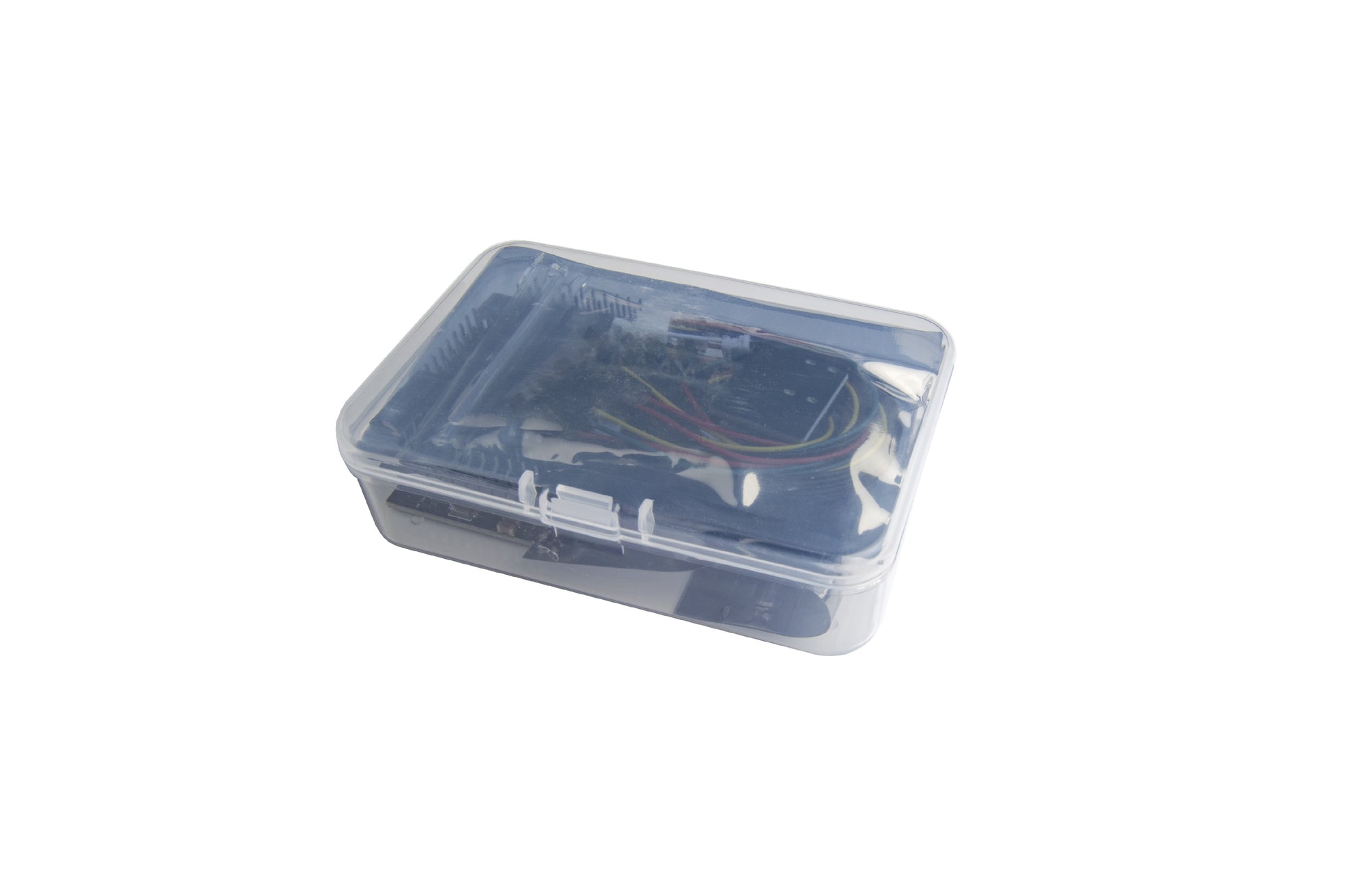

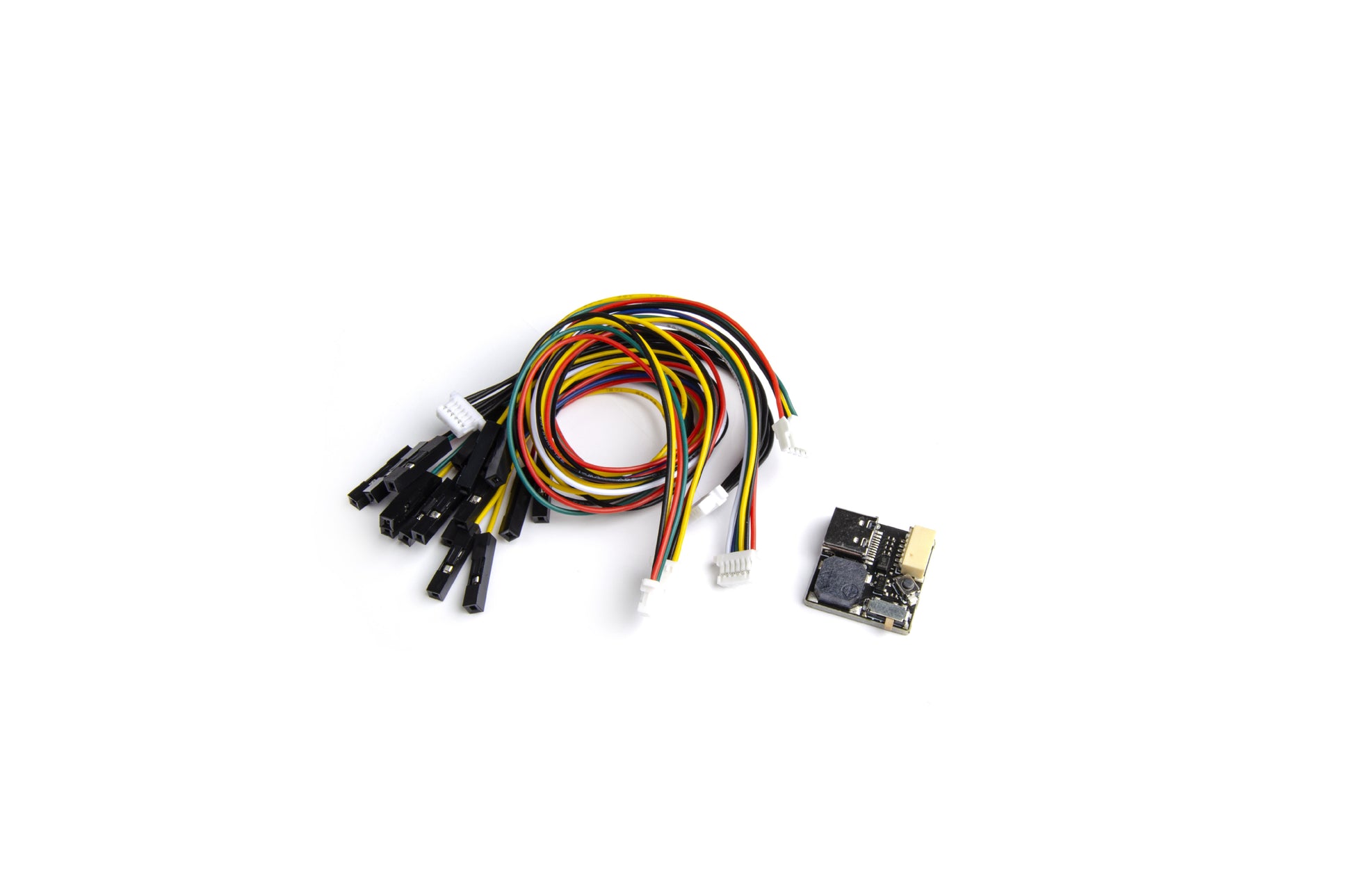

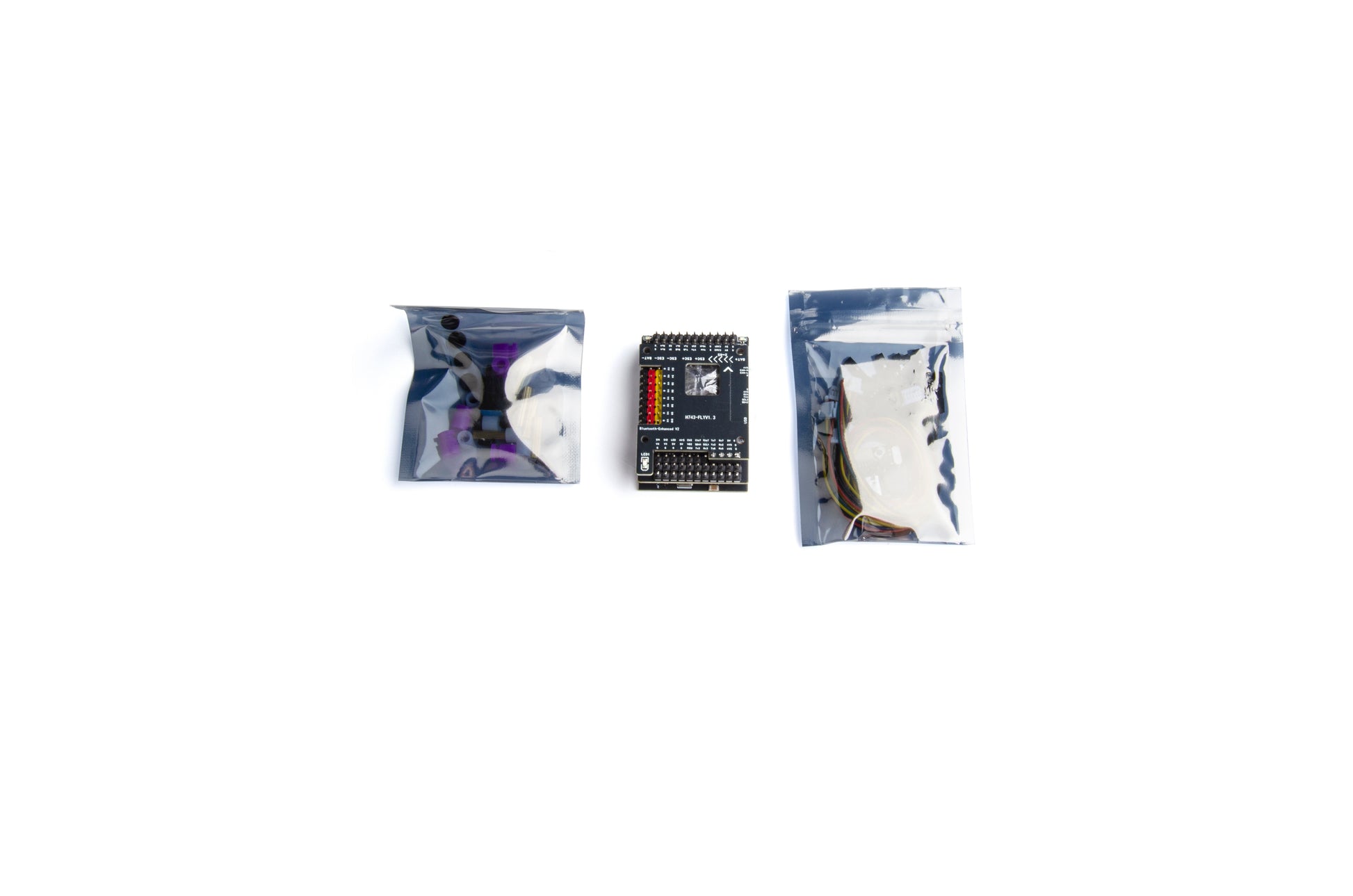

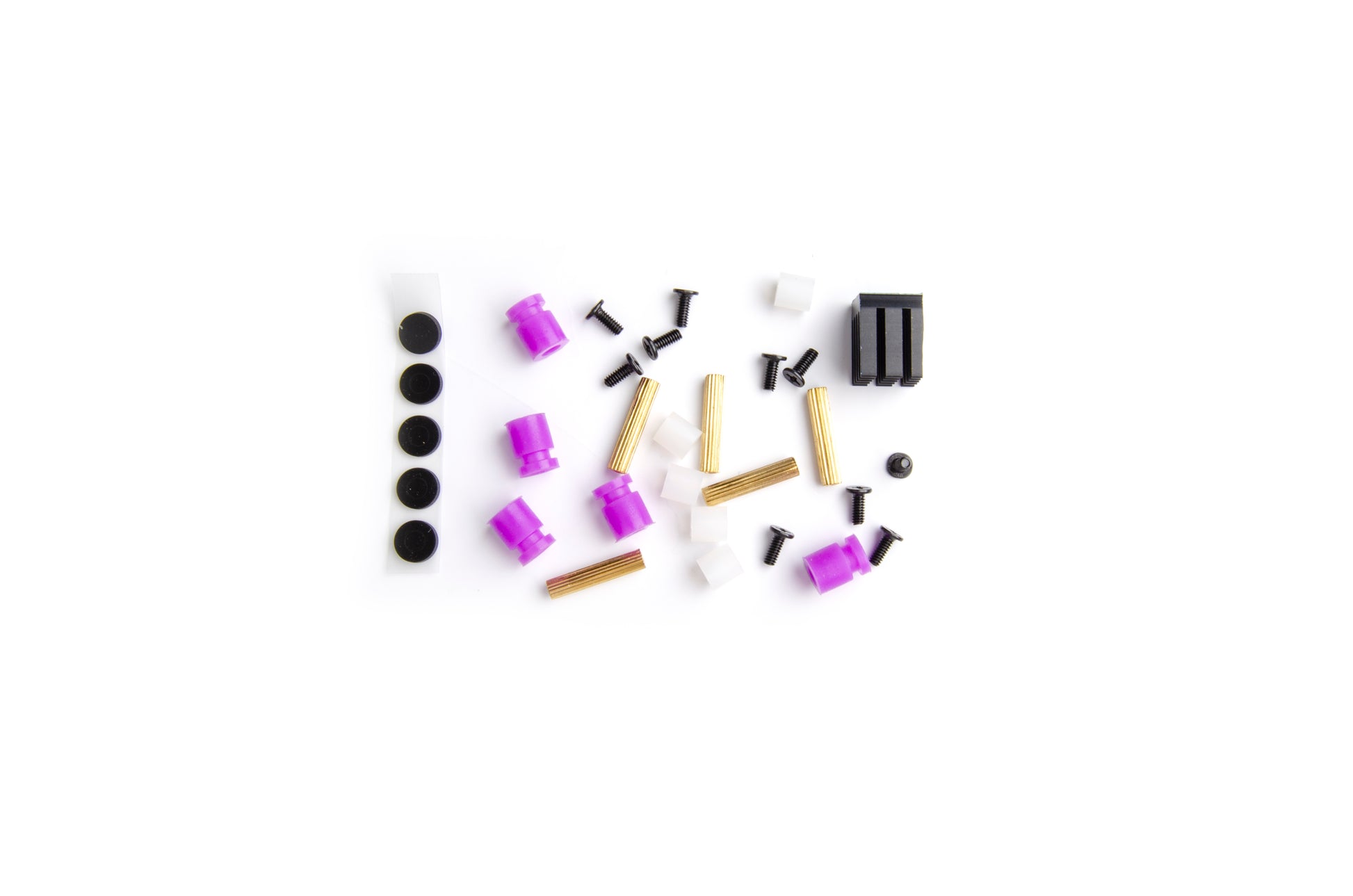

Package includes:
1x flight controller AET-H743-Basic
