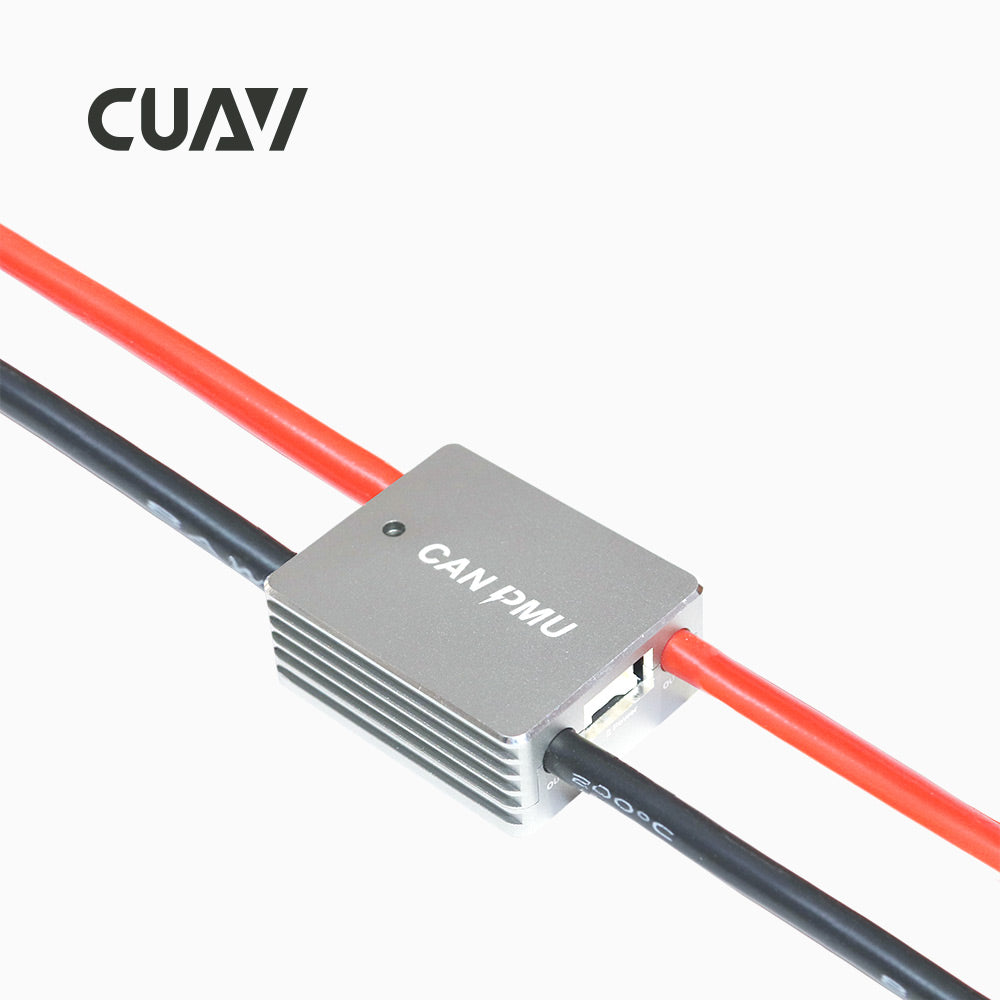

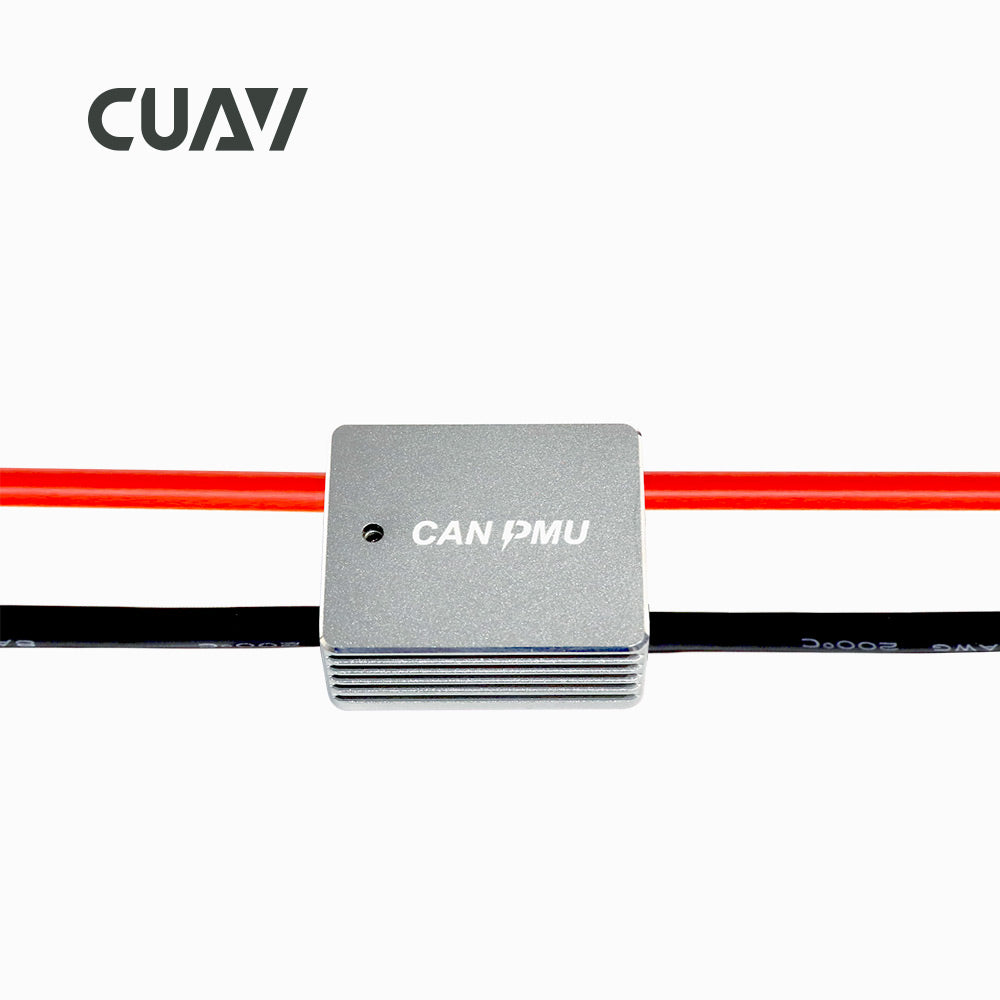

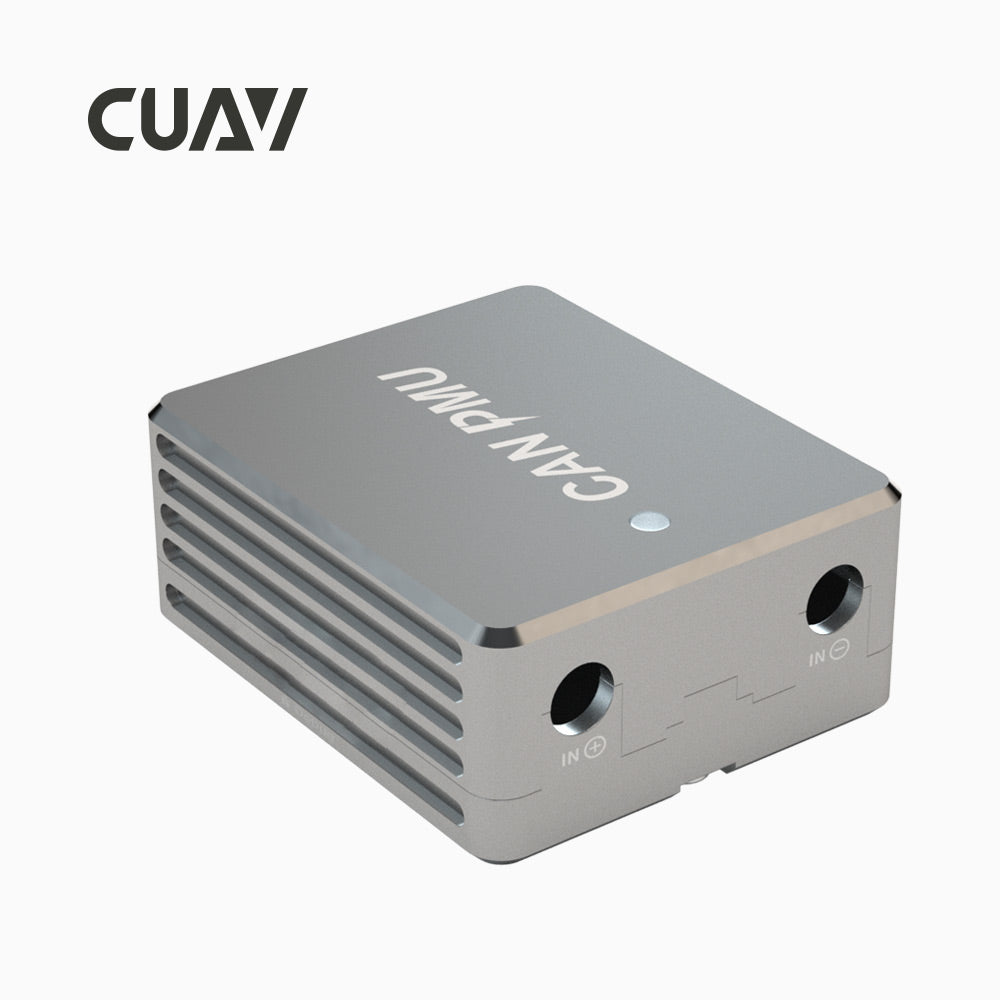

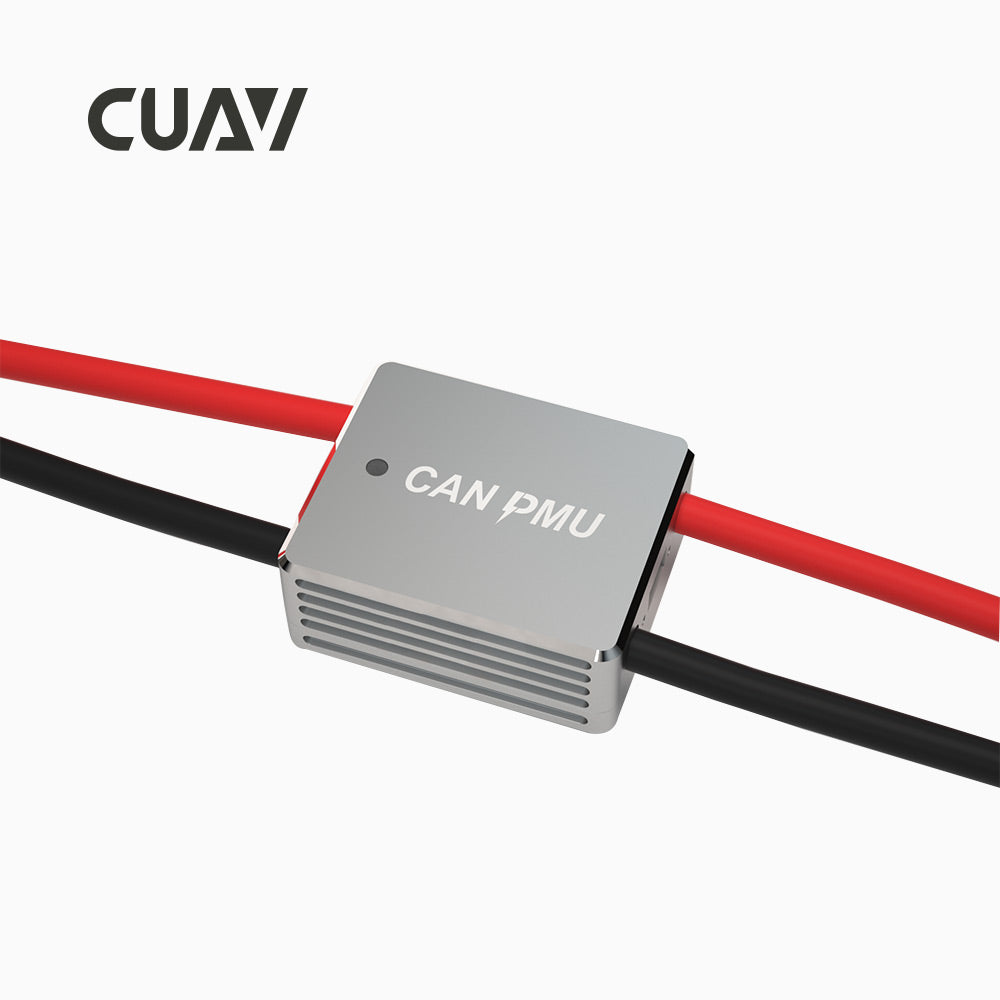

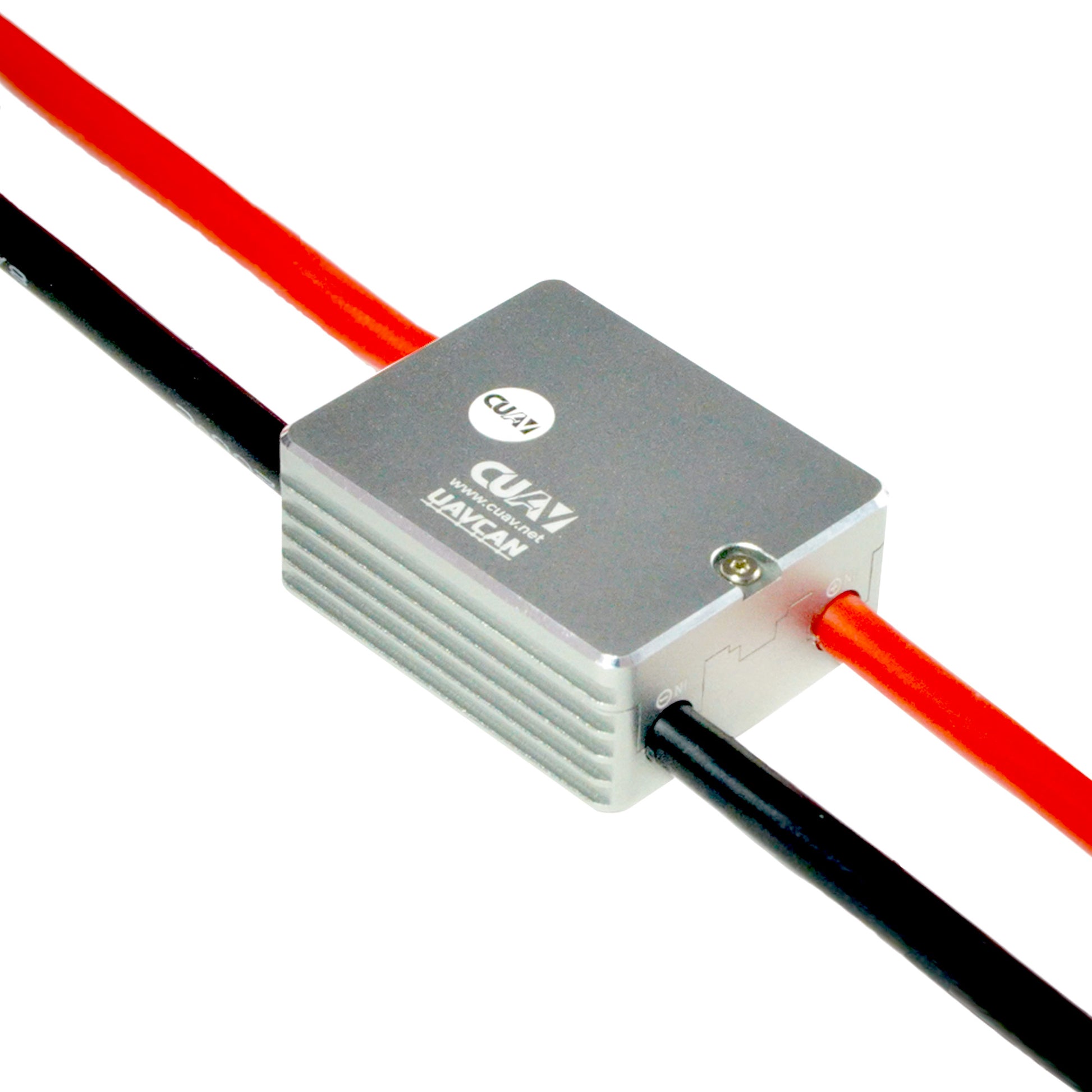

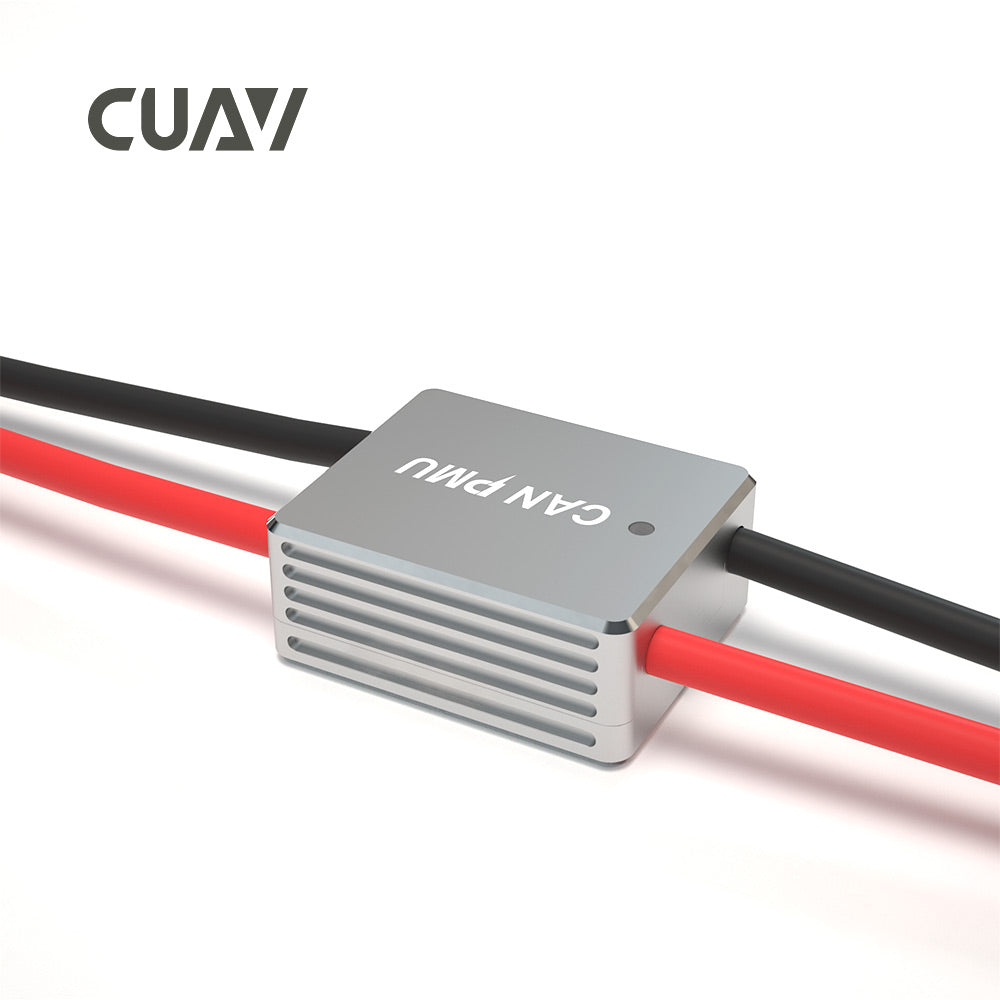

Power module CUAV CAN PMU
DroneCAN PMU is a drone power management module with a built-in STM32F4 processor that uses the CUAV ITT compensation algorithm to accurately measure drone battery voltage and current. It supports 6~62V input voltage and the POWER output port can supply 5V/8A. It uses advanced CAN bus communication and supports the DroneCAN standard protocol. Each PMU is factory calibrated to ensure good consistency and high accuracy.
Specifications:
- Processor: STM32F412
- Input voltage: 6~62V (2S-15S)
- Maximum current: 110A
- Accuracy of voltage measurement: ±0.05V
- Accuracy of current measurement: ±0.1A
- Resolution: 0.01A/V
- Maximum output power: 6000W for 90 s
- Maximum continuous power: 5000W
- Output power: 5.4V/5A
- Protocol: DroneCAN
- Operating temperature: -20~+100℃
- Firmware update support
- No calibration required
Types of connectors:
- 8mm female bullet power connectors (XT-90 battery and ESC cables are included)
- Autopilot power supply: Molex 6 pin 1.5mm #5025850670 (CUAV V5 cable supplied)
- CAN: 4 pin JST-GH (cable supplied)
Physical dimensions:
- Size: 46.5mm * 38.5mm * 22.5mm
- Weight: 76g
