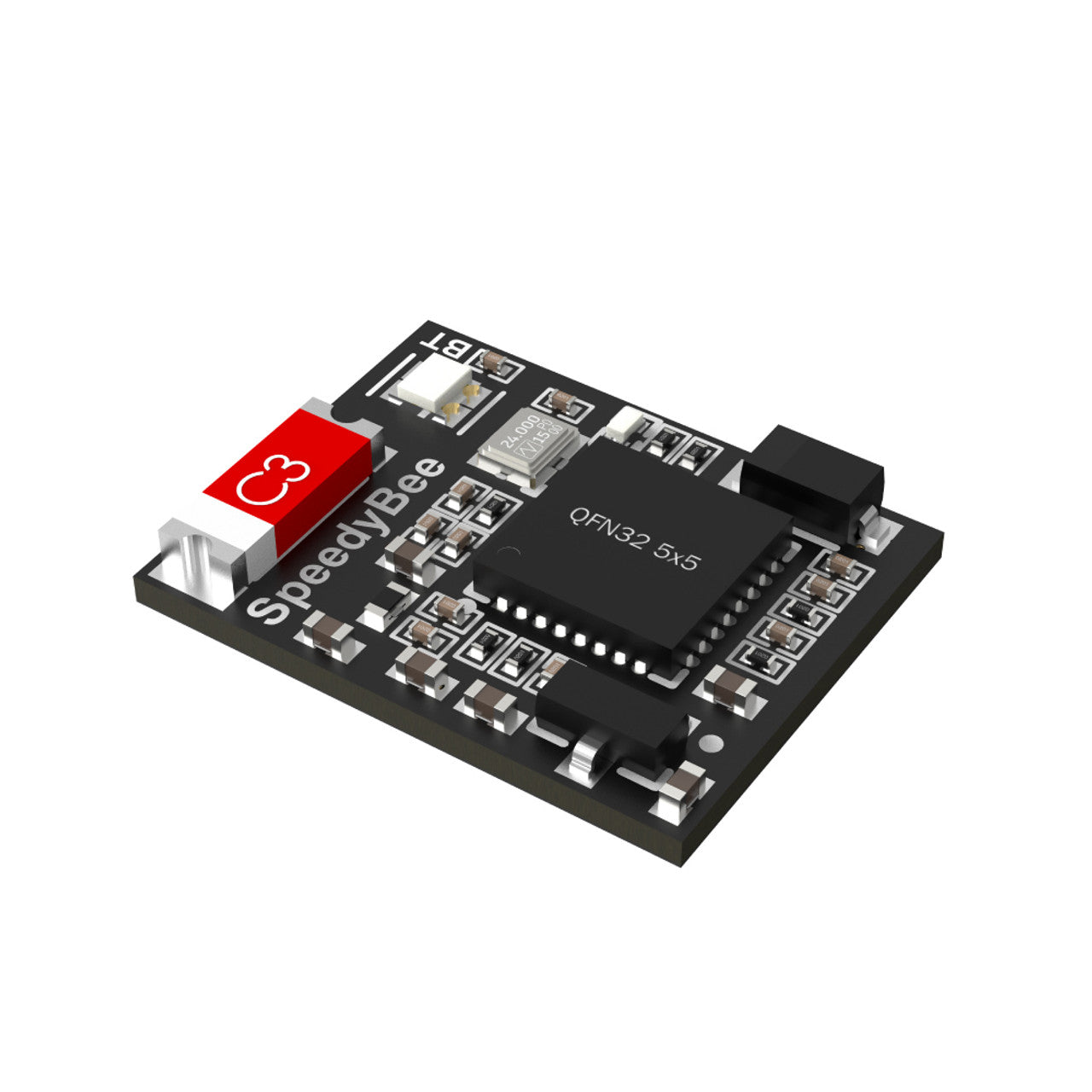

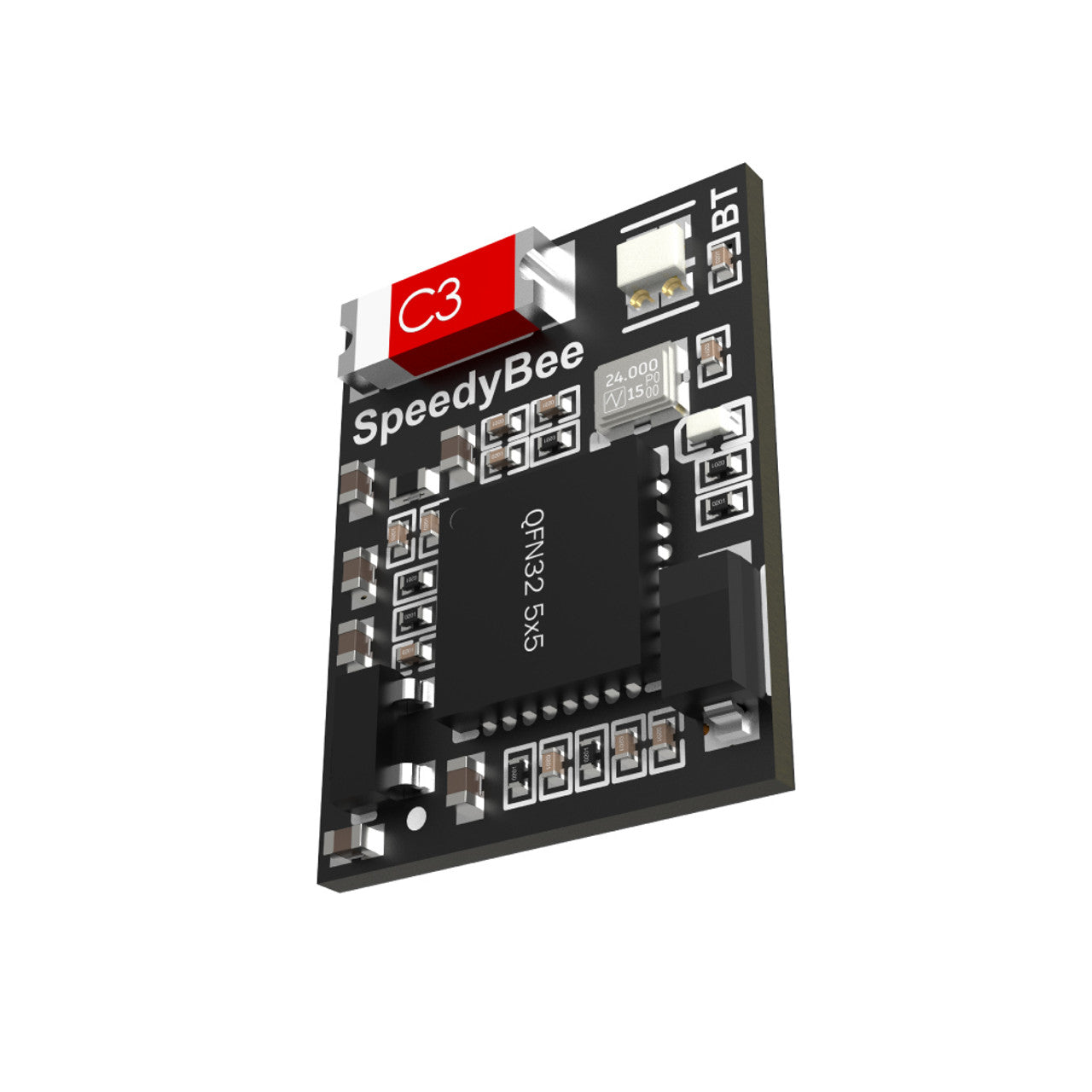

Configuration of SpeedyBee BT Nano 3 Wireless FC
The SpeedyBee BT Nano 3 is a wireless Bluetooth module that allows you to easily control your flight controller settings via the SpeedyBee app. The module will automatically determine the "on/off" status of the controller to turn off Bluetooth during flight to avoid various interference and device signal interference.
-Fully wireless flight controller setup
-Bluetooth automatic shutdown to prevent interference
-Password protection
-Compact Nano size, light weight and easy installation
Specifications:
Product name: SpeedyBee BT Nano 3
Operating voltage: 5V
Working current: MAX-87mA (5V)
Bluetooth Low Energy: Supports
WiFi: Supports. It turns on automatically only when the firmware of the module itself is upgraded.

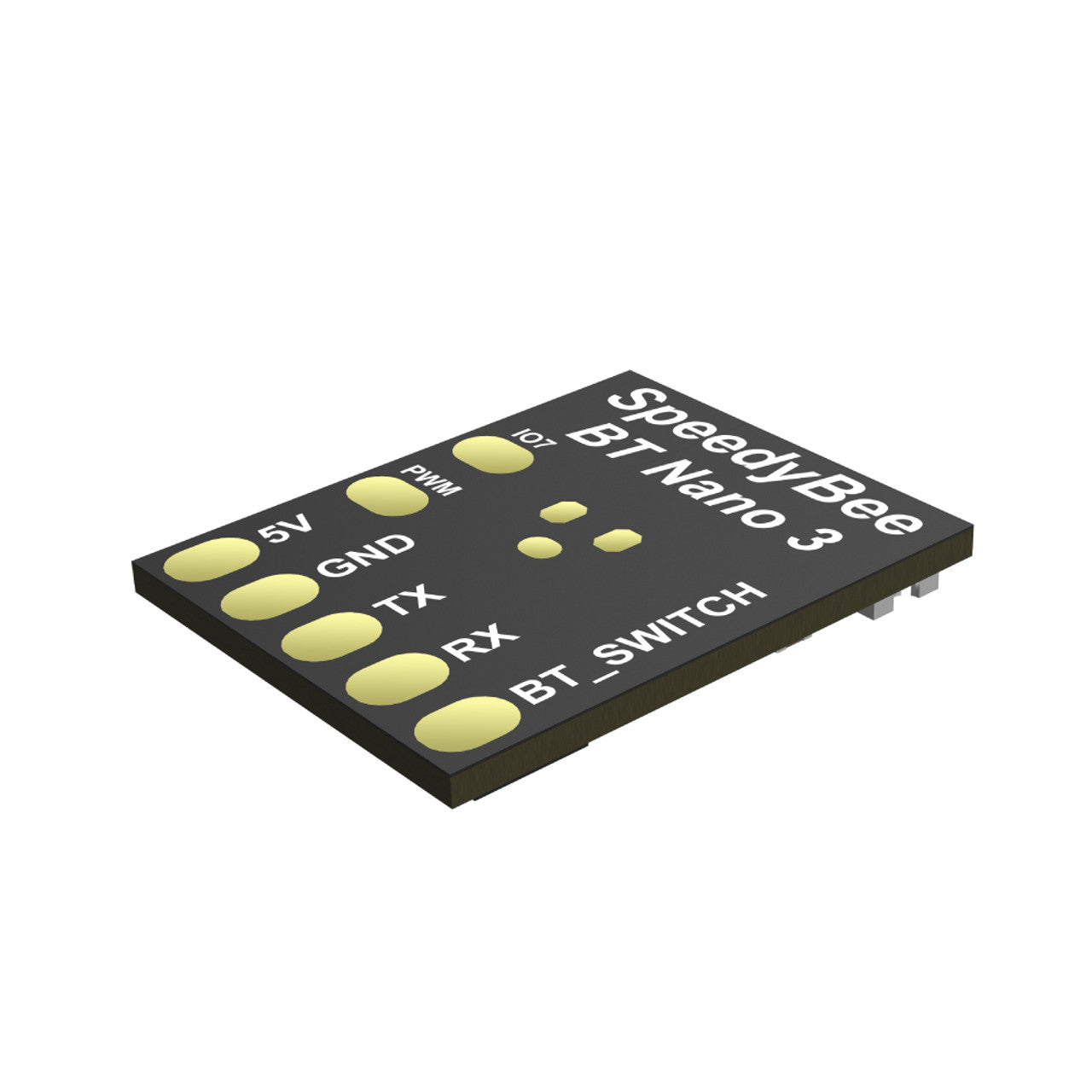

Communication port: UART
Baud rate: 115200
Bluetooth Automatically Turns Off: Enabled by default, the module automatically detects FC arming/unarming status. During the flight of the drone, the Bluetooth function will be disabled to prevent the Bluetooth signal from interfering with other wireless devices.
BT Switch Pad: The Bluetooth function will be disabled when it receives a weak signal. See the BT Switch section of the manual for detailed instructions
Power indicator: Lights up red - Indicates that the module is powered.
Working status indicator:
- Blinking white: Indicates that UART communication with FC is abnormal, please check whether the connection and setting are correct.
- White light: Indicates that the communication with the FC is normal, you can use the app to set wireless parameters
- Flashing green: Indicates that a wireless signal is connecting
- Green light: Indicates that the connection with the application has been successful
Dimensions: 14 x 11 x 0.8 mm
Weight: 5g
