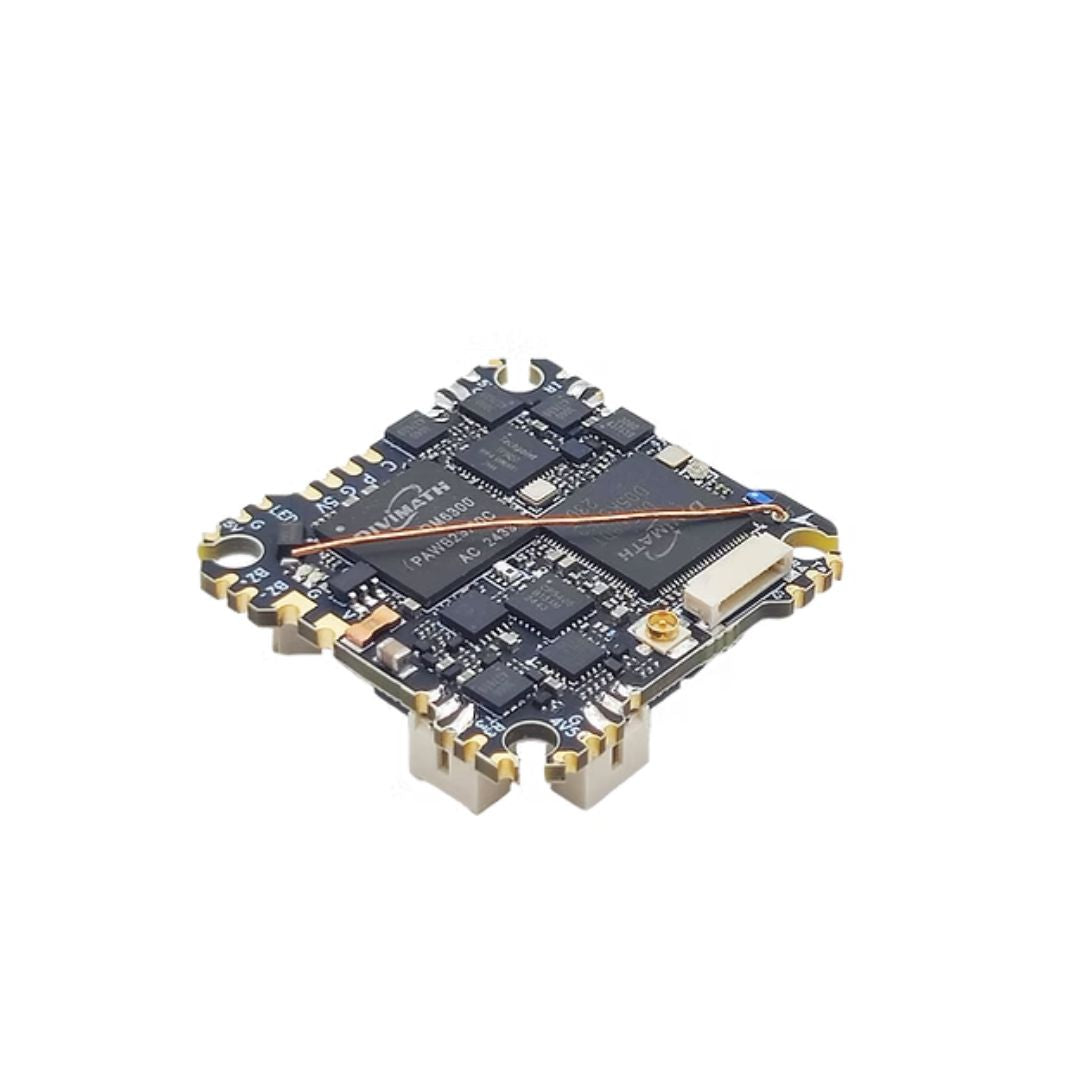

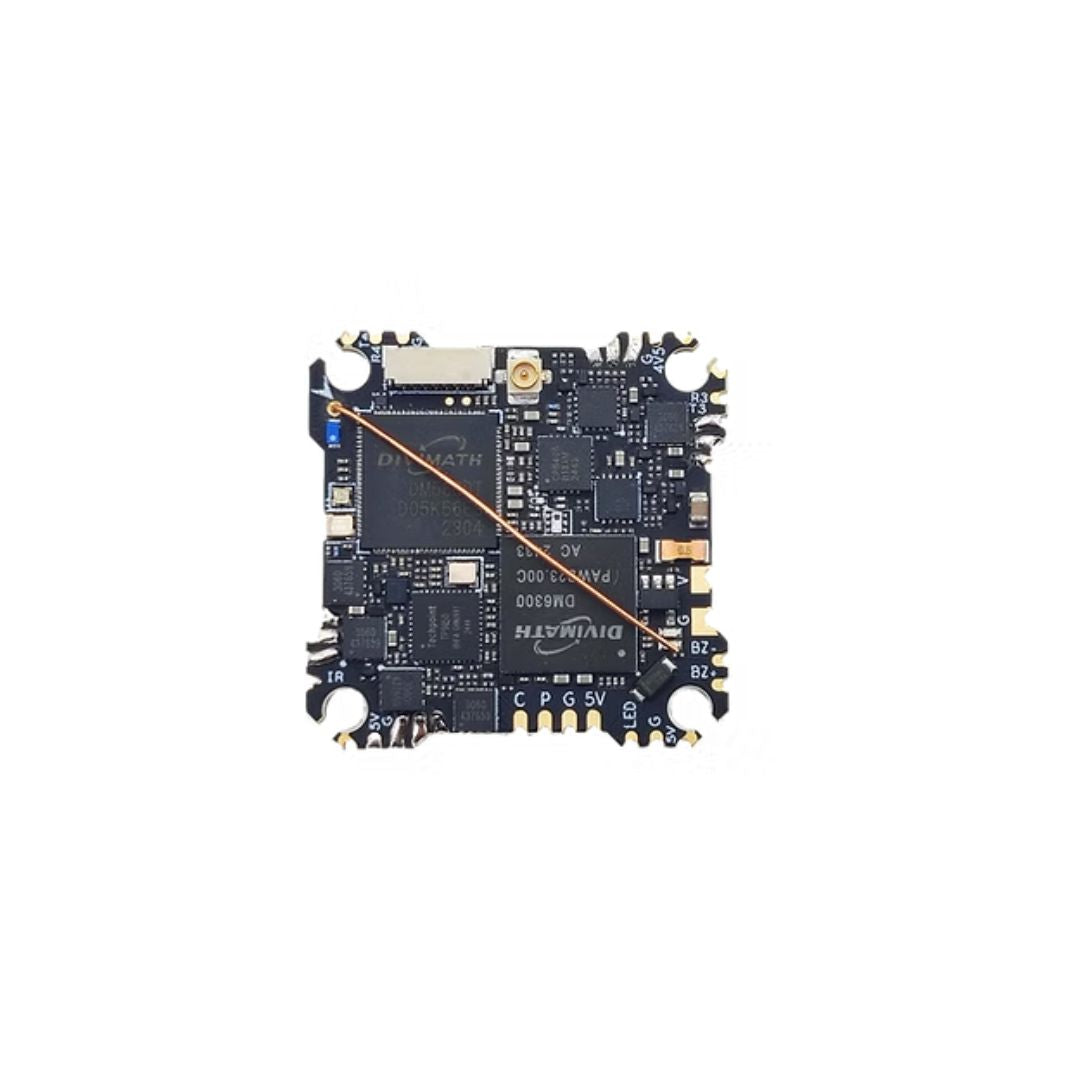

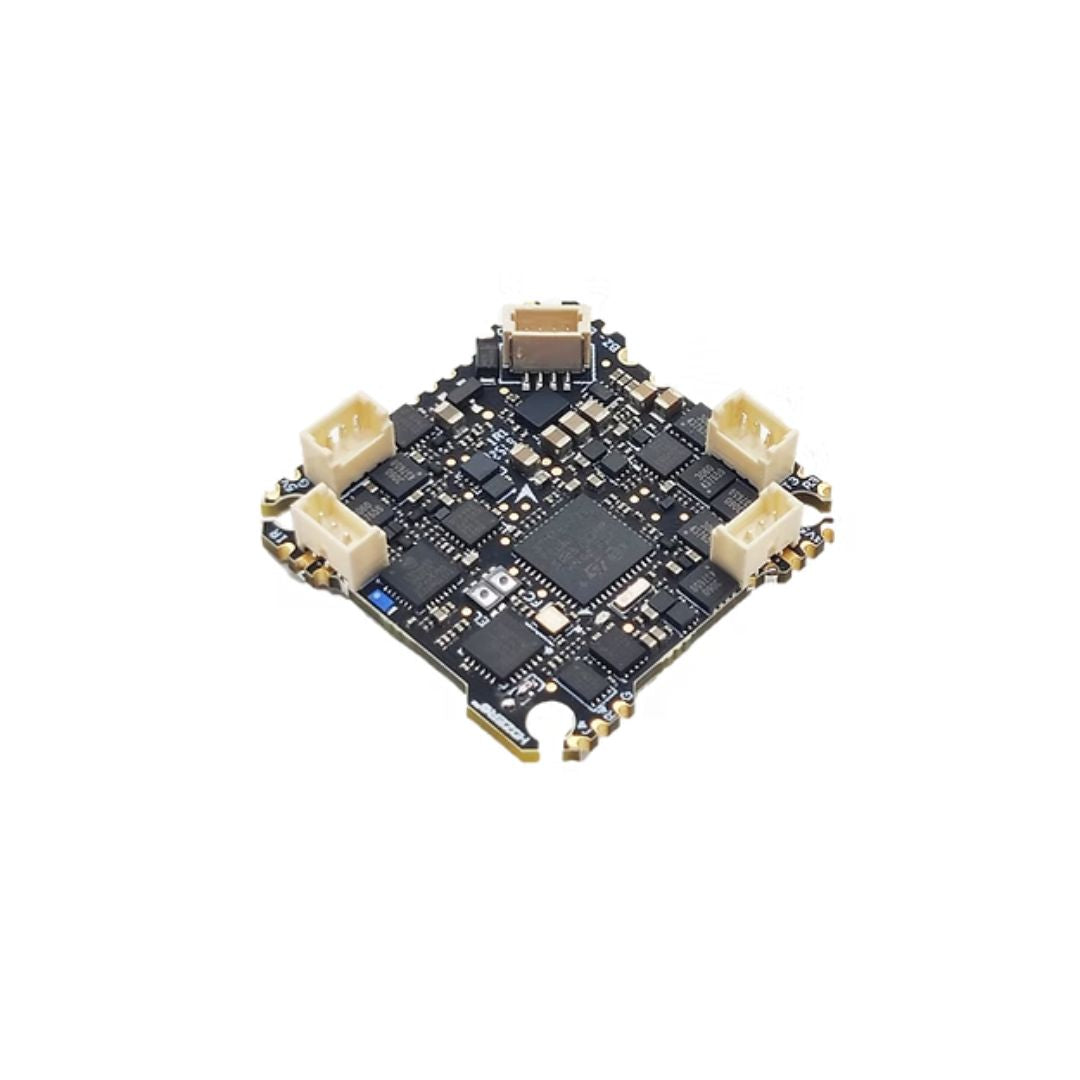

HDZero AIO15 – 2S/3S Digital AIO Flight System
HDZero AIO15 is the world's first all-in-one (AIO) digital FPV flight system that was specially designed for small whoopies and micro freestyle models with 2S-3S batteries. It combines everything you need - flight controller, digital video transmitter, ESC, receiver and BEC - into a compact, ultra-light 31.3 x 31.3mm board.
With an integrated 15A 4-in-1 ESC, the AIO15 supports higher current motors and 2-3S batteries, enabling powerful designs under 33.4g without compromising video quality or responsiveness. Whether you're building a freestyle whoop or flying an off-the-shelf rig like the M8 Freestyle HD, the AIO15 delivers the performance micro pilots have been waiting for.
Pilots appreciated the comfort and weight of the HDZero AIO5, but wanted more power and tension flexibility. AIO5 was limited to:
- 5A ESC
- only 1S voltage
AIO15 solves this problem:
- 15A ESC (18A peak current)
- Support 2S-3S batteries
Now you can fly harder, faster and longer with the digital clarity and ultra-low latency that HDZero is known for.
Key features:
Integrated digital VTX HDZero 5.8 GHz
- Output power: 25 mW / 200 mW
- Channels: R1- R8, F2/F4, L1 - L8
- U.FL connector with ultra-light linear antenna included
Integrated serial receiver ExpressLRS 2.4 GHz
- Packet transmission rate: 50-1000 Hz (50/100/150/250/333/500/D250/D500/F500/F1000 Hz)
- Pre-soldered enameled wire antenna
Flight controller
- MCU: STM32G473 @170MHz, 512K Flash
- Gyroscope: ICM42688
- Integrated voltage sensing and current
- Firmware target: HDZERO_AIO15
4 in 1 15A ESC
- MCU: EFM8BB21
- Current: 15Ax4 continuous, 18Ax4 peak (3s)
- BlueJay firmware (Z_H_30_48_v0.19.2)
- Ready for DShot600
5V BEC
- 5V @ 1A output for accessories and camera
Specifications:
Battery input: 2S-3S (3.5V-13V)
Mounting: 25.5 x 25.5mm M2
Board dimensions: 31.3 x 31.3mm
Weight: 7.2g (with motor connectors)
Compatibility: Fits popular whoop frames
Ideal for:
- 80mm freestyle whoops
- Lightweight micro drones
- Pilots looking for minimum weight with maximum performance
- Builders upgrading from AIO5

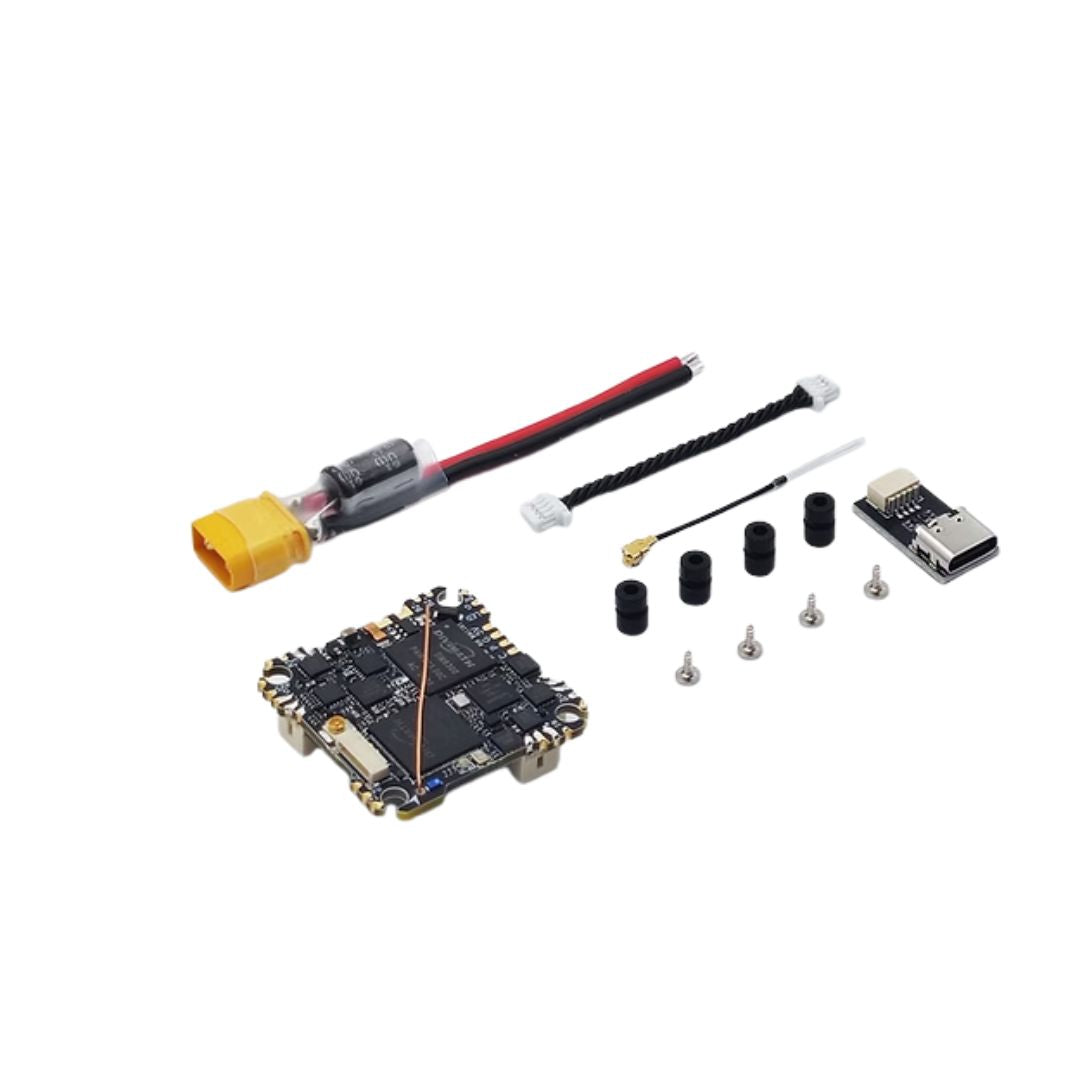

The package contains:
1x HDZero AIO15 board
1x power cable with xt30 connector
4x screws
4x rubber grommets
1x ultralight VTX linear antenna
1x adapter board
1x adapter cable
