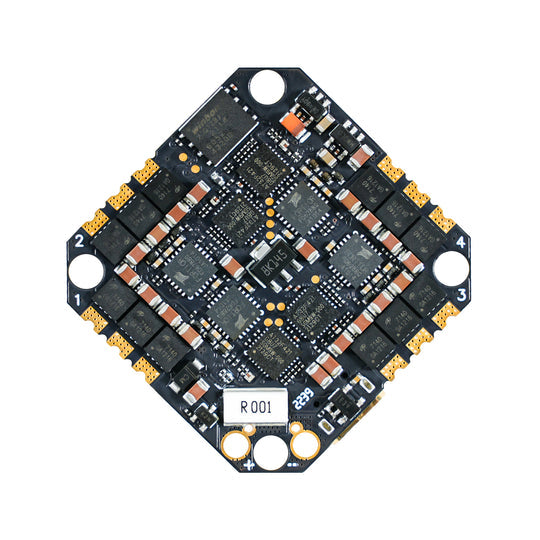

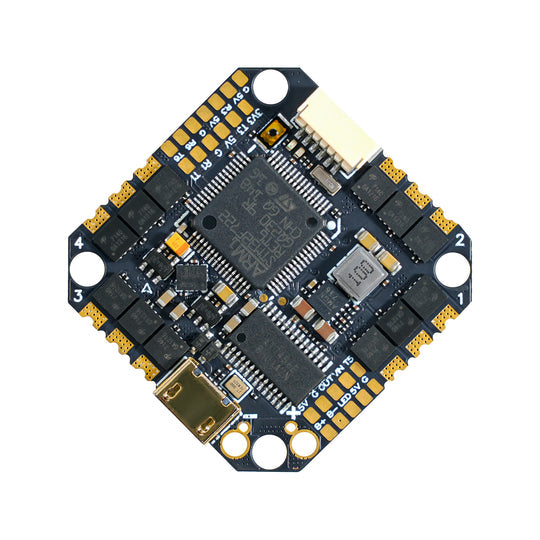

F722 35A AIOToothpick Brushles FC (ICM42688 V2 with BLHeli_32 ESC)
F722 35A AIO Brushless Flight Controller is equipped with F722 chip, brings exceptional performance and high processing speed, which ensures a stable and smooth flight experience for 4"-5" drones. With a convenient plug&play port for HD Digital VTX and support for input voltage up to 6S, this FC is designed to maximize the potential of FPV racers.
- Powerful STM32F722RET6 processor for higher processing speed and stability.
- Plug & play 6-pin connector for seamless integration with HD Digital VTX, minimizing soldering work.
- Six full UARTs provide flexibility to connect various external components such as VTX, GPS and receivers.
- Capable of handling 35A continuous current (40A surge) and support 2-6S lipo batteries for robust flight performance.
- Compatible with 6S batteries, unlocking new possibilities for 4-5'' drones.
- Built-in BLHeli_32 ESC version with 16MB flash memory chip for Blackbox logging, offering powerful debugging and troubleshooting capabilities with higher processing speed and up to 128k PWM frequency.
V2 with BLHeli_32 ESC
PWM frequency: 24k-128k
ESC firmware: BLHeli_32.9, 32-bit
Blackbox: 16 MB
Weight: 9.00g
Plate thickness: 1.6 mm
FC Specifications:
Item: F722 35A AIO Brushless Flight Controller
Weight: 9.00g (BLHeli_32)
CPU: STM32F722RET6
Six-axis: ICM42688
Mounting hole size: 26x26mm
Firmware version: betaflight_4.3.0_STM32F7X2
OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)
Support programmable LEDs like WS2812 etc
Built-in current sensor
Blackbox: 16 MB (V2 including BLHeli_32 ESC)
ESC specification
Signal support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/Flysky Receiver/DSMX Receiver/TBS Crossfire Receiver (requires external connection)
Input Voltage: 2S-6S Lipo
Continuous current: 35A
Peak current: 40A
ESC Firmware: BETAFPV_35A_V2_BLHeli_32_Multi_32_9 (BLHeli_32)
Indicators: Power Indicator (Red) / FC Indicator (Blue)
Capacity: CS/5x10x13mm/470μF/35V
Connector: 80mm 14AWG silicone cable with XT60
Recommended engines: 14XX series, 15XX series, 16XX series, 18XX series, 20XX series
