Note! This model has been discontinued and is no longer available. Please see the new model that replaced it
https://www.hobbydrone.cz/aio-fc-betafpv-matrix-1s-air-brushless--5-in-1/

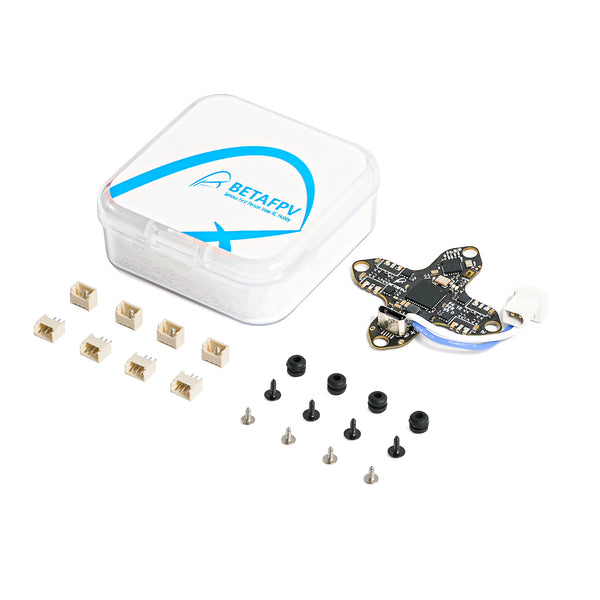

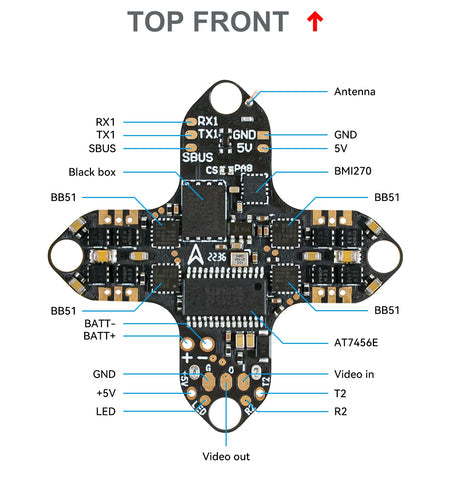

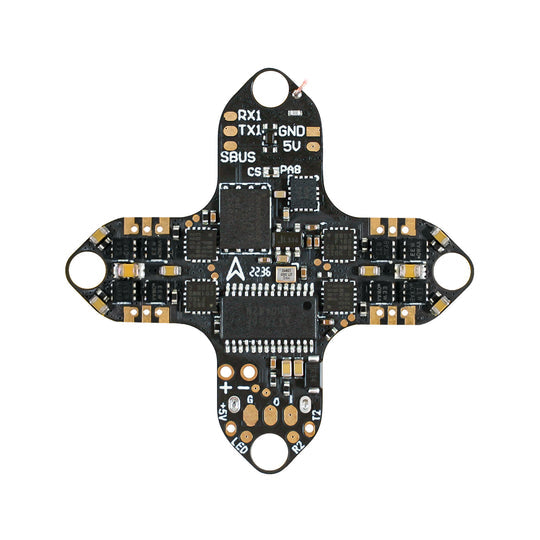

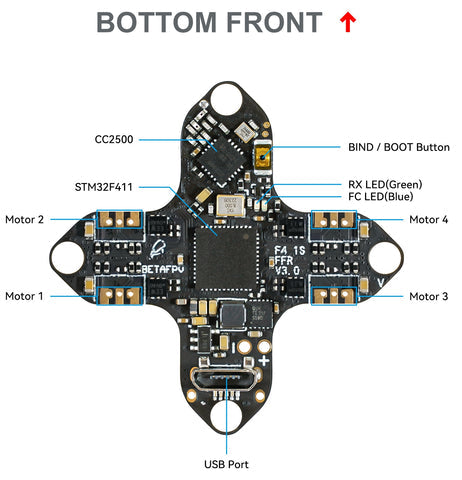

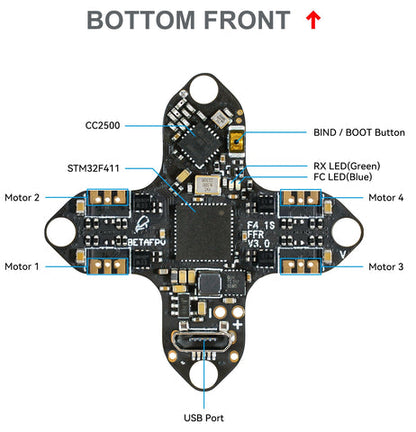

BETAFPV F4 1S 5A AIO Brushless FC (SPI Frsky -V2.0, lightweight version) F4 1S 5A AIO Brushless Flight Controller with new and improved features. The new board integrates a Serial ExpressLRS 2.4G receiver. Compared with the original built-in SPI ELRS 2.4G receiver, it could easily flash the latest official ELRS firmware such as V3.0. We also updated the FC with a high quality BMI270 gyroscope, BB51 ESC hardware with Bluejay ESC firmware and 8MB Betaflight Blackbox flash. The Light version weighs only 2.96 grams and comes with NO solder motor connectors. The scheme for SPI Frsky RX is the same for Classical and Light versions. SPI Frsky RX Comes with built-in Frsky SPI receiver (CC2500 chip), F4 1S 5A AIO FC can be compatible with Futaba S-FHSS, Frsky D8 and D16 protocols. The default protocol is factory configured to Frsky D16 FCC. Pilots could set the protocol according to their own needs in the Betaflight Configurator. Configuration - Protocol FRSKY_D - Frsky D8 FRSKY_X – Frsky D16 FCC (version ACCST 1.X) FRSKY_X_LBT – Frsky D16 LBT (version ACCST 1.X) SFHSS - Futaba S-FHSS Function: - Frsky's SPI version of the board reserves the SBUS port and the UART port, which is available for the SBUS protocol receiver or other external receivers. - Built-in 8MB flash memory chip dedicated for Blackbox logging. It is an extremely powerful tool for debugging and troubleshooting your FPV drone. - Special design with a weight of 3.64g (classic) and 2.96g (lightweight), reasonable layout and easy assembly. With a mounting hole size of 26*26mm, it is fully compatible with Whoop frame in the current market. - The Light version requires the motor leads to be soldered directly to the pad, which allows for lower resistance for more current on the motors. It also comes with pin motor connectors for convenient use. Specifications of the FC Light version: CPU: STM32F411CEU6 (100MHz) Six-axis: BMI270 Built-in receiver: SPI CC2500 (Frsky) Receiver antenna: Line antenna FC size: 30*30mm Mounting hole size: 26*26mm Firmware version: betaflight_4.2.11_BETAFPVF411RX (Frsky) OSD: Built-in BetaFlight OSD Blackbox: 8MB Recommend VTX: >=200mW, like BETAFPV M03 350mW VTX or TBS Unify VTX Power cable: 55mm, with BT2.0 connector Plate thickness: 0.8 mm Motor connectors: Solderless Weight: 2.96g (without motor connectors), without power cable ESC Specifications: Power supply: 1S Current: 5A continuous and 6A peak (3 seconds) ESC Firmware: A_X_5_.HEX for Bluejay BB51 hardware Signal support: D-shot300, D-shot600 Recommend parts Battery: BT2.0 300mAh 1S Battery Frame: Meteor65 frame / Meteor65 Pro frame / Meteor75 frame Brackets: 31mm 4-blade brackets (for 65mm frame) / 35mm 3-blade brackets (for 65mm frame) / 40mm 4-blade brackets (for 75mm frame) Motors: 0802SE motors / 1102 brushless motors VTX: M03 25-350mW VTX Package 1 * F4 1S 5A AIO Brushless Flight Controller (ELRS or Frsky) 4 * M1.2x4mm screws 4 * M1.4x5mm screws 4 * Anti-vibration rubber shock absorbers 8 * Motor Pin Connectors (Including Light Version)
