Note! This model has been discontinued and is no longer available. Please see the new model that replaced it
https://www.hobbydrone.cz/aio-fc-betafpv-matrix-1s-air-brushless--5-in-1/

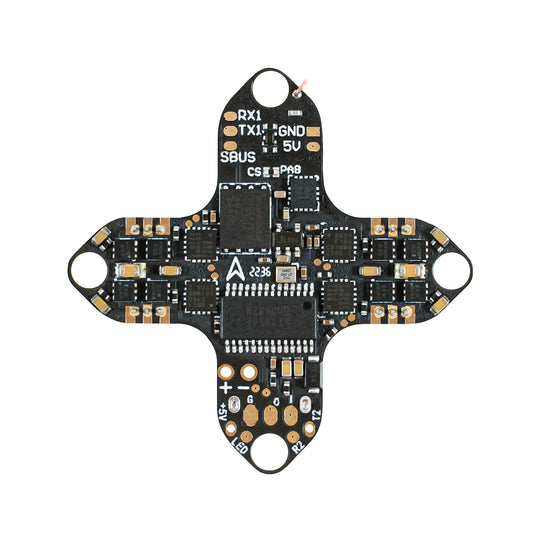

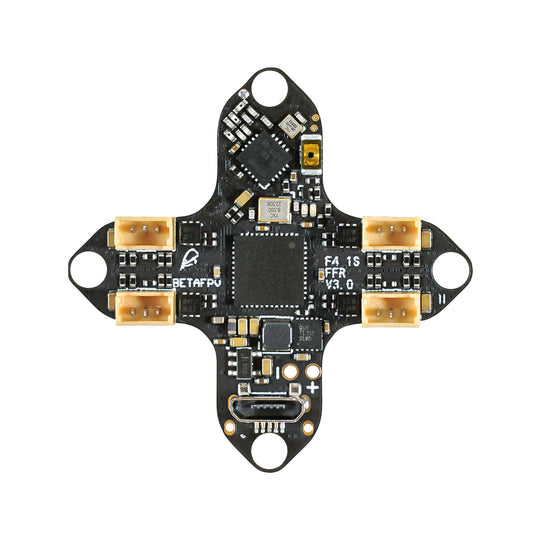

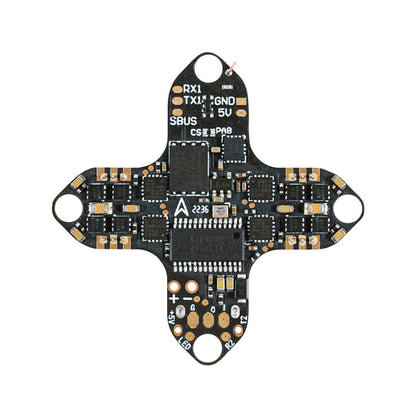

F4 1S 5A AIO Brushless Flight Controller (SPI Frsky, V2.0) BMI270 F4 1S 5A AIO Brushless Flight Controller with SPI Frsky RX come with built-in Frsky SPI receiver (CC2500 chip), F4 1S 5A AIO FC can be compatible with Futaba S-FHSS, Frsky D8 and D16 protocols. The default protocol is factory configured to Frsky D16 FCC. Pilots could set the protocol according to their own needs in the Betaflight Configurator. The updated FC also features a BMI270 gyroscope, BB51 ESC hardware with Bluejay ESC firmware, and an 8MB flash memory chip dedicated to Blackbox logging. The SPI Frsky version board has a dedicated SBUS port and a UART port for SBUS protocol receivers or other external receivers. FC Specifications: Version: Classic version Plate thickness: 0.8 mm CPU: STM32F411CEU6 (100MHz) Six-axis: BMI270 Built-in receiver: SPI CC2500 (Frsky) Receiver antenna: Line antenna FC size: 30 x 30 mm Mounting hole size: 26 x 26 mm Firmware version: betaflight_4.2.11_BETAFPVF411RX (Frsky) OSD: Built-in BetaFlight OSD Blackbox: 8MB Recommend VTX: >=200mW, like BETAFPV M03 350mW VTX or TBS Unify VTX Power cable: 55mm, with BT2.0 connector Weight: 3.64g (with motor connectors), without power cable ESC Specifications: Power supply: 1S Current: 5A continuous and 6A peak (3 seconds) ESC Firmware: A_X_5_.HEX for Bluejay BB51 hardware Signal support: D-shot300, D-shot600
