Code: SKU:SPEEDYBEE-STACKMINI

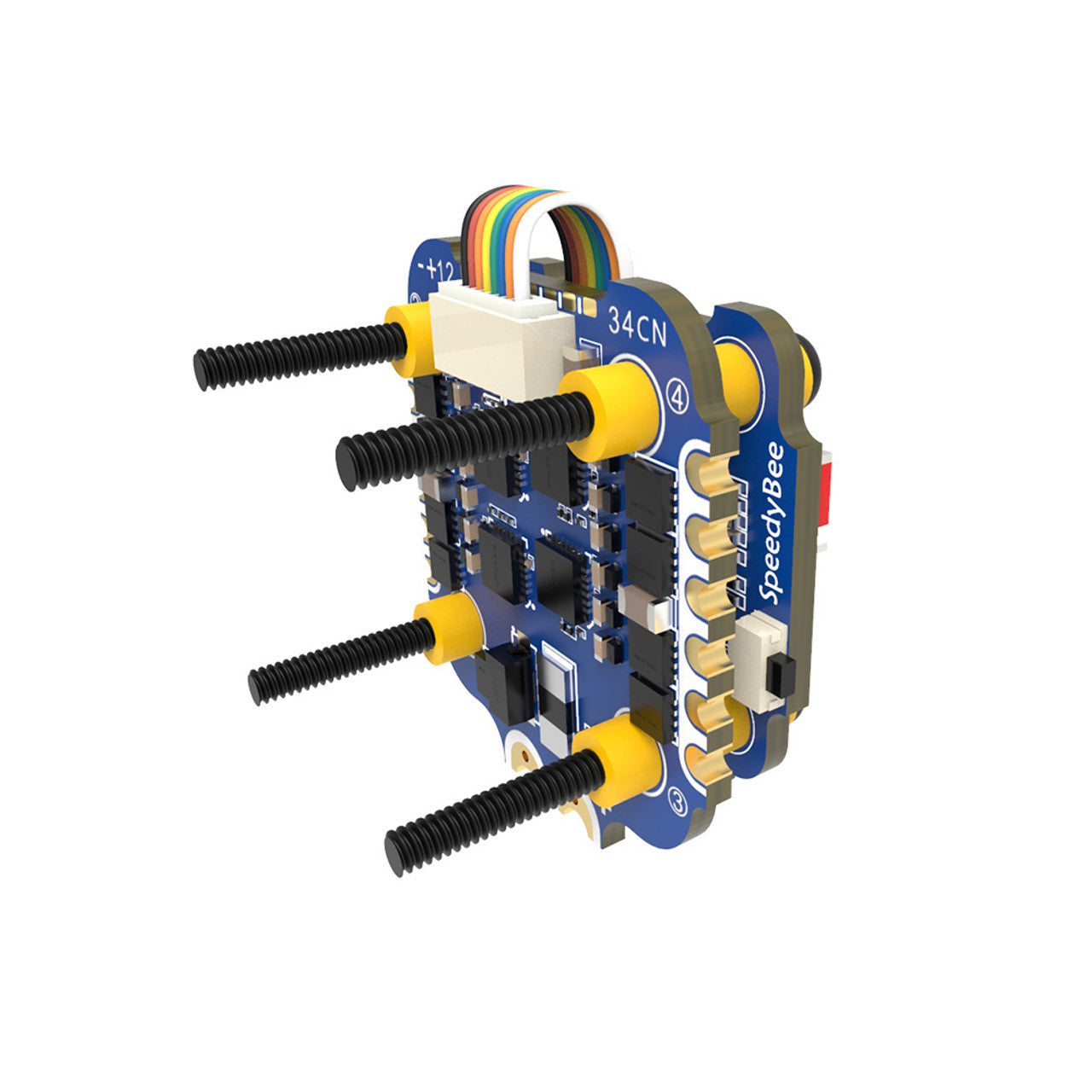

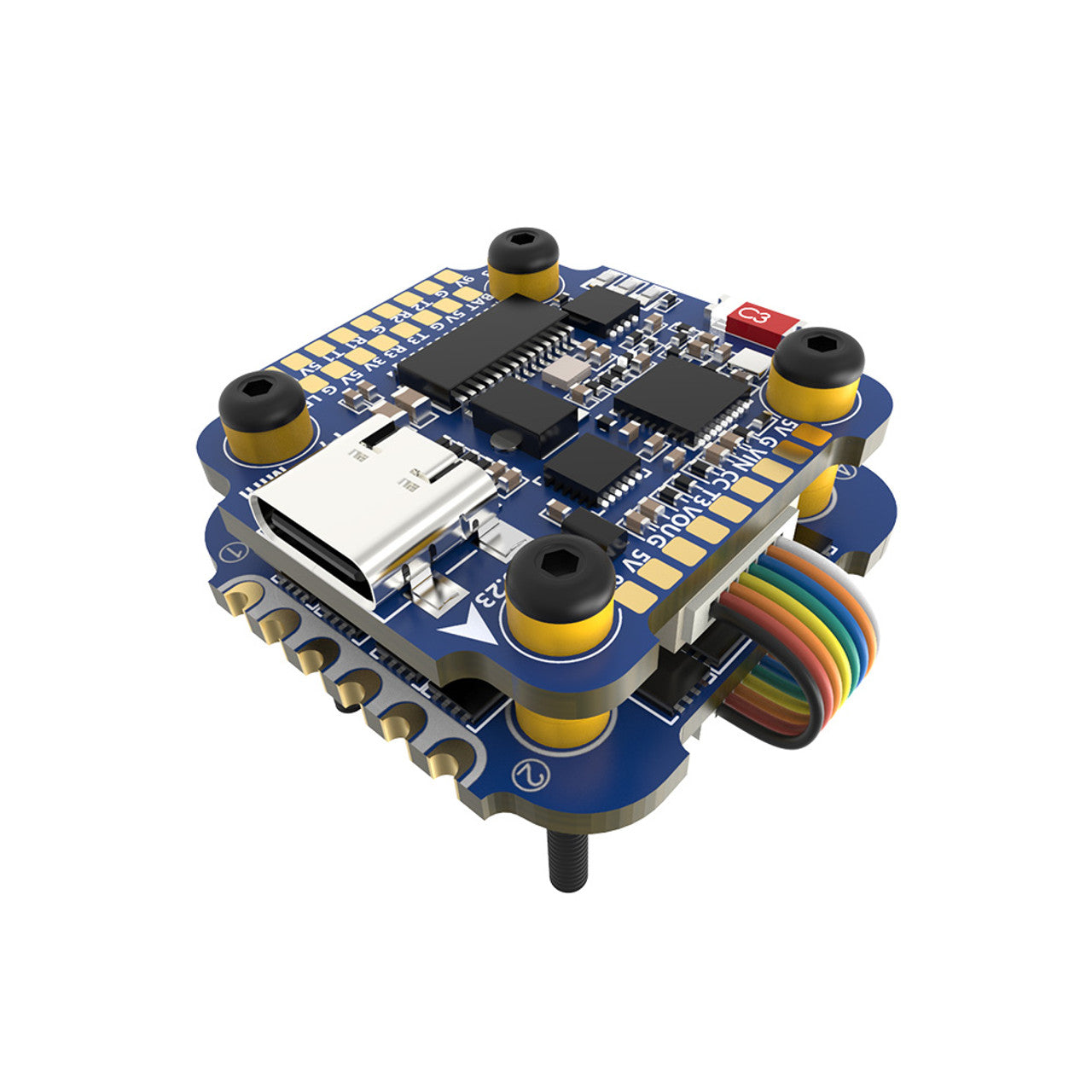

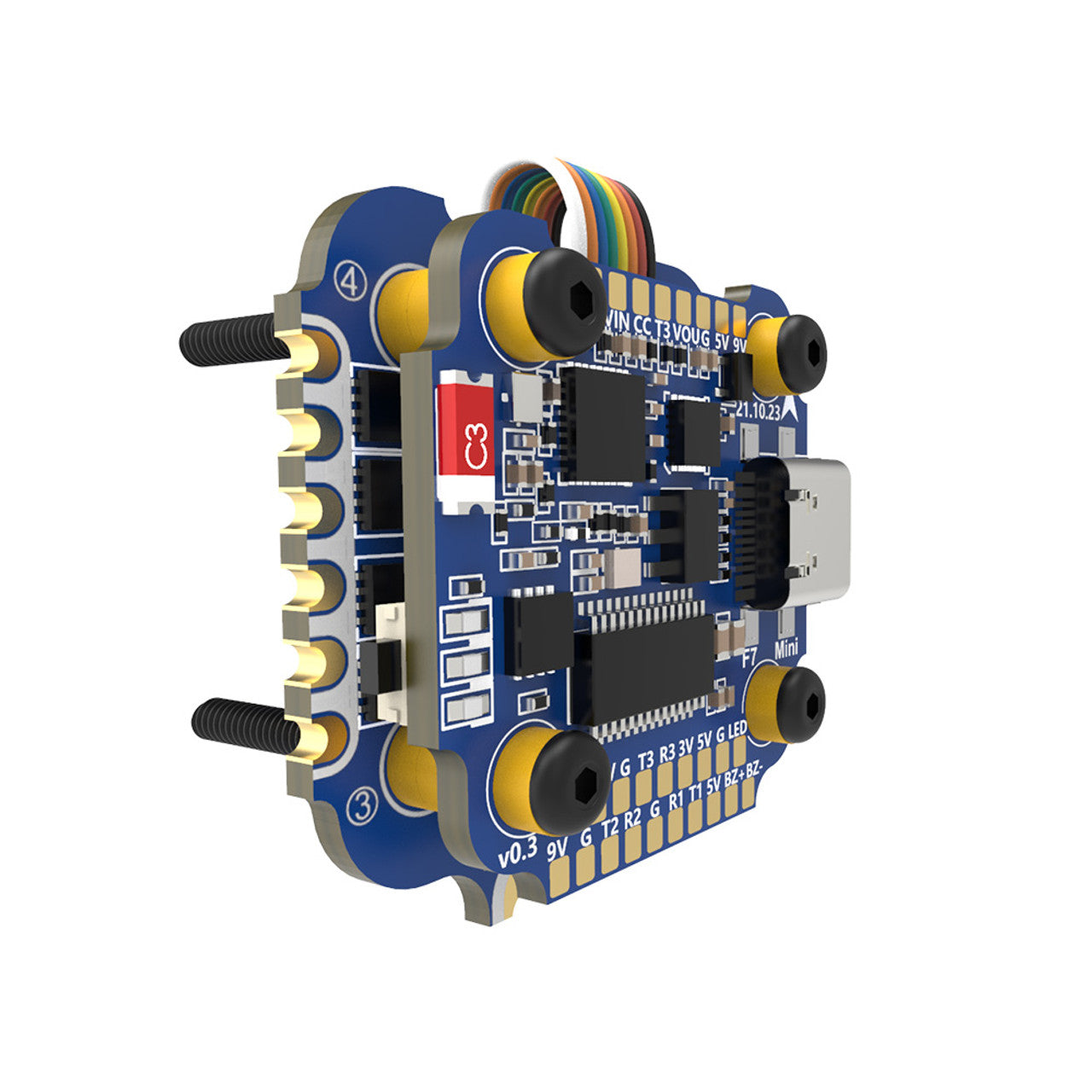

Stack SpeedyBee F7 Mini 35A 3-6S 8-bit FC
Stack SpeedyBee F7 Mini 35A 3-6S 8-bit FC
Brand: SpeedyBee
Regular price
€95,99
Regular price
€95,99
Sale price
€95,99
Unit price
/
per
In stock
Limited stock available. Order soon!
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
SpeedyBee F7 Mini 35A 3-6S 8-bit Flight Controller Stack The popular SpeedyBee F7 stack has shrunk to a 20x20 mini stack. Supports SpeedyBee app. It also supports DJI VTX and analog video with independent 9V 2A BEC and 5V 2A BEC. Specifications: Product name: SpeedyBee F7 Mini MCU: STM32F722 IMU (Gyro): BMI270 for current batches; MPU6000 for old batches before May 2022. USB port type: Type-C Barometer: N/A OSD chip: AT7456E chip BLE Bluetooth: Supported. Used for Flight Controller configuration (MSP should be enabled with baud rate 115200 on UART 6) WIFI: Not supported Firmware Flash FC wireless: Not supported. Update the firmware for this FC on PC Download/Analyze Blackbox: Not supported. Download and analyze Blackbox data on PC DJI Air Unit Solder Pads: Supported Flash (for BlackBox): 8 MB Current Sensor: Supported, Scale=250 Offset=-500 BetaFlight Camera Control Pad: Yes (CC pad) Power: 3S - 6S Lipo 5V output: 6 groups of 5V output, five +5V pads and 1 BZ+ pad (used for buzzer). The total current load is 2.5A. 9V output: 2 groups of 9V output, the total current load is 2A. 3.3V output: Supported. Current load up to 500 mA. ESC signal pads: M1 - M4 UART: Full UART * 3 (UART1, UART2, UART3) ESC Telemetry UART: R4(UART4) I2C: Not supported LED Pad: Used for WS2812 LED Buzzer: BZ+ and BZ- pad used for 5V buzzer BOOT Button: Used to enter DFU mode RSSI input: Not supported SmartPort: Use any UART TX pad for SmartPort function. Supported flight controller firmware: BetaFlight (default) Target firmware name: SPEEDYBEEF7MINIV2 for current batches (Gyro: BMI270); SPEEDYBEEF7MINI for old batches (Gyro: MPU6000) until May 2022. Mounting: 20 x 20 mm, hole diameter 3.5 mm Dimension: 30 x 30 x 7.5 mm Weight: 5.7g Product Name: SpeedyBee 35A BLHeli_S Mini 4-in-1 ESC Firmware: BLHeli_S JH40 Continuous current: 35A * 4 Burst current: 45A (5 seconds) ESC protocol: DSHOT300/600 Power: 3-6S LiPo Output power: VBAT Current Sensor: Support (Scale=250 Offset=-500) Mounting: 20x20mm, hole diameter 3.6mm Size: 35x35x5.5mm Weight: 7g
