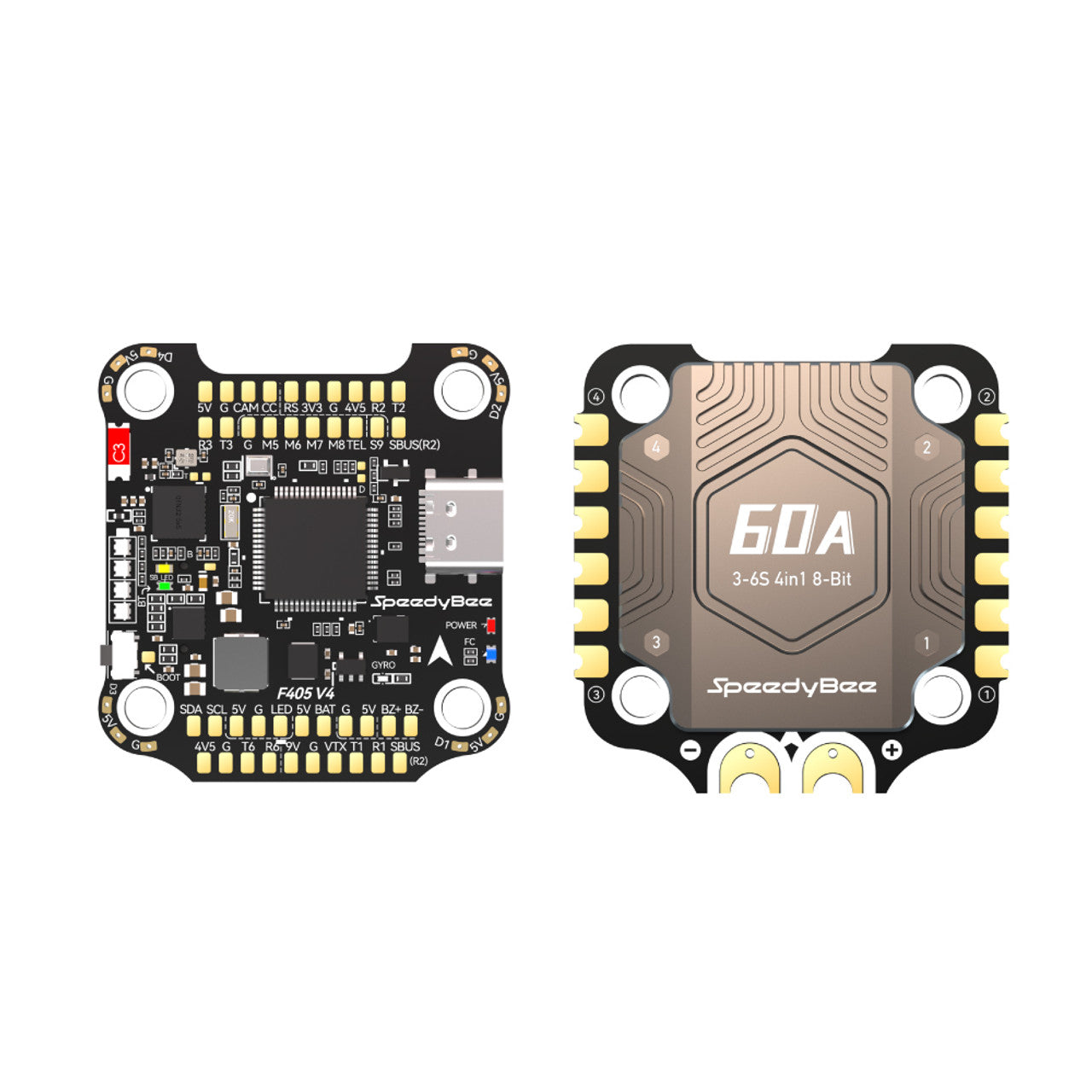

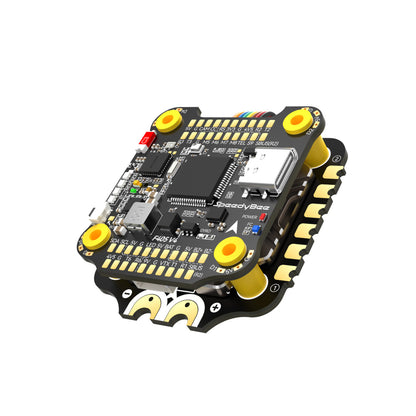

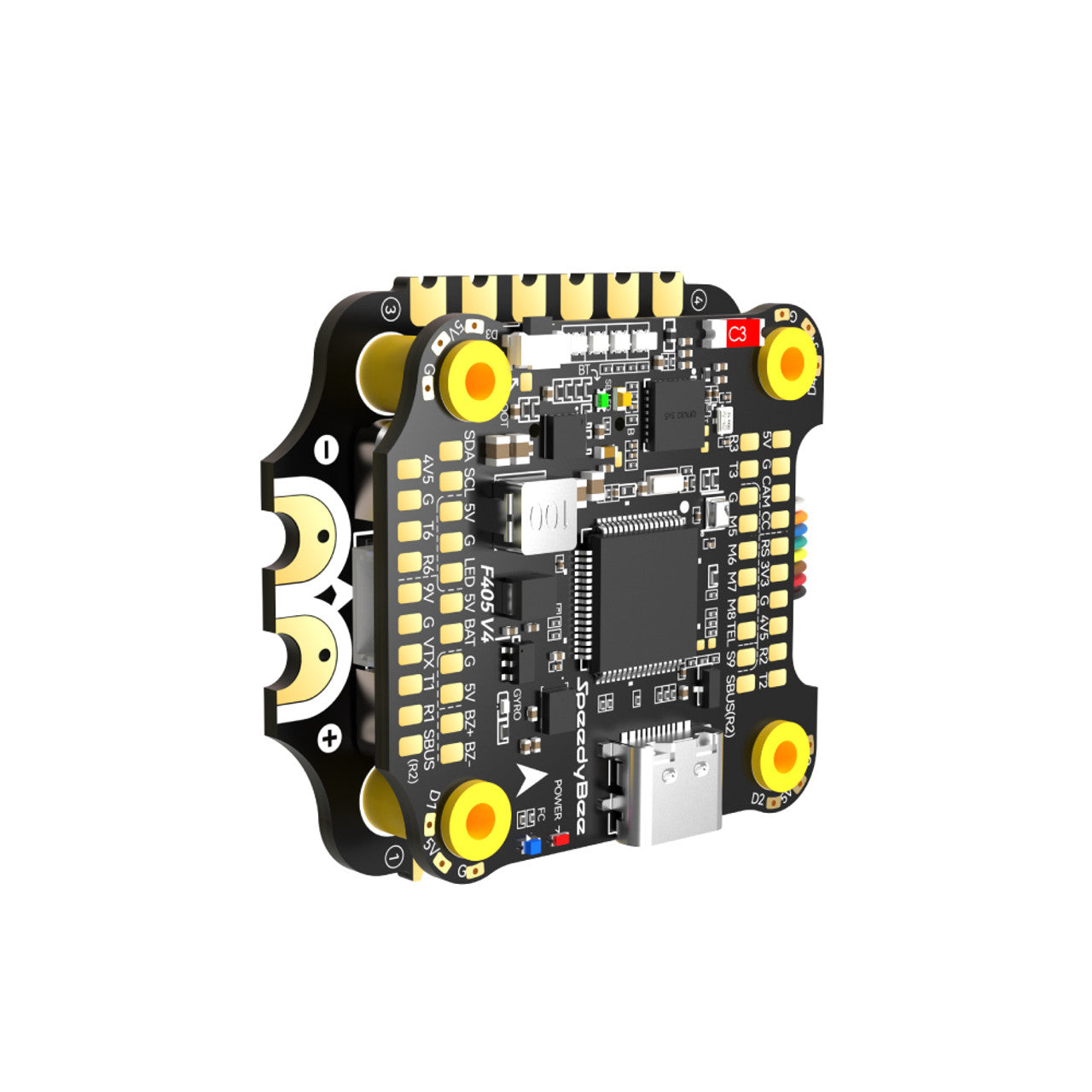

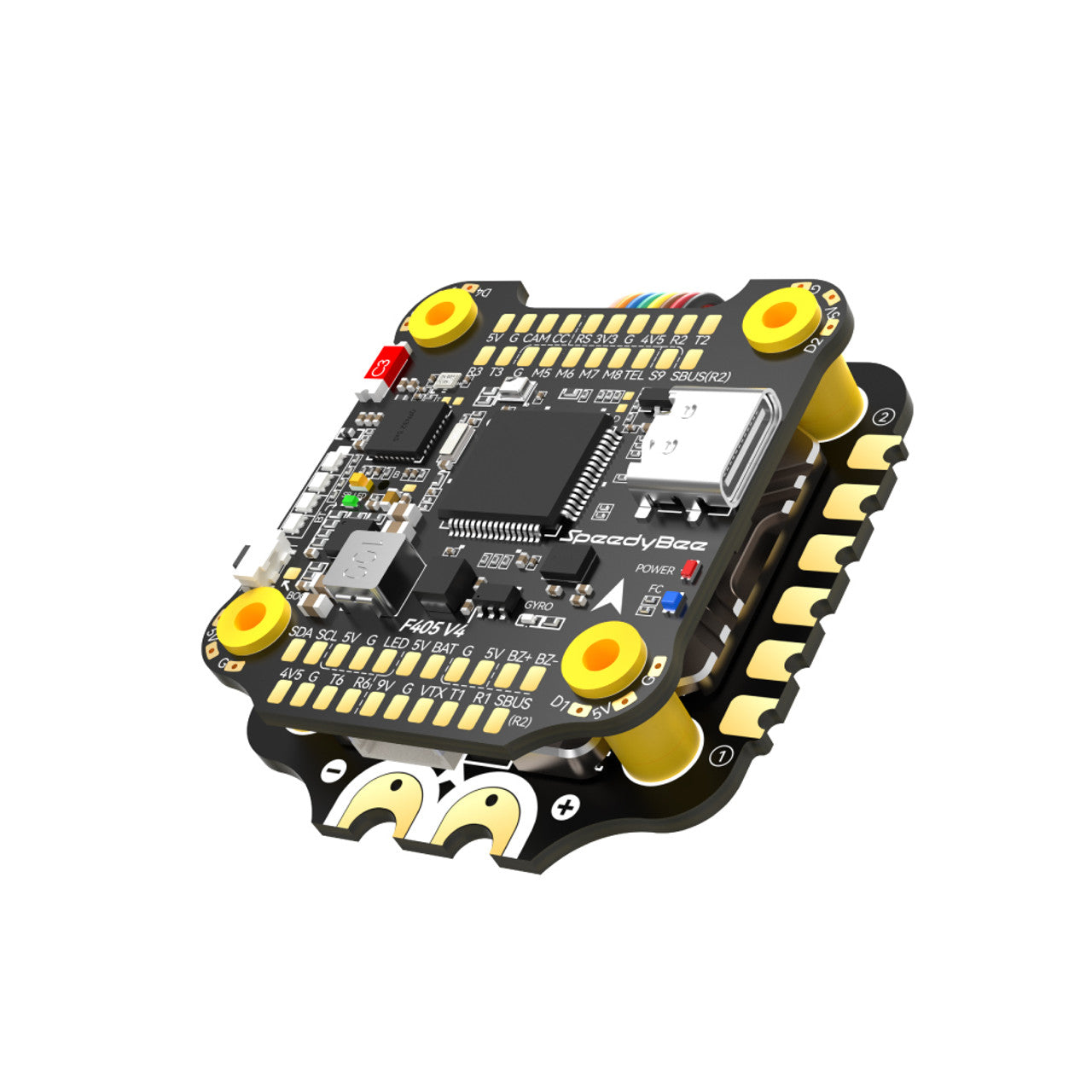

SpeedyBee F405 V4 BLS 60A 30x30 FC&ESC stack
The fourth version of the SpeedyBee stack includes FC F405 and BLHeli_S 60A ESC. The 30x30mm stack can support up to eight motors, is configured via Bluetooth, has a built-in barometer and ICM42688P gyro. With advanced gyro sensors and intelligent flight algorithms, this pod provides unmatched stability and control, allowing you to perform precise maneuvers with confidence and precision. With a standard 30x30mm form factor, the SpeedyBee stack effortlessly fits most drone frames for hassle-free installation and setup.
Specifications:

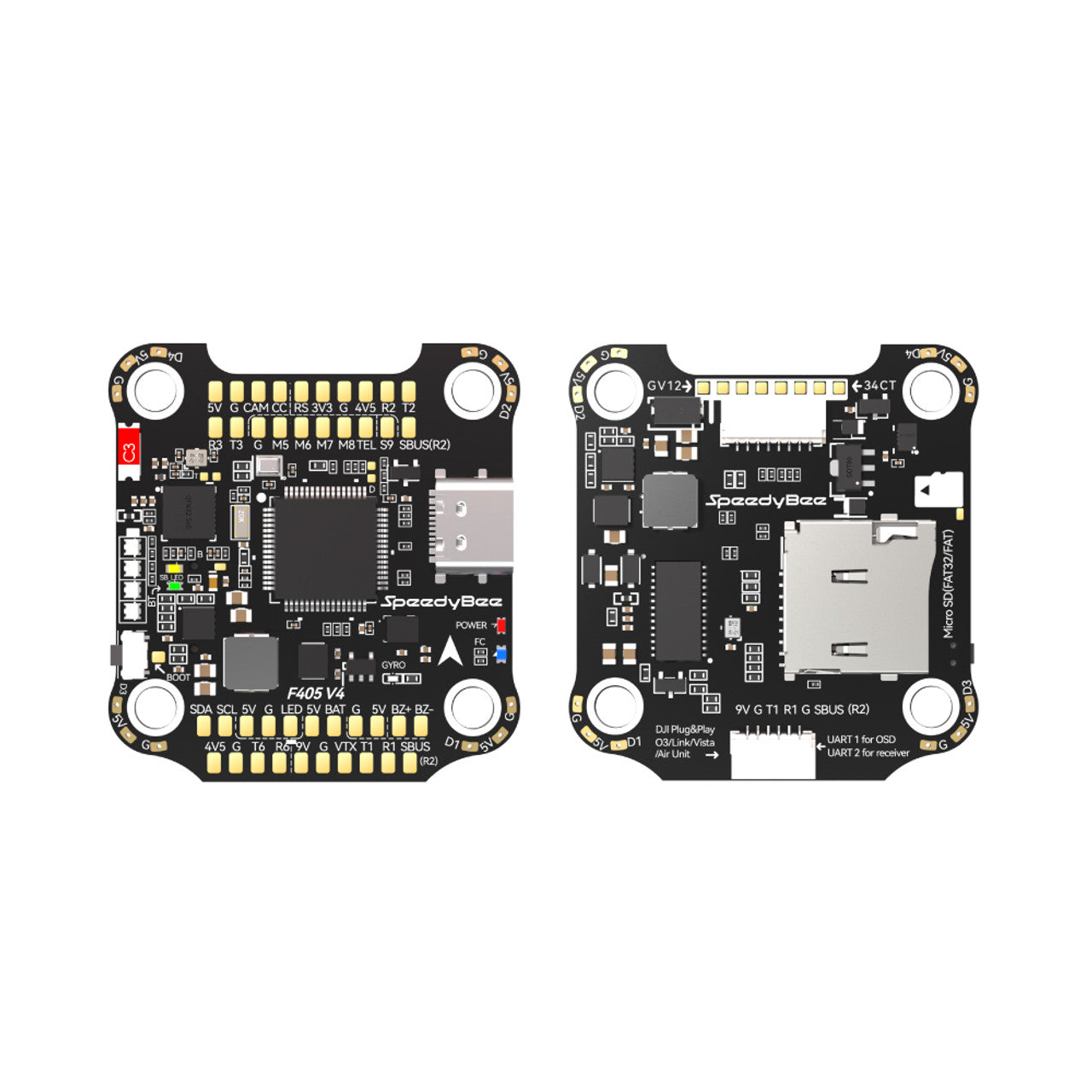

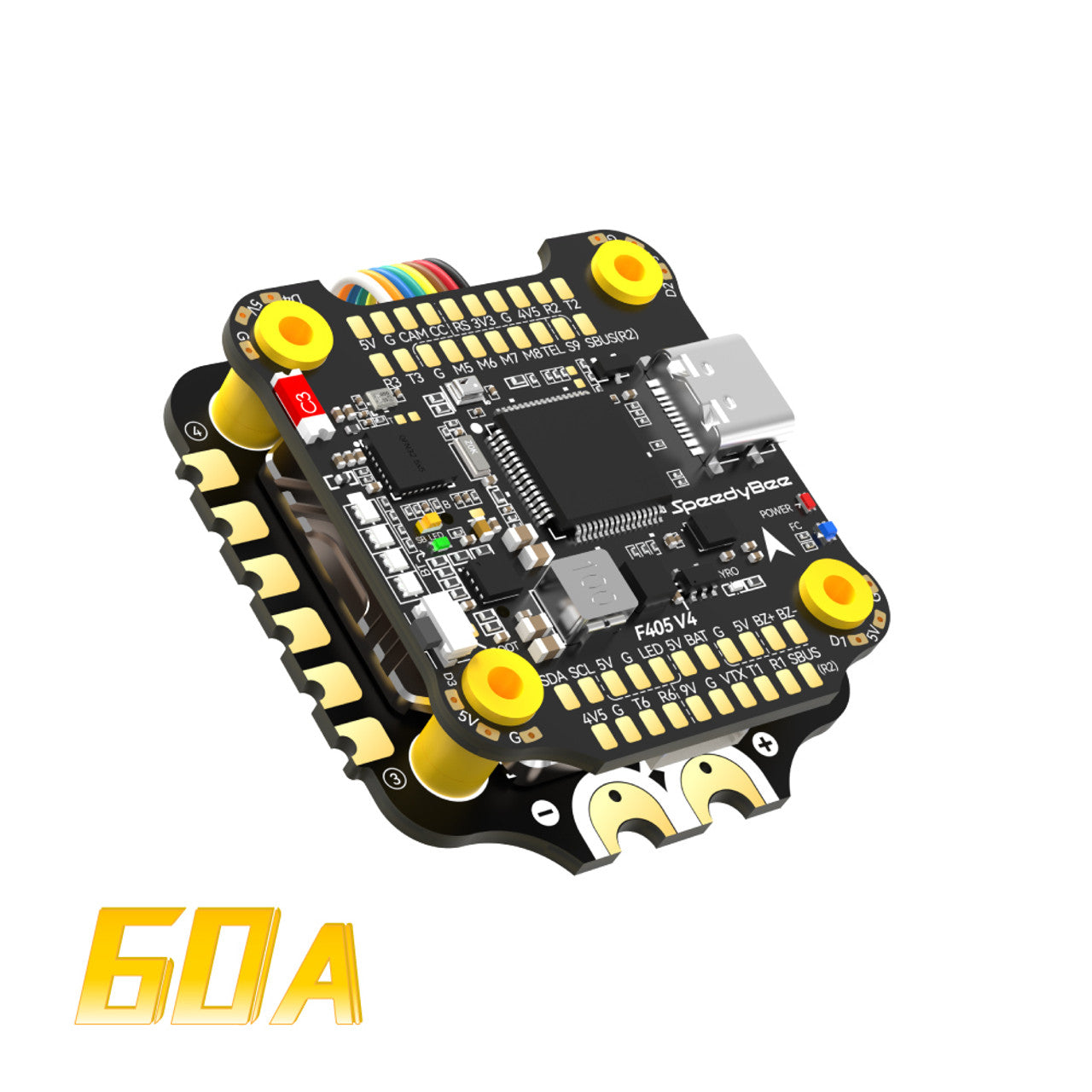

Product Name: SpeedyBee F405 V4 30x30 Flight Controller
MCU: STM32F405
IMU (Gyro): ICM42688P
USB port type: Type-C
Barometer: built-in
OSD chip: AT7456E chip
BLE Bluetooth: Supported. Used for Flight Controller configuration (MSP should be enabled with baud rate 115200 on UART4)
WIFI: Not supported
DJI air unit connection method: Two ways are supported: 6-pin connector or direct soldering.
DJI Air Unit 6 Pin Plug: Supported. Fully compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no need to change any cable.
Blackbox MicroSD card slot: Betaflight firmware requires the microSD card type to be either standard (SDSC) or high capacity (SDHC), so extended capacity (SDXC) cards are not supported (many high-speed U3 cards are SDXC). The card MUST also be formatted with a FAT16 or FAT32 file system (recommended). So you can use any SD card smaller than 32GB, but Betaflight can only recognize a maximum of 4GB.
Current sensor input: Supported. For the SpeedyBee BLS 60A ESC, set Scale = 400 and Offset = 0.
Power Input: 3S - 6S Lipo (via G, BAT pins/pads from 8-pin connector or 8-pads on bottom)
5V output: 9 groups of 5V output, four +5V pads and 1 BZ+ pad (used for Buzzer) on the front and 4x LED 5V pads. The total current load is 3A.
9V output: 2 groups of 9V output, one +9V pad on the front and the other included in the connector on the bottom. The total current load is 3A.
3.3V output: Supported. Designed for receivers with 3.3V input. Current load up to 500 mA.
4.5V output: Supported. Designed for the GPS receiver and module, even if the FC is powered via the USB port. Current load up to 1A.
ESC signal: M1 - M4 on the bottom side and M5-M8 on the front side.

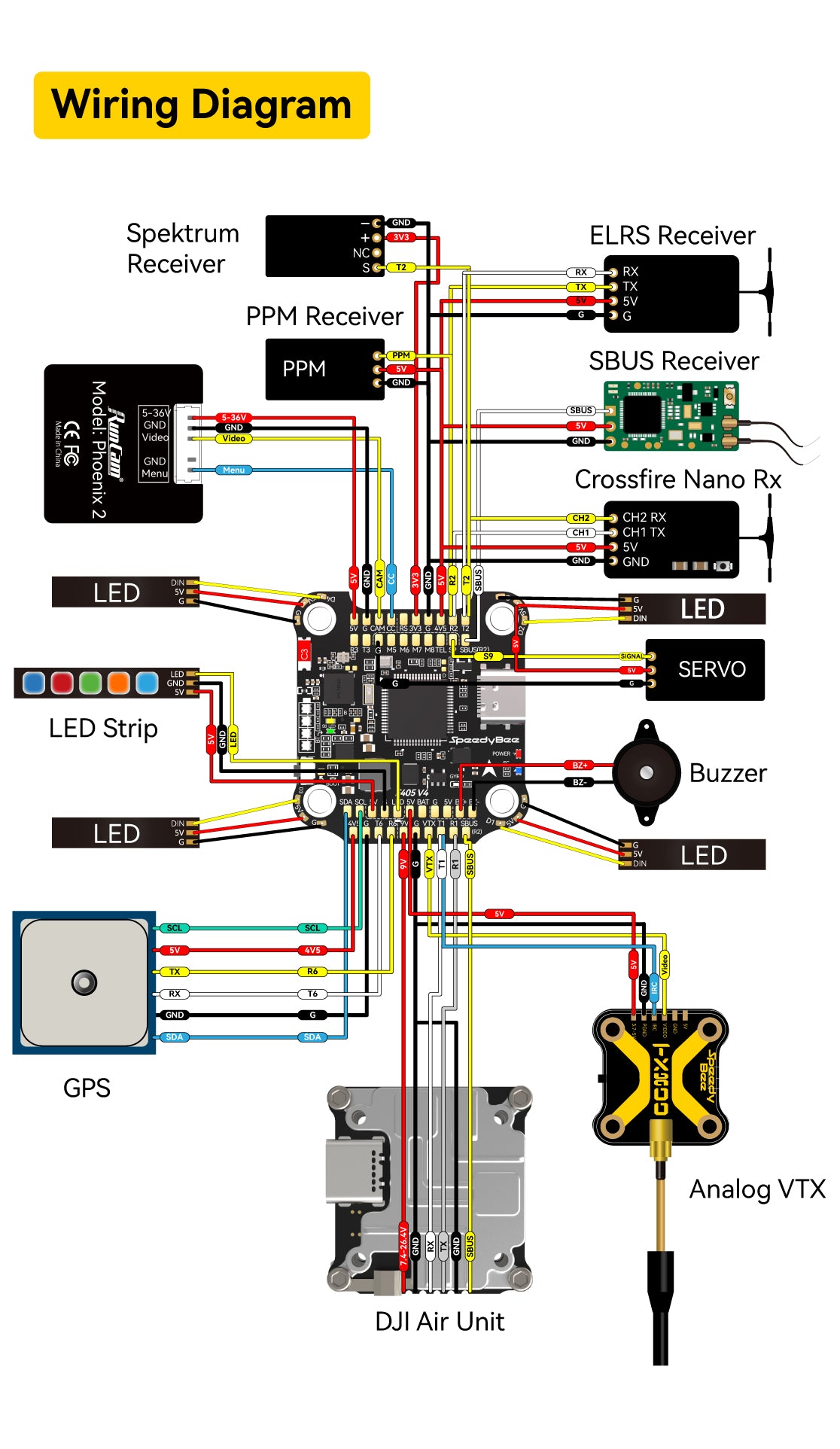

UART: 6 sets (UART1, UART2, UART3, UART4 (reserved for Bluetooth connection)), UART5 (reserved for ESC telemetry), UART6
ESC telemetry: UART R5
I2C: Supported. SDA & SCL pads on the front. Used for magnetometer, sonar, etc.
Traditional Betaflight LED Pad: Supported. 5V, G and LED pads on the bottom of the front. Used for WS2812 LEDs controlled by Betaflight firmware.
Buzzer: BZ+ and BZ- pad used for 5V buzzer
BOOT Button: Supported
RSSI Input: Supported. Named as RS on the front.
Smart Port / F.Port: Not supported
Supported Flight Controller firmware: BetaFlight (default), INAV
Target firmware name: SPEEDYBEEF405V4
Mounting: 30.5 x 30.5mm (hole diameter 4mm)
Dimension: 41.6 (L) x 39.4 (W) x 7.8 (H) mm
Weight: 10.5g

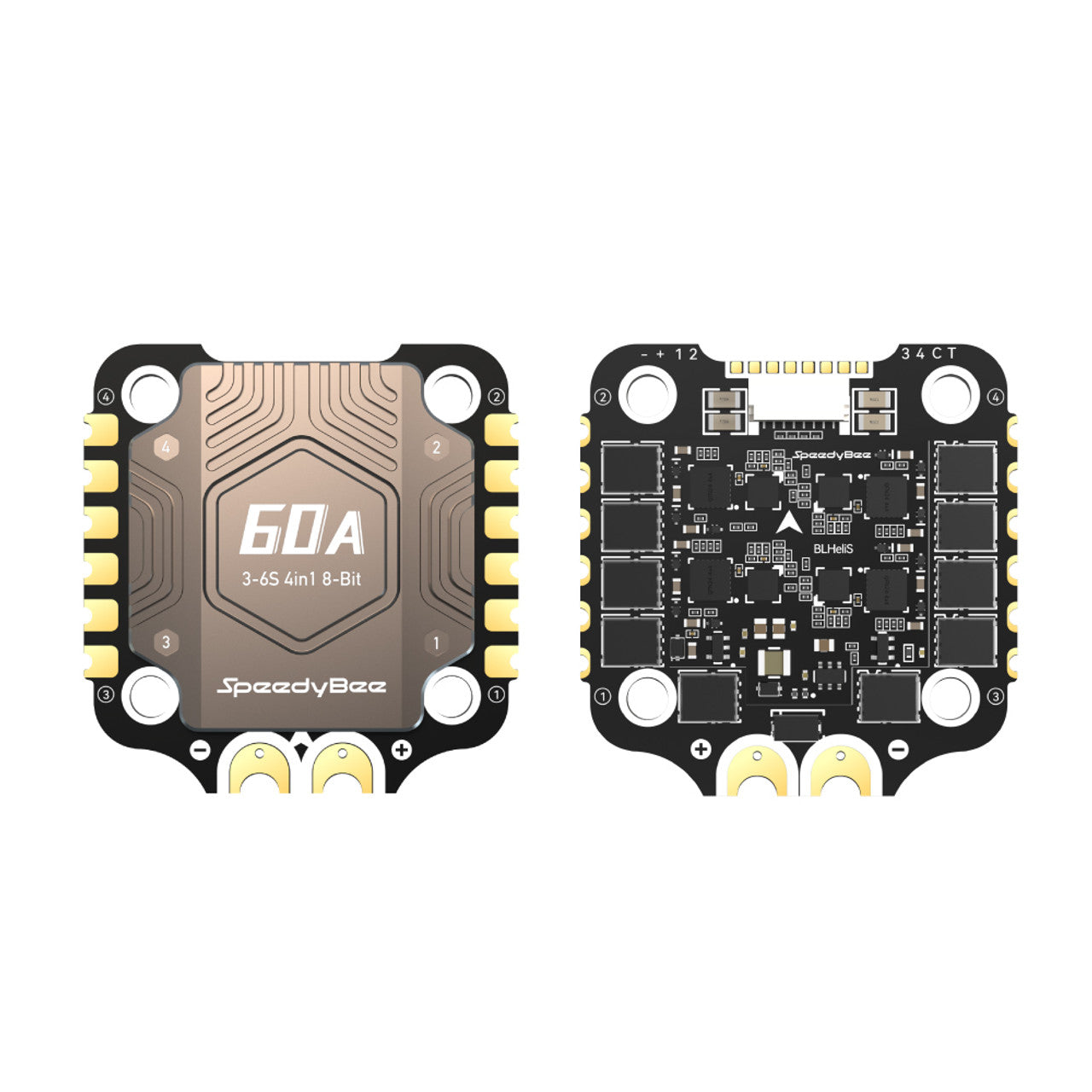

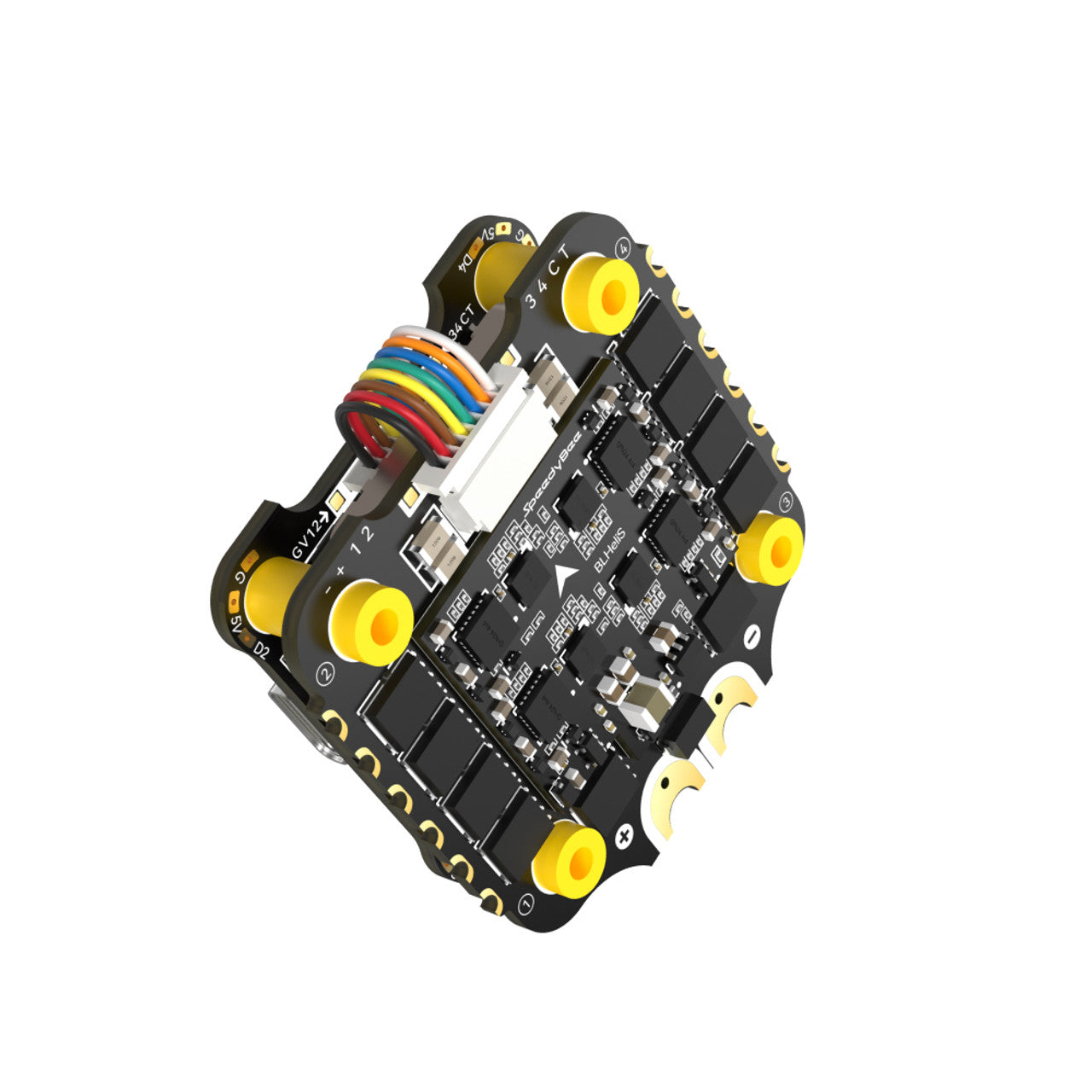

Product name: SpeedyBee BLS 60A 30x30 4-in-1 ESC
Firmware: BLHeli_S J-H-40
PC Configurator download link: https://esc-configurator.com/
Continuous current: 60A * 4
Explosive current: 80A (10s)
TVS protection diode: Yes
External capacitor: 1000uF Low ESR capacitor (included)
ESC protocol: DSHOT300/600
Power: 3-6S LiPo
Output power: VBAT
Current Sensor: Support (Scale=400 Offset=0)
ESC telemetry: Not supported
Mounting: 30.5 x 30.5mm (hole diameter 4mm)
Dimension: 45.6 (L) * 44 (W) * 8 mm (H)
Weight: 23.5g
The package includes:
1x SpeedyBee F405 V4 flight controller
1x ESC SpeedyBee BLS 60A 4in1
1x 35V 1000uF Low ESR capacitor
5x M3 nylon nut
5x M3 silicone O-ring
1x M3*8mm silicone grommets (for FC)
1x M3*8.1mm silicone grommets (for ESC)
1x SH 1.0mm 25mm long 8pin cable (for FC-ESC connection)
5x M3*30mm hexagon socket head screws
1x DJI 6pin cable (80mm)
1x XT60 power cable (100mm)
