Code: SKU:SB-F4V4-55-STACK

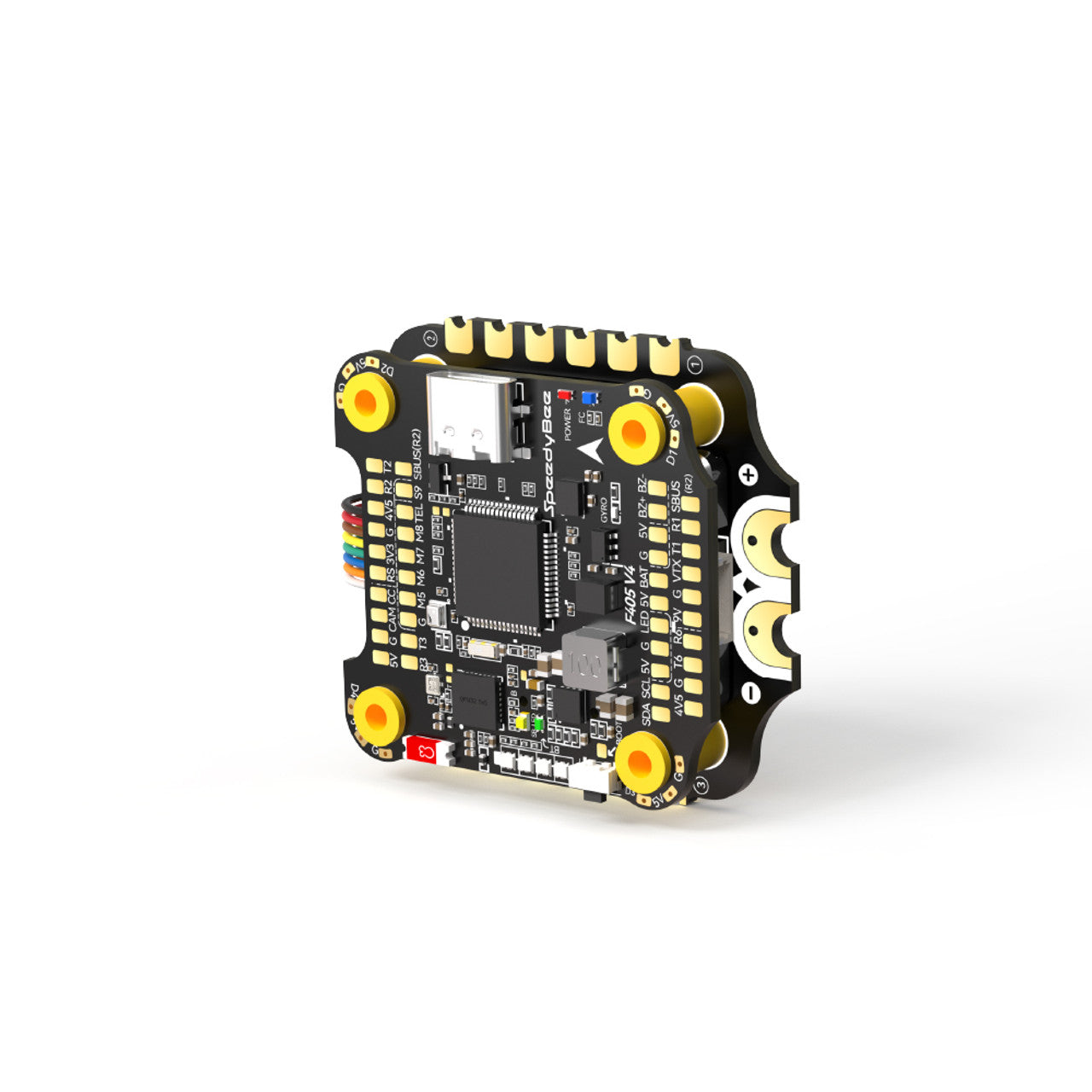

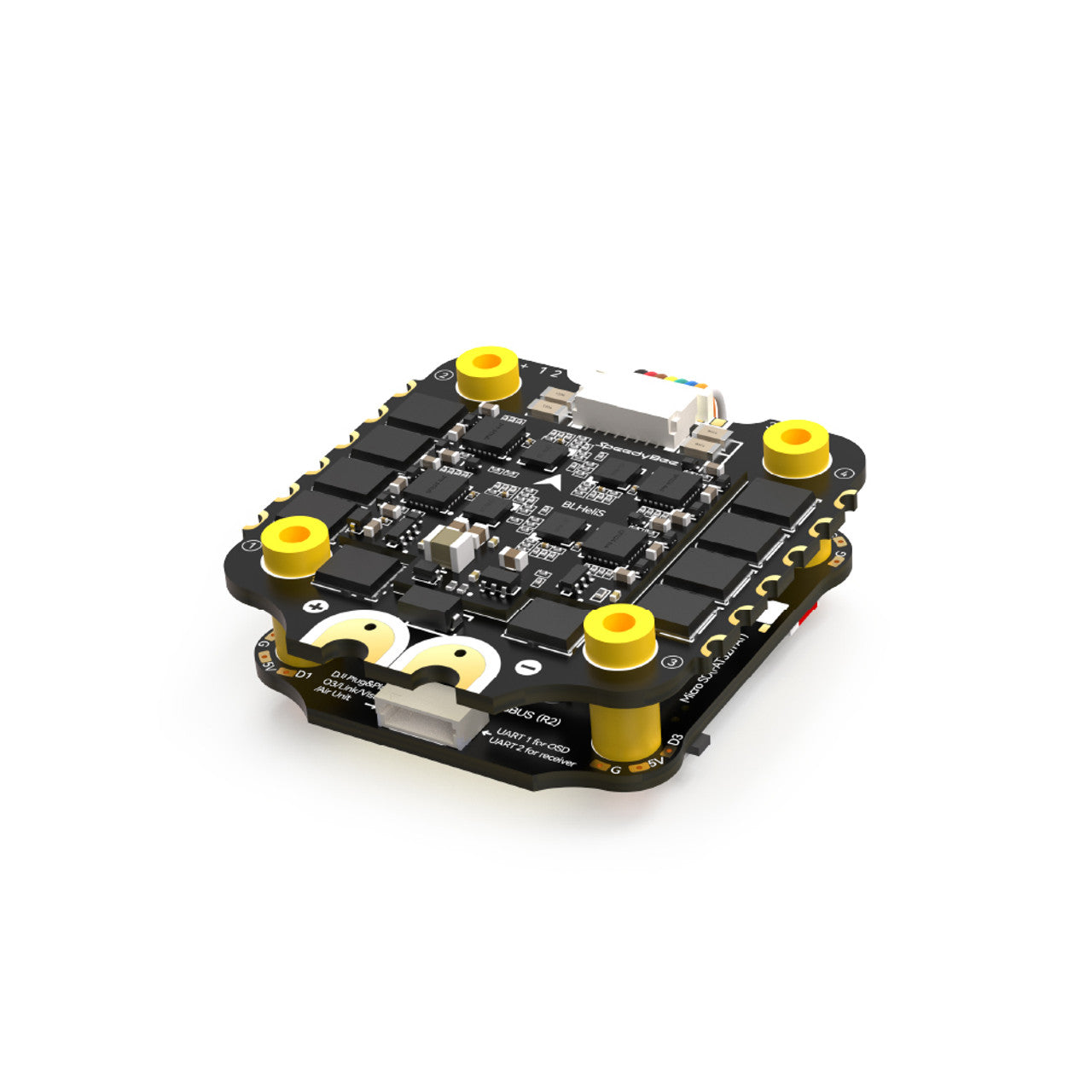

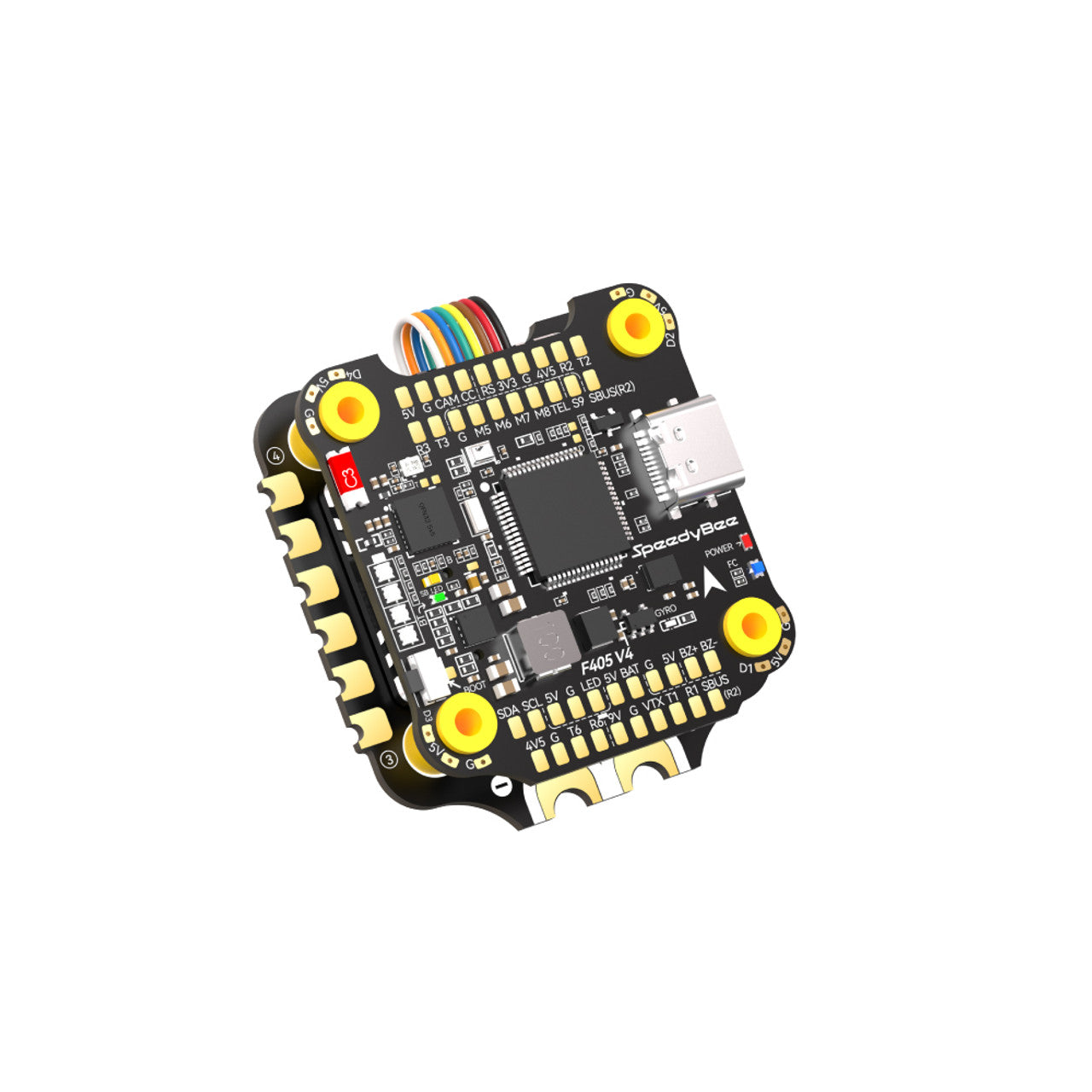

Stack SpeedyBee F405 V4 BLS 55A 30x30 FC&ESC
Stack SpeedyBee F405 V4 BLS 55A 30x30 FC&ESC
Brand: SpeedyBee
Regular price
€69,99
Regular price
€69,99
Sale price
€69,99
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

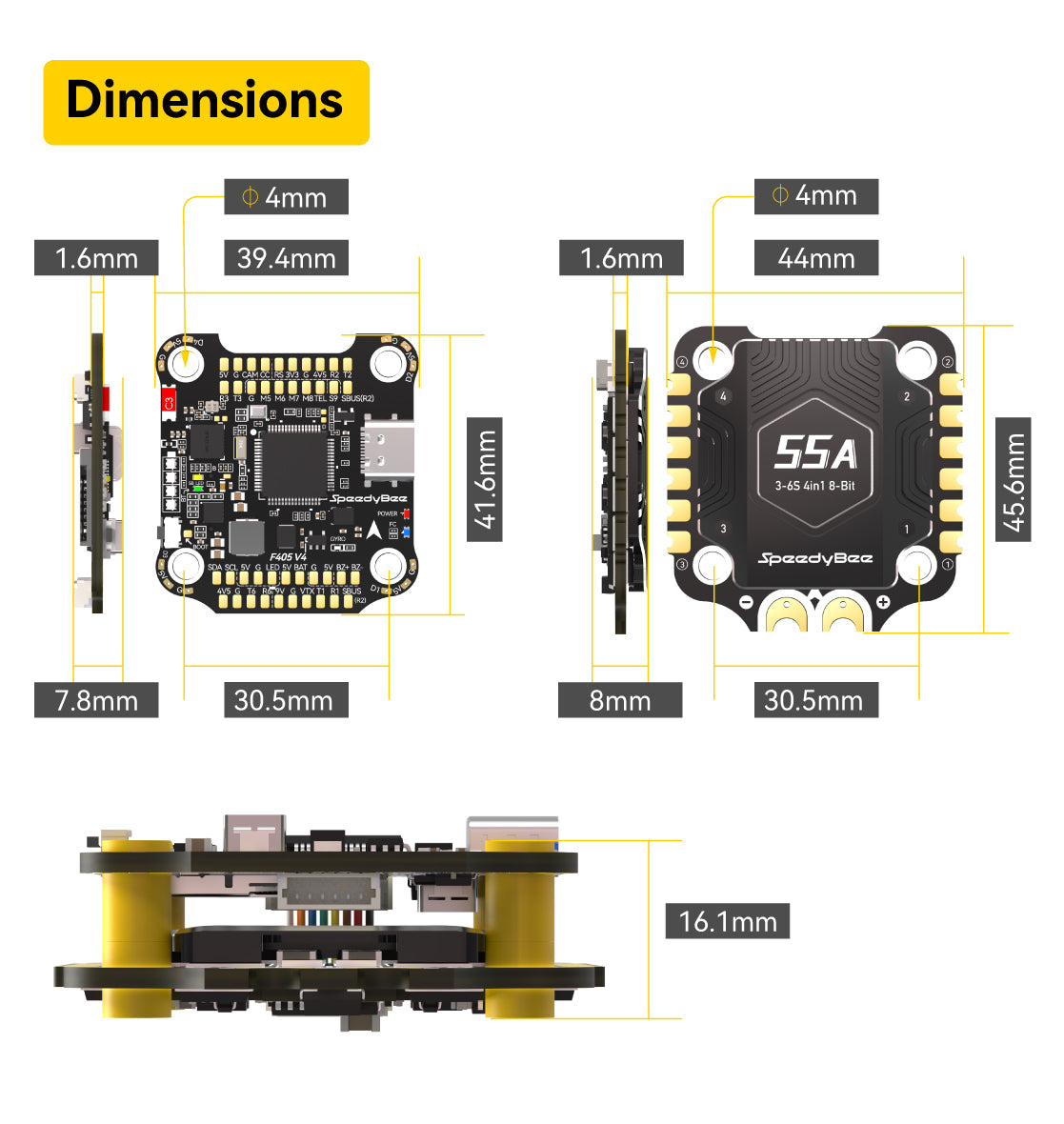

Stack SpeedyBee F405 V4 BLS 55A 30x30 FC&ESC Function: - Compact design fits 30.5 x 30.5mm mounting on various frames. - Precise control with STM32F405 MCU and ICM42688P gyroscope. - Continuous fixed current from SpeedyBee BLS 55A ESC. - Easy controller configuration on the fly via Bluetooth. - Compatible with 3S to 6S LiPo batteries. Specifications: SpeedyBee F405 V4 30x30 Flight Controller: MCU: STM32F405 IMU (Gyro): ICM42688P USB port type: Type-C Barometer: built-in OSD chip: AT7456E chip BLE Bluetooth: Supported. Used for Flight Controller configuration (MSP should be enabled with baud rate 115200 on UART4) WIFI: Not supported DJI air unit connection method: Two ways are supported: 6-pin connector or direct soldering DJI Air Unit 6 Pin Plug: Supported. Fully compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no need to change any cable Blackbox MicroSD card slot: Compatible with standard (SDSC) or high capacity (SDHC) cards up to 32GB Current Sensor Input: Supported (for SpeedyBee BLS 55A ESC, set Scale = 400 and Offset = 0) Power Input: 3S - 6S LiPo (via G, BAT pins/pads) 5V output: 9 groups of 5V output 9V output: 2 groups of 9V output 3.3V output: Supports current load up to 500mA 4.5V output: Supports current load up to 1A ESC signal: M1 - M4 on the bottom side, M5-M8 on the front side UART: 6 sets (UART1, UART2, UART3, UART4 (reserved for Bluetooth connection), UART5 (reserved for ESC telemetry), UART6) ESC telemetry: UART R5 (UART5) I2C: Supported for various sensors Traditional Betaflight LED Pad: Supported for WS2812 LEDs controlled by Betaflight firmware Buzzer: BZ+ and BZ- pad used for 5V buzzer BOOT Button: Supported for firmware flashing and LED control RSSI input: Supported (named as RS on the front) Smart Port / F.Port: Not supported Supported Flight Controller firmware: BetaFlight (default), INAV Target firmware name: SPEEDYBEEF405V4 Mounting: 30.5 x 30.5mm (hole diameter 4mm) Dimension: 41.6 (L) x 39.4 (W) x 7.8 (H) mm Weight: 10.5g SpeedyBee BLS 55A 30x30 4in1 ESC: Firmware: BLHeli_S J-H-40 Continuous current: 55A x 4 Burst Current: 70 (10 seconds) TVS protection diode: Yes External capacitor: 1000uF Low ESR capacitor (included) ESC protocol: DSHOT300/600 Power: 3-6S LiPo Output power: VBAT Current Sensor: Support (Scale=400 Offset=0) ESC telemetry: Not supported Mounting: 30.5 x 30.5mm (hole diameter 4mm) Dimension: 45.6 (L) x 44 (W) x 8 mm (H) Weight: 23.5g
