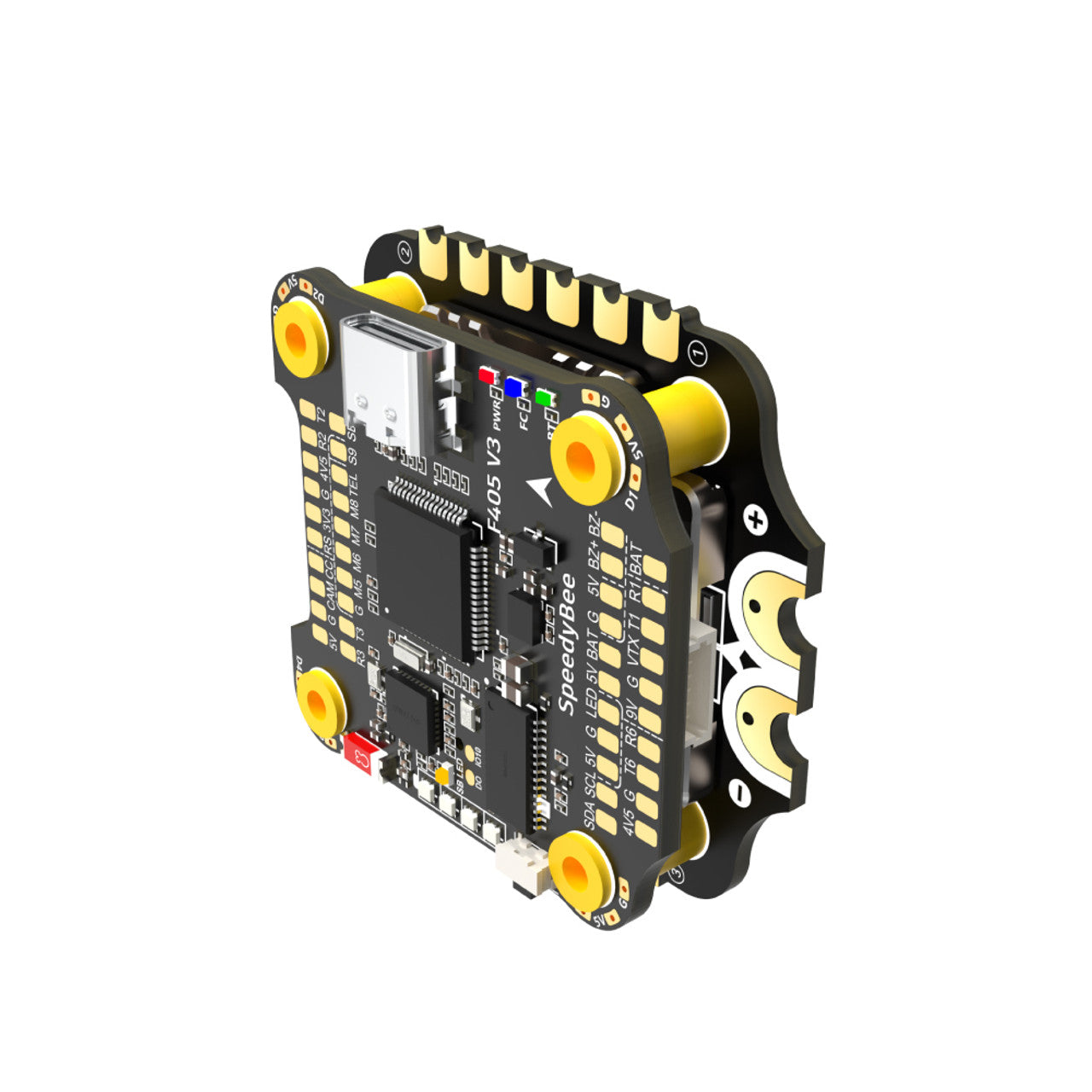

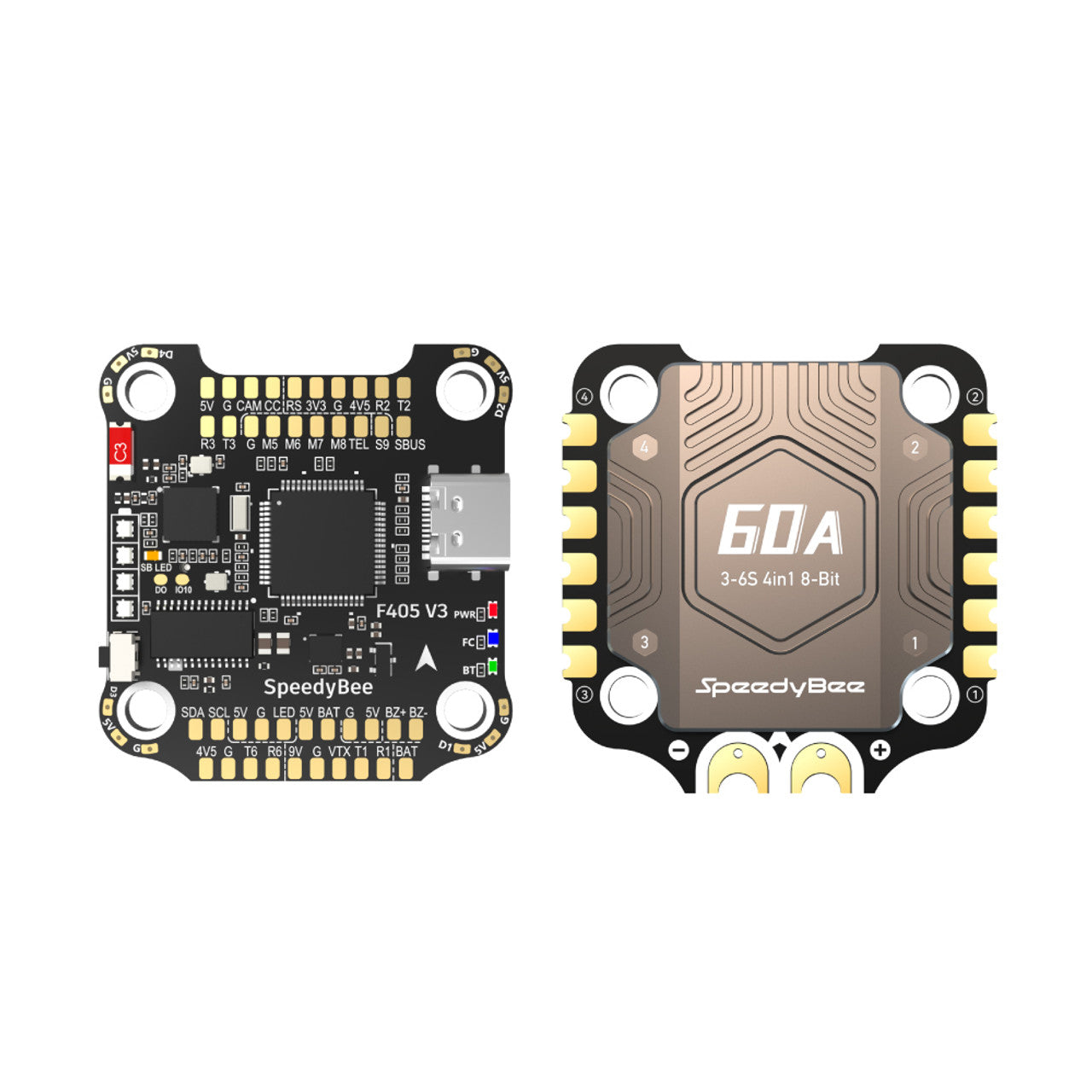

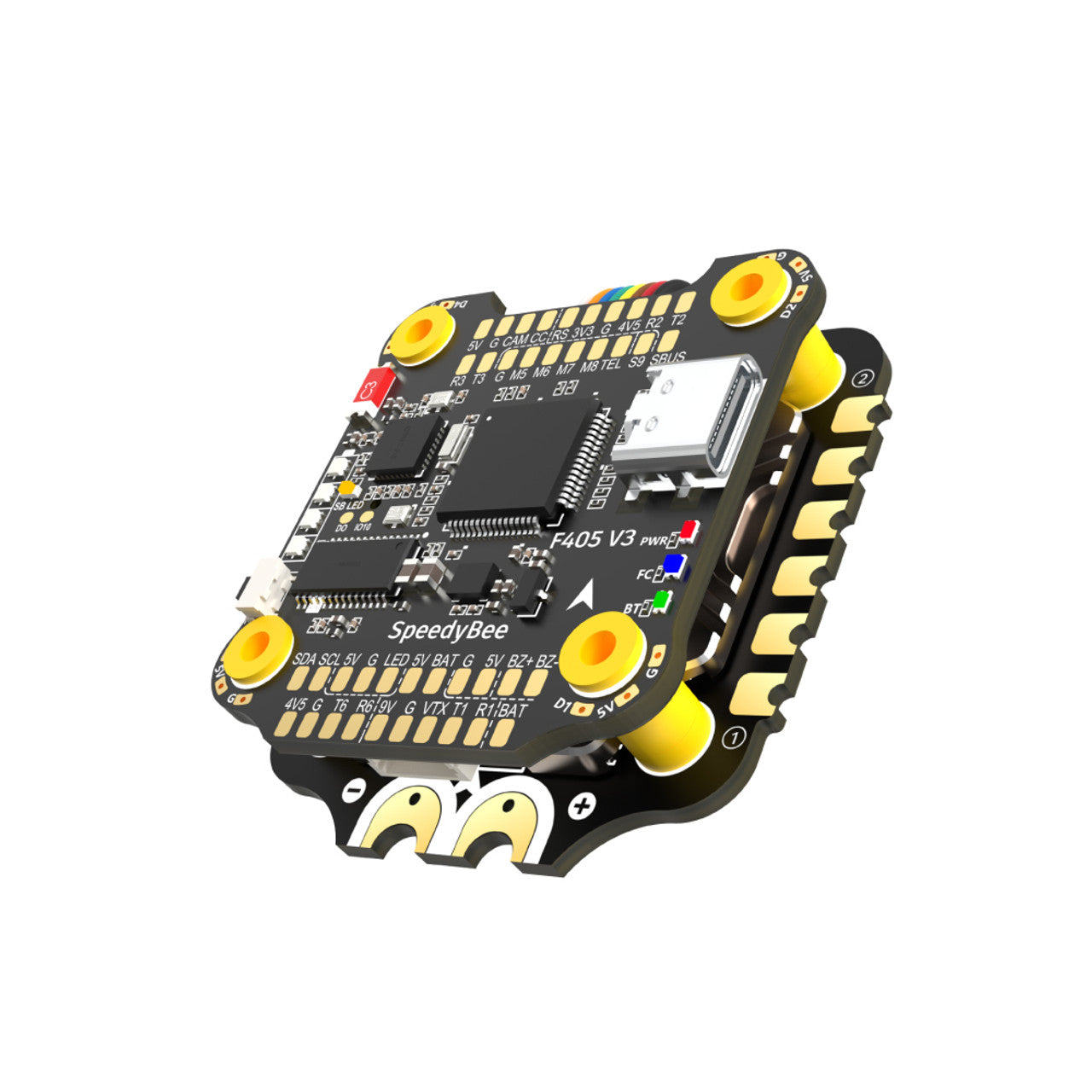

SpeedyBee F405 V3 BLS 60A 30x30 FC&ESC stack
The SpeedyBee F405 V3 BLS 60A 30×30 FC&ESC Stack is designed to provide unmatched performance and efficiency in free-flying FPV. Whether you're performing complex maneuvers or exploring creative lines, this kit gives you the precision and control you need to push the boundaries of aerobatics. With advanced gyro sensors and intelligent flight algorithms, this pod provides unmatched stability and control, allowing you to perform precise maneuvers with confidence and precision. With a standard 30x30mm form factor, the SpeedyBee stack effortlessly fits most drone frames for hassle-free installation and setup.
Specifications:

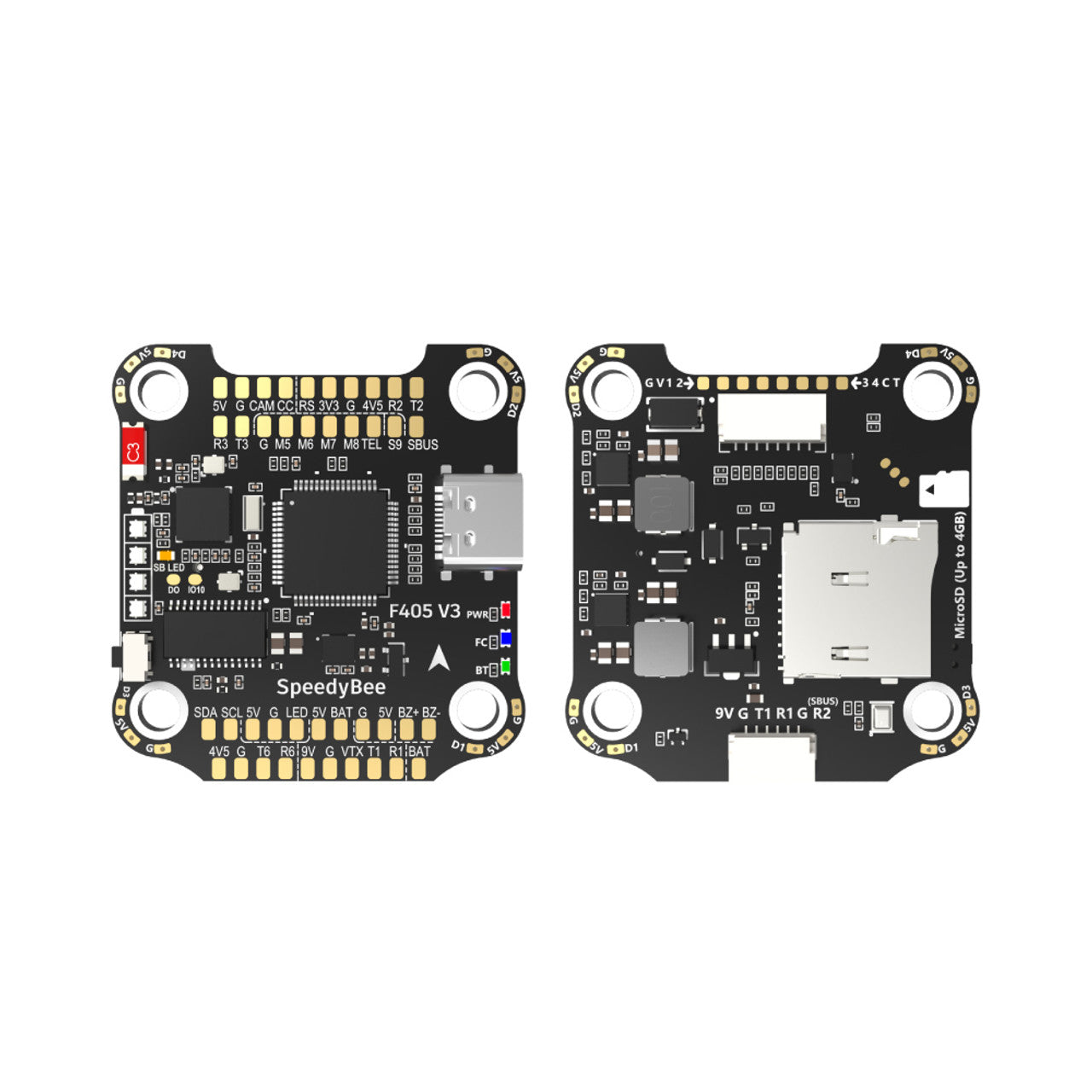

Product Name: SpeedyBee F405 V3 30x30 Flight Controller
MCU: STM32F405
IMU (gyroscope): BMI270
USB port type: Type-C
Barometer: built-in
OSD chip: AT7456E chip
BLE Bluetooth: Supported. Used for Flight Controller configuration (MSP should be enabled with baud rate 115200 on UART4)
WIFI: Not supported

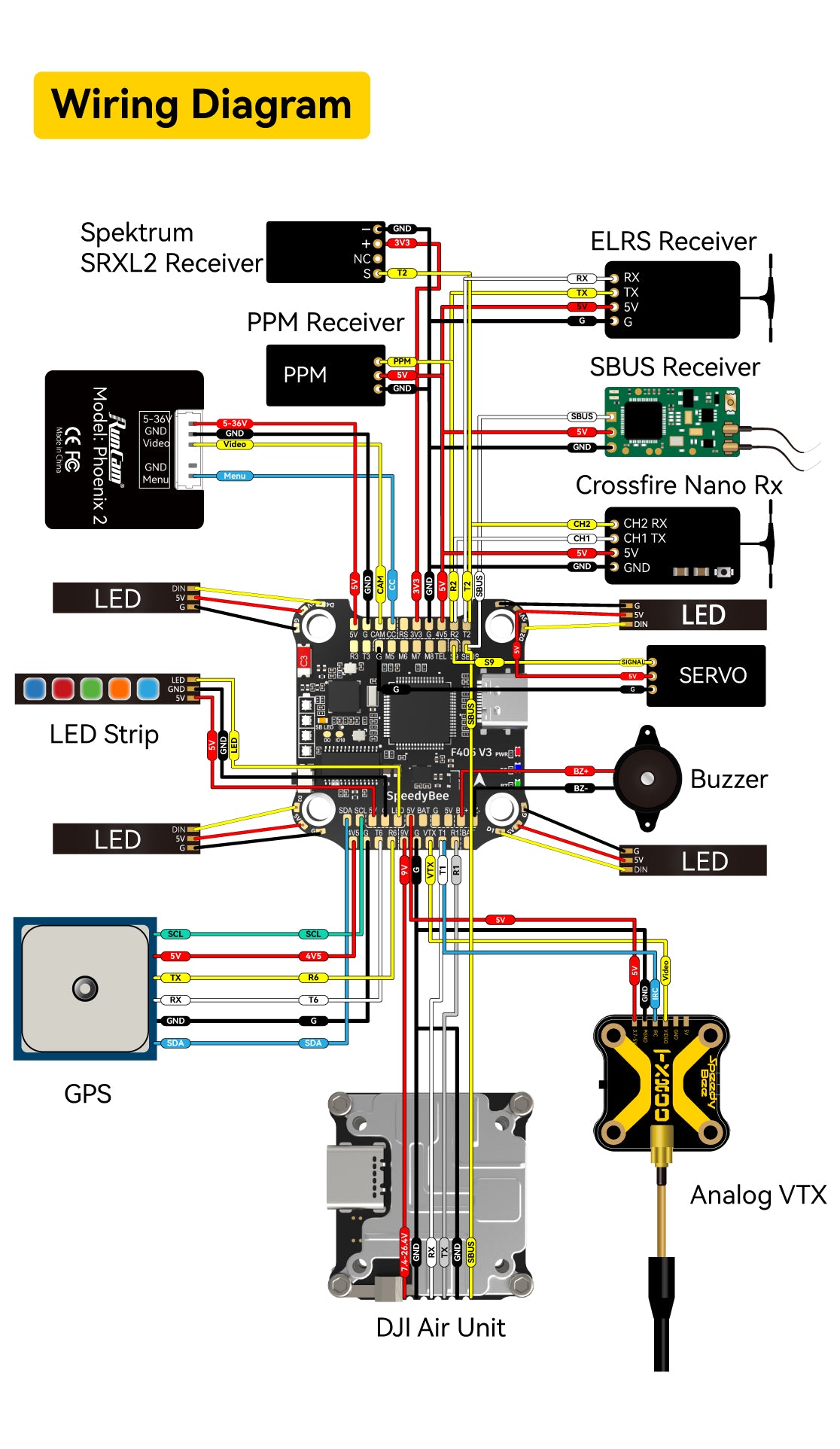

DJI air unit connection method: Two ways are supported: 6-pin connector or direct soldering.
DJI Air Unit 6 Pin Plug: Supported. Fully compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no need to change any cable.
Blackbox MicroSD card slot: Betaflight firmware requires the microSD card type to be either standard (SDSC) or high capacity (SDHC), so extended capacity (SDXC) cards are not supported (many high-speed U3 cards are SDXC). The card MUST also be formatted with a FAT16 or FAT32 file system (recommended). So you can use any SD card smaller than 32GB, but Betaflight can only recognize a maximum of 4GB.
BetaFlight Camera Control Pad: Yes (CC pad on front)
Current sensor input: Supported. For the SpeedyBee BLS 60A ESC, set Scale = 400 and Offset = 0.
Power Input: 3S - 6S Lipo (via G, BAT pins/pads from 8-pin connector or 8-pads on bottom)
5V output: 9 groups of 5V output, four +5V pads and 1 BZ+ pad (used for buzzer) on the front and 4x LED 5V pads. The total current load is 2A.
9V output: 2 groups of 9V output, one +9V pad on the front and the other included in the connector on the bottom. The total current load is 2A.
3.3V output: Supported. Designed for receivers with 3.3V input. Current load up to 500 mA.
4.5V output: Supported. Designed for the GPS receiver and module, even if the FC is powered via the USB port. Current load up to 1A.
ESC signal: M1 - M4 on the bottom side and M5-M8 on the front side.
UART: 6 sets (UART1, UART2, UART3, UART4 (reserved for Bluetooth connection)), UART5 (reserved for ESC telemetry), UART6
ESC telemetry: UART R5
I2C: Supported. SDA & SCL pads on the front. Used for magnetometer, sonar, etc.
Traditional Betaflight LED Pad: Supported. 5V, G and LED pads on the bottom of the front. Used for WS2812 LEDs controlled by Betaflight firmware.
Buzzer: BZ+ and BZ- pad used for 5V buzzer
BOOT Button: Supported
SSI Input: Supported. Named as RS on the front.
Smart Port / F.Port: Not supported
Supported Flight Controller firmware: BetaFlight (default), INAV (INAV firmware can only use Multishot (recommended) and OneShot125. Please note that DShot is not supported.)
Target firmware name: SPEEDYBEEF405V3

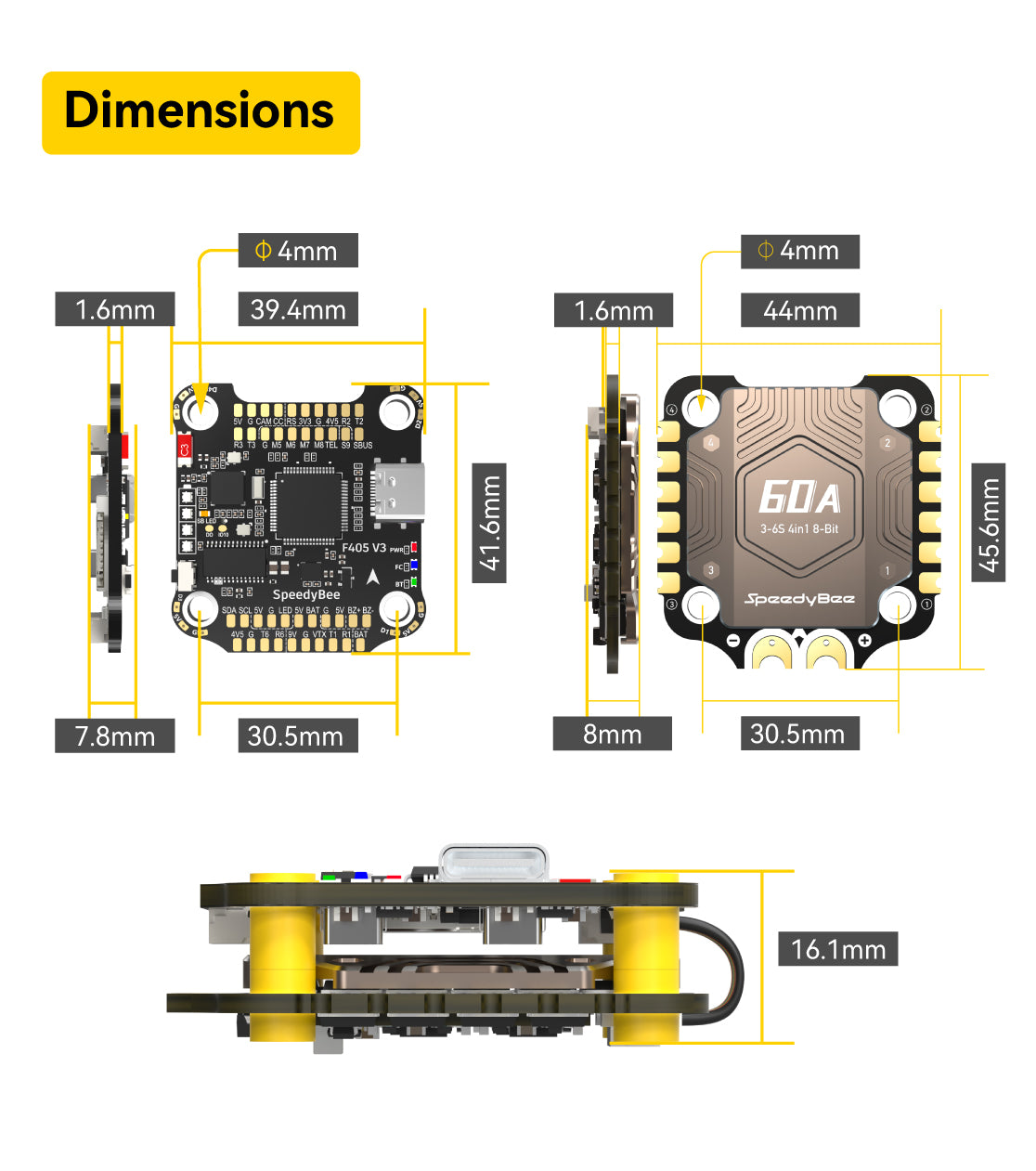

Mounting: 30.5 x 30.5mm (hole diameter 4mm)
Dimension: 41.6 (L) x 39.4 (W) x 7.8 (H) mm
Weight: 9.6g

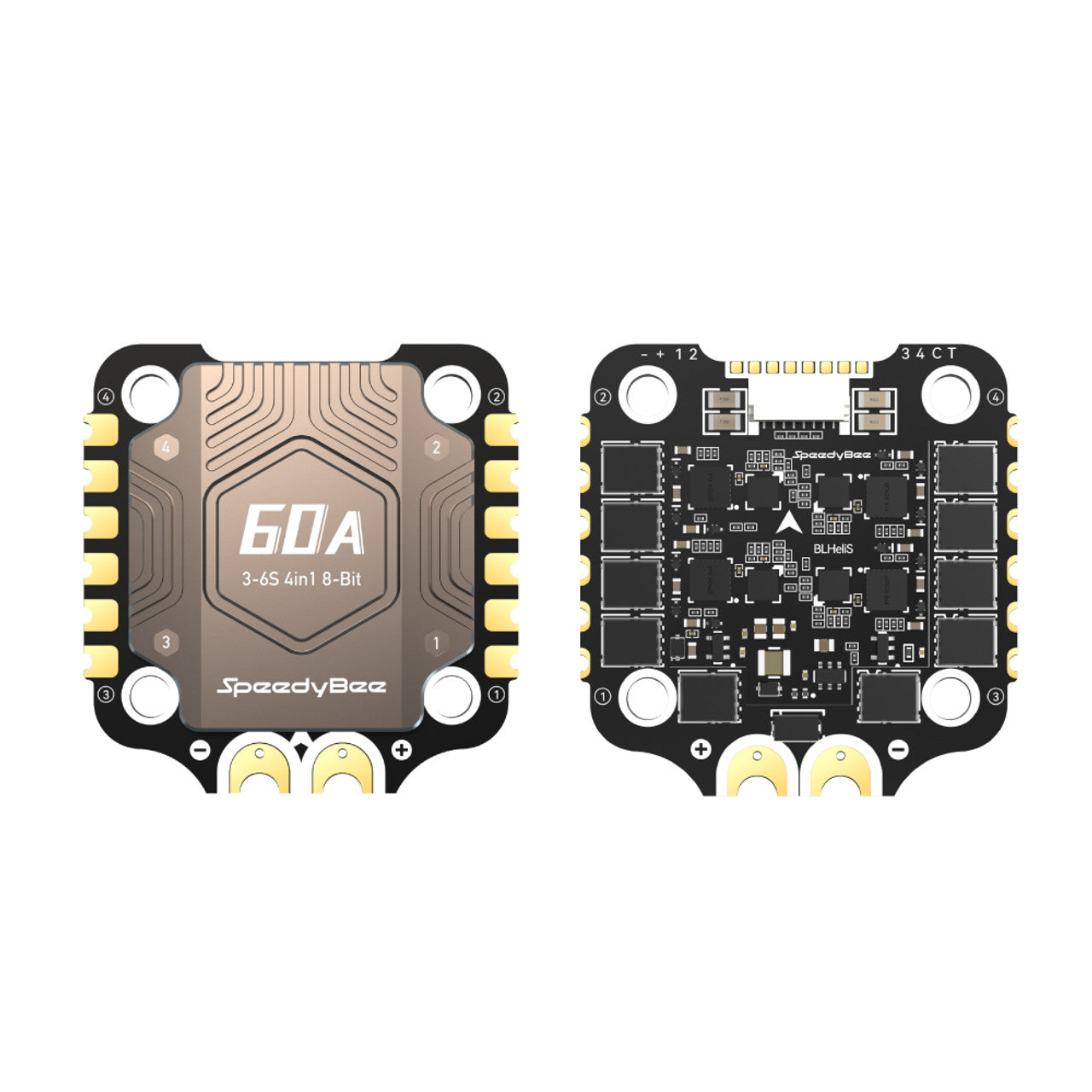

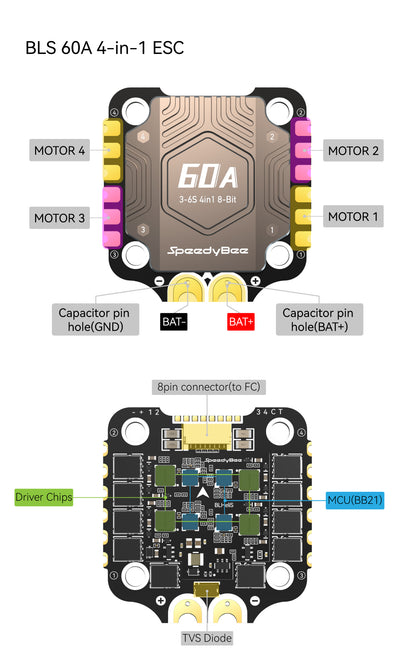

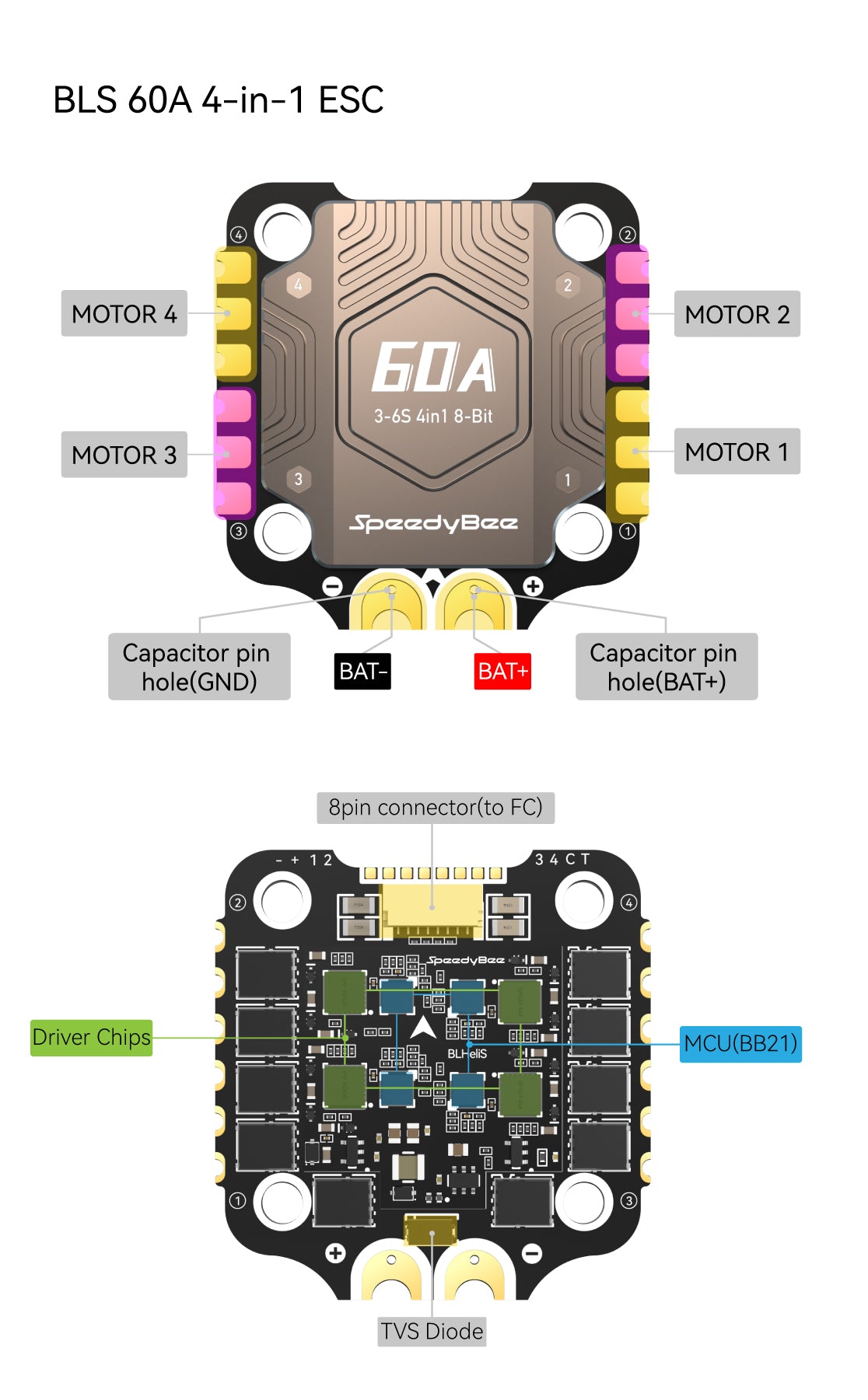

Product name: SpeedyBee BLS 60A 30x30 4-in-1 ESC
Firmware: BLHeli_S J-H-40
PC Configurator download link: https://esc-configurator.com/
Continuous current: 60A * 4
Explosive current: 80A (10s)
TVS protection diode: Yes
External capacitor: 1000uF Low ESR capacitor (included)
ESC protocol: DSHOT300/600
Power: 3-6S LiPo
Output power: VBAT
Current Sensor: Support (Scale=400 Offset=0)
ESC telemetry: Not supported
Mounting: 30.5 x 30.5mm (hole diameter 4mm)
Dimension: 45.6 (L) * 44 (W) * 8 mm (H)
Weight: 23.5g

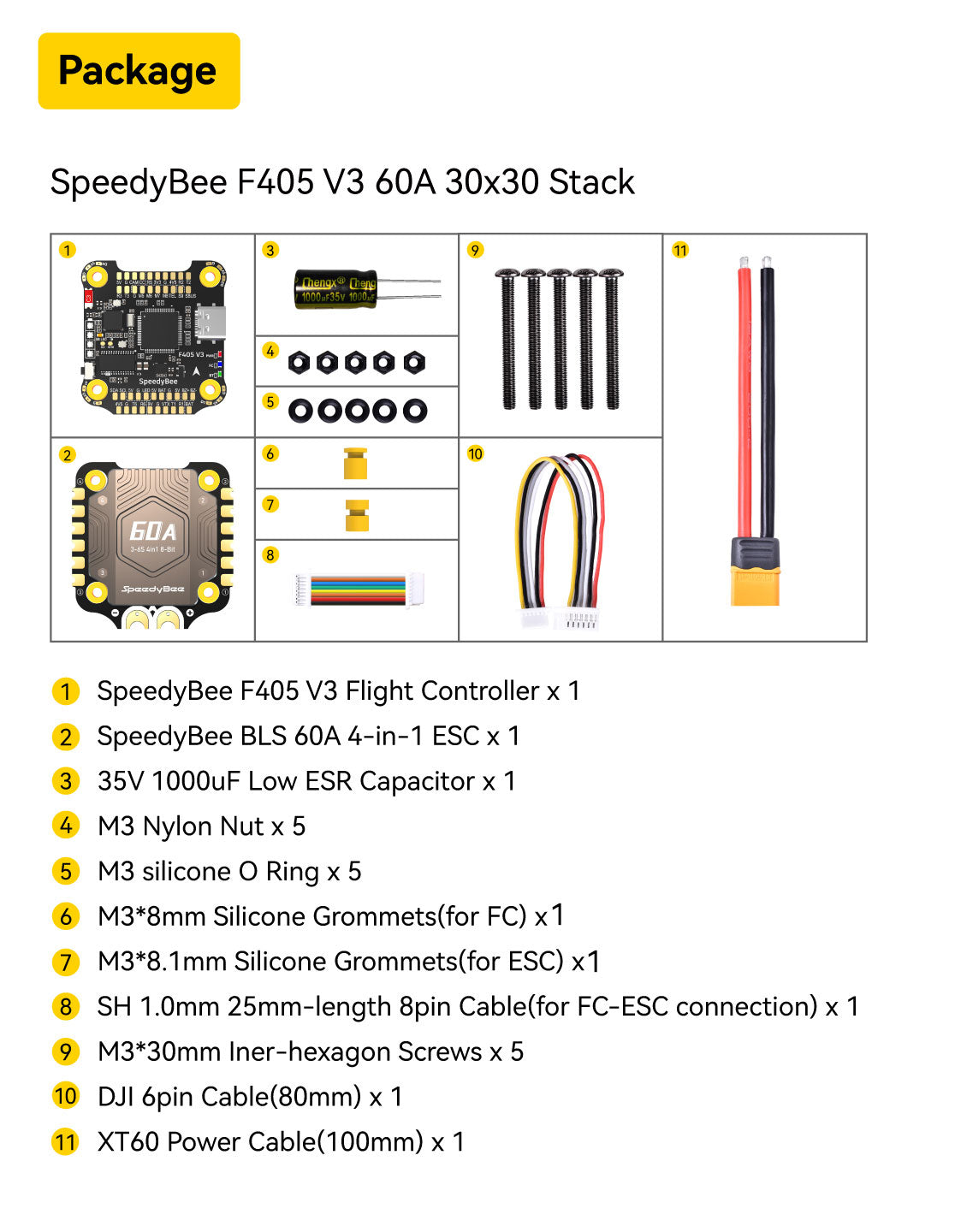

The package includes:
1x SpeedyBee F405 V3 flight controller
1x ESC SpeedyBee BLS 60A 4in1
1x 35V 1000uF Low ESR capacitor
5x M3 nylon nut
5x M3 silicone O-ring
1x M3*8mm silicone grommets (for FC)
1x M3*8.1mm silicone grommets (for ESC)
1x SH 1.0mm 25mm long 8pin cable (for FC-ESC connection)
5x M3*30mm hexagon socket head screws
1x DJI 6pin cable (80mm)
1x XT60 power cable (100mm)
