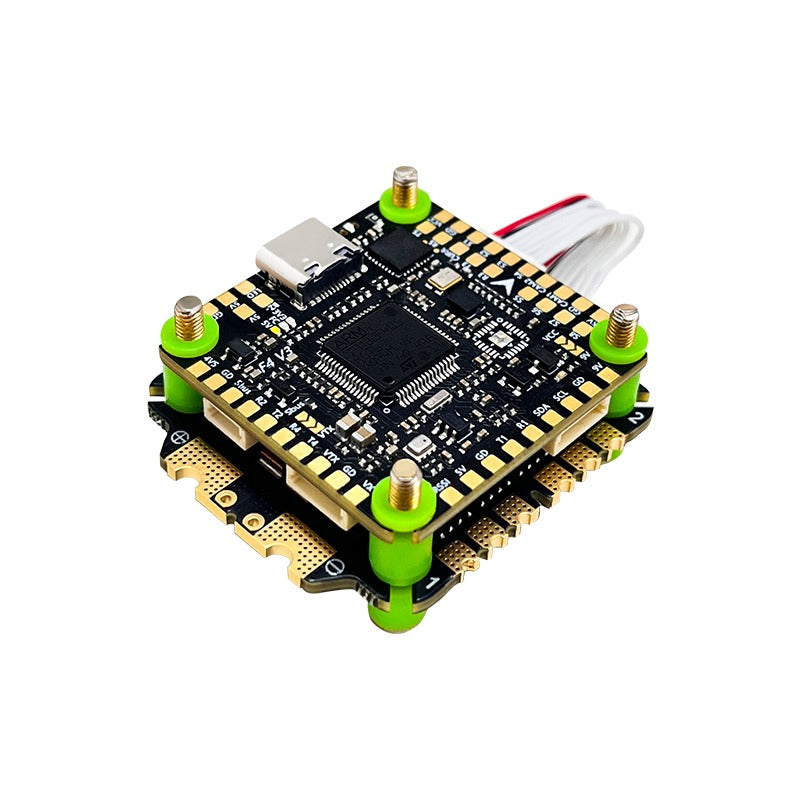

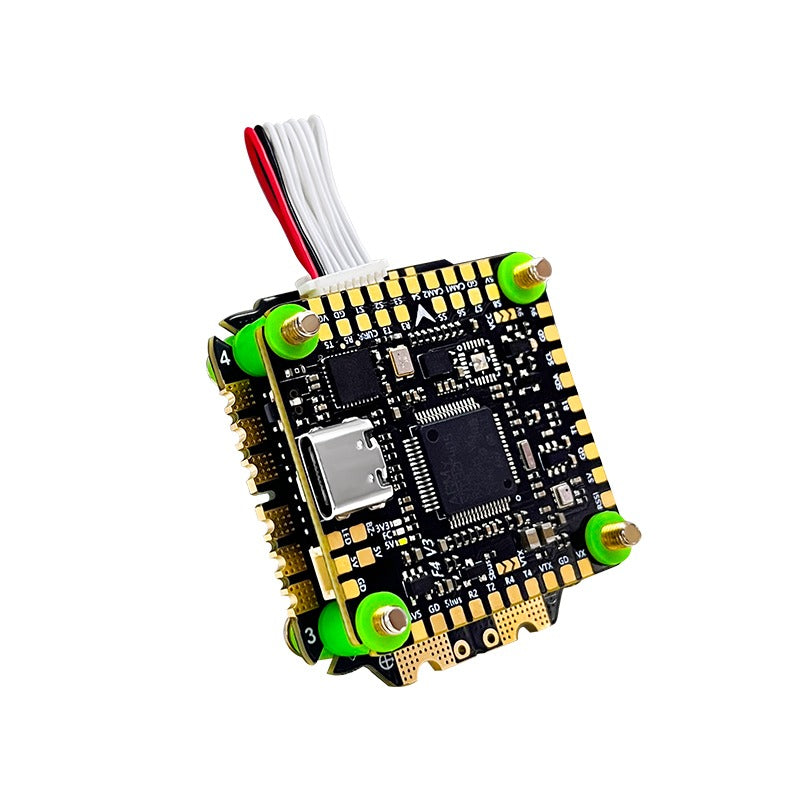

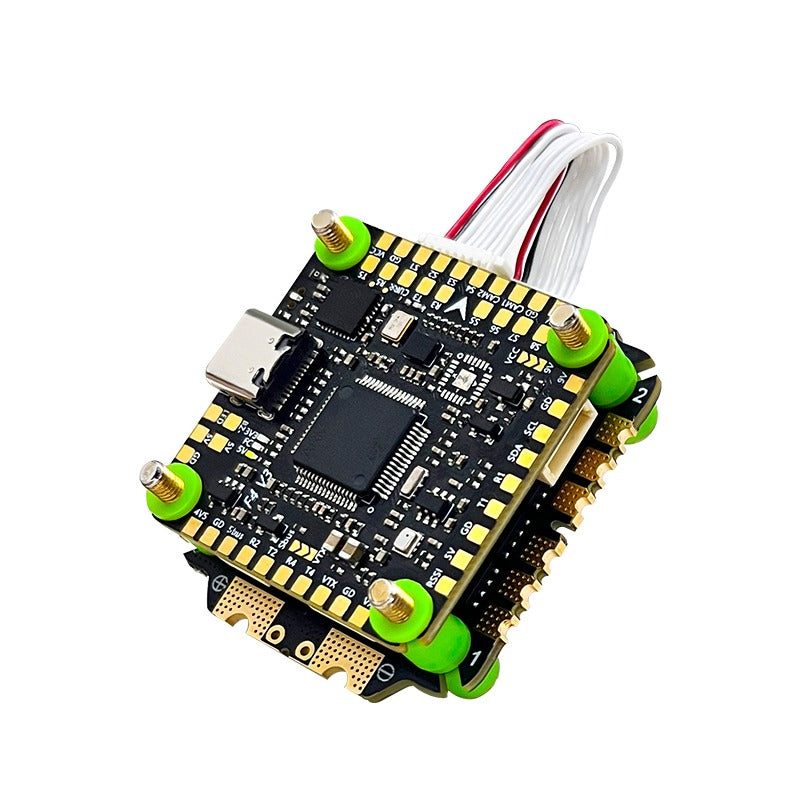

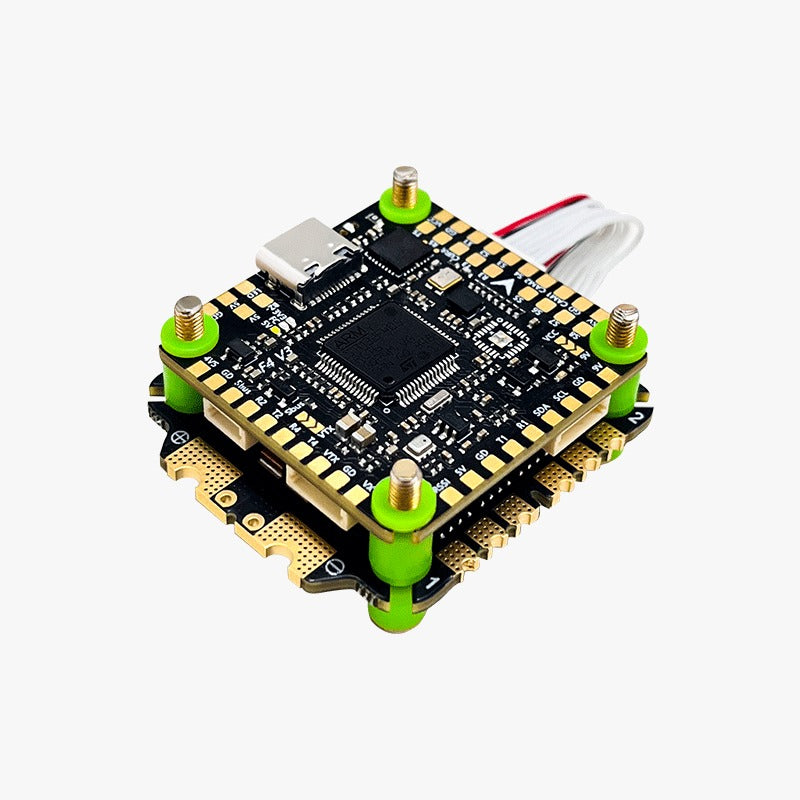

    Stack Pilotix F405 V3 ICM42688 BLS 75A

    Stack Pilotix F405 V3 ICM42688 BLS 75A

    Brand: Pilotix

    €80,00
    €80,00 €80,00
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

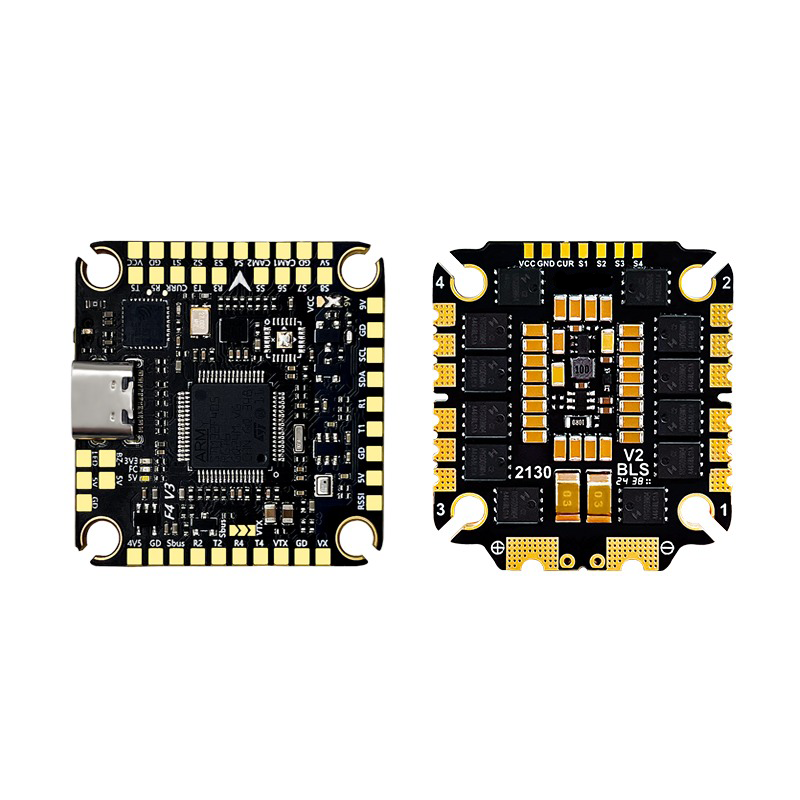

    F405 V3 Flight Controller

    The

    F405 V3 Flight Controller is a high-performance controller designed for drone enthusiasts looking for advanced features and seamless integration. It is powered by the STM32F405RGT6 chip, which ensures precise control and stability.

    • Main Chip: STM32F405RGT6
    • Gyroscope: ICM42688
    • Barometer: SPL06
    • OSD (On Screen Display): Supported
    • Black Box: 16MB built-in, or microSD support for extended logging
    • Output for Motors: 8 channels
    • LED Light Bar: Supported
    • Buzzer: Supported
    • Receiver Protocols: ELRS, CRSF, SBUS, FrSky, Futaba, Flysky, TBS Crossfire, DSMX
    • Universal Serial Ports: 5 options
    • Power Output: 5V/2.5A, 9V/3A
    • USB Connector: Type-C
    • DJI/Vista Digital Video Transmission: Supported
    • Camera Switching: Supported
    • SBUS and VTX Jumper Switching: Supported
    • 9V and VCC Jumper switching: Supported
    • Weight: 9.6g

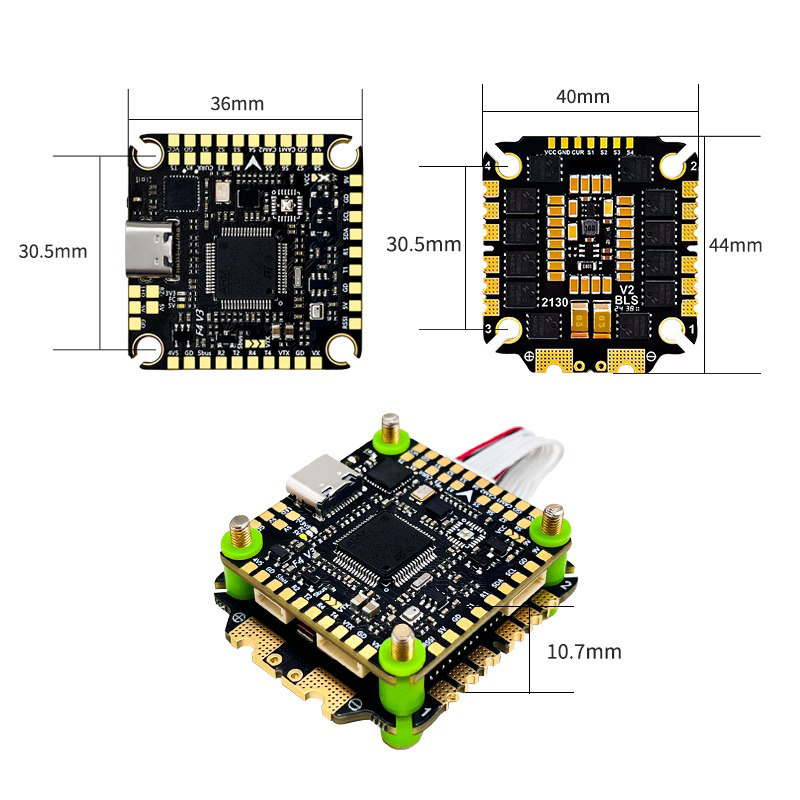

    • Dimensions: 36mm x 36mm
    • Mounting Holes: 30.5mm x 30.5mm
    • Firmware Name: F405V3/F405V3SD

    3075S Electronic Speed ​​Controller (ESC)

    The

    3075S ESC is designed for high performance and reliability, ideal for demanding drone setups. It supports a wide range of protocols and features telemetry and a built-in ammeter for better monitoring.

    • Continuous Maximum Current: 75A x 4
    • Instantaneous Maximum Current: 85A x 4
    • Input Voltage: 3-6S LiPo
    • ESC protocols: 150/300/600/1200 & MultiShot, OneShot, Proshot, PWM, etc.
    • MCU: EFM8BB51F16G
    • Built-in Ammeter: Supported
    • ESC Telemetry: Supported
    • Firmware: BluejayD X 30 24 v0.21.1-RC1.hex
    • Weight: 15.1g
    • Dimensions: 40mm x 44mm
    • Mounting Holes: M3, 30.5mm x 30.5mm
