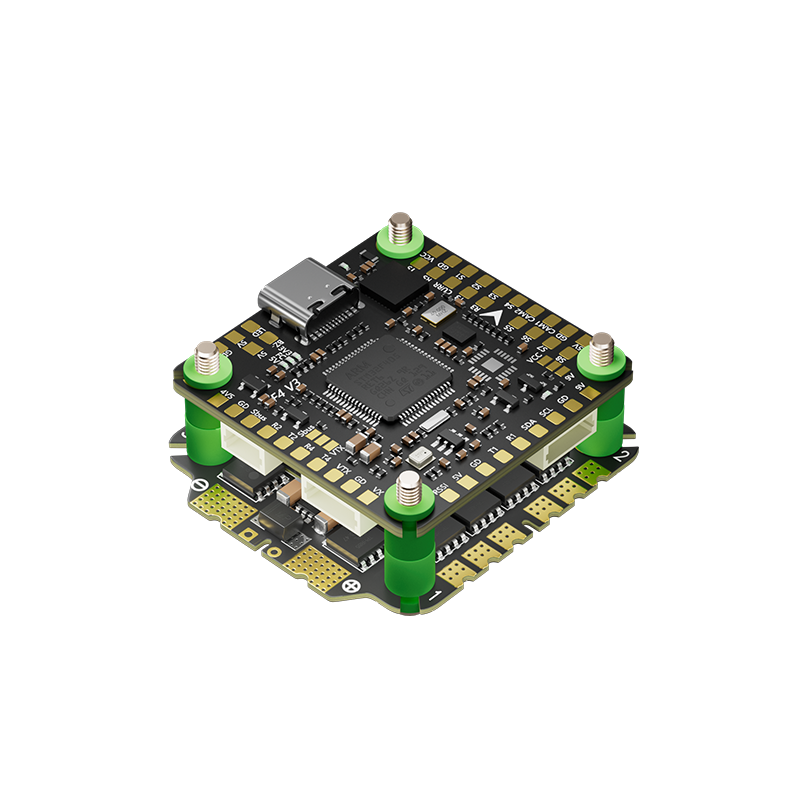

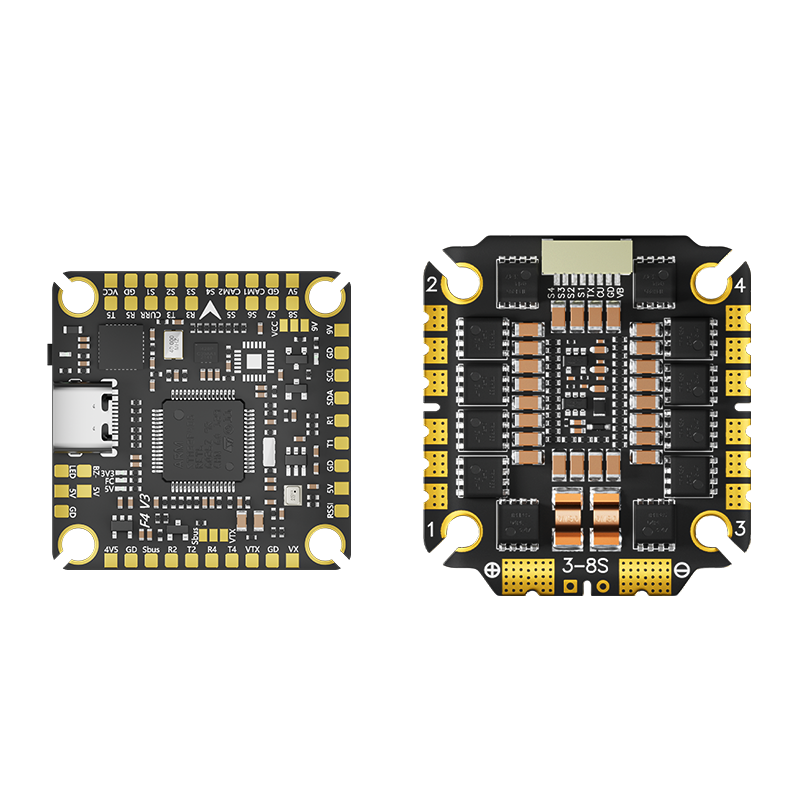

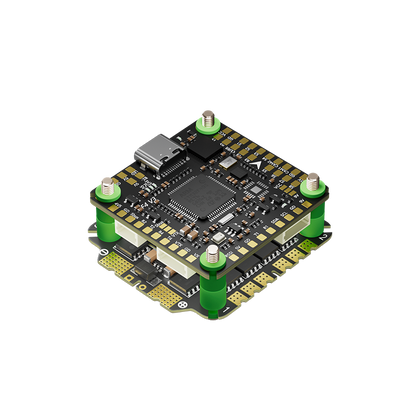

Stack Pilotix F405 V3 ICM42688 AM32 75A
Stack Pilotix F405 V3 is a high-performance control stack designed for demanding FPV pilots. Equipped with STM32F405RET6 processor and ICM42688P gyroscope, it provides very precise control and fast response. The ESC ensures a smooth and efficient power supply and supports 3-6S LiPo settings for maximum flexibility. With 16MB of Black Box memory, a built-in barometer and OSD support, this stack is ideal for both freestyle and cinematic flying. It has a standard 30.5mm mounting pattern ensuring easy installation in a wide variety of frames. Stack F405 V3 from Pilotix provides the stability, performance and reliability you need.
Specifications:
FC Parameters
PROCESSOR: STM32F405RET6
Gyroscope: ICM42688P
Barometer: SPL06-001
OSD: Support
Black Box: 16MB
Motor Output: 1: 8 Channels
LED Strip: Support
Buzzer: Support
UART: 5 Channels
BEC Output: 5V/2.5A, 9V/3A
Firmware: PILOT/PILOTIXF405(STM32F405)
Input Voltage: DC 12V-25V (3-6S Lipo)
Receiver: ELRS/CRSF/S.BUS/Frsky/Futabayfysky/TBs Crossfre/DSMX

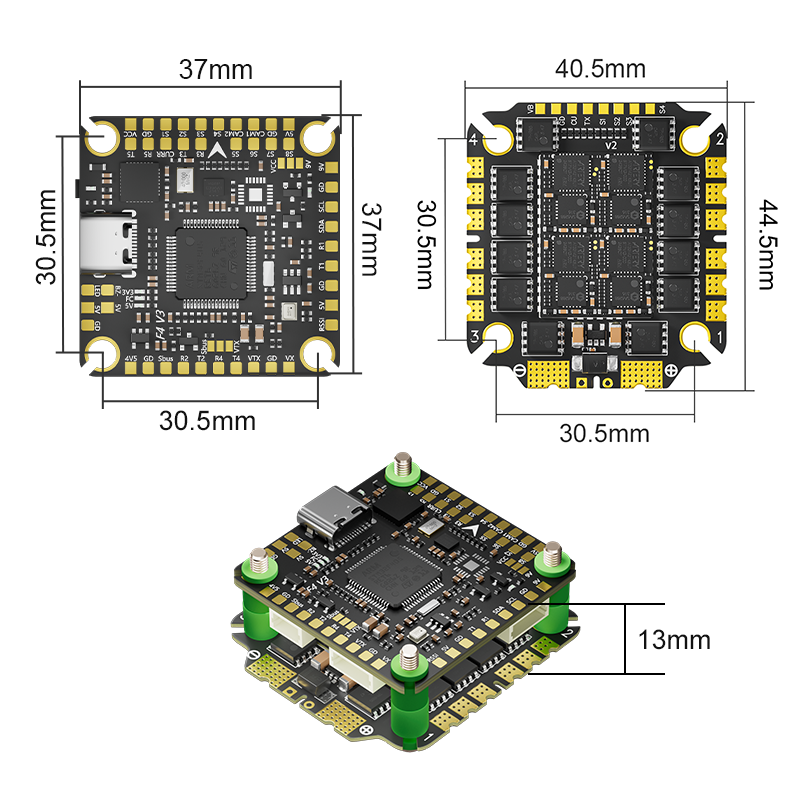

Mounting Hole: M3, 30.5x30.5 mm
Dimensions: 37x37mm
Weight: 9.4 g
ESC Parameters
Firmware: AM32_AORC_K_A_F421_2.16.hex
Maximum Continuous Current: 75Ax4
Telemetry: Supported
ESC Programming: AM32
Current Scaling: 85Ax4
BEC: NO
Input Voltage: DC 9V-40V (3-8S Lipo)
Working Humidity: 20~95%
Dimensions: 44.5x40.5mm
Weight: 15.8g
Input signal: DShot300/600, PWM
Mounting hole: M3, 30.5x30.5mm
Current meter: 158
Package includes:
1x Stack Pilotix F405 V3 ICM42688 AM32 75A
