Stack Pilotix F405 V3 ICM42688 AM32 60A v1.0

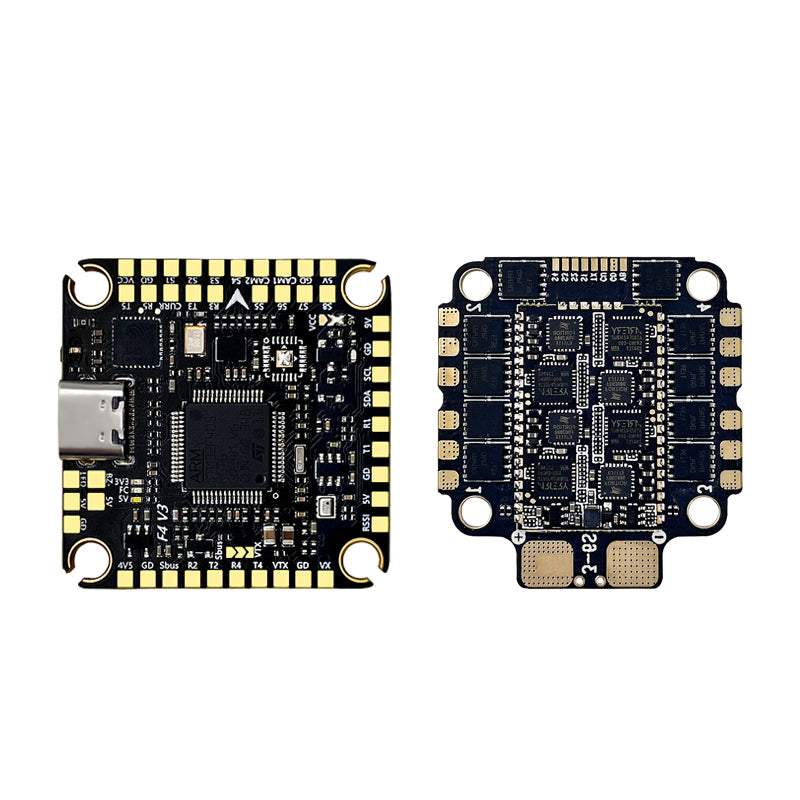

Stack Pilotix F405 V3 60A is an advanced FC (Flight Controller) and Electronic Speed Controller (ESC) combination designed for high performance drones. The F405 processor provides fast and accurate flight control for smooth and stable maneuvers. The ESC 60A offers enough power for a wide range of engines and propeller combinations, ensuring reliable and efficient performance. This version includes soldering for two cameras.
Specifications:
-
FC (flight controller)
- CPU: STM32F405RGT6
- Gyroscope: ICM42688
- Barometer: SPL06
- OSD: support
- Black box: 16MB/microSD
- Motor output: 8CH
- LED strip: support
- Buzzer: Support
- Receiver protocol: ELRS/CRSF/SBUS/Frsky/Futaba/Flysky/TBS Crossfire/DSMX
- Universal serial port: 5 ways optional
- Output power: 5V/2.5A, 9V/3A
- USB connector: Type-C
- DJi/Vista Digital sky End: support
- Camera switching: support
- Switching of Sbus and VTX jumpers: support
- Switching 9V and VCC jumpers: support
- Weight: 9.6g

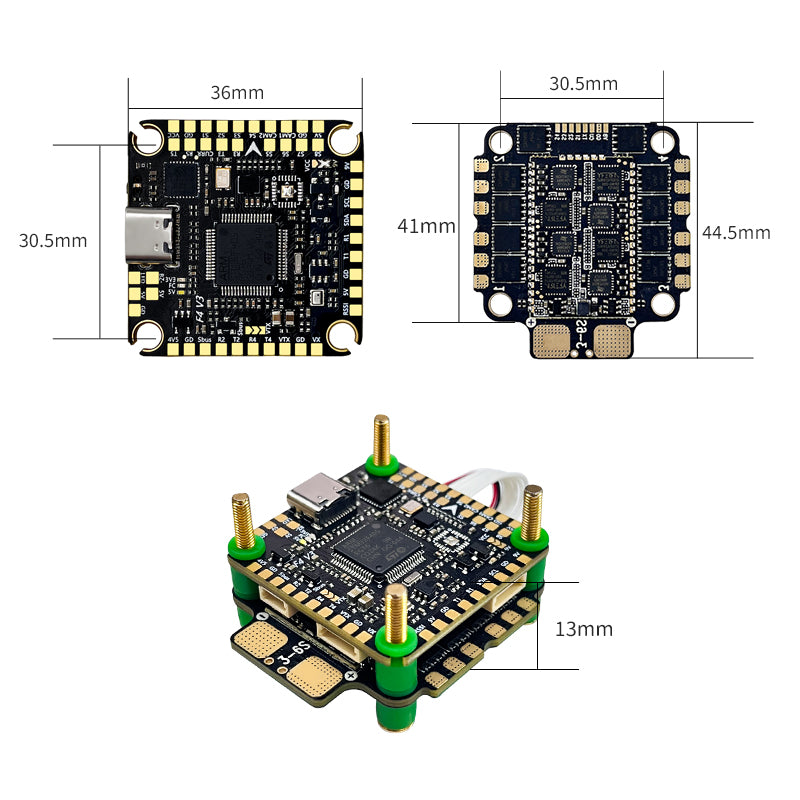

- Dimensions: 36mm x 36mm
- Mounting holes: 30.5mm x 30.5mm
- Firmware Name: F405V3/F405V3SD
-
ESC (Electronic Speed Controller)
- Continuous maximum current: 60AX4
- Impulse maximum current: 70AX4
- Input voltage: 3-6S Lipo
- Electrical distribution protocol: Dshot300/Dshot600/PWM/Bi-directional Dshot
- MCU: AT32F421K8U7
- Built-in ammeter: support
- ESC telemetry: support
- Firmware: AM32_AT32PB4_540_F421_2.12.hex
- Weight: 13.9g
- Dimensions: 40 x 40.7 mm
- Mounting holes: M3 30.5 x 30.5 mm
Package includes: 1x Stack Pilotix F405 V3 ICM42688 AM32 60A v1.0
